TASK 79-22-41-300-007 Oil Scavenge Pump - Related Parts - Repair The Surfaces Of The Oil Scavenge Pump Spacer Assembly, Repair-007 (VRS5340)
Effectivity
FIG/ITEM | PART NO. |
01-200 | 4B7315 |
01-200 | 4B7320 |
01-200 | 4B7342 |
01-211 | 4B7343 |
01-197 | 4B7368 |
01-225 | 4B7369 |
01-507 | 4B7384 |
01-500 | 4B7385 |
General
Price and availability - none
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
NOTE
To identify the consumable materials refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Refer to SPM TASK 70-35-03-300-501.
Polish or blend in a circumferential direction, not along the axis of the part.
Use CoMat 05-020 WATERPROOF SILICON CARBIDE abrasive paper.
Reject the spacer if the grooves or excessive wear cannot be fully removed.
Reject the spacer if the thickness is less than 0.9841 in. (24.995 mm) after the blend operation.
Isolated circumferential scores are permitted if they are not deeper than 0.008 in. (0.2 mm).
Hand polish and blend the damage on the spacer surfaces
SUBTASK 79-22-41-350-055 Blend Repair the Spacer Assembly (01-200) Surfaces

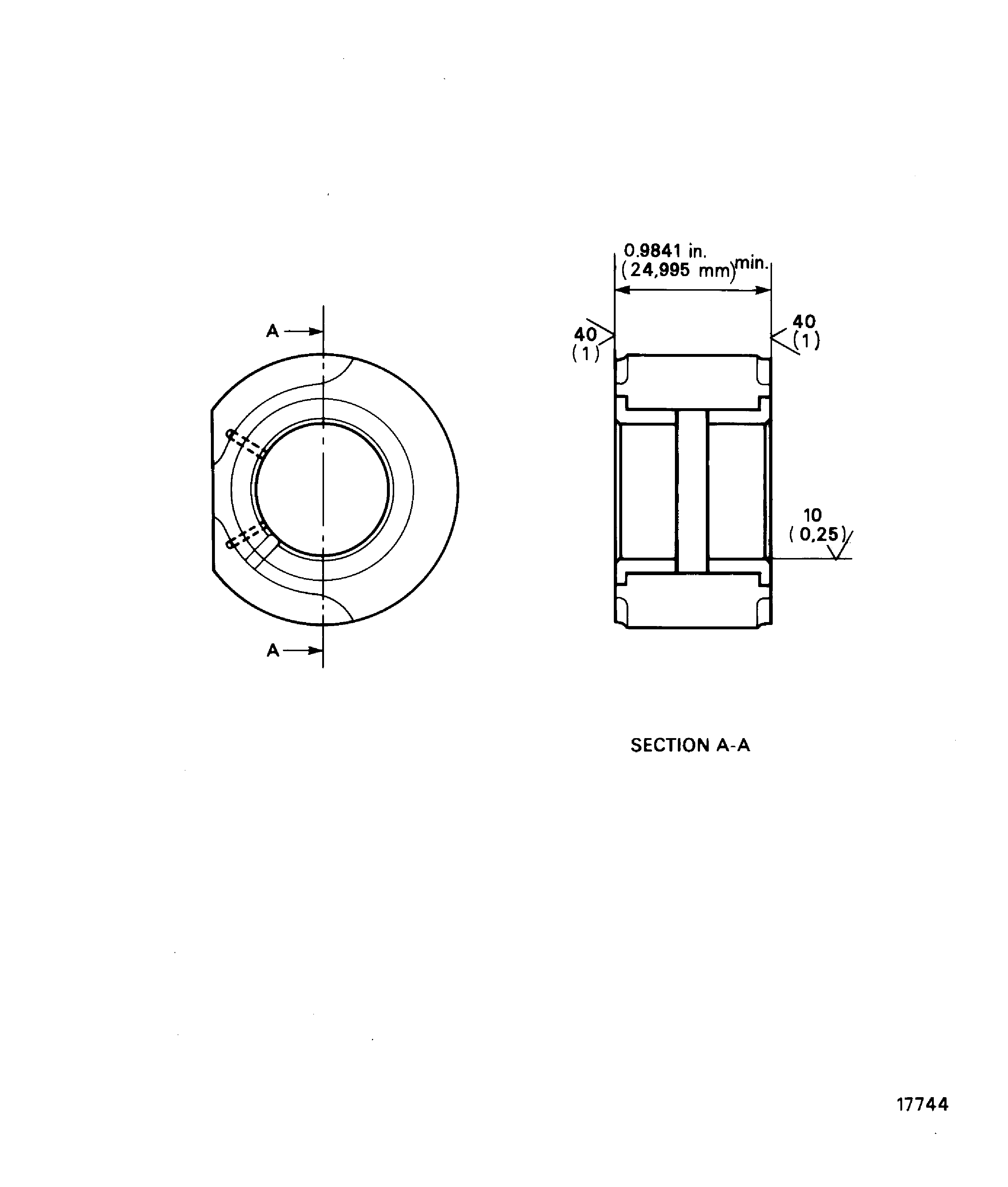

Figure: Repair Details
Repair Details
