TASK 79-22-41-300-025 Oil Scavenge Pump - Related Parts - Repair The Surfaces Of The Oil Scavenge Pump Casing Assembly, Repair-025 (VRS5362)
General
Price and availability - none
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Refer to SPM TASK 70-35-03-300-501.
Use CoMat 05-020 WATERPROOF SILICON CARBIDE abrasive paper.
Hand polish and blend. The maximum depth of the blending is 0.037 in. (0.94 mm)
Repair, VRS5363 (Repair-026) TASK 79-22-41-300-026.
Repair the surface protection
SUBTASK 79-22-41-350-065 Blend Repair the Casing Assembly (01-690) Rough Surface at Location 1
Refer to Figure.
Refer to SPM TASK 70-35-03-300-501.
Use CoMat 05-020 WATERPROOF SILICON CARBIDE abrasive paper.
Hand polish and blend. The maximum depth of the blending is 0.010 in. (0.25 mm)
Not seal surfaces at location 2
Refer to SPM TASK 70-35-03-300-501.
Use CoMat 05-020 WATERPROOF SILICON CARBIDE abrasive paper.
Polish or blend in a circumferential direction, not along the axis of the part.
Hand polish and blend. The maximum depth of the blending is 0.005 in. (0.13 mm)
Seal surfaces at location 3
Repair, VRS5363 (Repair-026) TASK 79-22-41-300-026.
Repair the surface protection
SUBTASK 79-22-41-350-066 Blend Repair the Casing Assembly (01-690) Machined Surfaces

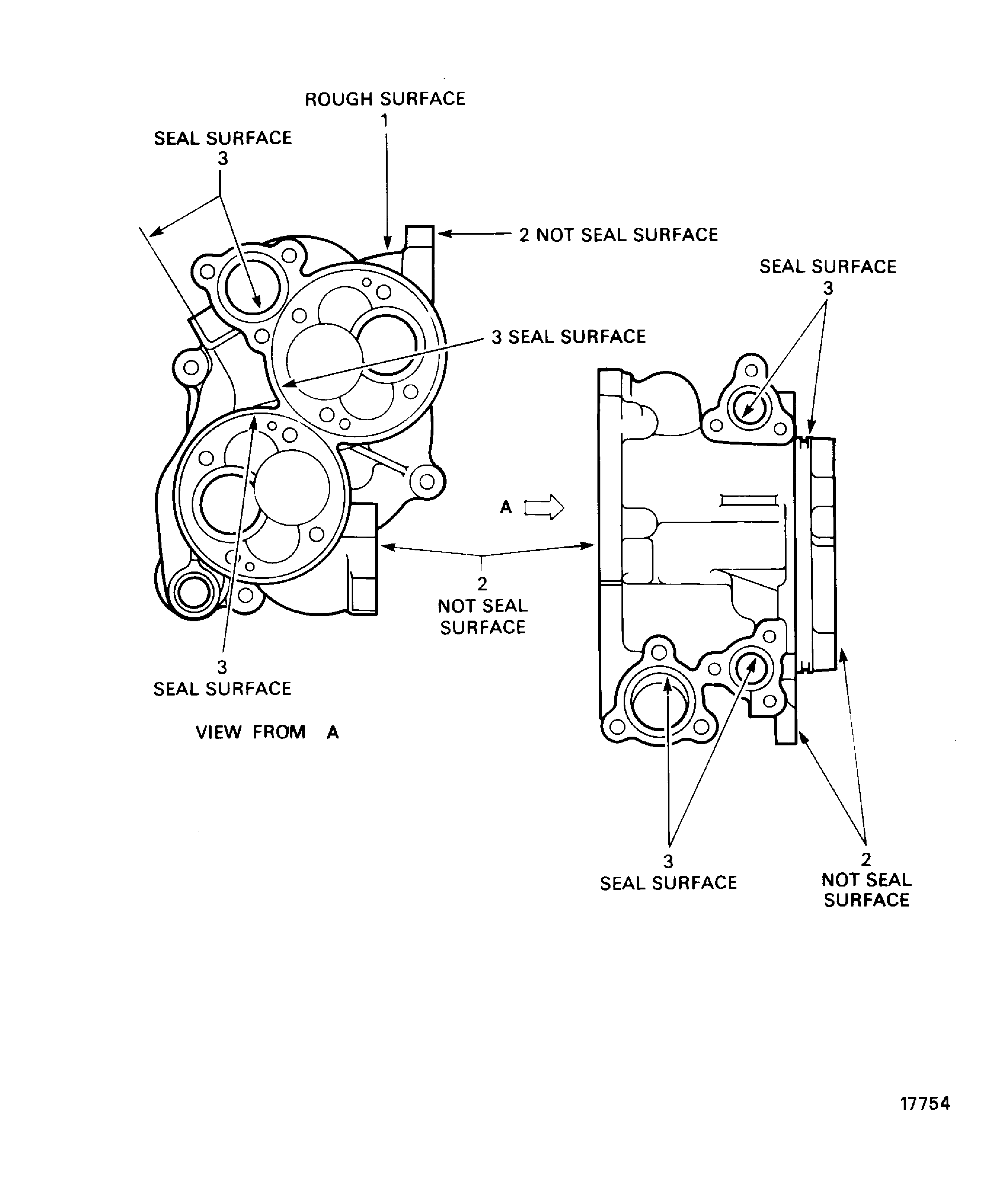

Figure: Locations On The Casing Assembly
Locations On The Casing Assembly
