TASK 79-22-41-300-037 Oil Scavenge Pump - Related Parts - Repair The Mating Surface Of The Outlet Oil Tube, Repair-037 (VRS5374)
General
Price and availability - none
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
NOTE
To identify the consumable materials refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 02-140 TRIANGULAR INDIA STONE, FINE GRIT | LOCAL | CoMat 02-140 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Refer to SPM TASK 70-35-03-300-501.
Hand polish and blend. The maximum depth of the blending is 0.01 in. (0.25 mm)
Repair the surface
SUBTASK 79-22-41-350-093 Repair the Mating Surface

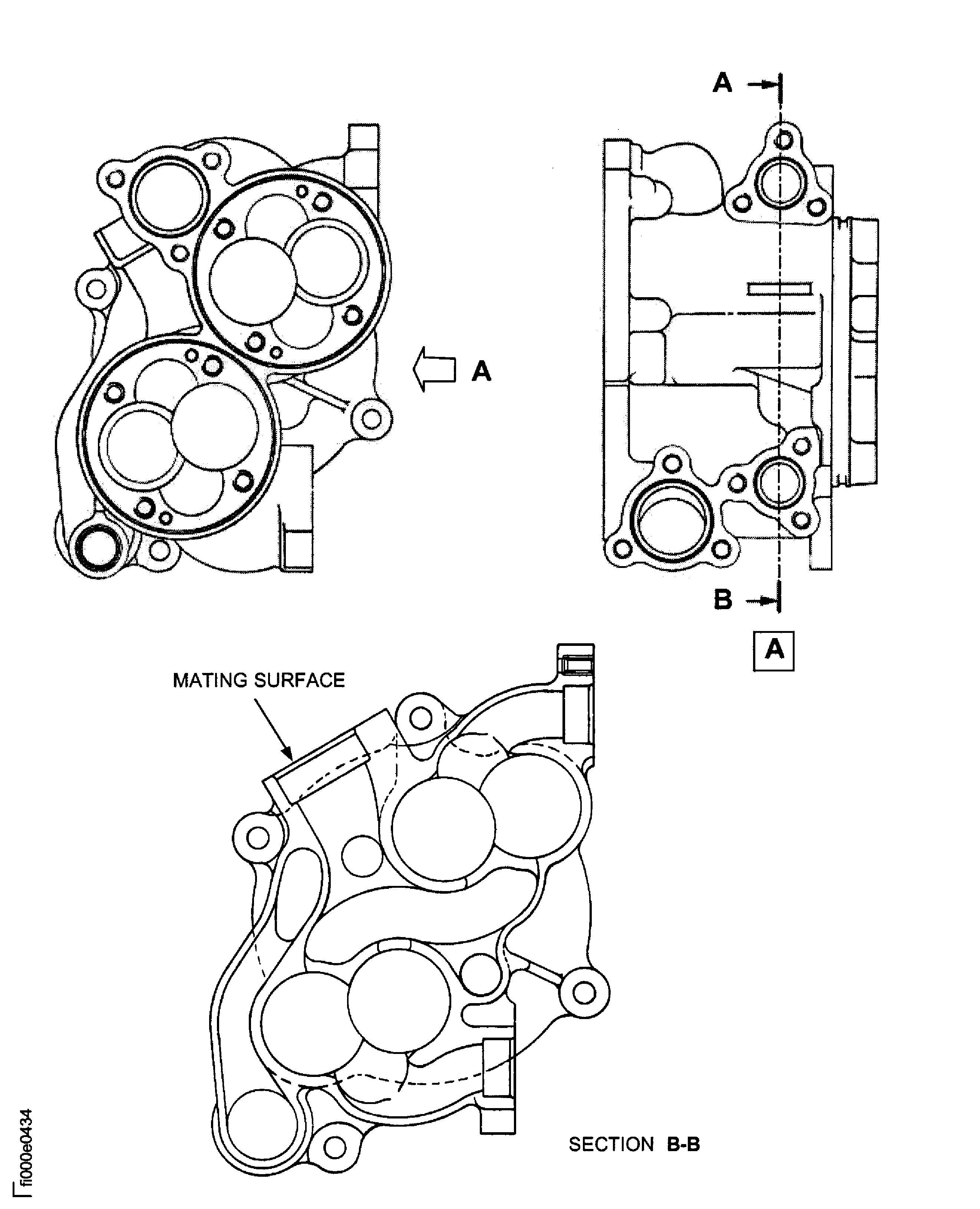

Figure: Repair Details And Dimensions
Repair Details And Dimensions
