TASK 79-22-43-060-401 Scavenge Oil Filter Housing - Related Parts - Disassemble The Scavenge Oil Filter Housing Assembly, Disassembly-001

DMC:V2500-A0-79-22-4300-00A-530A-C|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 79-22-43-060-401 Scavenge Oil Filter Housing - Related Parts - Disassemble The Scavenge Oil Filter Housing Assembly, Disassembly-001

General

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

Remove and discard the lockwire before parts are disconnected or removed.

Discard all packings removed in this procedure.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 79-22-43-060-051 Disassemble the Scavenge Oil Filter Housing Assembly

    1. Refer to Figure.

    2. Attach the filter housing assembly to suitable bracket with the filter cover side up.

    3. Release and remove the six bolts and washers which attach the cover to the filter housing.

    4. Remove the cover and discard the packing.

    5. Remove the filter element.

    6. Rotate the assembly with the opening side down.

    7. Release and remove the three bolts and washers that attach the by-pass valve to the filter housing. Remove the valve and discard the packings.

    8. Cut the lockwire and remove the three nuts (01-322).

    9. Remove the three union adapters (01-320) from the filer housing and discard the packings.

    10. Cut the lockwire and remove the plugs (01-660 and 01-662). Discard the packings.

    11. Remove the casing from the support bracket.

    2. SUBTASK 79-22-43-060-052 Disassemble the Scavenge Oil Filter Housing Assembly

    1. Refer to Figure.

    2. Attach the filter cover to suitable support bracket.

    3. Cut the lockwire and remove the plug. Discard the packing.

    4. Turn the filter cover. Release and remove the nut and the washer.

    5. Remove the ring, the spring and the special bolt.

    6. Remove the filter cover from the support bracket.

    3. SUBTASK 79-22-43-060-053 Disassemble the By-pass Valve

    1. Refer to Figure.

    2. Remove the retaining ring from the valve casing.

    3. Remove the ring, the spring and the valve from the casing.

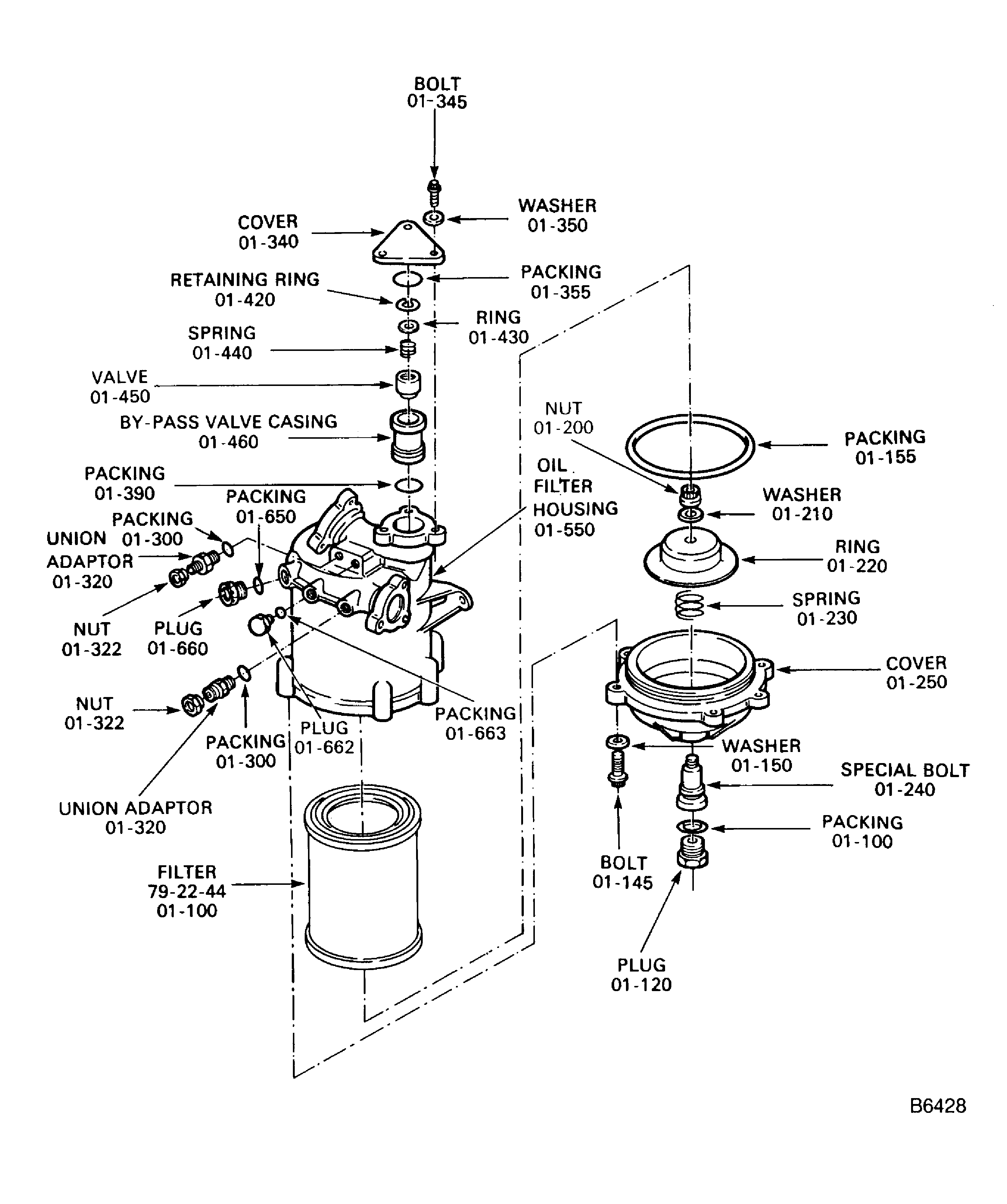

    4. Figure: Scavenge Oil Filter Housing Assembly

    Scavenge Oil Filter Housing Assembly

Requirements After Job Completion

Follow-On Conditions

NONE
