TASK 79-22-43-300-020 Scavenge Oil Filter Housing - Related Parts - Repair The Chip Detector Housing Bore By Threaded Insert In The Oil Filter Housing Assembly, Repair-020 (VRS5431)
General
Price and availability - none.
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Workshop Inspection Equipment | 0AM53 | Workshop Inspection Equipment | ||
| Grinding Machine | 0AM53 | Grinding Machine | ||
| Magnifying Glass | LOCAL | Magnifying Glass | ||
| Vibrating Marking Pencil | LOCAL | Vibrating Marking Pencil |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 01-043 SULFURIC ACID H2SO4 | LOCAL | CoMat 01-043 | ||
| CoMat 01-058 NITRIC ACID HNO3 | LOCAL | CoMat 01-058 | ||
| CoMat 07-028 CHROMATE CONVERSION COATING FOR ALUMINUM | LOCAL | CoMat 07-028 | ||
| CoMat 10-077 APPROVED ENGINE OILS | X333X | CoMat 10-077 |
Spares
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| INSERT - SCREW THREAD | 0AM53 | 4P7299 | 1 | |
| PACKING - PREFORMED | U1653 | AS3208-11 | 1 |
Safety Requirements
NONEProcedure
Refer to Figure.
Remove 0.1575 in. (4 mm) of material. The perpendicularity of the surface must be within 0.004 in. (0.102 mm) FIR in relation to Diameter S.
Bore surface rough must be 63 micro inch (1.6 micron).
Machine the chip detector housing mating surface.
SUBTASK 79-22-43-320-057 Machine the Chip Detector Housing Mating Surface
Refer to Figure.
Machine the chip detector housing bore.
SUBTASK 79-22-43-320-058 Machine the Chip Detector Housing Bore
Use a Magnifying Glass.
Inspect the casing for cracks in locality of bore.
SUBTASK 79-22-43-320-059 Examine the Oil Filter Housing Assembly
Refer to the SPM TASK 70-38-02-300-503.
Apply the chromate conversion coating to the machined surfaces and to the threads.
SUBTASK 79-22-43-320-060 Apply the Chromate Conversion Coating
Use CoMat 10-077 APPROVED ENGINE OILS approved engine oil.
Lubricate packing AS3208-11 and install it on the groove of the insert.
Install the insert into threaded hole in the oil filter housing assembly.
Torque the insert to 53.105 to 70.806 lbfin (6 to 8 Nm).
SUBTASK 79-22-43-320-061 Install the Threaded Insert
Remove the metal lifted by marking.
Vibro engrave VRS5431 adjacent to the part number.
SUBTASK 79-22-43-320-062 Record the Repair

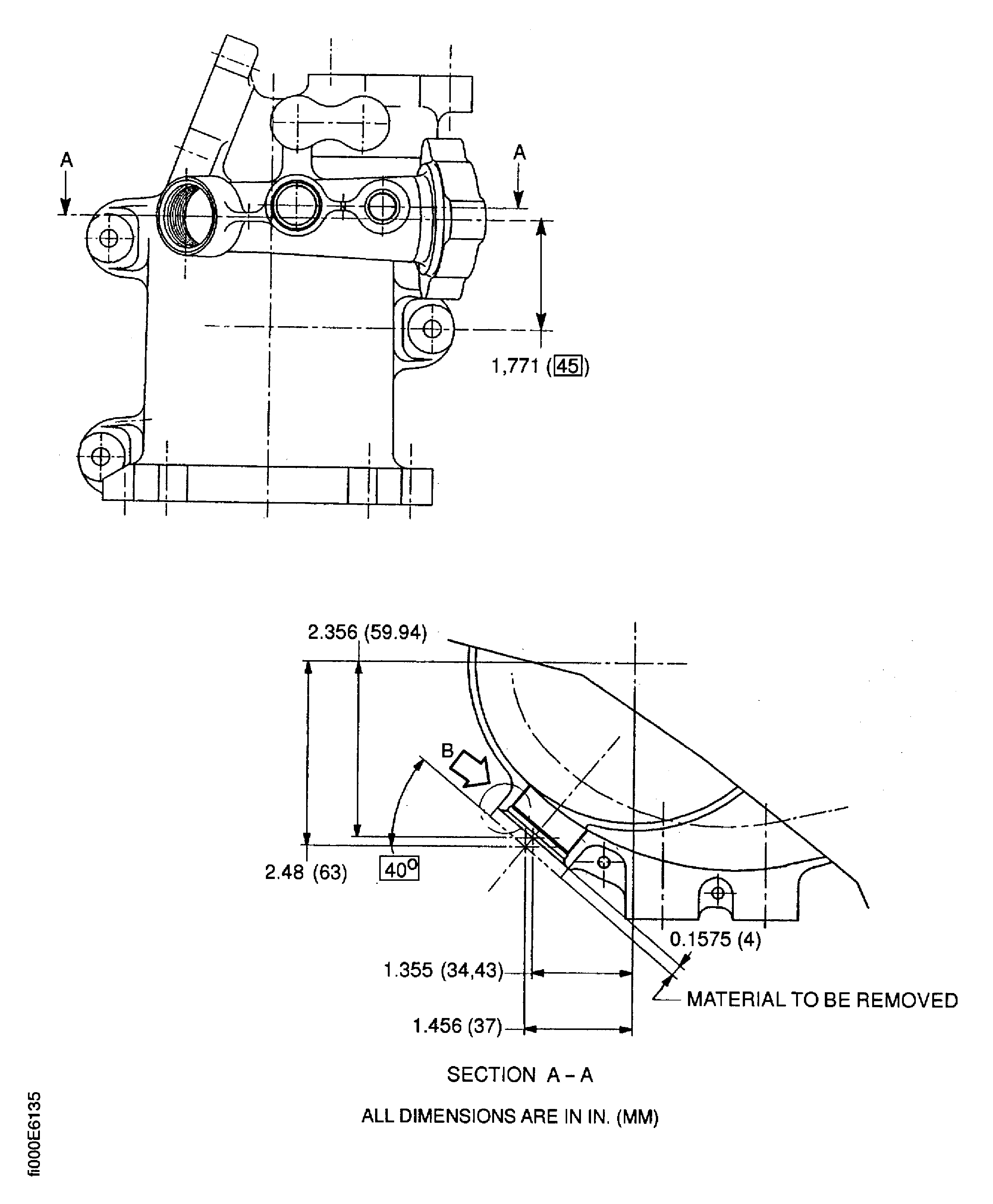

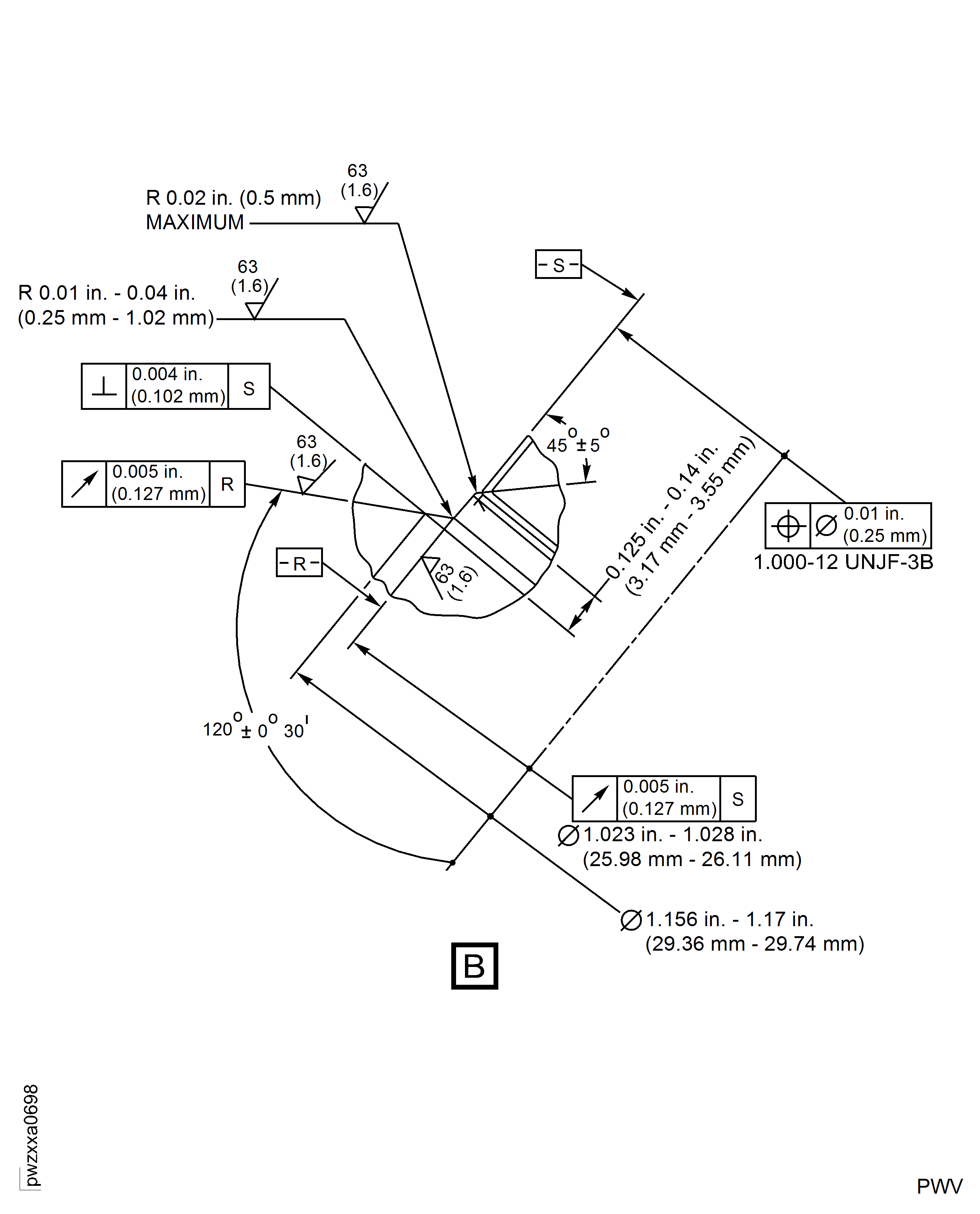

Figure: Repair Details And Dimensions
Repair Details And Dimensions
Repair Details And Dimensions
