TASK 79-22-48-300-002 Gearbox Scavenge Oil Tubes - Blend Repair Surface Damage, Repair-002 (VRS5178)
General
Price and availability - none
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
NOTE
To identify the consumable materials refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
The maximum blend depth is 0.010 in. (0.25 mm).
Surface finish of the repaired area must be the same as the adjacent area.
Refer to SPM TASK 70-35-03-300-501
Remove the nicks, scores, galls
SUBTASK 79-22-48-350-053 Remove the Nicks, Scores, Galls from the Tube Assembly Surfaces at Location 1
Refer to Figure.
Remove high metal only.
Do not blend on groove.
Refer to SPM TASK 70-35-03-300-501
Hand polish high metal
Seal surfaces at location 2
The maximum blend depth is 0.010 in. (0.25 mm).
Refer to SPM TASK 70-35-03-300-501
Hand polish and blend
Not seal surfaces at location 3
SUBTASK 79-22-48-350-054 Remove the Nicks, Scores, Dents from the Tube Assembly End Fitting
Refer to SPM TASK 70-23-05-230-501.
Make sure there are no cracks.
Do a crack test on the repaired area
SUBTASK 79-22-48-230-054 Examine the Tube Assembly for Cracks

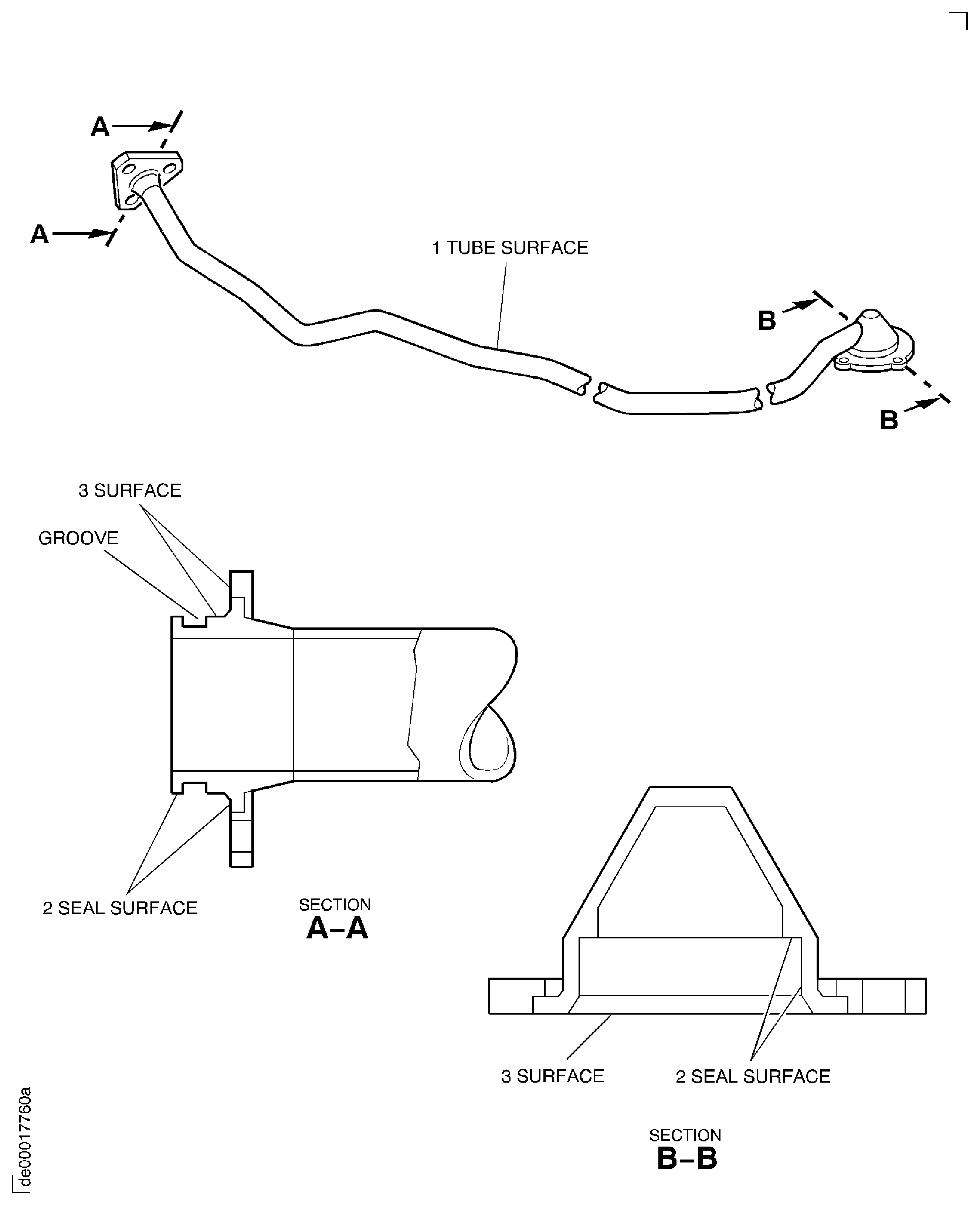

Figure: Locations On The Tube Assembly
Locations On The Tube Assembly
