DMC:V2500-A1-23-44-41-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B23444101 | Maintenance Interphone Jack-Power Plant, PRE SBN70-0745 | aa | ||
| SBN0745-01 | Maintenance Interphone Jack-Power Plant, PRE SBN70-0908 | ab | ||
| SBN0908-01 | Maintenance Interphone Jack-Power Plant | ac | ||
| -002 | 745-3211-501 | • JACK - MAINTENANCE INTERPHONE 51563 PRE SBN70-0908 | aa-ab | REF |
| -002A | 745-3211-503 | • JACK - MAINTENANCE INTERPHONE 51563 POST SBN70-0908 | ac | REF |
| 010 | 740-3215-509 | • • CABLE - ASSY, J808 TO I/JACK 51563 | aa-ac | 1 |
| 020 | AS21412 | • • BOLT - .190 DIA X .750 U1653 | aa-ac | 4 |
| 030 | TA025074-03 | • • CLAMP - .188 DIA 84971 | aa-ac | 4 |
| 040 | A218-12A | • • BOLT K7766 | aa-ac | 4 |
| 050 | FSS4-1401 | • • NUT 58998 | aa-ac | 2 |
| 060 | SP154A | • • WASHER K7766 | aa-ac | 4 |
| 070 | MS24693C31 | • • SCREW 96906 | aa-ac | 4 |
| 080 | 2J1761A | • • • JACK - INTERPHONE 82389 | aa-ac | 1 |
| 100 | 387AS008M1404A2 | • • • BACKSHLL 06324 | aa-ac | 1 |
| 150 | ESC10KE01407PN | • • • CONNECTR | aa-ac | 1 |
| 150A | ESC10KE01407PN0 | • • • CONNECTR POST SBN70-0745 | ab-ac | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

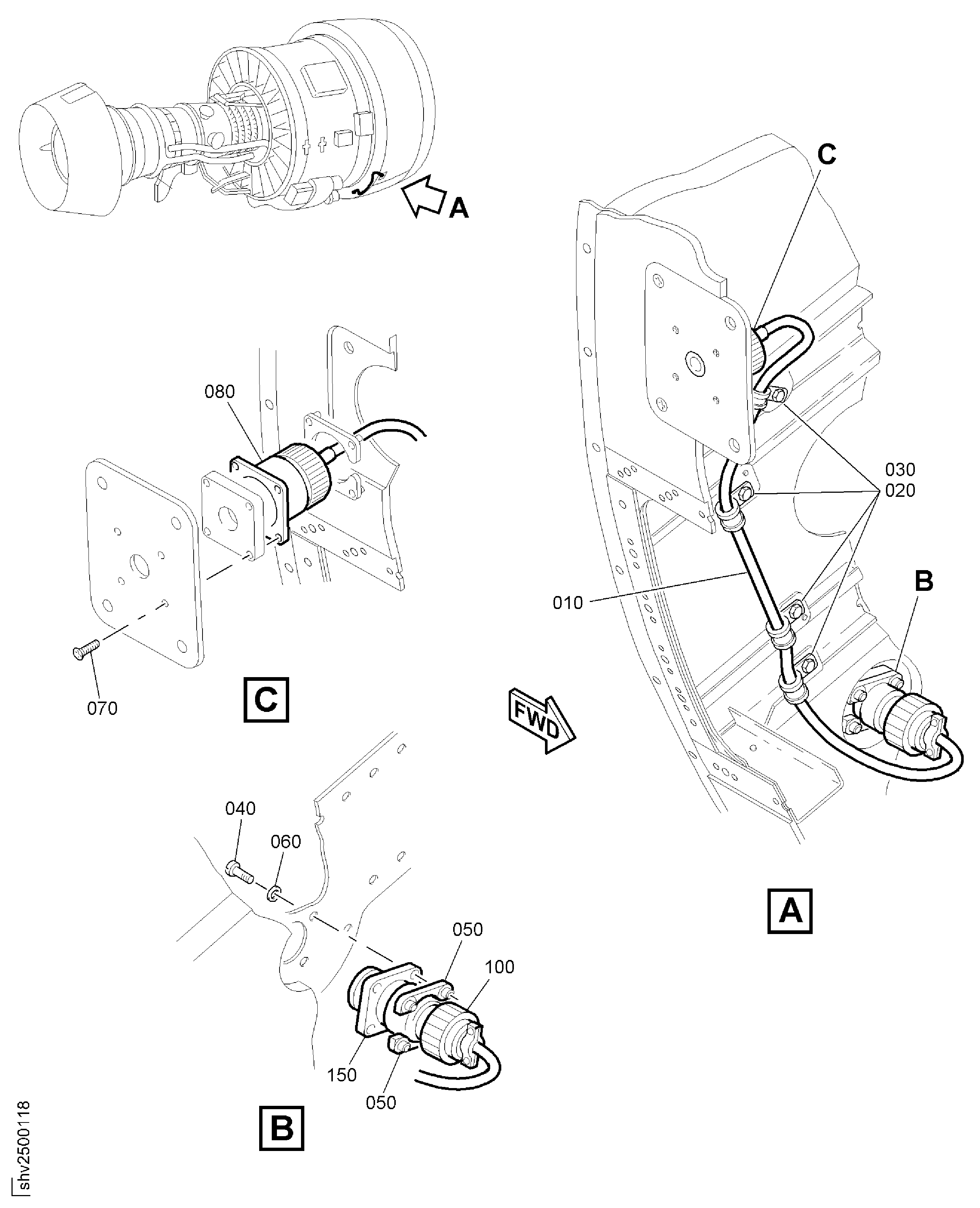

Figure: Maintenance Interphone Jack-Power Plant
INTERPHONE MAINTENANCE
