| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| B24214902 | ELECTRICAL POWER-IDG OIL COOLING TUBES, PRE SBE71-0050 | aa | ||
| SBE0050-01 | ELECTRICAL POWER-IDG OIL COOLING TUBES, PRE SBN70-0143 | ab | ||
| SBN0143-01 | ELECTRICAL POWER-IDG OIL COOLING TUBES, PRE SBE71-0107 | ac | ||
| SBE0107-01 | ELECTRICAL POWER-IDG OIL COOLING TUBES | ad | ||
| -005 | 740-5021-501 | ARRGT - IDG COOLING 51563 | aa-ad | REF |
| -005A | 740-5021-509 | ARRGT - IDG COOLING 51563 PRE SBN70-0143 | aa-ad | REF |
| -005B | 740-5021-511 | ARRGT - IDG COOLING 51563 POST SBN70-0143 | aa-ad | REF |
| 100 | 740-5271-503 | • TUBE - ASSY,COOLING 51563 | aa-ad | 1 |
| 100A | 740-5271-503 | • TUBE - ASSY,COOLING 51563 PRE SBN70-0143 | aa-ad | 1 |
| 100B | 740-5271-505 | • TUBE - ASSY COOLING 51563 POST SBN70-0143 | aa-ad | 1 |
| 125 | AS21418 | • BOLT - .190 DIA X 1.125 U1653 | aa-ad | 1 |
| 125A | AS21414 | • BOLT - .190 DIA X .875 U1653 | aa-ad | 1 |
| 126 | SP154D | • WASHER - .190 DIA K7766 | aa-ad | 1 |
| 128 | 400WSS12 | • CLIP 83930 | aa-ad | 1 |
| 130 | ST1698D48 | • SPACER K4585 | aa-ad | 1 |
| 140 | 4W0104 | • BOLT - .190 DIA X .562 Optional Part 4W0104 POST SBE71-0107 | ad | 1 |
| 141 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE71-0107 | ad | 2 |
| 144 | 400WSS12 | • CLIP - LOOP TYPE 83930 POST SBE71-0107 | ad | 1 |
| 147 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE71-0107 | ad | 1 |
| 150 | 4W0104 | • BOLT - .190 DIA X .562 Optional Part 4W0104 POST SBE71-0107 | ad | 1 |
| 151 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE71-0107 | ad | 2 |
| 154 | 400WSS12 | • CLIP - LOOP TYPE 83930 POST SBE71-0107 | ad | 1 |
| 157 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE71-0107 | ad | 1 |
| 160 | 4W0104 | • BOLT - .190 DIA X .562 Optional Part 4W0104 POST SBE71-0107 | ad | 1 |
| 161 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE71-0107 | ad | 2 |
| 164 | 400WSS12 | • CLIP - LOOP TYPE 83930 POST SBE71-0107 | ad | 1 |
| 167 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE71-0107 | ad | 1 |
| 500 | 740-5273-503 | • TUBE - ASSY,COOLING 51563 PRE SBN70-0143 | aa-ad | 1 |
| 500A | 740-5273-505 | • TUBE - ASSY COOLING 51563 POST SBN70-0143 | aa-ad | 1 |
| 533 | AS21418 | • BOLT - .190 DIA X 1.125 U1653 | aa-ad | 1 |
| 533A | AS21414 | • BOLT - .190 DIA X .875 U1653 | aa-ad | 1 |
| 534 | SP154D | • WASHER - .190 DIA K7766 | aa-ad | 1 |
| 536 | 400WSS10 | • CLIP 83930 | aa-ad | 1 |
| 538 | ST1698D48 | • SPACER K4585 | aa-ad | 1 |
| 544 | 400WSS10 | • CLIP 83930 POST SBE71-0050 PRE SBE71-0107 | ab-ac | 1 |
| 900 | 740-5718-509 | • BRACKET - ASSY 51563 PRE SBE70-0040 | ***** | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

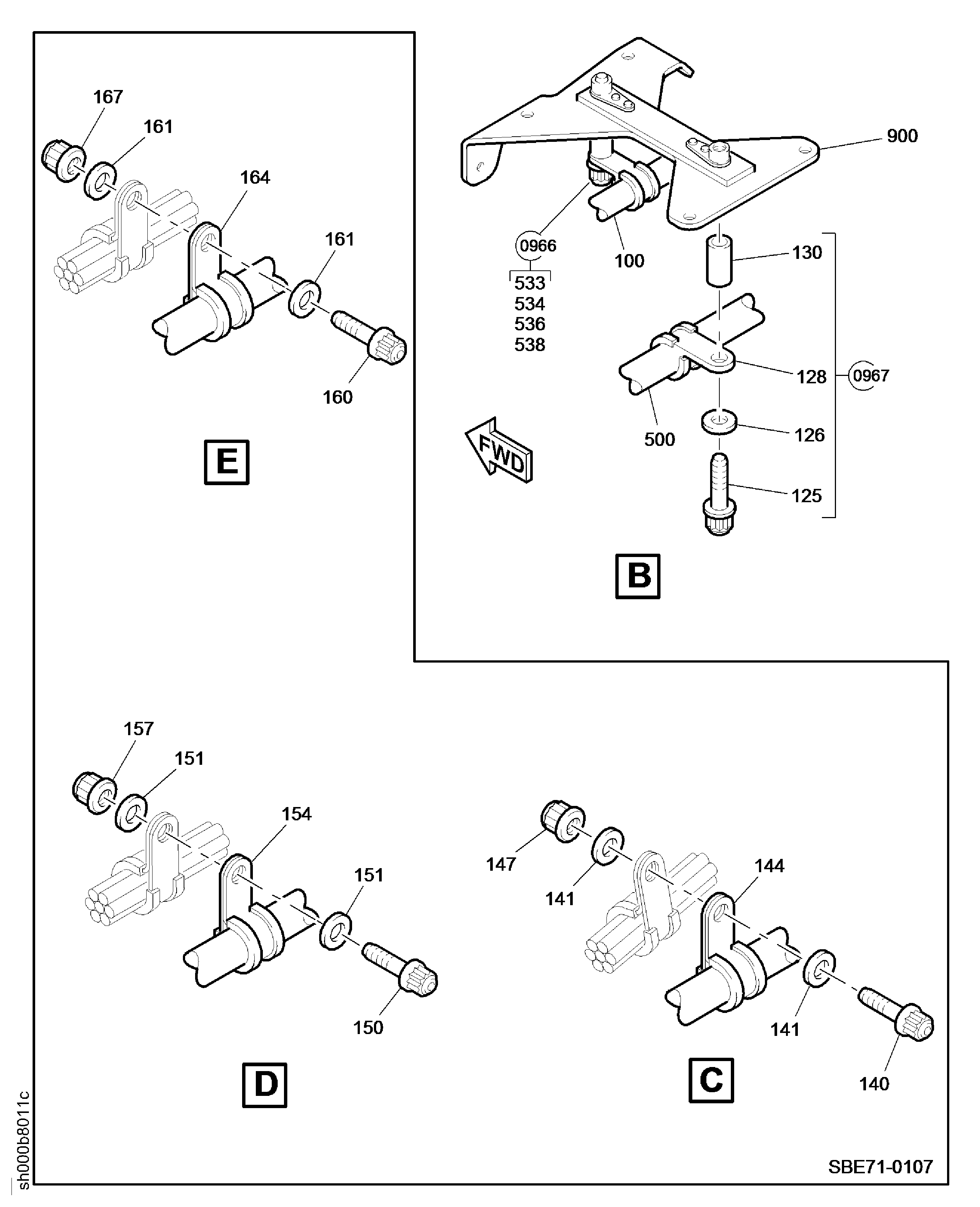

Figure: ELECTRICAL POWER-IDG OIL COOLING TUBES
TUBES-IDG OIL COOLING
TUBES-IDG OIL COOLING
