DMC:V2500-A1-29-11-43-01A-941A-DIssue No:002.00Issue Date:2018-11-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B29114301 | CASE DRAIN HYDRAULIC FILTER ASSEMBLY, PRE SBN29-0002 | aa | ||
| SBN0002-01 | CASE DRAIN HYDRAULIC FILTER ASSEMBLY, PRE SBN70-0743 | ab | ||
| SBN0743-01 | CASE DRAIN HYDRAULIC FILTER ASSEMBLY | ac | ||
| 010 | QA06305 | • FILTER - ASSY,HYD CASE DRAIN K6539 | ab | 1 |
| 010A | QA06305-01 | • FILTER - ASSY, HYD CASE DRAIN K6539 | ac | 1 |
| 020 | NAS1611-138 | • • PACKING - PREFORMED 80205 | aa-ab | 1 |
| 030 | QD1011-138 | • • RING K6539 | aa-ac | 1 |
| 040 | QA05737 | • • CARTRIDGE C0202 | aa-ac | 1 |
| 050 | QA13214 | • • FILTER - BOWL C0202 | aa-ac | 1 |
| 060 | NAS1611-016 | • • PACKING - PREFORMED 80205 | aa-ac | 2 |
| 070 | QD1011-016 | • • RING K6539 | aa-ac | 1 |
| 080 | QA05924 | • • INDICATOR - PRESSURE, DIFFERENTIAL C0202 | aa-ac | 1 |
| 900 | 740-5282-501 | • BRACKET - ASSEMBLY OF 51563 | aa-ac | 1 |
| 903 | AS21538 | • BOLT - MACHINE, DOUBLE HEXAGON U1653 POST SBN70-0743 | ac | 4 |
| 903A | AS21538 | • BOLT - MACHINE, DOUBLE HEXAGON U1653 ALT MS9557-31 | ac | 4 |
| -903B | MS9557-31 | • BOLT - DOUBLE HEXAGON 96906 ALT AS21538 | ac | REF |
| 905 | 740-0296-505 | • PLATE - IDENTIFICATION (F.I.N) 51563 POST SBN29-0002 PRE SBE71-0110 | ***** | 1 |
| 907 | SP158-40 | • RIVET K7766 POST SBN29-0002 PRE SBE71-0110 | ***** | 4 |
| 910 | 740-5601-501 | • RAFT - ASSEMBLY OF 51563 | aa-ac | 1 |
| 910A | 740-5601-505 | • RAFT - ASSEMBLY OF 51563 PRE SBN29-0002 | aa | 1 |
| 910B | 740-5601-507 | • RAFT - ASSEMBLY OF 51563 POST SBN29-0002 PRE SBE71-0110 | aa | 1 |
| 914 | AS21508 | • BOLT - 0.25 DIA X 0.500 U1653 PRE SBE71-0110 | ***** | 4 |
| 930 | 740-5622-501 | • ANGLE - ATTACHMENT 51563 PRE SBE71-0110 | ***** | 1 |
| 940 | 740-5923-501 | • PACKING, PIECE 51563 PRE SBE71-0110 | ***** | 1 |
| 941 | NAS1291C4M | • NUT 80205 ALT H42-4 PRE SBE71-0110 | ***** | 2 |
| -941A | H42-4 | • NUT - .250 DIA 15653 PRE SBE71-0110 | ***** | REF |
| 942 | SP155E | • WASHER K7766 PRE SBE71-0110 | ***** | 2 |
| 944 | NAS7204U6 | • BOLT, CSK 80205 PRE SBE71-0110 | ***** | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

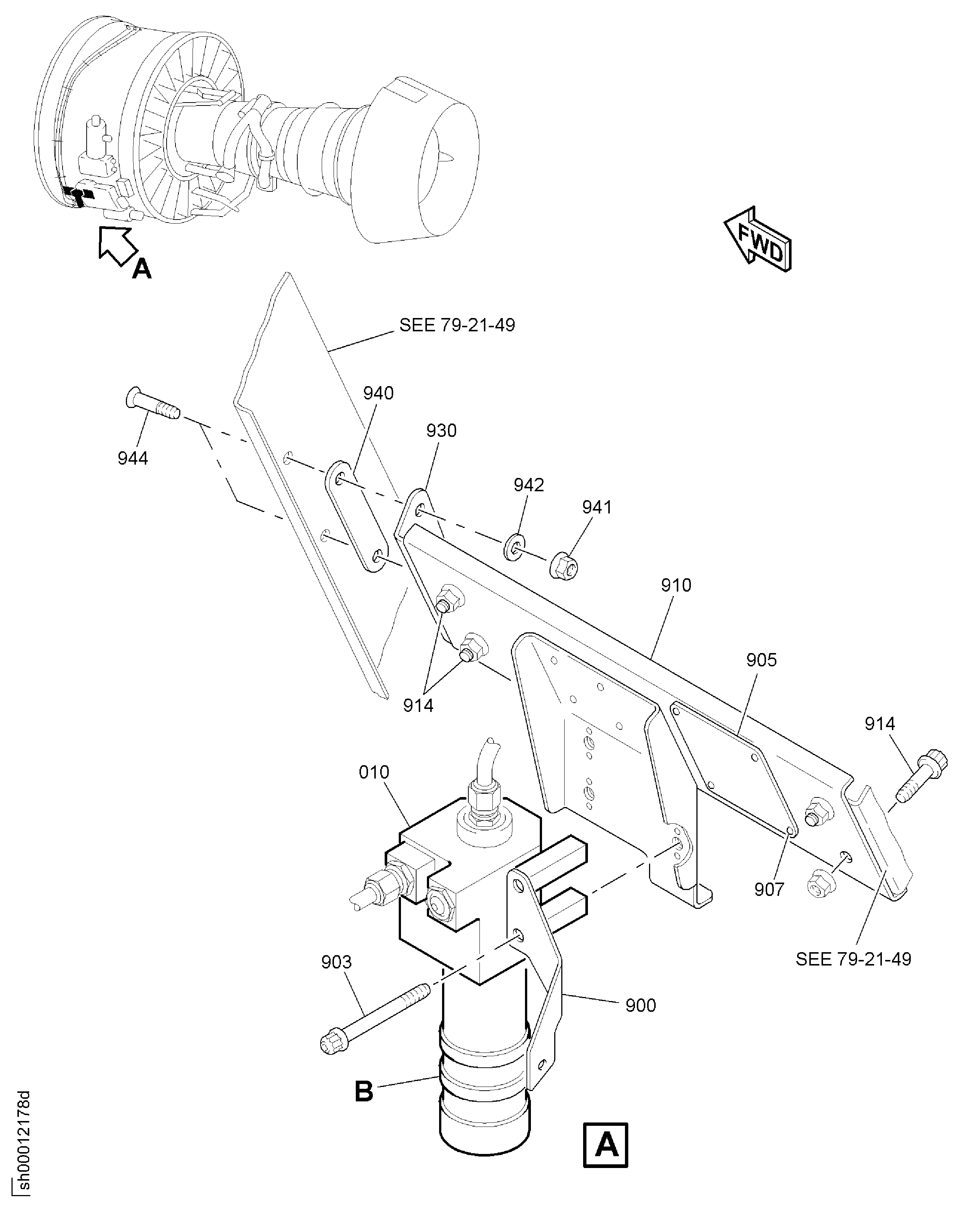

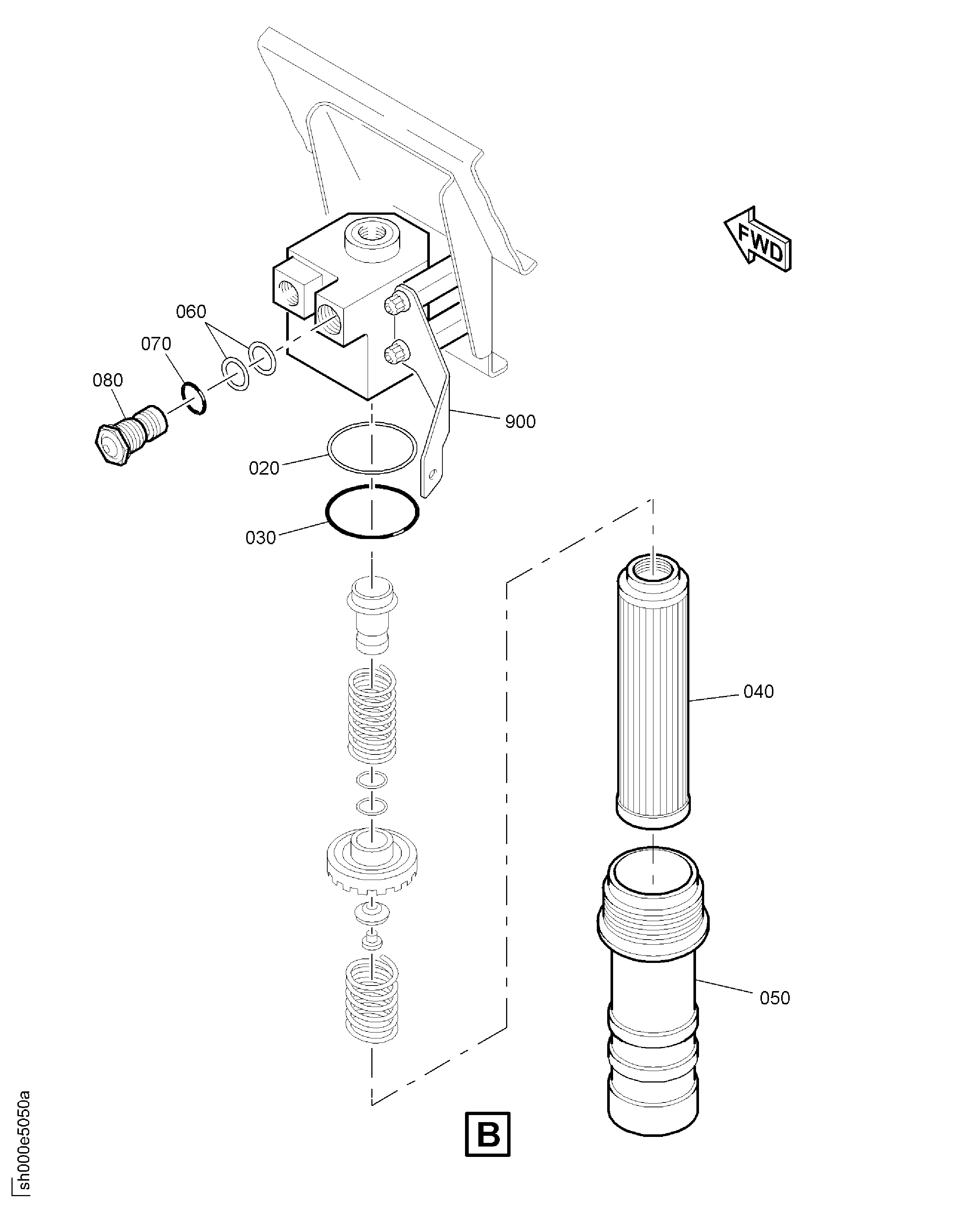

Figure: CASE DRAIN HYDRAULIC FILTER ASSEMBLY
FILTER ASSY HYD CASE DRAIN
FILTER ASSY HYD CASE DRAIN
