HYDRAULIC POWER-ENGINE MOUNTED HYDRAULIC TUBES

DMC:V2500-A1-29-11-49-01A-941A-D|Issue No:003|Issue Date:2019-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig. Item	Part No.	Description	Effect/Model Applic.	UPA
01
000	B29114901	HYDRAULIC POWER - ENGINE MOUNTED HYDRAULIC TUBES, PRE SBN70-0217	aa
000	SBN0217-01	HYDRAULIC POWER - ENGINE MOUNTED HYDRAULIC TUBES	ab
100100	AE707874-1	• HOSE - ASSEMBLY K7766 PRE SBN70-0217	aa	1
100100A	AE707874-3	• HOSE - FLEXIBLE K6712 POST SBN70-0217	aa-ab	1

102102	AE81266P	• COUPLING 00624	aa-ab	1
125125	740-5648-501	• CLAMP 51563	aa-ab	1
127127	AS21510	• BOLT - 0.25 DIA X 0.625 U1653	aa-ab	2

500500	AE707875-2	• HOSE - FLEXIBLE K6712	aa-ab	1
502502	AE96787N	• COUPLING - SELF SEALING 00624	aa-ab	1
540540	TA30700009-02	• CLAMP - ASSEMBLY OF 84971	aa-ab	1

900900	740-5649-501	• BRACKET 51563	aa-ab	1
910910	AS21510	• BOLT - 0.25 DIA X 0.625 U1653	aa-ab	2
910910A	AS21510	• BOLT - 0.25 DIA X 0.625 U1653 ALT MS9557-08	aa-ab	2
-910910B	MS9557-09	• BOLT - MACHINE, DOUBLE HEXAGON, 0.250-28 X 0.688 96906 ALT AS21511	ab	REF

- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

TUBES HYDRAULIC FLEX

Change Type:

Corrected Cage Code

Manufacturer Code:	51563
Enterprise Name:	ROHR INC, A COLLINS AEROSPACE COMPANY
BU Name:	ROHR INC, A COLLINS AEROSPACE COMPANY
Street:	850 LAGOON DRIVE
City:	CHULA VISTA
State:	CA
Zip Code:	91910-2098
Country:	USA
Phone Number:	1-619-691-2089
Fax Number:	1-619-691-6195

Manufacturer Code:	84971
Enterprise Name:	KIRKHILL - TA MFG SUB OF ESTERLINE TECHNOLOGIES
BU Name:	KIRKHILL - TA MFG SUB OF ESTERLINE TECHNOLOGIES
Department:	TA MFG LTD
Street:	28065 WEST FRANKLIN PARKWAY,VALENCIA
City:	SANTA CLARITA
State:	CALIFORNIA
Zip Code:	GL1 2BS
Country:	USA

Manufacturer Code:	96906
Enterprise Name:	MILITARY STANDARDS MANUAL 4120 3-M
BU Name:	MILITARY STANDARDS MANUAL 4120 3-M
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

Manufacturer Code:	K6712
Enterprise Name:	R F SAYWELL LTD
BU Name:	R F SAYWELL LTD
Street:	GATWICK AIRPORT SOUTH
City:	GATWICK
State:	SURREY
Country:	ENGLAND

Manufacturer Code:	K7766
Enterprise Name:	K7766
BU Name:	British Standards Institution
Street:	2 Park Street
City:	London
Zip Code:	AW1A 2BS
Country:	England

Manufacturer Code:	U1653
Enterprise Name:	Society Of British Aerospace Companies, LTD.

Part Number:	740-5648-501
Part Name:	CLAMP, ASSY
Manufacturer Code:	51563

Part Number:	740-5649-501
Part Name:	BRACKET, FAIRLEAD ASSY
Manufacturer Code:	51563

Part Number:	AE707874-1
Part Name:	HOSE - ASSEMBLY
Manufacturer Code:	K7766

Part Number:	AE707874-3
Part Name:	HOSE - FLEXIBLE
Manufacturer Code:	K6712

Part Number:	AE707875-2
Part Name:	HOSE - FLEXIBLE
Manufacturer Code:	K6712

Part Number:

AS21010

Part Name:

BOLT - .250 DIA X .625

Manufacturer Code:

U1653

Unit Of Issue:

Optional Parts

Part Number	Part Name	Manufacturer
MS9557-08	BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.2500 - 28 X 0.625	96906

Part Number:

AS21510

Part Name:

BOLT - .250 DIA X .625

Manufacturer Code:

U1653

Optional Parts

Part Number	Part Name	Manufacturer
MS9557-08	BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.2500 - 28 X 0.625	96906

Part Number:

AS21511

Part Name:

BOLT- MACHINE DOUBLE HEX, .250 DIA X .688

Manufacturer Code:

U1653

Optional Parts

Part Number	Part Name	Manufacturer
MS9557-09	BOLT, MACHINE DOUBLE HEX	96906

Part Number:

MS9557-08

Part Name:

BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.2500 - 28 X 0.625

Manufacturer Code:

96906

Unit Of Issue:

Optional Parts

Part Number	Part Name	Manufacturer
AS21010	BOLT - .250 DIA X .625	U1653
AS21510	BOLT - .250 DIA X .625	U1653

Part Number:

MS9557-09

Part Name:

BOLT, MACHINE DOUBLE HEX

Manufacturer Code:

96906

Optional Parts

Part Number	Part Name	Manufacturer
AS21511	BOLT- MACHINE DOUBLE HEX, .250 DIA X .688	U1653

Part Number:	TA30700009-02
Part Name:	CLAMP - ASSY
Manufacturer Code:	84971

HYDRAULIC POWER-ENGINE MOUNTED HYDRAULIC TUBES

Export Control

Copyright

Applicability

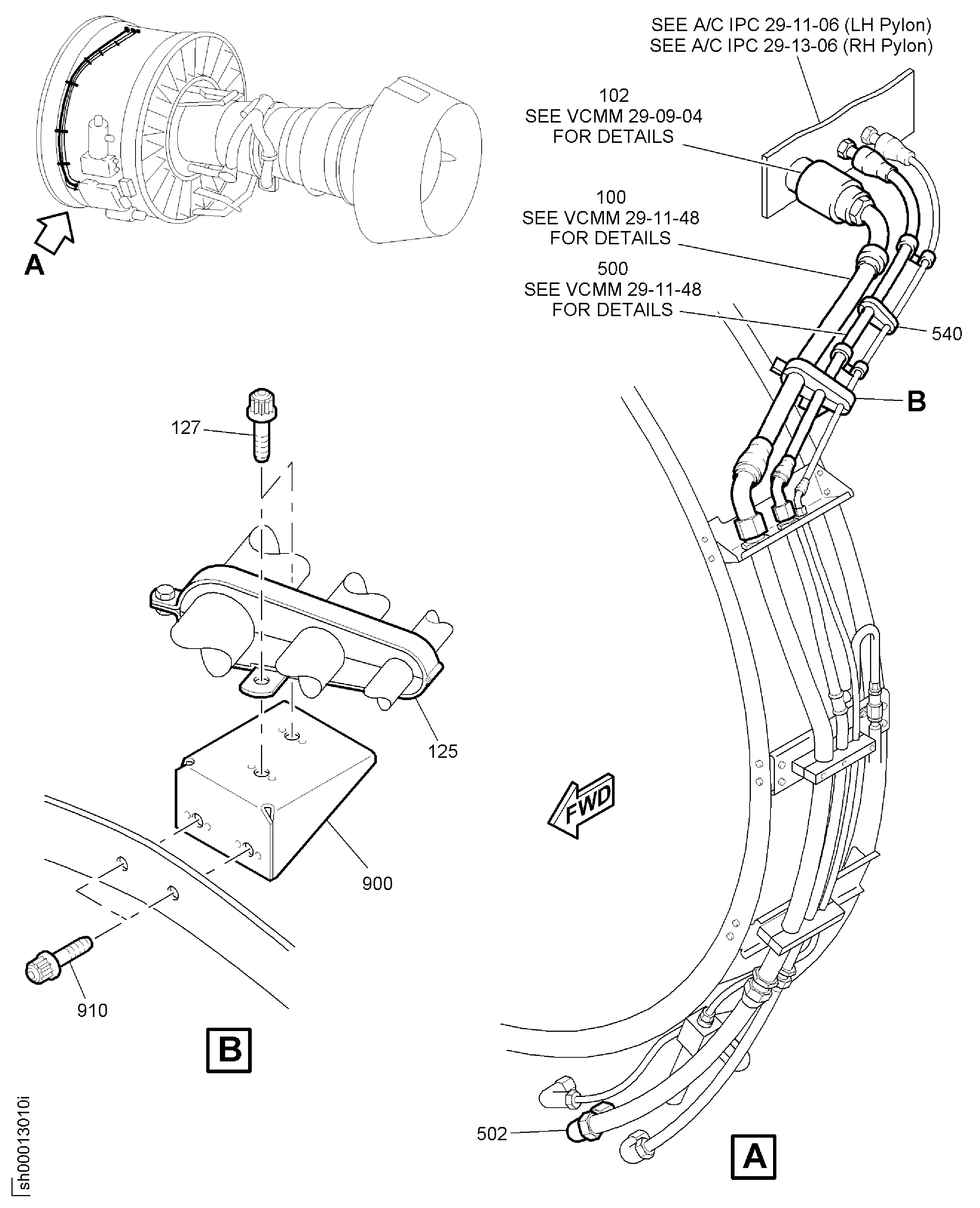

Figure: HYDRAULIC POWER-ENGINE MOUNTED HYDRAULIC TUBES

TUBES HYDRAULIC FLEX
