HYDRAULIC POWER-ENGINE MOUNTED HYDRAULIC TUBES

DMC:V2500-A1-29-11-49-03A-941A-D|Issue No:004.00|Issue Date:2018-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
03
000B29114903HYDRAULIC POWER - ENGINE MOUNTED HYDRAULIC TUBES, PRE SBE70-0630aa
000SBE0630-01HYDRAULIC POWER - ENGINE MOUNTED HYDRAULIC TUBES, PRE SBE70-0727ab
000SBE0727-01HYDRAULIC POWER-ENGINE MOUNTED HYDRAULIC TUBESac
100100740-5600-505• TUBE - SUCTION, ASSEMBLY OF
51563		aa-ab1
125125AN924-20S• NUT
81352		aa-ab1
130130MS21924-20S• UNION
96906
PRE SBE70-0630		aa-ab1
130130AMS21924-20S• UNION
96906
ALT MS21924-20R
POST SBE70-0630		aa-ab1
130130BMS21924-20R• UNION
96906
ALT MS21924-20S
POST SBE70-0630		ab-ab1
135135740-5631-503• BLOCK
51563		aa-ab2
140140AS21548• BOLT - 0.25 DIA X 3.000
U1653		aa-ab6
140140AAS21548• BOLT - 0.25 DIA X 3.000
U1653
ALT MS9557-46		aa-ab6
-140140BMS9557-46• BOLT
96906
ALT AS21548		abREF
500500740-5602-507• TUBE - PRESSURE, ASSEMBLY OF
51563		aa-ab1
505505AN924-12S• NUT
81352		aa-ab1
510510MS21924-12S• UNION
96906
PRE SBE70-0727		aa-ab1
510510AMS21924-12R• UNION
96906
POST SBE70-0727		ac1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

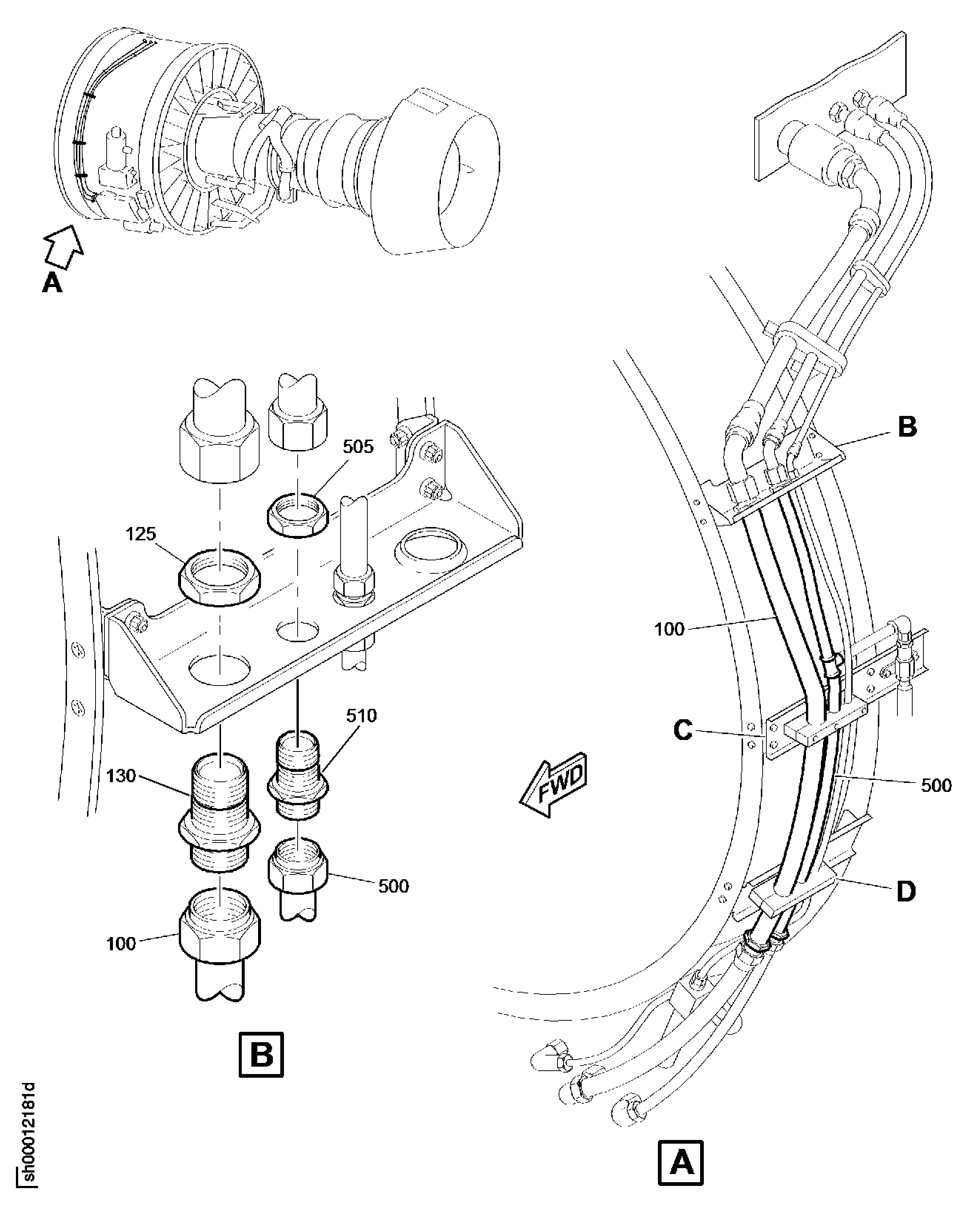

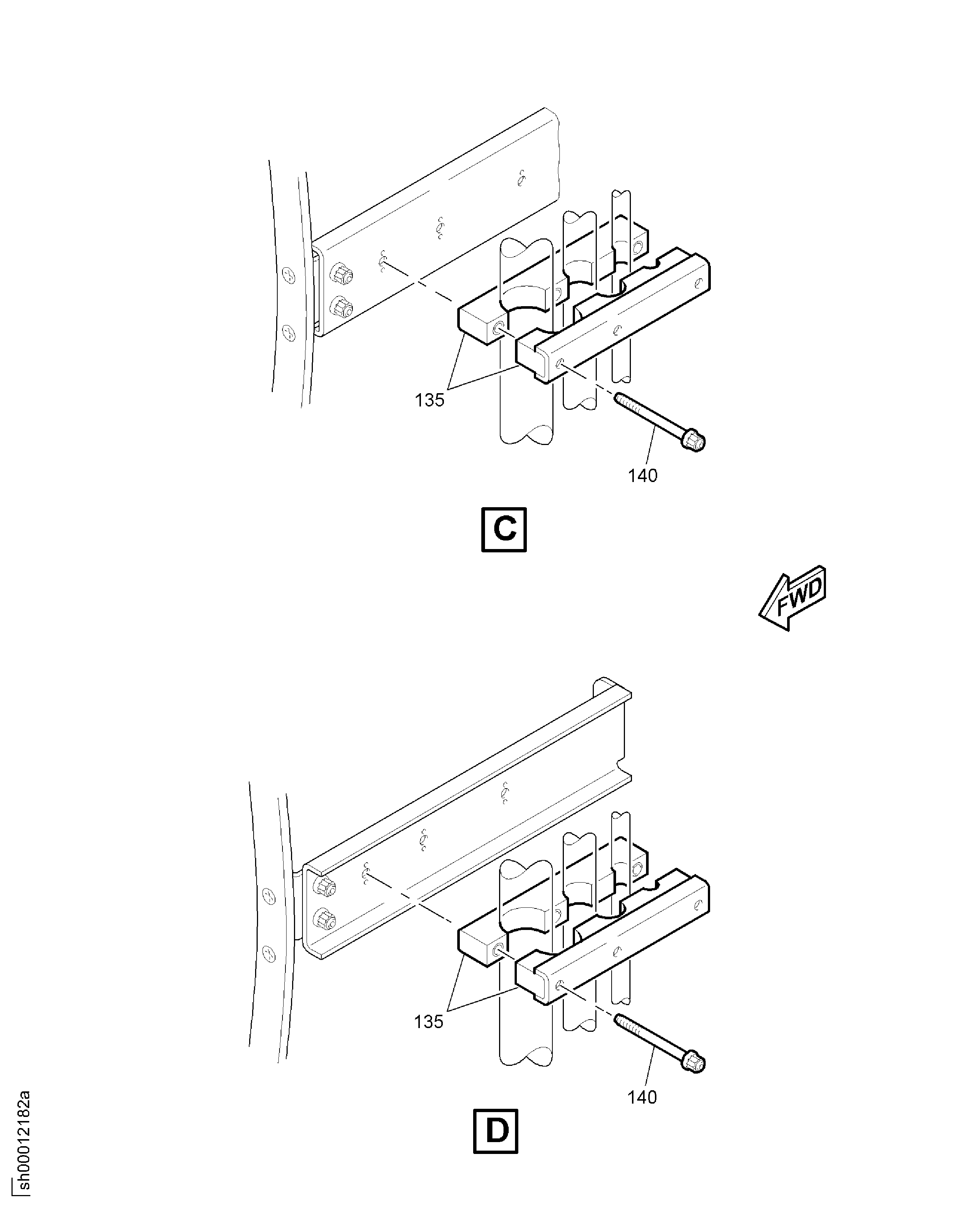

Figure: HYDRAULIC POWER-ENGINE MOUNTED HYDRAULIC TUBES

TUBES HYDRAULIC FLEX

TUBES HYDRAULIC FLEX

Change Type:

Removed Incorrect SB Reference And Corrected Applicability.

Manufacturer Code:51563
Enterprise Name:ROHR INC, A COLLINS AEROSPACE COMPANY
BU Name:ROHR INC, A COLLINS AEROSPACE COMPANY
Street:850 LAGOON DRIVE
City:CHULA VISTA
State:CA
Zip Code:91910-2098
Country:USA
Phone Number:1-619-691-2089
Fax Number:1-619-691-6195
Manufacturer Code:96906
Enterprise Name:MILITARY STANDARDS MANUAL 4120 3-M
BU Name:MILITARY STANDARDS MANUAL 4120 3-M
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:U1653
Enterprise Name:Society Of British Aerospace Companies, LTD.
Part Number:740-5600-505
Part Name:TUBE - ASSY SUCTION
Manufacturer Code:51563
Part Number:740-5602-507
Part Name:TUBE - PRESSURE, ASSEMBLY OF
Manufacturer Code:51563
Part Number:740-5631-503
Part Name:BLOCK, ASSY LINE SUPPORT
Manufacturer Code:51563
Link not Found
Link not Found
Part Number:AS21548
Part Name:BOLT - .250 DIA X 3.000
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
MS9557-36BOLT96906
Part Number:MS21924-12R
Part Name:UNION
Manufacturer Code:96906
Optional Parts
Part NumberPart NameManufacturer
MS21924-12SUNION96906
Part Number:MS21924-12S
Part Name:UNION
Manufacturer Code:96906
Optional Parts
Part NumberPart NameManufacturer
MS21924-12RUNION96906
Part Number:MS21924-20R
Part Name:UNION
Manufacturer Code:96906
Optional Parts
Part NumberPart NameManufacturer
MS21924-20SUNION96906
Part Number:MS21924-20S
Part Name:UNION
Manufacturer Code:96906
Optional Parts
Part NumberPart NameManufacturer
MS21924-20RUNION96906
Part Number:MS9557-36
Part Name:BOLT
Manufacturer Code:96906
Optional Parts
Part NumberPart NameManufacturer
AS21548BOLT - .250 DIA X 3.000U1653
Part Number:MS9557-46
Part Name:BOLT
Manufacturer Code:96906
