HYDRAULIC POWER-ENGINE MOUNTED HYDRAULIC TUBES

DMC:V2500-A1-29-11-49-05A-941A-D|Issue No:005|Issue Date:2021-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig. Item	Part No.	Description	Effect/Model Applic.	UPA
05
000	B29114905	HYDRAULIC POWER - ENGINE MOUNTED HYDRAULIC TUBES, PRE SBN29-0003	aa
000	SBN0003-01	HYDRAULIC POWER - ENGINE MOUNTED HYDRAULIC TUBES, PRE SBE70-0630	ab
000	SBE0630-01	HYDRAULIC POWER - ENGINE MOUNTED HYDRAULIC TUBES, PRE SBN70-0727	ac
000	SBE0727-01	HYDRAULIC POWER-ENGINE MOUNTED HYDRAULIC TUBES	ad
100100	AE707874-2	• HOSE - FLEXIBLE, SUCTION K6712	aa-ab	1
101101	MS21924-20S	• UNION 96906 PRE SBE70-0630	aa-ab	1
101101A	MS21924-20S	• UNION 96906 ALT MS21924-20R POST SBE70-0630	aa-ac	1
101101B	MS21924-20R	• UNION 96906 ALT MS21924-20S POST SBE70-0630	ac-ac	1
103103	100-920-2397	• PACKING 51563	aa-ac	1
400400	AE707875-1	• HOSE - FLEX PRESSURE K7766	aa-ac	1
413413	MS21916-16-12S	• UNION 96906 PRE SBN29-0003	aa	1
413413A	740-5233-501	• UNION 51563 POST SBN29-0003	ab-ac	1

415415	100-916-2397	• PACKING 51563	aa-ac	1

417417	TF450-212A	• PACKING 51563 ALT C11236-212B POST SBN29-0003	ab-ac	1
-417417A	C11236-212B	• PACKING - PREFORMED 26879 ALT 2100-212 POST SBN29-0003	ab-ac	REF
-417417B	2100-212	• PACKING 51563 ALT S30294-212-1 POST SBN29-0003	ab-ac	REF
-417417C	S30294-212-1	• PACKING 51563 ALT STF800-212 POST SBN29-0003	ab-ac	REF
-417417D	STF800-212	• PACKING ALT RMR12BM212 POST SBN29-0003	ab-ac	REF
-417417E	RMR12BM212	• PACKING ALT TF450-212A POST SBN29-0003	ab-ac	REF
420420	100-212-2397	• PACKING 51563 POST SBN29-0003	ab-ac	1

700700	AE707876-1	• HOSE K7766	aa-ac	1

705705	MS21902-6S	• UNION - TUBE, FLARELESS 96906 PRE SBE70-0727	aa-ac	1
705705A	MS21902-6R	• UNION 96906 POST SBE70-0727	ad	1
708708	100-906-2397	• PACKING 51563	aa-ac	1

713713	MS21916-8-6S	• UNION 96906 PRE SBE70-0727	aa-ac	1
713713A	MS21916-8-6R	• UNION 96906 POST SBE70-0727	ad	1
715715	100-908-2397	• PACKING 51563	aa-ac	1
716716	AS21408	• BOLT - .190 DIA X .500 U1653	aa-ac	1
716716A	AS21407	• BOLT - .190 DIA X .500 U1653 ALT MS9556-05	ac	1
-716716B	MS9556-05	• BOLT - DOUBLE HEXAGON 96906 ALT AS21407	ac	REF
717717	400WSS11	• CLIP 83930	aa-ac	1
717717A	400WSS12	• CLIP 83930	ac	1

718718	SP154D	• WASHER - 0.190 DIA K7766	aa-ac	1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	51563
Enterprise Name:	ROHR INC, A COLLINS AEROSPACE COMPANY
BU Name:	ROHR INC, A COLLINS AEROSPACE COMPANY
Street:	850 LAGOON DRIVE
City:	CHULA VISTA
State:	CA
Zip Code:	91910-2098
Country:	USA
Phone Number:	1-619-691-2089
Fax Number:	1-619-691-6195

Manufacturer Code:	83930
Enterprise Name:	TRANSDIGM INC
BU Name:	TRANSDIGM INC
Department:	ADEL FASTENERS
Building:	SANDWELL INDUSTRIAL ESTATE
Street:	5000 TRIGGS STREET
City:	LOS ANGELES
State:	WEST MIDLANDS
Zip Code:	B66 1QJ
Country:	USA

Manufacturer Code:	96906
Enterprise Name:	MILITARY STANDARDS MANUAL 4120 3-M
BU Name:	MILITARY STANDARDS MANUAL 4120 3-M
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

Manufacturer Code:	K6712
Enterprise Name:	R F SAYWELL LTD
BU Name:	R F SAYWELL LTD
Street:	GATWICK AIRPORT SOUTH
City:	GATWICK
State:	SURREY
Country:	ENGLAND

HYDRAULIC POWER-ENGINE MOUNTED HYDRAULIC TUBES

Export Control

Copyright

Applicability

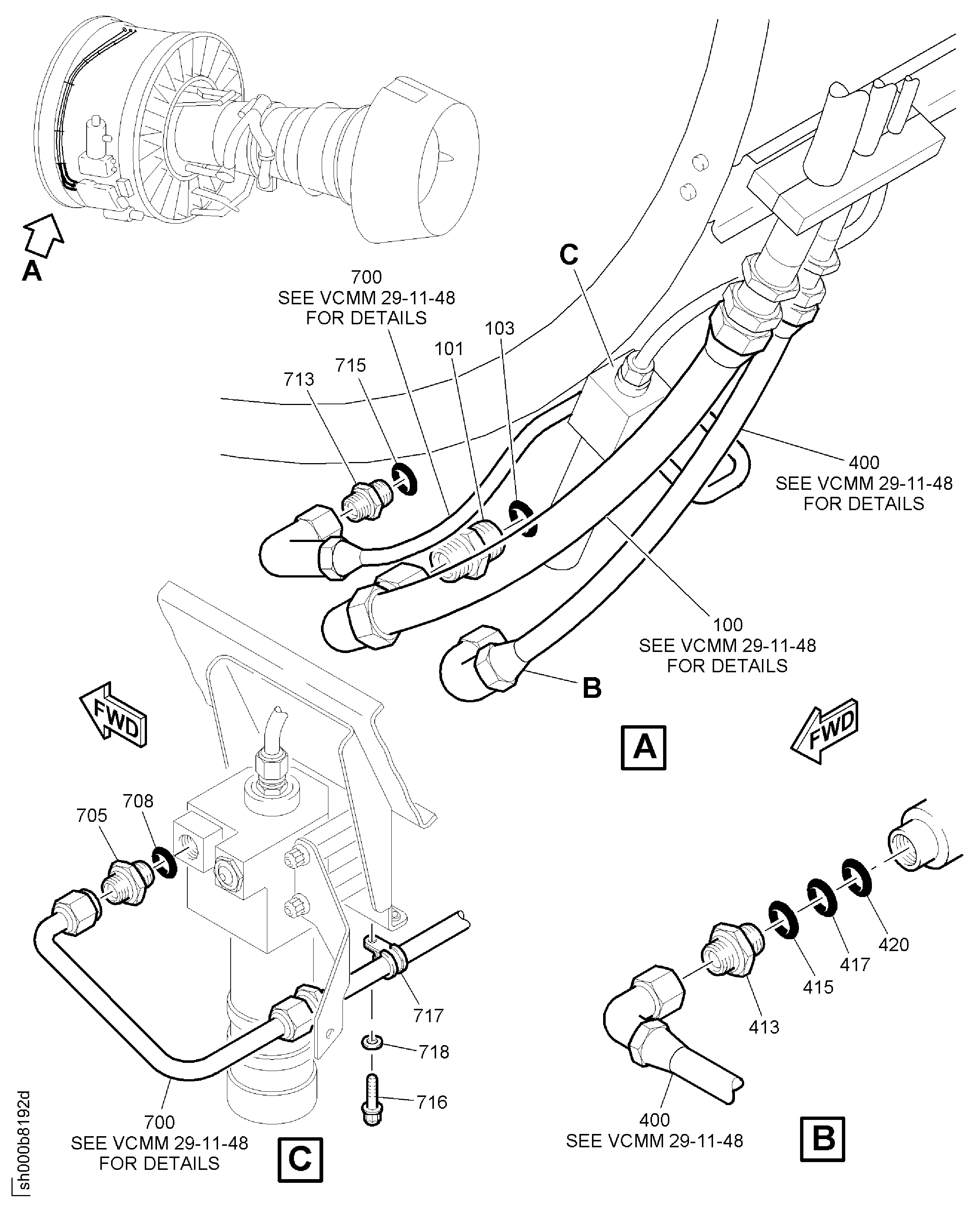

Figure: HYDRAULIC POWER-ENGINE MOUNTED HYDRAULIC TUBES

TUBES HYDRAULIC FLEX

Manufacturer Code:	K7766
Enterprise Name:	K7766
BU Name:	British Standards Institution
Street:	2 Park Street
City:	London
Zip Code:	AW1A 2BS
Country:	England

Manufacturer Code:	U1653
Enterprise Name:	Society Of British Aerospace Companies, LTD.

Part Number:	100-212-2397
Part Name:	PACKING
Manufacturer Code:	51563
