Anti-Ice Ducts

DMC:V2500-A1-30-21-49-02A-941A-D|Issue No:004.00|Issue Date:2020-02-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
02
000B30214902ICE AND RAIN PROTECTION - ANTI ICE DUCTS, PRE SBN70-0439aa
000SBN0439-01ICE AND RAIN PROTECTION - ANTI ICE DUCTS, PRE SBE70-0670ab
000SBE0670-01ICE AND RAIN PROTECTION - ANTI ICE DUCTS, PRE SBN70-0744ac
000SBN0744-01ICE AND RAIN PROTECTION - ANTI ICE DUCTSad
100100740-5152-507• DUCT - ASSEMBLY OF
51563		aa-ad1
1101106299257-0200• COUPLING - ASSEMBLY OF
00624		aa-ad1
120120NK103102-0200• SEAL
K6712		aa-ad1
130130NAS6704-16• BOLT
80205		aa-ad4
140140MS21043-4• NUT
96906		aa-ad4
-140140AH41-4• NUT
15653
ALT MS21043-4		aa-adREF
150150740-5111-501• BUSHING - FLANGED
51563		aa-ad4
160160SP156E• WASHER
K7766		aa-ad4
170170RFY04UJ• BEARING
K7067
PRE SBN70-0439		aa3
170170AP3A1830• BEARING
K7067
POST SBN70-0439
PRE SBN70-0744		aa-ac3
170170BB0308015• BEARING
K4585
POST SBN70-0744		aa-ad3
180180RMY04UJ• BEARING - LINK, MALE
K7067
PRE SBN70-0439		aa1
180180AP3A1820• BEARING - ROD END, ASSEMBLY OF
K7067
POST SBN70-0439		aa-ad1
182182A105GT• NUT - 0.312 DIA
K7766		aa-ad1
183183SP108G• WASHER - TAB
K7766		aa-ad1
190190740-5169-501• ROD
51563		aa-ad1
192192A105GT• NUT - 0.312 DIA
K7766		aa-ad2
193193SP108G• WASHER - TAB
K7766		aa-ad2
-300300324425• VALVE - INTAKE ANTI-ICE
79318		aa-adREF
500500740-5153-507• DUCT - ASSEMBLY OF
51563		aa-ad1
5105106299257-0200• COUPLING - ASSEMBLY OF
00624		aa-ad1
520520NK103102-0200• SEAL
K6712
PRE SBE70-0670		aa-ab1
520520ANK103102-0200• SEAL
K6712
ALT S2347-200
POST SBE70-0670		ac-ad1
520520BS2347-200• SEAL
51563
ALT NK103102-0200
POST SBE70-0670		ac-ad1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

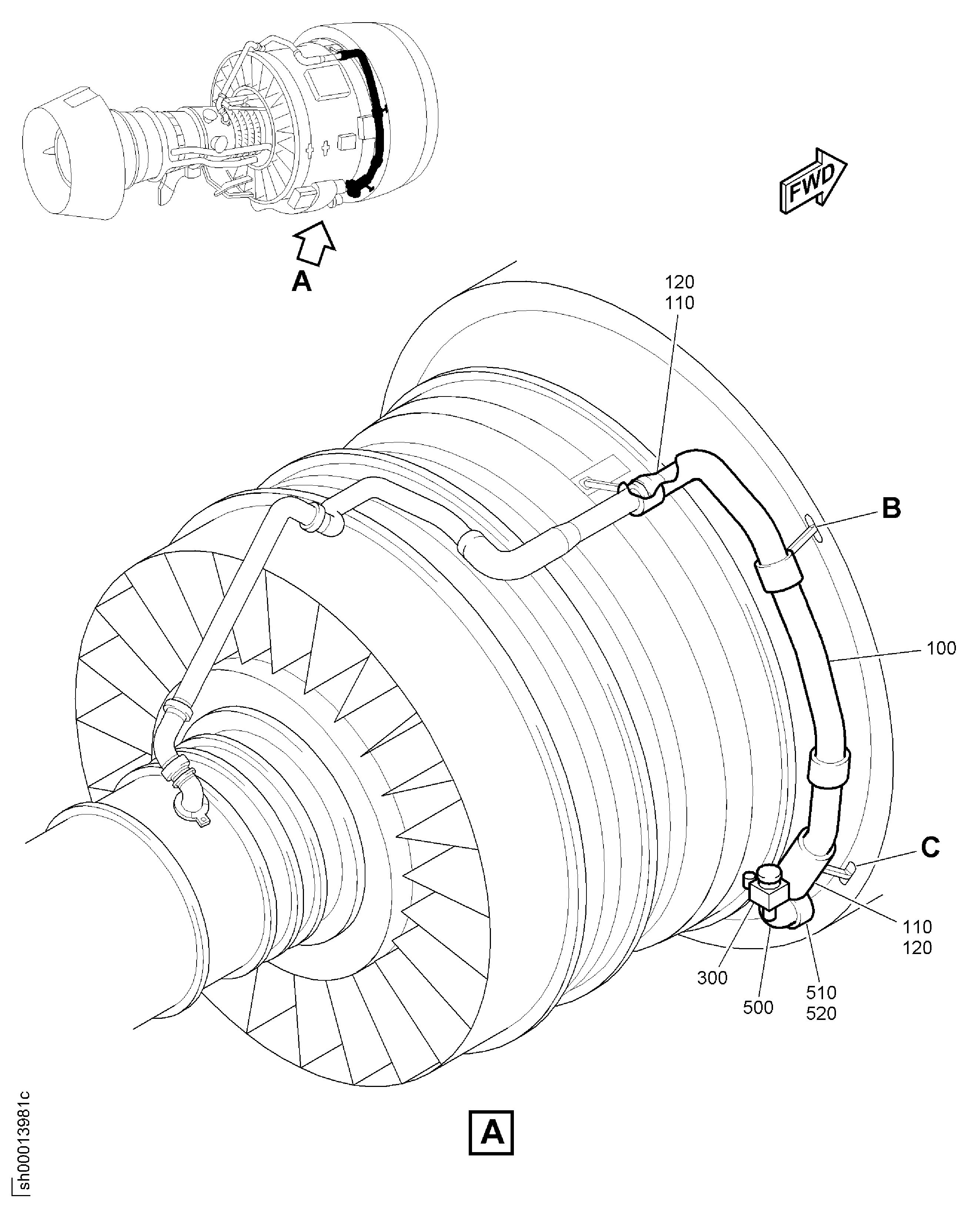

Figure: Anti-Ice Ducts

DUCT ASSY ANTI ICE

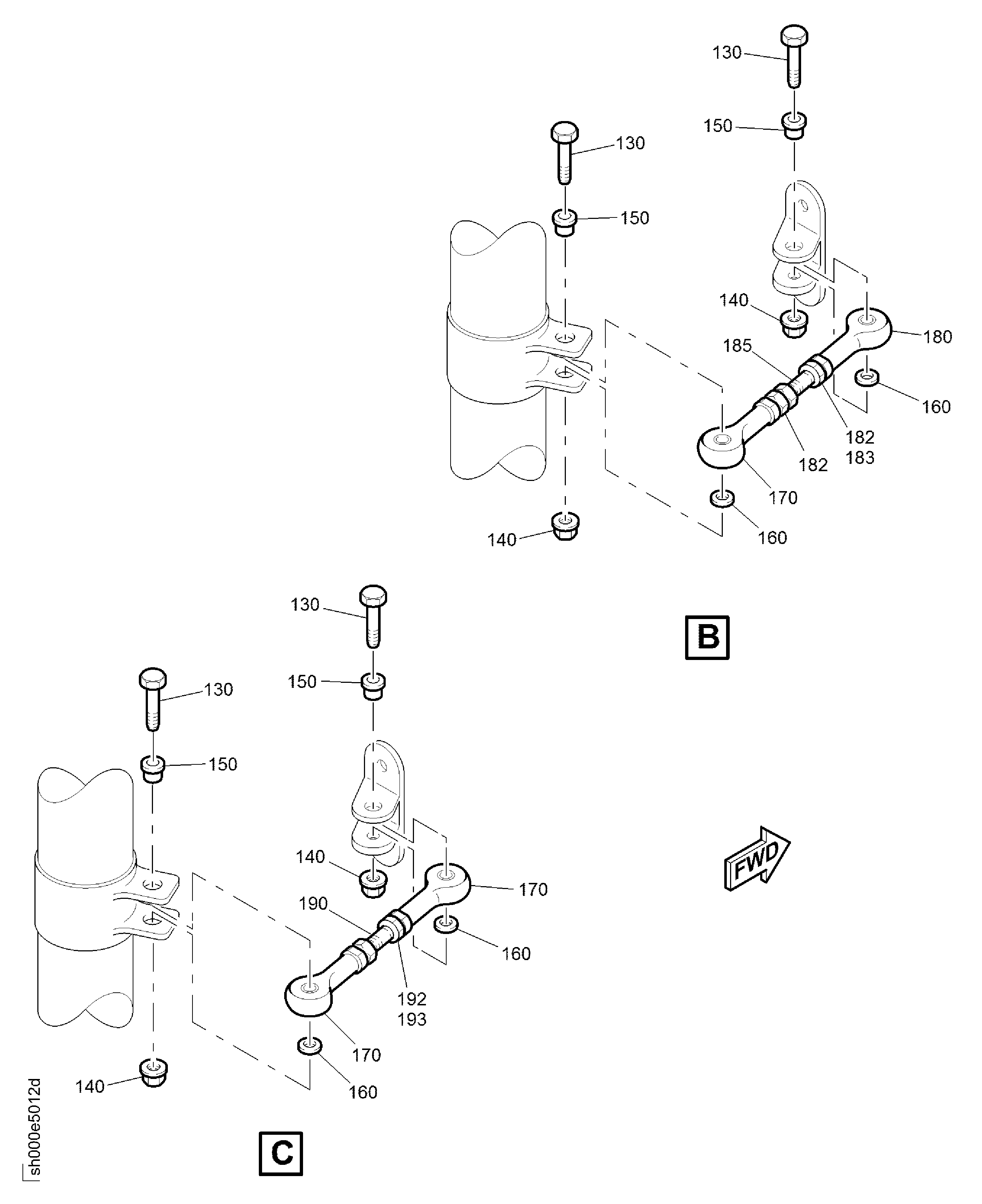

Figure: Anti-Ice Ducts

Anti-Ice Ducts

Change Type:

Corrected SB Reference.

Manufacturer Code:00624
Enterprise Name:AEROQUIP CORPORATION
BU Name:AEROQUIP CORPORATION
Department:AEROSPACE DIVISION
Building:RUSTINGTON
Street:300 S E AVENUE
City:JACKSON
State:MICHIGAN
Zip Code:49203-1972
Country:USA
Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:15653
Enterprise Name:ALCOA FASTENING SYSTEMS
BU Name:ALCOA FASTENING SYSTEMS
Department:FULLERTON OPERATIONS PLANT 1
Street:800 S.STATE COLLEGE BOULEVARD
City:FULLERTON
State:CA
Zip Code:92831
Country:USA
Phone Number:1-714-871-1550
Fax Number:1-714-680-0175
Internet:www.alcoa.com
Manufacturer Code:51563
Enterprise Name:ROHR INC, A COLLINS AEROSPACE COMPANY
BU Name:ROHR INC, A COLLINS AEROSPACE COMPANY
Street:850 LAGOON DRIVE
City:CHULA VISTA
State:CA
Zip Code:91910-2098
Country:USA
Phone Number:1-619-691-2089
Fax Number:1-619-691-6195
Manufacturer Code:79318
Enterprise Name:WHITTAKER CONTROLS INC
BU Name:WHITTAKER CONTROLS INC
Department:WHITTAKER CORP
Building:PELYNT LODGE
Street:12838 SATICOY STREET
City:NORTH HOLLYWOOD
State:CALIFORNIA
Zip Code:91605
Country:USA
Manufacturer Code:80205
Enterprise Name:NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES ASSO OF AMERICAN, INC
BU Name:NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES ASSO OF AMERICAN, INC
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:96906
Enterprise Name:MILITARY STANDARDS MANUAL 4120 3-M
BU Name:MILITARY STANDARDS MANUAL 4120 3-M
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:K4585
Enterprise Name:SHORT BROS PLC
BU Name:NULL
Street:AIRPORT ROAD
P.O. Box:PO BOX 241 BT3
City:QUEENS ISLAND
State:BELFAST
Zip Code:9DZ
Country:UNITED KINGDOM
Manufacturer Code:K6712
Enterprise Name:R F SAYWELL LTD
BU Name:R F SAYWELL LTD
Street:GATWICK AIRPORT SOUTH
City:GATWICK
State:SURREY
Country:ENGLAND
Manufacturer Code:K7067
Enterprise Name:ROSE BEARINGS LTD
BU Name:ROSE BEARINGS LTD
Street:DODDINGTON ROAD
City:LINCOLN
State:CALIFORNIA
Zip Code:LN6 3RA
Country:ENGLAND
Manufacturer Code:K7766
Enterprise Name:K7766
BU Name:British Standards Institution
Street:2 Park Street
City:London
Zip Code:AW1A 2BS
Country:England
Part Number:324425
Part Name:VALVE - INTAKE ANTI-ICE
Manufacturer Code:79318
Part Number:6299257-0200
Part Name:COUPLING - ASSEMBLY OF
Manufacturer Code:00624
Part Number:740-5111-501
Part Name:BUSHING - FLANGED
Manufacturer Code:51563
Part Number:740-5152-507
Part Name:DUCT - ASSEMBLY OF
Manufacturer Code:51563
Part Number:740-5153-507
Part Name:DUCT - ASSEMBLY OF
Manufacturer Code:51563
Part Number:740-5169-501
Part Name:ROD
Manufacturer Code:51563
Part Number:A105GT
Part Name:NUT - 0.312 DIA
Manufacturer Code:K7766
Part Number:B0308015
Part Name:BEARING
Manufacturer Code:K4585
Link not Found
Part Number:H41-4
Part Name:NUT - SELF LOCKING, 0.250 DIA
Manufacturer Code:15653
Part Number:MS21043-4
Part Name:NUT
Manufacturer Code:96906
Optional Parts
Part NumberPart NameManufacturer
H41-4NUT - SELF LOCKING, 0.250 DIA0AM53
Part Number:NAS6704-16
Part Name:BOLT
Manufacturer Code:80205
Part Number:NK103102-0200
Part Name:SEAL
Manufacturer Code:K6712
Optional Parts
Part NumberPart NameManufacturer
S2347-200SEALSEAL51563
Part Number:P3A1820
Part Name:BEARING - ROD END, ASSEMBLY OF
Manufacturer Code:K7067
Part Number:P3A1830
Part Name:BEARING
Manufacturer Code:K7067
Part Number:RFY04UJ
Part Name:BEARING
Manufacturer Code:K7067
Part Number:RMY04UJ
Part Name:BEARING - LINK, MALE
Manufacturer Code:K7067
Part Number:S2347-200
Part Name:SEAL
Manufacturer Code:51563
Optional Parts
Part NumberPart NameManufacturer
NK103102-0200SEALK6712
Part Number:SP108G
Part Name:WASHER - TAB
Manufacturer Code:K7766
Part Number:SP156E
Part Name:WASHER
Manufacturer Code:K7766
