DMC:V2500-A1-30-21-51-01A-941A-DIssue No:002.00Issue Date:2020-02-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B30215101 | ENGINE - AIR INTAKE ANTI ICE VALVE, PRE SBE70-0670 | aa | ||
| SBE0670-01 | ENGINE - AIR INTAKE ANTI ICE VALVE, PRE SBN71-0166 | ab | ||
| SBN0166-01 | ENGINE - AIR INTAKE ANTI ICE VALVE | ac | ||
| 010 | 326975 | • VALVE - INTAKE ANTI-ICE 79318 POST SBN71-0166 | ac | 1 |
| 020 | 6299257-0200 | • COUPLING - ASSEMBLY OF 00624 | aa-ac | 2 |
| 030 | NK103102-0200 | • SEAL K6712 PRE SBE70-0670 | aa | 2 |
| 030A | NK103102-0200 | • SEAL K6712 ALT S2347-200 POST SBE70-0670 | ab-ac | 2 |
| 030B | S2347-200 | • SEAL 51563 ALT NK103102-0200 POST SBE70-0670 | ab-ac | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

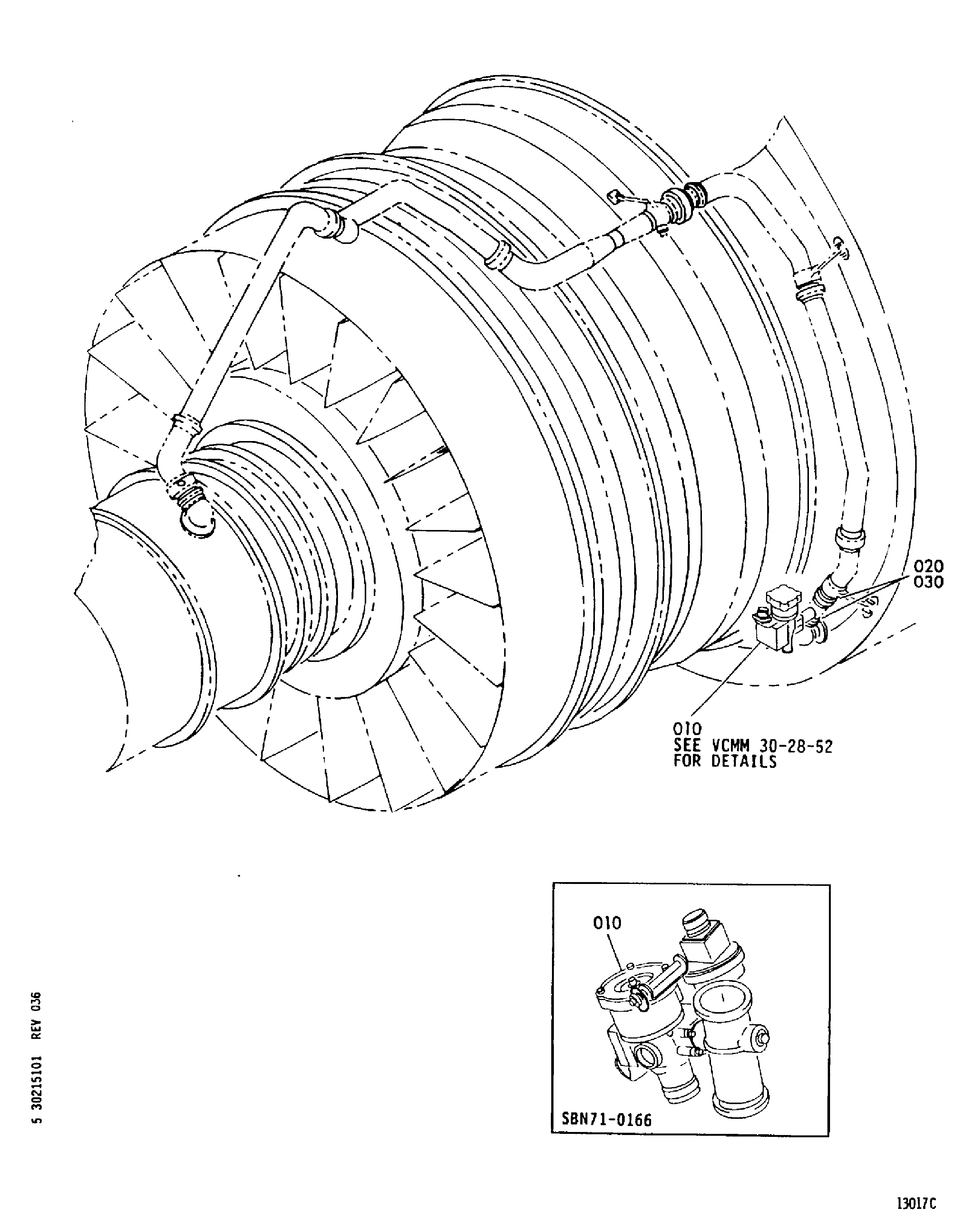

Figure: ENGINE-AIR INTAKE ANTI ICE VALVE
VALVE INTAKE ANTI ICE
