| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B36114101 | PNEUMATIC - IP BLEED AIR CHECK VALVE, PRE SBE70-0670 | aa | ||
| SBE0670-01 | PNEUMATIC - IP BLEED AIR CHECK VALVE, PRE SBN70-0619 | ab | ||
| SBN0619-01 | PNEUMATIC - IP BLEED AIR CHECK VALVE | ac | ||
| -002 | 740-5001-515 | INSTALL - BLEED AIR DUCTS 51563 | aa-ac | REF |
| 050 | 2290A02 | • CHECK - VALVE,IP BLEED F0230 PRE SBN70-0619 | aa-ab | 1 |
| 050A | 2290A03 | • VALVE - IP BLEED F0230 POST SBN70-0619 | aa-ac | 1 |
| 050B | 2290A03 | • VALVE - IP BLEED F0230 POST SBN70-0619 | ac | 1 |
| 050C | 2290A05 | • VALVE - CHECK, IP BLEED F0230 POST SBN70-0619 | ac | 1 |
| 050D | 2290A050000 | • VALVE - IP BLEED F0230 POST SBN70-0619 | ac | 1 |
| 100 | 6299258-0400 | • COUPLING K6712 | aa-ac | 2 |
| 110 | NK103102-0400 | • SEAL 00624 PRE SBE70-0670 | aa | 2 |
| 110A | NK103102-0400 | • SEAL 00624 POST SBE70-0670 | ab-ac | 2 |
| 110B | S2347-400 | • SEAL 51563 POST SBE70-0670 | ab-ac | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

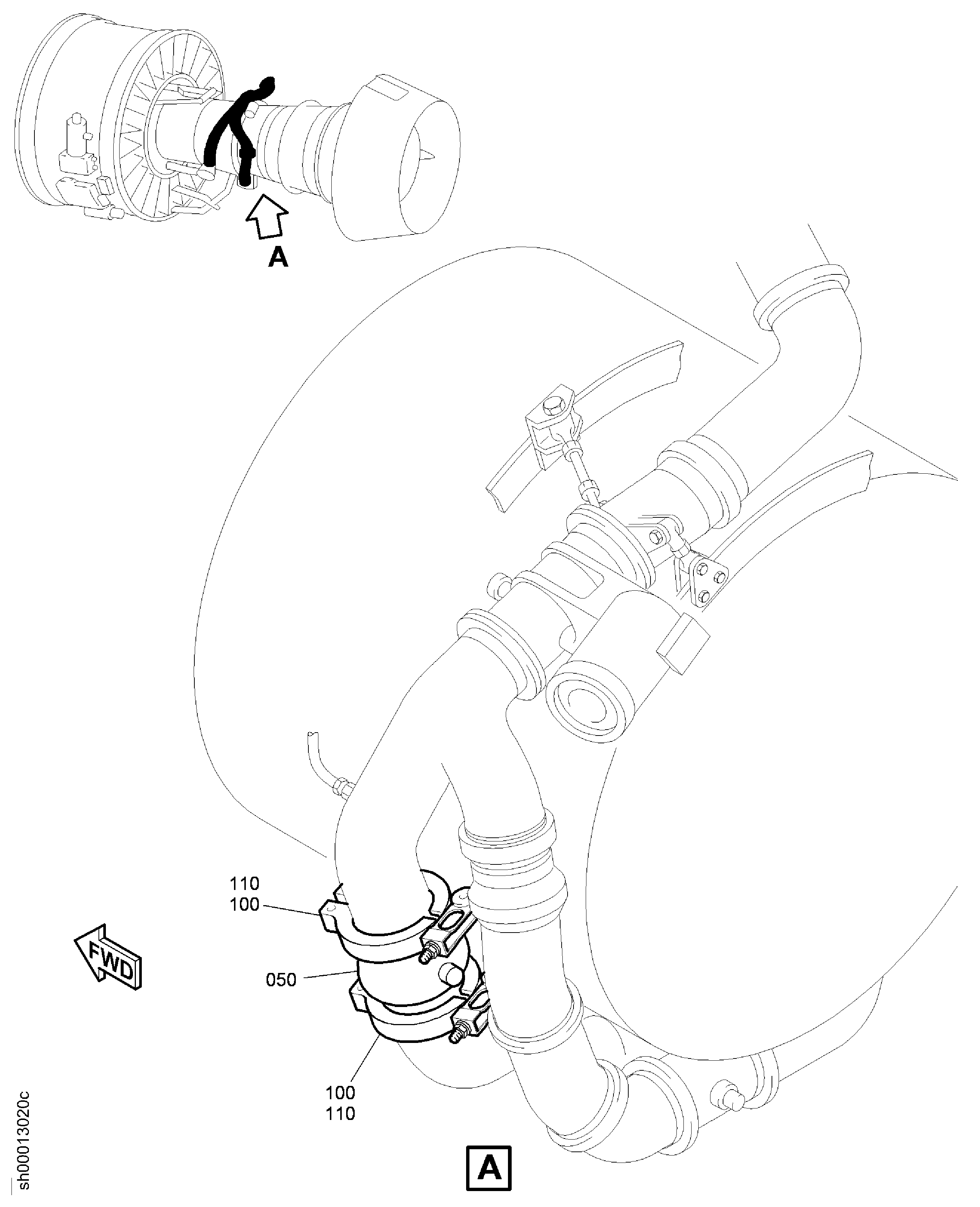

Figure: PNEUMATIC-IP BLEED AIR CHECK VALVE
VALVE IP BLEED CHECK
