| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B36114701 | PNEUMATIC-TUBES-HP BLEED CONTROL AIR, PRE SBE79-0087 | aa | ||
| SBE0087-01 | PNEUMATIC-TUBES-HP BLEED CONTROL AIR, PRE SBE73-0198 | ab | ||
| SBE0198-01 | PNEUMATIC-TUBES-HP BLEED CONTROL AIR | ac | ||
| 090 | AS27905 | • PLUG - SCREWED U1653 | aa-ac | 1 |
| 100 | 6A2136 | • TUBE - A/O-AIR PRE SBE79-0087 | aa | 1 |
| 100A | 6A5391 | • TUBE - A/O-AIR HP VALVE VENT T EBU TO BIF PANEL POST SBE79-0087 | ab-ac | 1 |
| 128 | 400WSS4 | • CLIP 83930 PRE SBE79-0087 | aa | 1 |
| 136 | 400WSS4 | • CLIP 83930 PRE SBE79-0087 | aa | 1 |
| 144 | 400WSS4 | • CLIP 83930 PRE SBE79-0087 | aa | 1 |
| 149 | 4W0102 | • BOLT - .190 DIA X .438 POST SBE79-0087 PRE SBE73-0198 | ab-ac | 1 |
| 149A | 4W0102 | • BOLT - .190 DIA X .438 ALT 4W0342 POST SBE73-0198 | ab-ac | 1 |
| 149B | 4W0342 | • BOLT - .190 DIA X .438 POST SBE73-0198 | ab-ac | 1 |
| 150 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE73-0198 | ac | 1 |
| 152 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ab-ac | 1 |
| 156 | 4W0001 | • NUT - .190 DIA POST SBE79-0087 | ab-ac | 1 |
| 160 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ab-ac | 1 |
| 168 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ab-ac | 1 |
| 200 | AS15777 | • • WIRE - THRUST U1653 | aa-ac | 1 |
| 200A | AS15777 | • • WIRE - THRUST,(VRS6401) U1653 POST SBE70-0222 | ***** | 1 |
| 200B | AS15777 | • • WIRE - THRUST,(VRS6400) U1653 POST SBE70-0268 | ***** | 1 |
| 201 | AS15701 | • • NUT - TUBE COUPLING U1653 | aa-ac | 1 |
| 201A | AS15701 | • • NUT - TUBE COUPLING,(VRS6401) U1653 POST SBE70-0222 | ***** | 1 |
| 201B | AS15701 | • • NUT - TUBE COUPLING,(VRS6400) U1653 POST SBE70-0268 | ***** | 1 |
| 202 | LK56511 | • • FERRULE - ASSY | aa-ac | 1 |
| 202A | LK56511 | • • FERRULE - ASSY,(VRS6400) POST SBE70-0268 | ***** | 1 |
| 214 | LK39602 | • • CLIP PRE SBE79-0087 | aa | 1 |
| 214A | LK39602 | • • CLIP - ,(VRS6402) POST SBE70-0268 | ***** | 1 |
| 214B | UP11152 | • • BRACKET - INTER TUBE SUPPORT POST SBE79-0087 | ab-ac | 2 |
| 240 | AS15777 | • • WIRE - THRUST U1653 | aa-ac | 1 |
| 240A | AS15777 | • • WIRE - THRUST,(VRS6401) U1653 POST SBE70-0222 | ***** | 1 |
| 240B | AS15777 | • • WIRE - THRUST,(VRS6400) U1653 POST SBE70-0268 | ***** | 1 |
| 241 | AS15701 | • • NUT - TUBE COUPLING U1653 | aa-ac | 1 |
| 241A | AS15701 | • • NUT - TUBE COUPLING,(VRS6401) U1653 POST SBE70-0222 | ***** | 1 |
| 241B | AS15701 | • • NUT - TUBE COUPLING,(VRS6400) U1653 POST SBE70-0268 | ***** | 1 |
| 242 | AS15768 | • • FERRULE - ASSY U1653 | aa-ac | 1 |
| 242A | AS15768 | • • FERRULE - ASSY,(VRS6400) U1653 POST SBE70-0268 | ***** | 1 |
| 500 | 6A2139 | • TUBE - A/O-AIR PRE SBE79-0087 | aa | 1 |
| 500A | 6A6224 | • TUBE - A/O AIR-BIF PANEL TO DISCON POST SBE79-0087 | ab-ac | 1 |
| 502 | 4W0002 | • NUT - .250 DIA | aa-ac | 2 |
| 506 | 4W0162 | • BOLT - .250 DIA X .500 | aa-ac | 2 |
| 506A | 4W0163 | • BOLT - .250 DIA X .562 | aa-ac | 2 |
| 528 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ab-ac | 1 |
| 536 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ab-ac | 1 |
| 602 | UP11028 | • • ADAPTOR | aa-ac | 1 |
| 602A | UP11028 | • • ADAPTOR - ,(VRS6400) POST SBE70-0268 | ***** | 1 |
| 614 | LK39602 | • • CLIP PRE SBE79-0087 | aa | 1 |
| 614A | LK39602 | • • CLIP - ,(VRS6402) POST SBE70-0268 | ***** | 1 |
| 614B | UP11152 | • • BRACKET - INTER TUBE SUPPORT POST SBE79-0087 | ab-ac | 1 |
| 642 | AS15802 | • • ADAPTOR U1653 | aa-ac | 1 |
| 642A | AS15802 | • • ADAPTOR - STRAIGHT TUBE,(VRS6400) U1653 POST SBE70-0268 | ***** | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

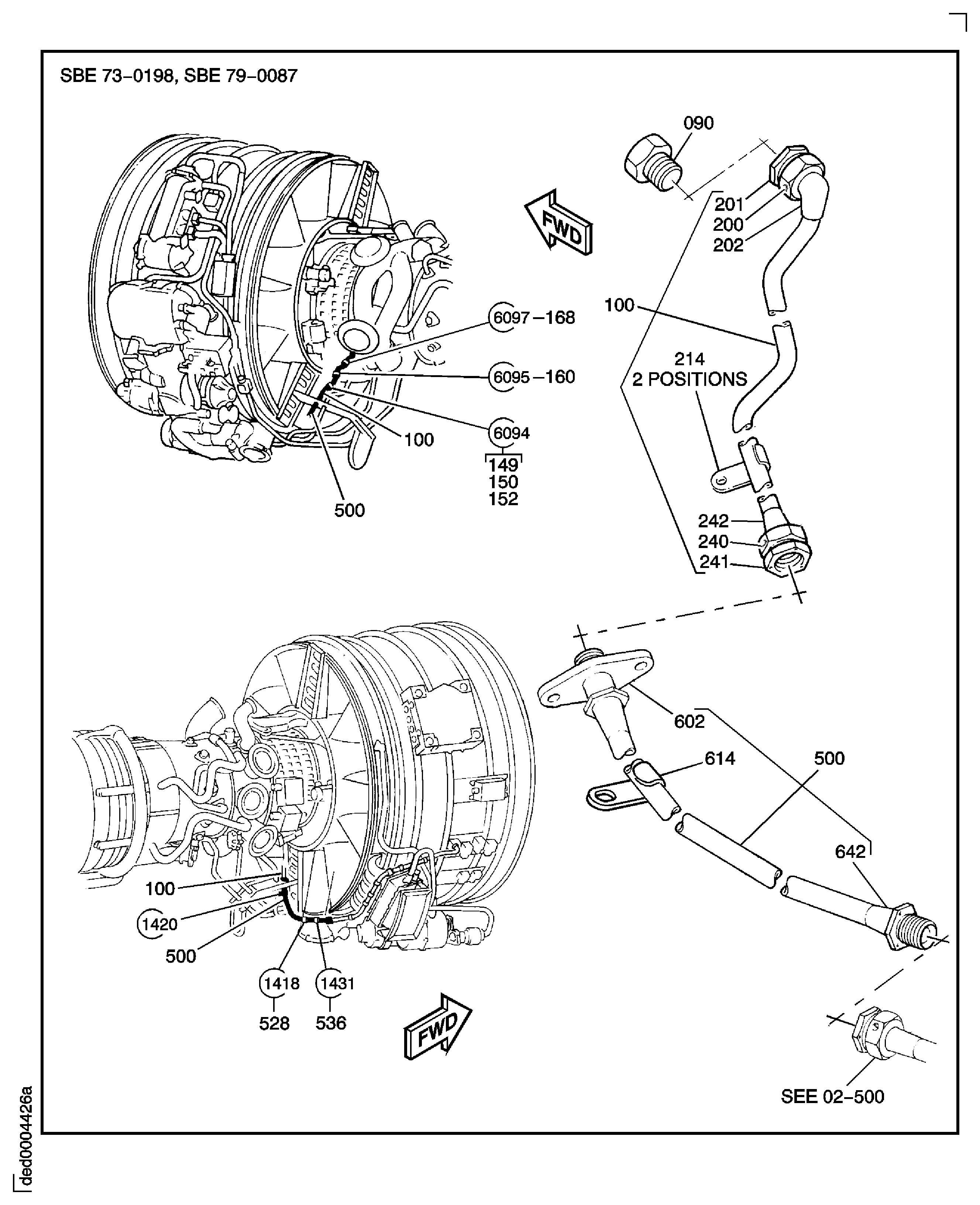

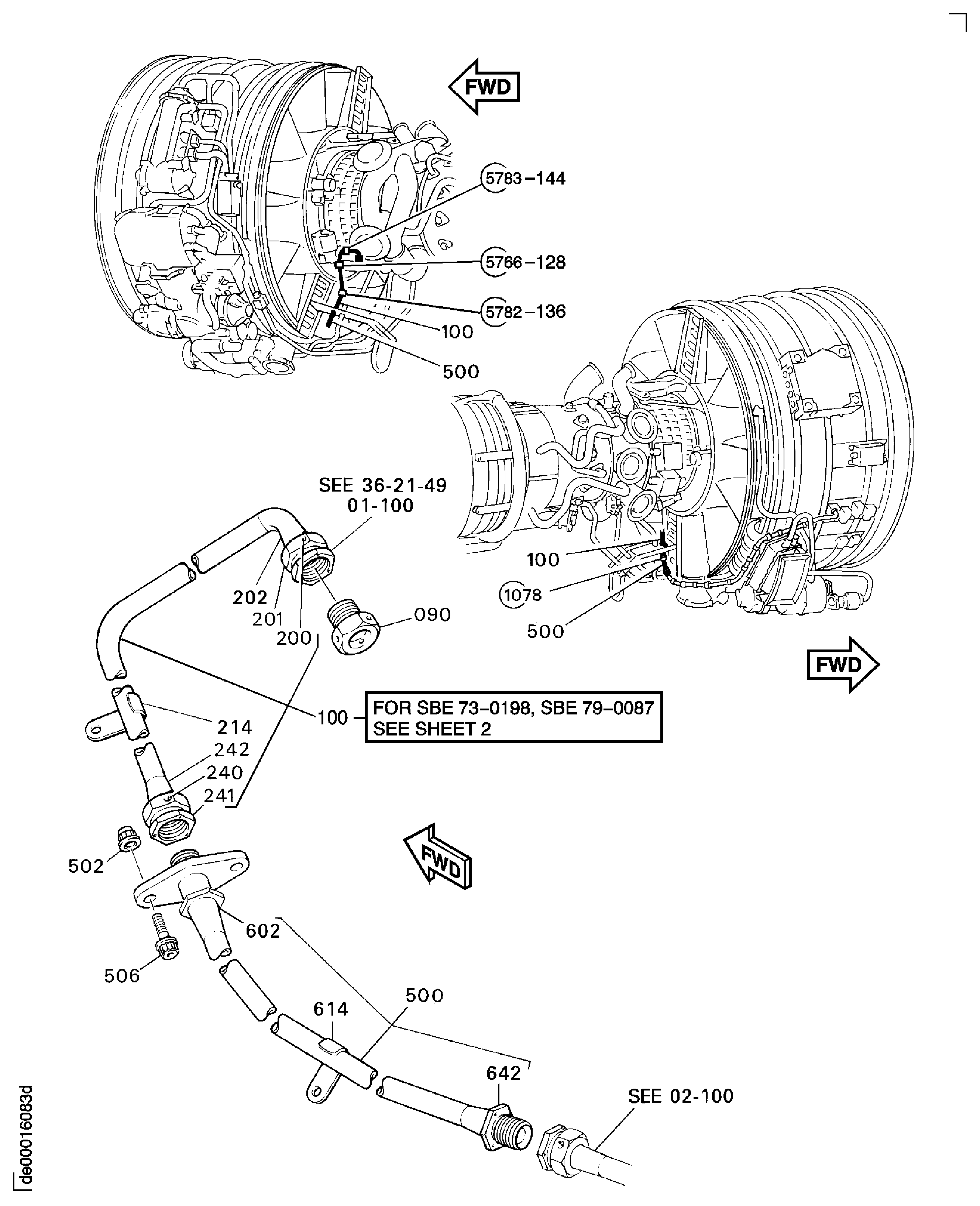

Figure: PNEUMATIC-TUBES-HP BLEED CONTROL AIR
PNEUMATIC TUBES HP BLEED
PNEUMATIC TUBES HP BLEED
