DMC:V2500-A1-36-11-47-89A-941A-DIssue No:002.00Issue Date:2014-08-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 89 | ||||
| B36114789 | PNEUMATIC-TUBES-HP BLEED CONTROL AIR | aa | ||
| -053 | LK64922 | • • TUBE - ,(VRS6404) | ***** | 1 |
| -056 | LK64923 | • • TUBE - ,(VRS6404) | ***** | 1 |
| 153 | JR17171 | • • RING - ,(VRS6404) | ***** | 1 |
| 156 | JR17172 | • • CONNECTR - ,(VRS6404) | ***** | 1 |
| 253 | JR17590 | • • SLEEVE - ,(VRS6403), .250 0DIA X.028IN | ***** | 1 |
| 256 | LK46450 | • • SLEEVE - ,(VRS6403), .3125 0DIA X.028 | ***** | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

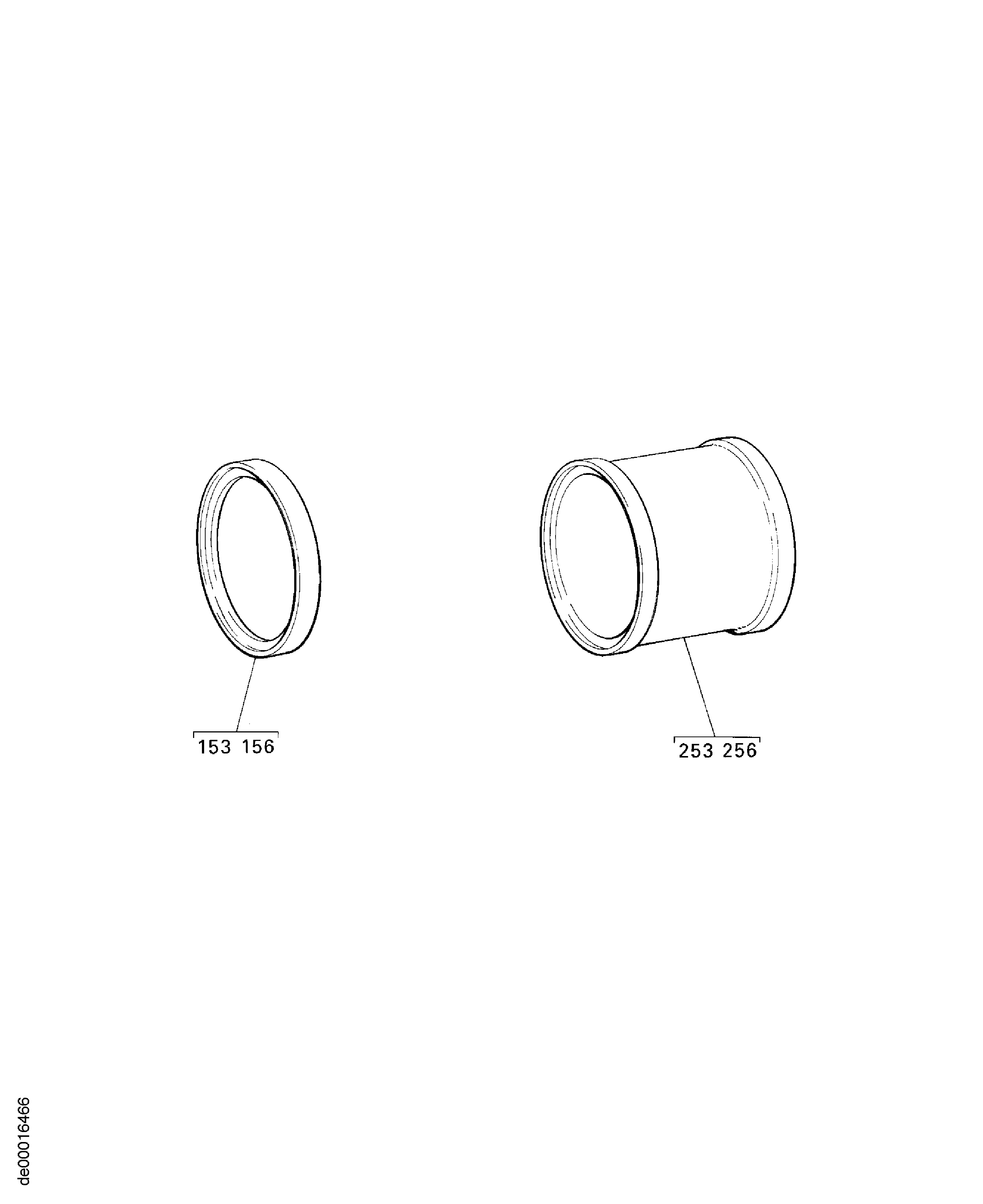

Figure: PNEUMATIC-TUBES-HP BLEED CONTROL AIR
Repair Of Rigid Tubes VRS6404
