DMC:V2500-A1-36-11-51-01A-941A-DIssue No:002.00Issue Date:2020-02-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B36115101 | PNEUMATIC - HP BLEED VALVE, PRE SBE70-0670 | aa | ||
| SBE0670-01 | PNEUMATIC - HP BLEED VALVE | ab | ||
| -002 | 740-5001-515 | INSTALL - BLEED AIR DUCTS 51563 | aa-ab | REF |
| 050 | 6713B01 | • VALVE - HP BLEED F0230 | aa-ab | 1 |
| 100 | 6299258-0400 | • COUPLING K6712 | aa-ab | 2 |
| 110 | NK103102-0400 | • SEAL 00624 PRE SBE70-0670 | aa | 2 |
| 110A | NK103102-0400 | • SEAL 00624 ALT S2347-400 POST SBE70-0670 | ab | 2 |
| 110B | S2347-400 | • SEAL 51563 ALT NK103102-0400 POST SBE70-0670 | ab | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

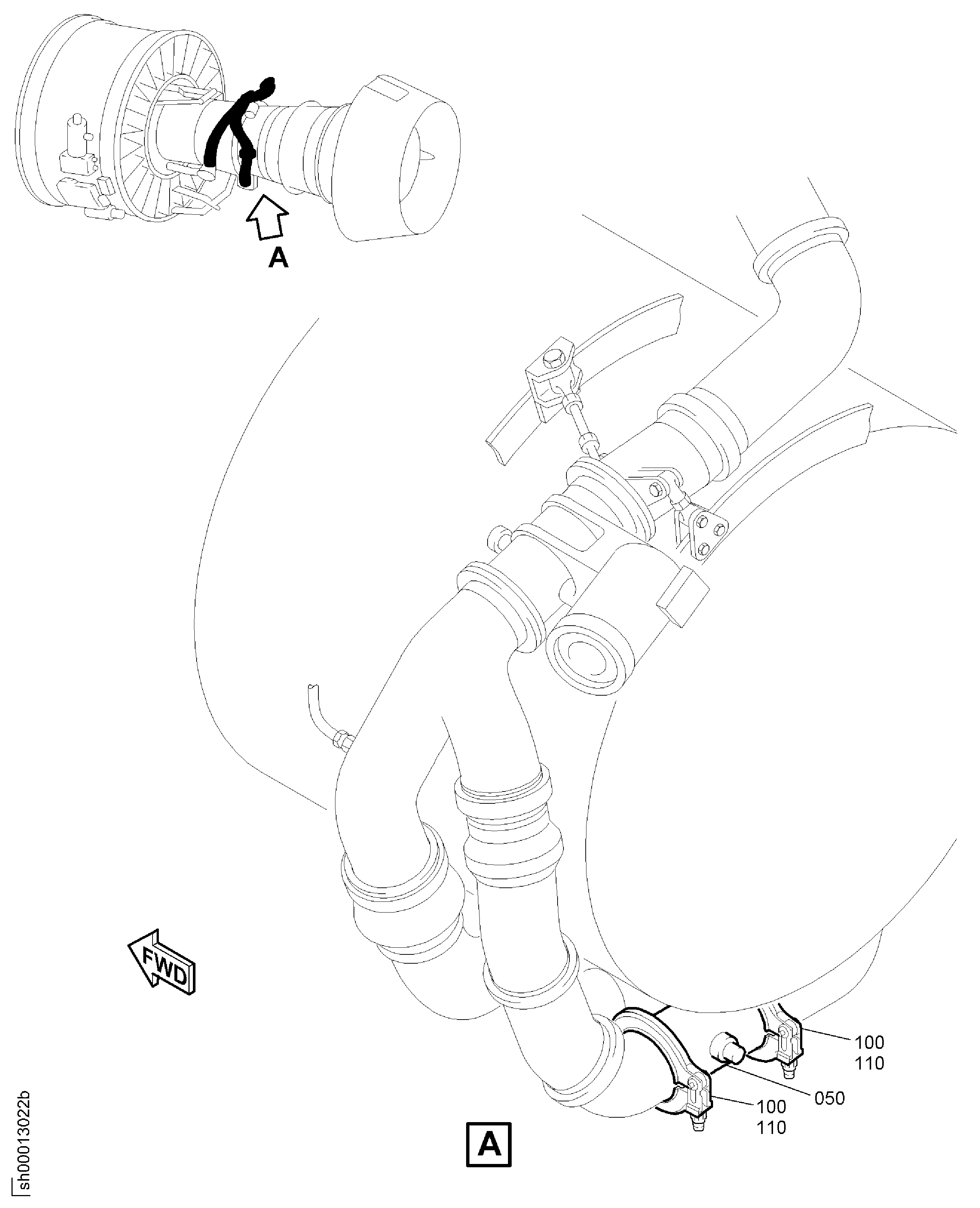

Figure: PNEUMATIC-HP BLEED VALVE
VALVE BLEED
