DMC:V2500-A1-36-11-52-01A-941A-DIssue No:003.00Issue Date:2020-02-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B36115201 | PNEUMATIC - BLEED PRESSURE REGULATOR VALVE, PRE SBE70-0670 | aa | ||
| SBE0670-01 | PNEUMATIC - BLEED PRESSURE REGULATOR VALVE | ab | ||
| SBN0617-01 | PNEUMATIC-BLEED PRESSURE REGULATOR VALVE | ac | ||
| -002 | 740-5001-515 | INSTALL - BLEED AIR DUCTS 51563 | aa-ab | REF |
| 050 | 6714A01 | • VALVE - BLEED PRESSURE,REGULATOR F0230 | aa-ab | 1 |
| 050A | 6714D02 | • VALVE - PRESSURE, REGULATING F0230 PRE SBN70-0617 | aa-ab | 1 |
| 050B | 6714D05 | • VALVE - PRESSURE, REGULATING F0230 POST SBN70-0617 PRE SBN70-0617 | **** | 1 |
| 050C | 6774E010000 | • VALVE - PRESSURE, REGULATING F0230 POST SBN70-0617 | ac | 1 |
| 100 | 6299258-0400 | • COUPLING K6712 | aa-ab | 2 |
| 110 | NK103102-0400 | • SEAL 00624 PRE SBE70-0670 | aa | 2 |
| 110A | NK103102-0400 | • SEAL 00624 ALT S2347-400 POST SBE70-0670 | ab | 2 |
| 110B | S2347-400 | • SEAL 51563 ALT NK103102-0400 POST SBE70-0670 | ab | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

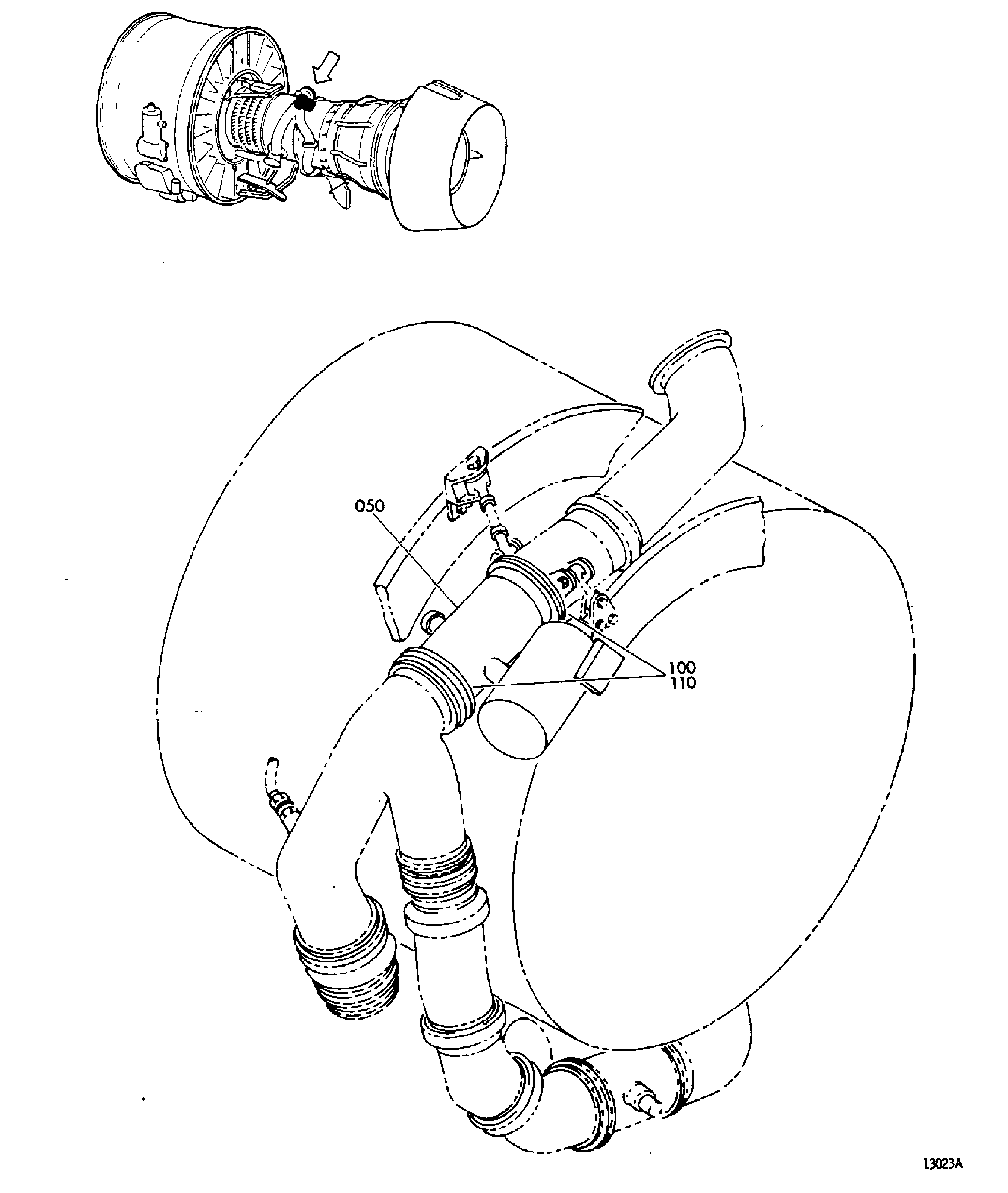

Figure: PNEUMATIC-BLEED PRESSURE REGULATOR VALVE
VALVE BLEED REGULATOR
