| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| B36214902 | PNEUMATIC - PRESSURE INDICATING TUBES, PRE SBE70-0144 | aa | ||
| SBE0144-01 | PNEUMATIC - PRESSURE INDICATING TUBES, PRE SBN70-0468 | ab | ||
| SBN0468-01 | PNEUMATIC - PRESSURE INDICATING TUBES, PRE SBN36-0006 | ac | ||
| SBN0006-01 | PNEUMATIC - PRESSURE INDICATING TUBES | ad | ||
| 100 | 740-5086-501 | • TUBE - ASSEMBLY OF 51563 | aa-ad | 1 |
| 110 | 740-5092-501 | • TUBE - ASSEMBLY OF 51563 PRE SBN70-0468 | aa-ab | 1 |
| 110A | 740-5092-503 | • TUBE - ASSEMBLY OF 51563 POST SBN70-0468 | aa-ad | 1 |
| 112 | 4W0103 | • BOLT - .190 DIA X .500 Optional Part 4W0103 POST SBE70-0144 | ab-ad | 1 |
| 115 | TA025022FT04 | • CLIP 84971 POST SBE70-0144 PRE SBN36-0006 | ab-ac | 1 |
| 115A | C10GT3-04 | • CLAMP 83930 POST SBN36-0006 | ad-ad | 1 |
| 118 | 4W0103 | • BOLT - .190 DIA X .500 Optional Part 4W0103 POST SBE70-0144 | ab-ad | 1 |
| 120 | TA025022FT04 | • CLIP 84971 POST SBE70-0144 PRE SBN36-0006 | ab-ac | 1 |
| 120A | C10GT3-04 | • CLAMP 83930 POST SBN36-0006 | ad-ad | 1 |
| 122 | AS41104 | • NUT - 0.19 DIA U1653 POST SBE70-0144 | ab-ad | 1 |
| 128 | TA025022FT04 | • CLIP 84971 PRE SBN36-0006 | aa-ac | 1 |
| 128A | C10GT3-04 | • CLAMP 83930 POST SBN36-0006 | aa-ad | 1 |
| 200 | 556-1-15305-000 | • HOSE U1603 PRE SBN70-0468 | aa-ab | 1 |
| 200A | 556-1-15305-001 | • HOSE U1603 POST SBN70-0468 | ac-ad | 1 |
| 500 | 740-5076-505 | • TUBE - ASSEMBLY OF 51563 | aa-ad | 1 |
| 500A | 740-5093-501 | • TUBE - ASSEMBLY OF 51563 | aa-ab | 1 |
| 500B | 740-5093-503 | • TUBE - ASSEMBLY OF 51563 PRE SBN70-0468 | aa-ab | 1 |
| 500C | 740-5093-505 | • TUBE - ASSEMBLY OF 51563 POST SBN70-0468 | aa-ad | 1 |
| 505 | 4W0001 | • NUT, OPTION - .190 DIA Optional Part 4W0001 | aa-ad | 1 |
| 510 | TA025022FT04 | • CLIP 84971 PRE SBN36-0006 | aa-ac | 1 |
| 510A | C10GT3-04 | • CLAMP 83930 POST SBN36-0006 | aa-ad | 1 |
| 512 | 4W0001 | • NUT, OPTION - .190 DIA Optional Part 4W0001 | aa-ad | 1 |
| 515 | TA025022FT04 | • CLIP 84971 PRE SBN36-0006 | aa-ac | 1 |
| 515A | C10GT3-04 | • CLAMP 83930 POST SBN36-0006 | aa-ad | 1 |
| 560 | TA0210046FT04 | • CLIP 84971 POST SBN36-0006 | ad | 1 |
| 650 | MS219024S | • UNION 96906 PRE SBN70-0468 | aa-ab | 1 |
| 650A | 745-5197-501 | • UNION 51563 POST SBN70-0468 | aa-ad | 1 |
| 655 | 12100AA4 | • SEAL 08199 | aa-ad | 1 |
| 700 | 556-1-15306-000 | • HOSE U1603 PRE SBN70-0468 | aa-ab | 1 |
| 700A | 556-1-15306-001 | • HOSE U1603 POST SBN70-0468 | aa-ad | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

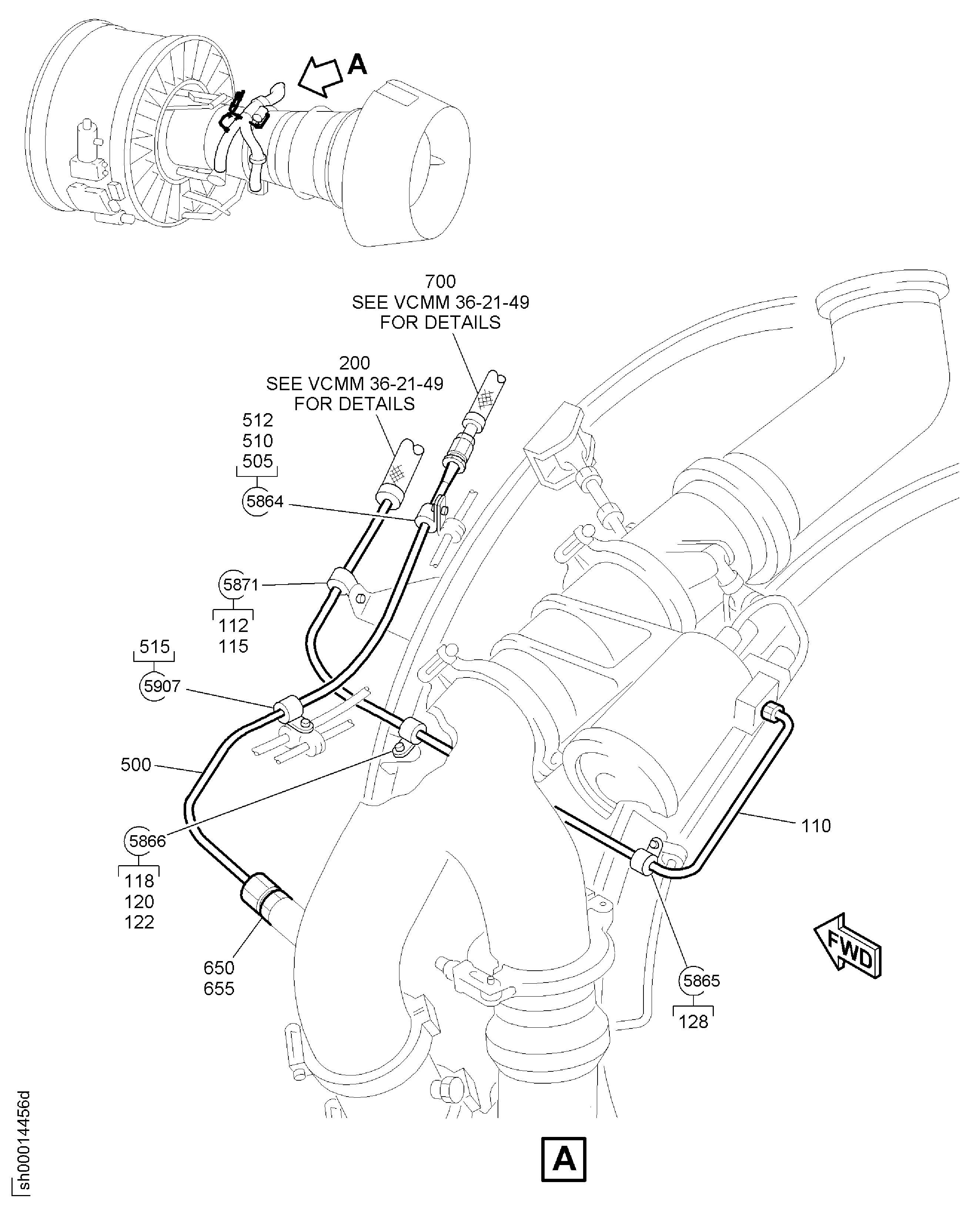

Figure: PNEUMATIC-PRESSURE INDICATING TUBES
TUBES PRESSURE INDICATING
