"HARNESS,OVERSIZE/UNDERSIZE CLIPS

DMC:V2500-A1-70-40-10-89A-941A-D|Issue No:002|Issue Date:2014-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig. Item	Part No.	Description	Effect/Model Applic.	UPA
89
000	B70401089	HARNESS,OVERSIZE/UNDERSIZE CLIPS, PRE SBE71-0054	aa
000	SBE0054-01	HARNESS,OVERSIZE/UNDERSIZE CLIPS, PRE SBE71-0067	ab
000	SBE0067-01	HARNESS,OVERSIZE/UNDERSIZE CLIPS	ac
101101	JM44LC39H101RG	• CLAMP 22175	aa-ac	1
102102	JM44LC39H102RG	• CLAMP 22175	aa-ac	1
103103	JM44LC39H103RG	• CLAMP 22175	aa-ac	1
104104	JM44LC39H104RG	• CLAMP 22175	aa-ac	1
105105	JM44LC39H105RG	• CLAMP 22175	aa-ac	1
106106	JM44LC39H106RG	• CLAMP 22175	aa-ac	1
107107	JM44LC39H107RG	• CLAMP 22175	aa-ac	1
108108	JM44LC39H108RG	• CLAMP 22175	aa-ac	1
109109	JM44LC39H109RG	• CLAMP 22175	aa-ac	1
110110	JM44LC39H110RG	• CLAMP 22175	aa-ac	1
111111	JM44LC39H111RG	• CLAMP 22175	aa-ac	1
112112	JM44LC39H112RG	• CLAMP 22175	aa-ac	1
113113	JM44LC39H113RG	• CLAMP 22175	aa-ac	1
114114	JM44LC39H114RG	• CLIP 22175	aa-ac	1
115115	JM44LC39H115RG	• CLIP 22175	aa-ac	1
116116	JM44LC39H116RG	• CLAMP 22175	aa-ac	1
117117	JM44LC39H117RG	• CLAMP 22175	aa-ac	1
118118	JM44LC39H118RG	• CLIP 22175	aa-ac	1
119119	JM44LC39H119RG	• CLAMP 22175	aa-ac	1
120120	JM44LC39H120RG	• CLAMP 22175	aa-ac	1
200200	471-2	• CLIP - LOOP 83930 PRE SBE71-0054	aa	1
201201	471-3	• CLIP - LOOP TYPE 83930 PRE SBE71-0054	aa-ac	1
201201A	TA0210046FT03	• CLIP 84971 ALT ST1455-03 POST SBE71-0054	aa-ac	1
201201B	ST1455-03	• CLIP 77445 ALT TA0210046FT03 POST SBE71-0054	ab-ac	1
202202	471-4	• CLIP - LOOP TYPE 83930 PRE SBE71-0054	aa-ac	1
202202A	TA0210046FT04	• CLIP 84971 ALT ST1455-04 POST SBE71-0054	aa-ac	1
202202B	ST1455-04	• CLIP 77445 ALT TA0210046FT04 POST SBE71-0054	ab-ac	1
203203	471-5	• CLIP - LOOP TYPE 83930 PRE SBE71-0054	aa-ac	1
203203A	TA0210046FT05	• CLIP 84971 ALT ST1455-05 POST SBE71-0054	aa-ac	1
203203B	ST1455-05	• CLIP 77445 ALT TA0210046FT05 POST SBE71-0054	ab-ac	1
204204	471-6	• CLIP - LOOP TYPE 83930 PRE SBE71-0054	aa-ac	1
204204A	TA0210046FT06	• CLIP 84971 ALT ST1455-06 POST SBE71-0054	aa-ac	1
204204B	ST1455-06	• CLIP 77445 ALT TA0210046FT06 POST SBE71-0054	ab-ac	1
205205	471-7	• CLIP - LOOP TYPE 83930 PRE SBE71-0054	aa-ac	1
205205A	TA0210046FT07	• CLIP 84971 ALT ST1455-07 POST SBE71-0054	aa-ac	1
205205B	ST1455-07	• CLIP 77445 ALT TA0210046FT07 POST SBE71-0054	ab-ac	1
206206	471-8	• CLIP 26940 PRE SBE71-0054	aa-ac	1
206206A	TA0210046FT08	• CLIP 84971 ALT ST1455-08 POST SBE71-0054	aa-ac	1
206206B	ST1455-08	• CLIP 77445 ALT TA0210046FT08 POST SBE71-0054	ab-ac	1
207207	471-9	• CLIP - LOOP 83930 PRE SBE71-0054	aa-ac	1
207207A	TA0210046FT09	• CLIP 84971 ALT ST1455-09 POST SBE71-0054	aa-ac	1
207207B	ST1455-09	• CLIP 77445 ALT TA0210046FT09 POST SBE71-0054	ab-ac	1
301301	TA025074-01	• CLAMP - LOOP STYLE,CUSHION, .062 DIA 84971 POST SBE71-0067	ac	1
302302	TA025074-02	• CLAMP - LOOP STYLE,CUSHION, .125 DIA 84971 POST SBE71-0067	ac	1
303303	TA025074-03	• CLAMP - LOOP STYLE,CUSHION, .188 DIA 84971 POST SBE71-0067	ac	1
304304	TA025074-04	• CLAMP - LOOP STYLE,CUSHION, .250 DIA 84971 POST SBE71-0067	ac	1
305305	TA025074-05	• CLAMP - LOOP STYLE,CUSHION, .313 DIA 84971 POST SBE71-0067	ac	1
306306	TA025074-06	• CLAMP - LOOP STYLE,CUSHION, .375 DIA 84971 POST SBE71-0067	ac	1
307307	TA025074-07	• CLAMP - LOOP STYLE,CUSHION, .438 DIA 84971 POST SBE71-0067	ac	1
308308	TA025074-08	• CLAMP - LOOP STYLE,CUSHION, .500 DIA 84971 POST SBE71-0067	ac	1
309309	TA025074-09	• CLAMP - LOOP STYLE,CUSHION, .562 DIA 84971 POST SBE71-0067	ac	1
310310	TA025074-10	• CLAMP - LOOP STYLE,CUSHION, .625 DIA 84971 POST SBE71-0067	ac	1
311311	TA025074-11	• CLAMP - LOOP STYLE,CUSHION, .688 DIA 84971 POST SBE71-0067	ac	1
312312	TA025074-12	• CLAMP - LOOP STYLE,CUSHION, .750 DIA 84971 POST SBE71-0067	ac	1
313313	TA025074-13	• CLAMP - LOOP STYLE,CUSHION, .813 DIA 84971 POST SBE71-0067	ac	1
314314	TA025074-14	• CLAMP - LOOP STYLE,CUSHION, .875 DIA 84971 POST SBE71-0067	ac	1
315315	TA025074-15	• CLAMP - LOOP STYLE,CUSHION, .938 DIA 84971 POST SBE71-0067	ac	1
316316	TA025074-16	• CLAMP - LOOP STYLE,CUSHION, 1.000 DIA 84971 POST SBE71-0067	ac	1
317317	TA025074-17	• CLAMP - LOOP STYLE,CUSHION, 1.062 DIA 84971 POST SBE71-0067	ac	1
318318	TA025074-18	• CLAMP - LOOP STYLE,CUSHION, 1.125 DIA 84971 POST SBE71-0067	ac	1
319319	TA025074-19	• CLAMP - LOOP STYLE,CUSHION, 1.188 DIA 84971 POST SBE71-0067	ac	1
320320	TA025074-20	• CLAMP - LOOP STYLE,CUSHION, 1.250 DIA 84971 POST SBE71-0067	ac	1
321321	TA025074-21	• CLAMP - LOOP STYLE,CUSHION, 1.313 DIA 84971 POST SBE71-0067	ac	1
322322	TA025074-22	• CLAMP - LOOP STYLE,CUSHION, 1.375 DIA 84971 POST SBE71-0067	ac	1
323323	TA025074-23	• CLAMP - LOOP STYLE,CUSHION, 1.438 DIA 84971 POST SBE71-0067	ac	1
324324	TA025074-24	• CLAMP - LOOP STYLE,CUSHION, 1.500 DIA 84971 POST SBE71-0067	ac	1
325325	TA025074-25	• CLAMP - LOOP STYLE,CUSHION, 1.562 DIA 84971 POST SBE71-0067	ac	1
326326	TA025074-26	• CLAMP - LOOP STYLE,CUSHION, 1.625 DIA 84971 POST SBE71-0067	ac	1
327327	TA025074-27	• CLAMP - LOOP STYLE,CUSHION, 1.688 DIA 84971 POST SBE71-0067	ac	1
328328	TA025074-28	• CLAMP - LOOP STYLE,CUSHION, 1.750 DIA 84971 POST SBE71-0067	ac	1
329329	TA025074-29	• CLAMP - LOOP STYLE,CUSHION, 1.813 DIA 84971 POST SBE71-0067	ac	1
330330	TA025074-30	• CLAMP - LOOP STYLE,CUSHION, 1.875 DIA 84971 POST SBE71-0067	ac	1
331331	TA025074-31	• CLAMP - LOOP STYLE,CUSHION, 1.938 DIA 84971 POST SBE71-0067	ac	1
332332	TA025074-32	• CLAMP - LOOP STYLE,CUSHION, 2.000 DIA 84971 POST SBE71-0067	ac	1
402402	AS61902	• CLAMP - LOOP STYLE,CUSHION, 6.35 MM (0.250) U1653 POST SBE71-0067	ac	1
403403	AS61903	• CLAMP - LOOP STYLE,CUSHION, 7.92 MM (0.312) U1653 POST SBE71-0067	ac	1
404404	AS61904	• CLAMP - LOOP STYLE,CUSHION, 9.53 MM (0.375) U1653 POST SBE71-0067	ac	1
405405	AS61905	• CLAMP - LOOP STYLE,CUSHION, 11.13 MM (O.436) U1653 POST SBE71-0067	ac	1
406406	AS61906	• CLAMP - LOOP STYLE,CUSHION, 12.70 MM (0.500) U1653 POST SBE71-0067	ac	1
407407	AS61907	• CLAMP - LOOP STYLE,CUSHION, 14.27 MM (O.562) U1653 POST SBE71-0067	ac	1
408408	AS61908	• CLAMP - LOOP STYLE,CUSHION, 15.88 MM (O.625) U1653 POST SBE71-0067	ac	1
409409	AS61909	• CLAMP - LOOP STYLE,CUSHION, 17.48 MM (0.688) U1653 POST SBE71-0067	ac	1
410410	AS61910	• CLAMP - LOOP STYLE,CUSHION, 19.05 MM (0.750) U1653 POST SBE71-0067	ac	1
411411	AS61911	• CLAMP - LOOP STYLE,CUSHION, 20.62 MM (0.812) U1653 POST SBE71-0067	ac	1
412412	AS61912	• CLAMP - LOOP STYLE,CUSHION, 22.23 MM (0.875) U1653 POST SBE71-0067	ac	1
413413	AS61913	• CLAMP - LOOP STYLE,CUSHION, 23.83 MM (0.938) U1653 POST SBE71-0067	ac	1
414414	AS61914	• CLAMP - LOOP STYLE,CUSHION, 25.40 MM (1.000) U1653 POST SBE71-0067	ac	1
415415	AS61915	• CLAMP - LOOP STYLE,CUSHION, 26.97 MM (1.062) U1653 POST SBE71-0067	ac	1
416416	AS61916	• CLAMP - LOOP STYLE,CUSHION, 28.58 MM (1.125) U1653 POST SBE71-0067	ac	1
417417	AS61917	• CLAMP - LOOP STYLE,CUSHION, 30.18 MM (1.188) U1653 POST SBE71-0067	ac	1
418418	AS61918	• CLAMP - LOOP STYLE,CUSHION, 31.75 MM (1.250) U1653 POST SBE71-0067	ac	1
419419	AS61919	• CLAMP - LOOP STYLE,CUSHION, 33.32 MM (1.312) U1653 POST SBE71-0067	ac	1
420420	AS61920	• CLAMP - LOOP STYLE,CUSHION, 34.93 MM (1.375) U1653 POST SBE71-0067	ac	1
421421	AS61921	• CLAMP - LOOP STYLE,CUSHION, 36.53 MM (1.438) U1653 POST SBE71-0067	ac	1
422422	AS61922	• CLAMP - LOOP STYLE,CUSHION, 38.50 MM (1.500) U1653 POST SBE71-0067	ac	1
423423	AS61923	• CLAMP - LOOP STYLE,CUSHION, 39.67 MM (1.562) U1653 POST SBE71-0067	ac	1
424424	AS61924	• CLAMP - LOOP STYLE,CUSHION, 41.28 MM (1.625) U1653 POST SBE71-0067	ac	1
425425	AS61925	• CLAMP - LOOP STYLE,CUSHION, 42.88 MM (1.688) U1653 POST SBE71-0067	ac	1
426426	AS61926	• CLAMP - LOOP STYLE,CUSHION, 44.45 MM (1.750) U1653 POST SBE71-0067	ac	1
427427	AS61927	• CLAMP - LOOP STYLE,CUSHION, 46.02 MM (1.812) U1653 POST SBE71-0067	ac	1
428428	AS61928	• CLAMP - LOOP STYLE,CUSHION, 47.63 MM (1.875) U1653 POST SBE71-0067	ac	1
429429	AS61929	• CLAMP - LOOP STYLE,CUSHION, 49.23 MM (1.935) U1653 POST SBE71-0067	ac	1
430430	AS61930	• CLAMP - LOOP STYLE,CUSHION, 50.80 MM (2.000) U1653 POST SBE71-0067	ac	1
431431	AS61931	• CLAMP - LOOP STYLE,CUSHION, 1.58 MM (.062) U1653 POST SBE71-0067	ac	1
432432	AS61932	• CLAMP - LOOP STYLE,CUSHION, 3.18 MM (.125) U1653 POST SBE71-0067	ac	1
433433	AS61933	• CLAMP - LOOP STYLE,CUSHION, 4.78 MM (.188) U1653 POST SBE71-0067	ac	1
502502	TA027000PH02WC	• CLIP 84971 POST SBE71-0067	ac	1
503503	TA027000PH03WC	• CLIP 84971 POST SBE71-0067	ac	1
504504	TA027000PH04WC	• CLIP 84971 POST SBE71-0067	ac	1
505505	TA027000PH05WC	• CLIP 84971 POST SBE71-0067	ac	1
506506	TA027000PH06WC	• CLIP 84971 POST SBE71-0067	ac	1
507507	TA027000PH07WC	• CLIP 84971 POST SBE71-0067	ac	1
508508	TA027000PH08WC	• CLIP 84971 POST SBE71-0067	ac	1
509509	TA027000PH09WC	• CLIP 84971 POST SBE71-0067	ac	1
510510	TA027000PH10WC	• CLIP 84971 POST SBE71-0067	ac	1
552552	TA025017FT02	• CLIP 84971 POST SBE71-0067	ac	1
553553	TA025017FT03	• CLIP 84971 POST SBE71-0067	ac	1
554554	TA025017FT04	• CLIP 84971 POST SBE71-0067	ac	1
555555	TA025017FT05	• CLIP 84971 POST SBE71-0067	ac	1
556556	TA025017FT06	• CLIP 84971 POST SBE71-0067	ac	1
557557	TA025017FT07	• CLIP 84971 POST SBE71-0067	ac	1
558558	TA025017FT08	• CLIP 84971 POST SBE71-0067	ac	1
559559	TA025017FT09	• CLIP 84971 POST SBE71-0067	ac	1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

POWER PLANT ELECTRICAL HARNESS ALTERNATIVE CLAMPS

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	22175
Enterprise Name:	J AND M PRODUCTS INC
BU Name:	J AND M PRODUCTS INC
Street:	2435 N NAOMI STREET
City:	BURBANK
State:	CA
Zip Code:	91504-3425
Country:	USA

Manufacturer Code:	26940
Enterprise Name:	MICRO-OHM CORP
BU Name:	MICRO-OHM CORP
Street:	1088 HAMILTON ROAD
City:	DUARTE
State:	CALIFORNIA
Country:	USA

Manufacturer Code:	77445
Enterprise Name:	PRATT AND WHITNEY
BU Name:	PRATT & WHITNEY
Street:	400 MAIN STREET
City:	EAST HARTFORD
Country:	USA
Phone Number:	8605657700

Manufacturer Code:	83930
Enterprise Name:	TRANSDIGM INC
BU Name:	TRANSDIGM INC
Department:	ADEL FASTENERS
Building:	SANDWELL INDUSTRIAL ESTATE
Street:	5000 TRIGGS STREET
City:	LOS ANGELES
State:	WEST MIDLANDS
Zip Code:	B66 1QJ
Country:	USA

Manufacturer Code:	84971
Enterprise Name:	KIRKHILL - TA MFG SUB OF ESTERLINE TECHNOLOGIES
BU Name:	KIRKHILL - TA MFG SUB OF ESTERLINE TECHNOLOGIES
Department:	TA MFG LTD
Street:	28065 WEST FRANKLIN PARKWAY,VALENCIA
City:	SANTA CLARITA
State:	CALIFORNIA
Zip Code:	GL1 2BS
Country:	USA

Manufacturer Code:	U1653
Enterprise Name:	Society Of British Aerospace Companies, LTD.

Part Number:	471-2
Part Name:	CLIP - LOOP
Manufacturer Code:	83930

"HARNESS,OVERSIZE/UNDERSIZE CLIPS

Export Control

Copyright

Applicability

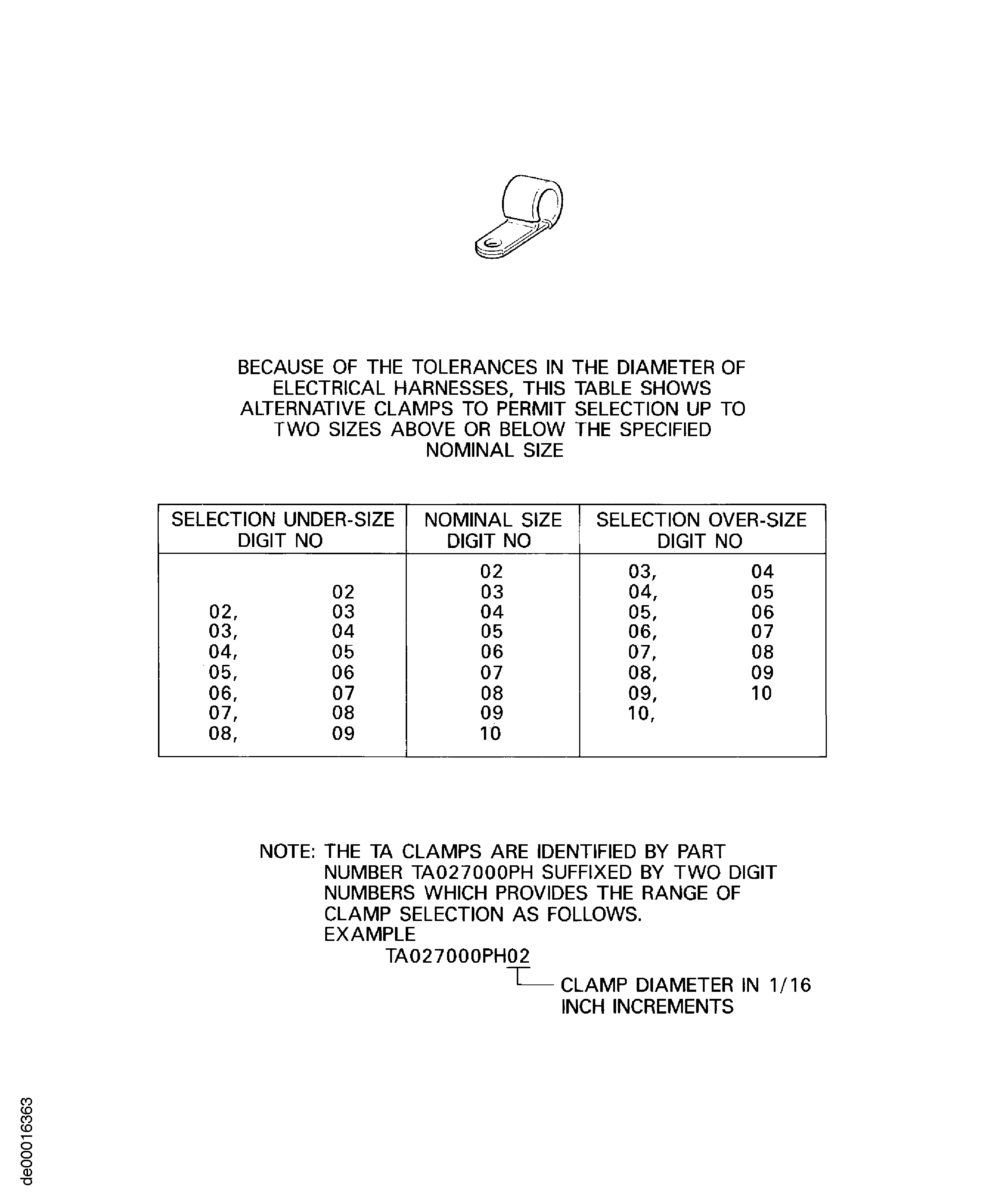

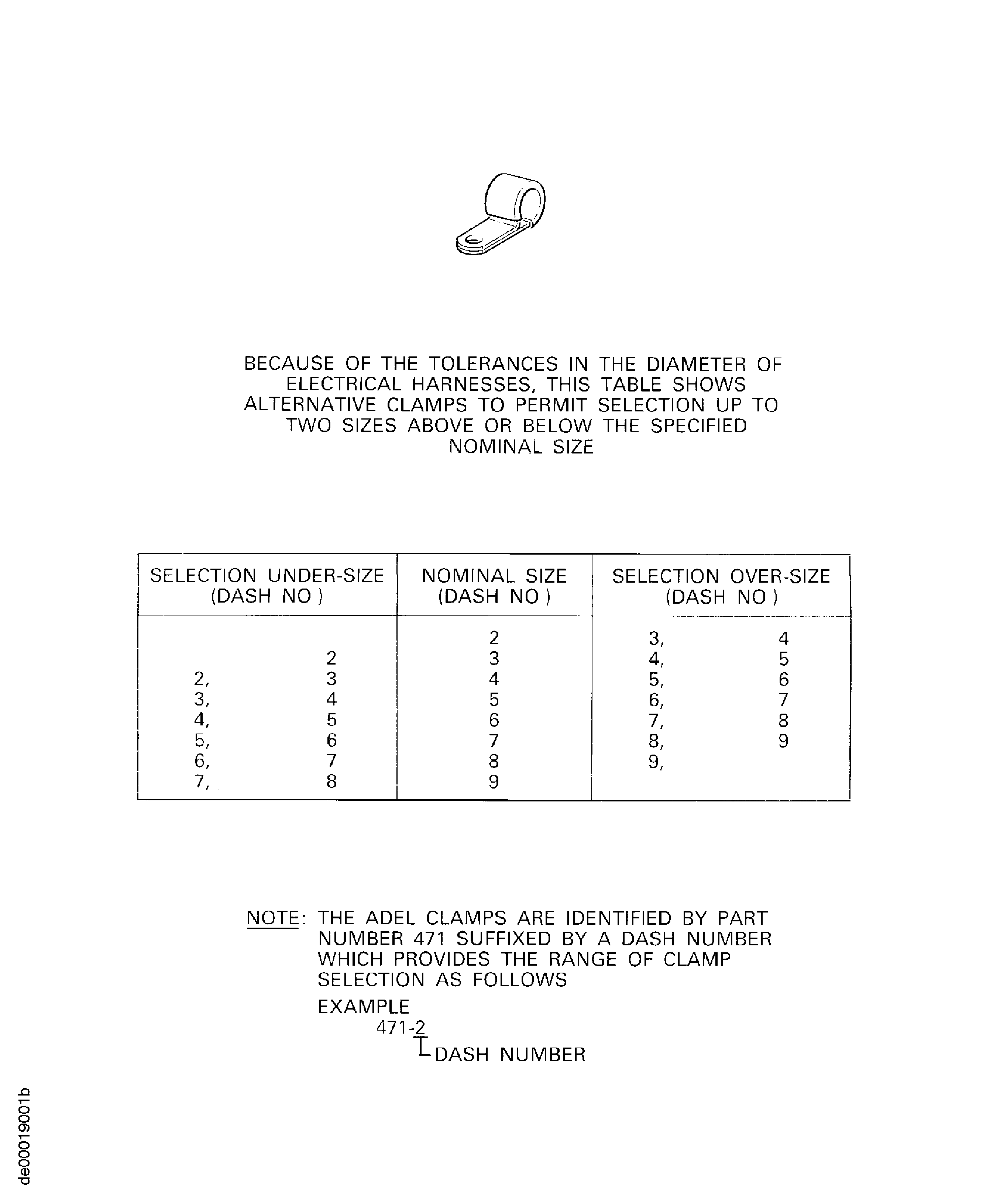

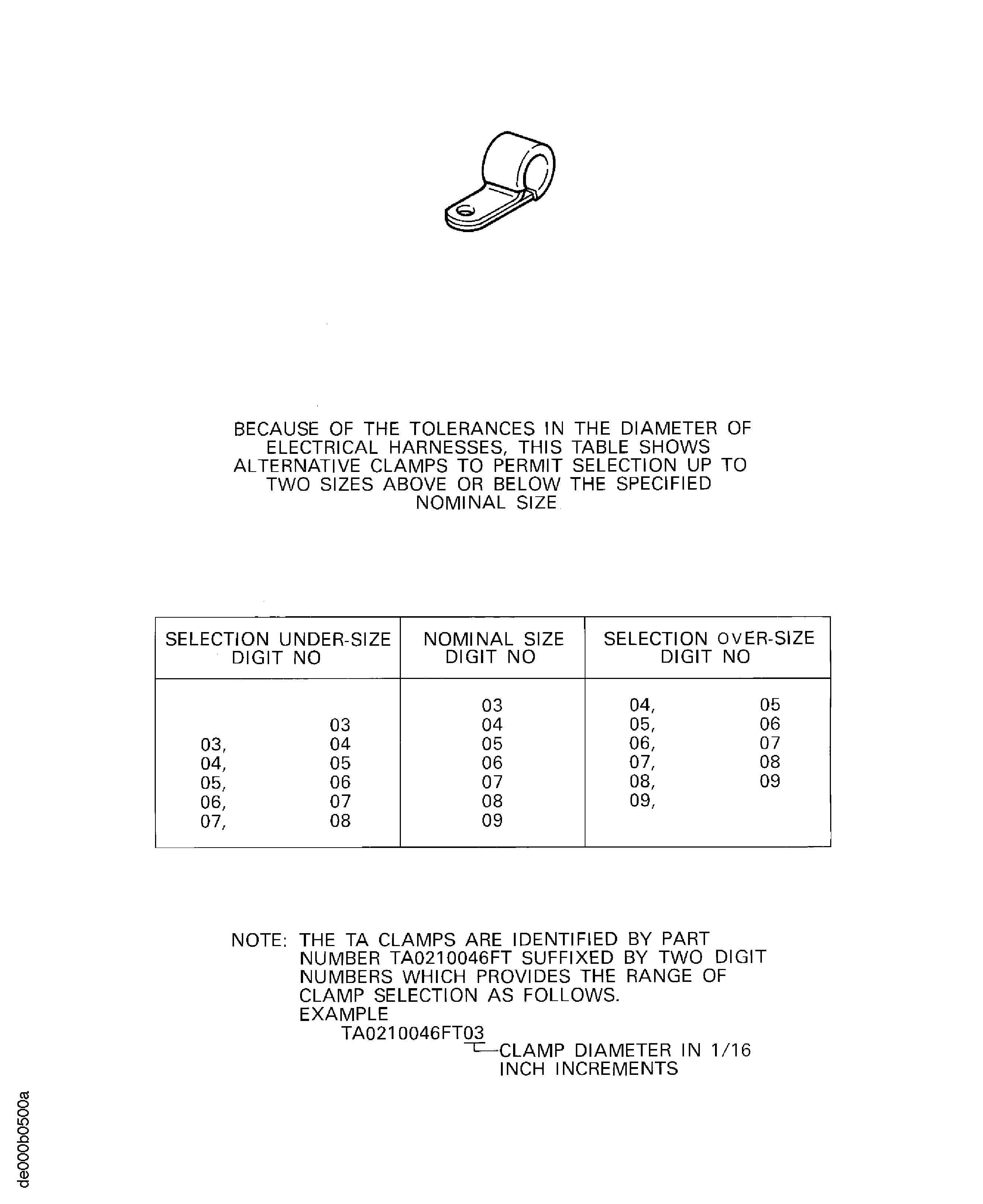

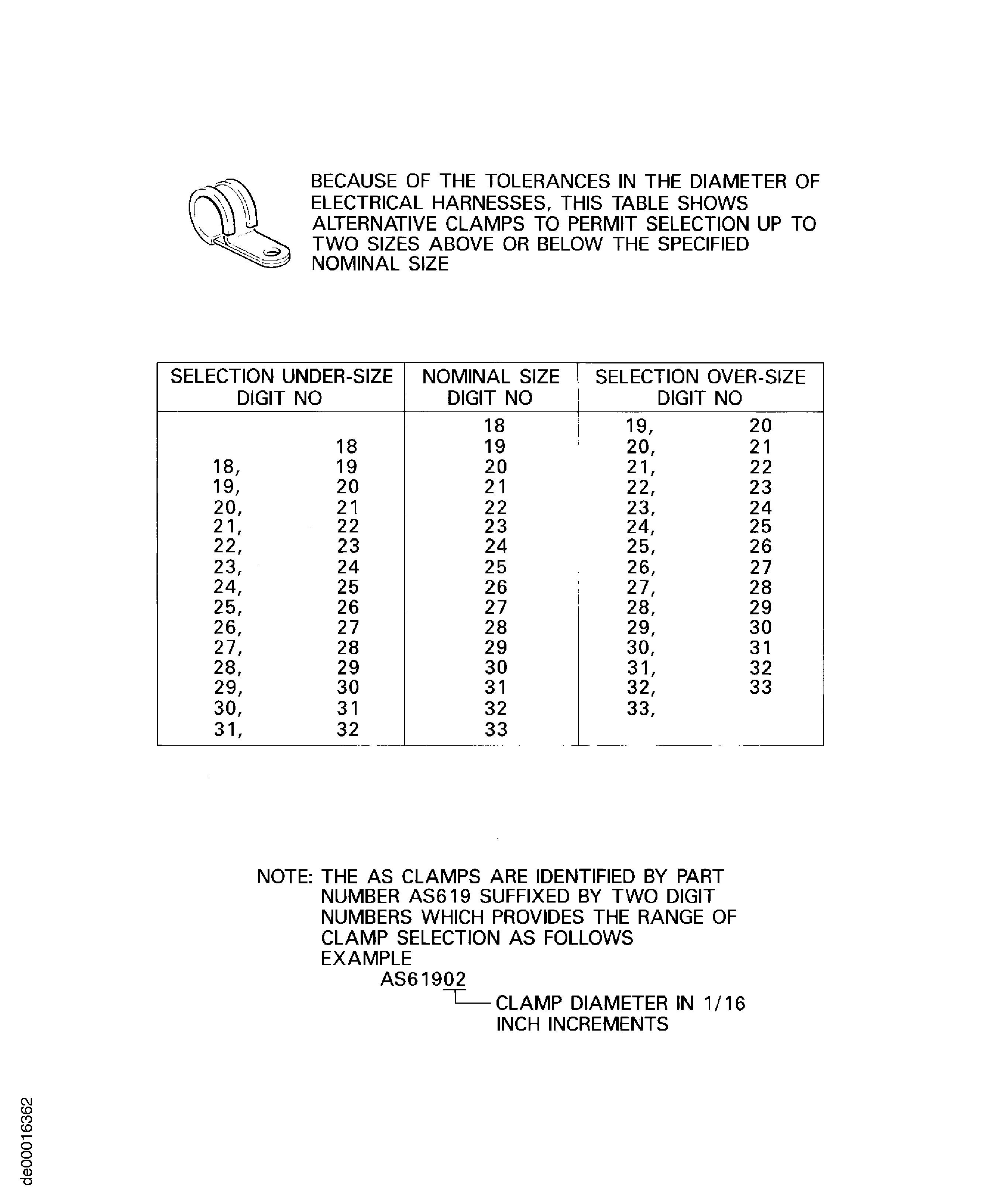

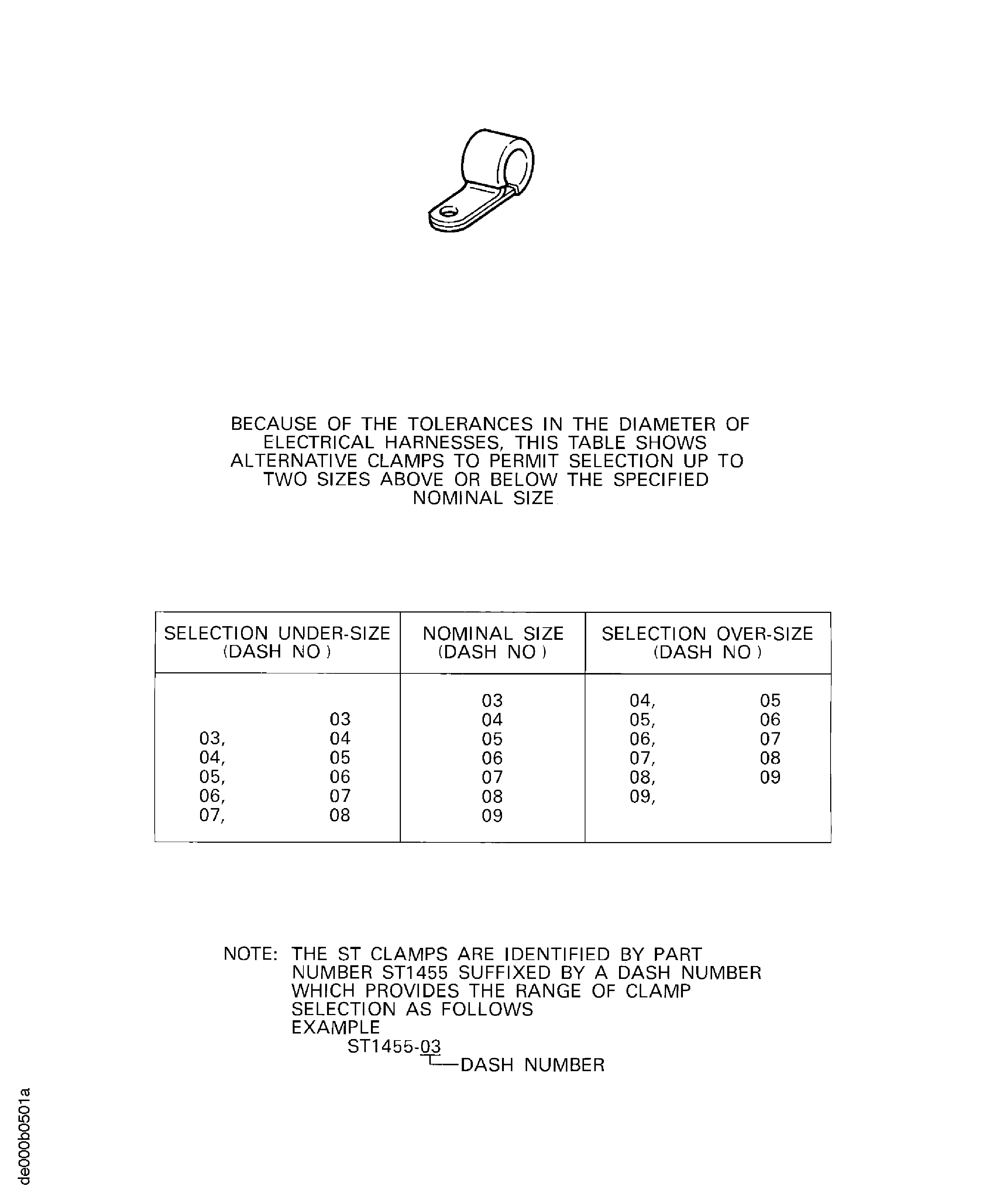

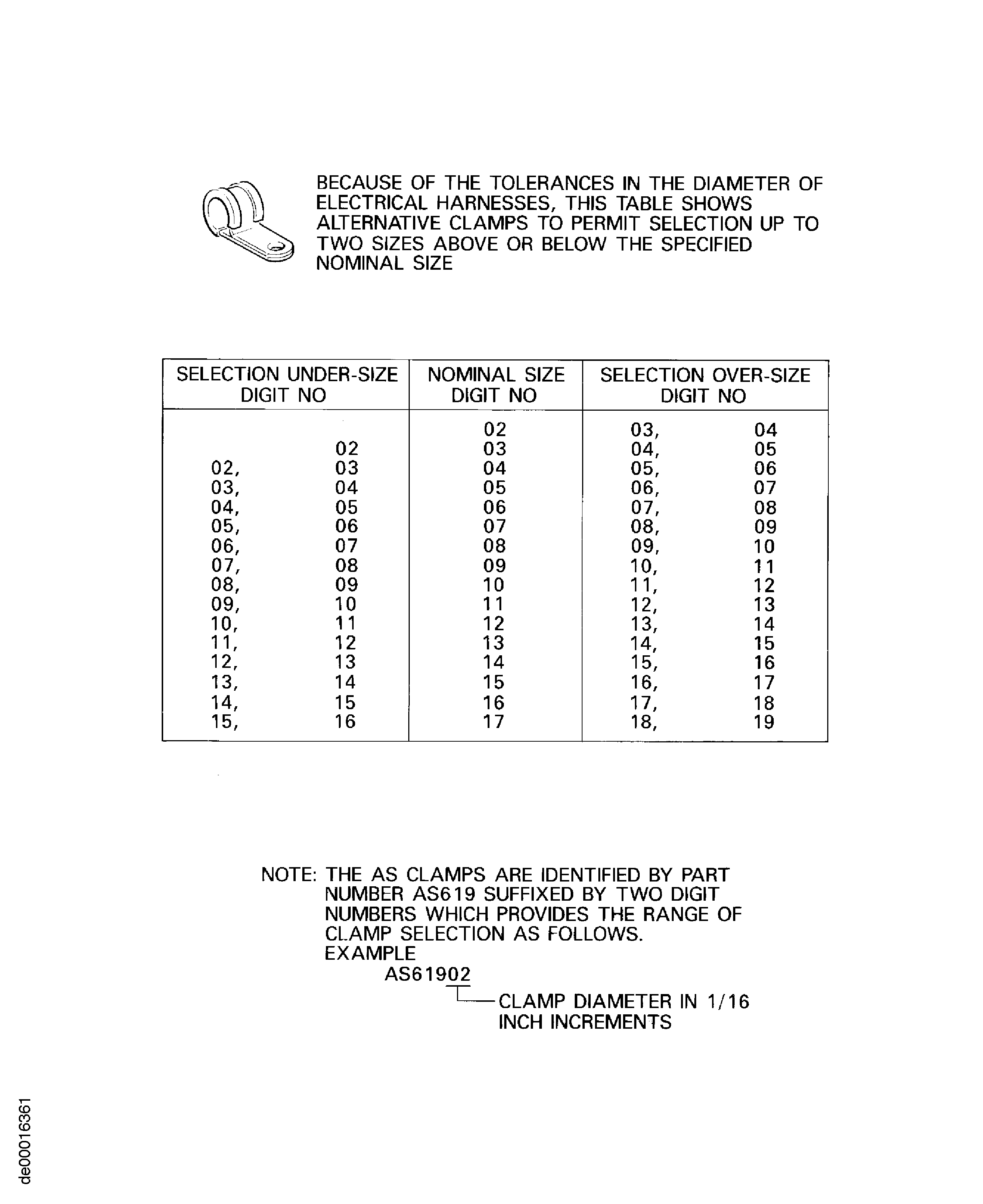

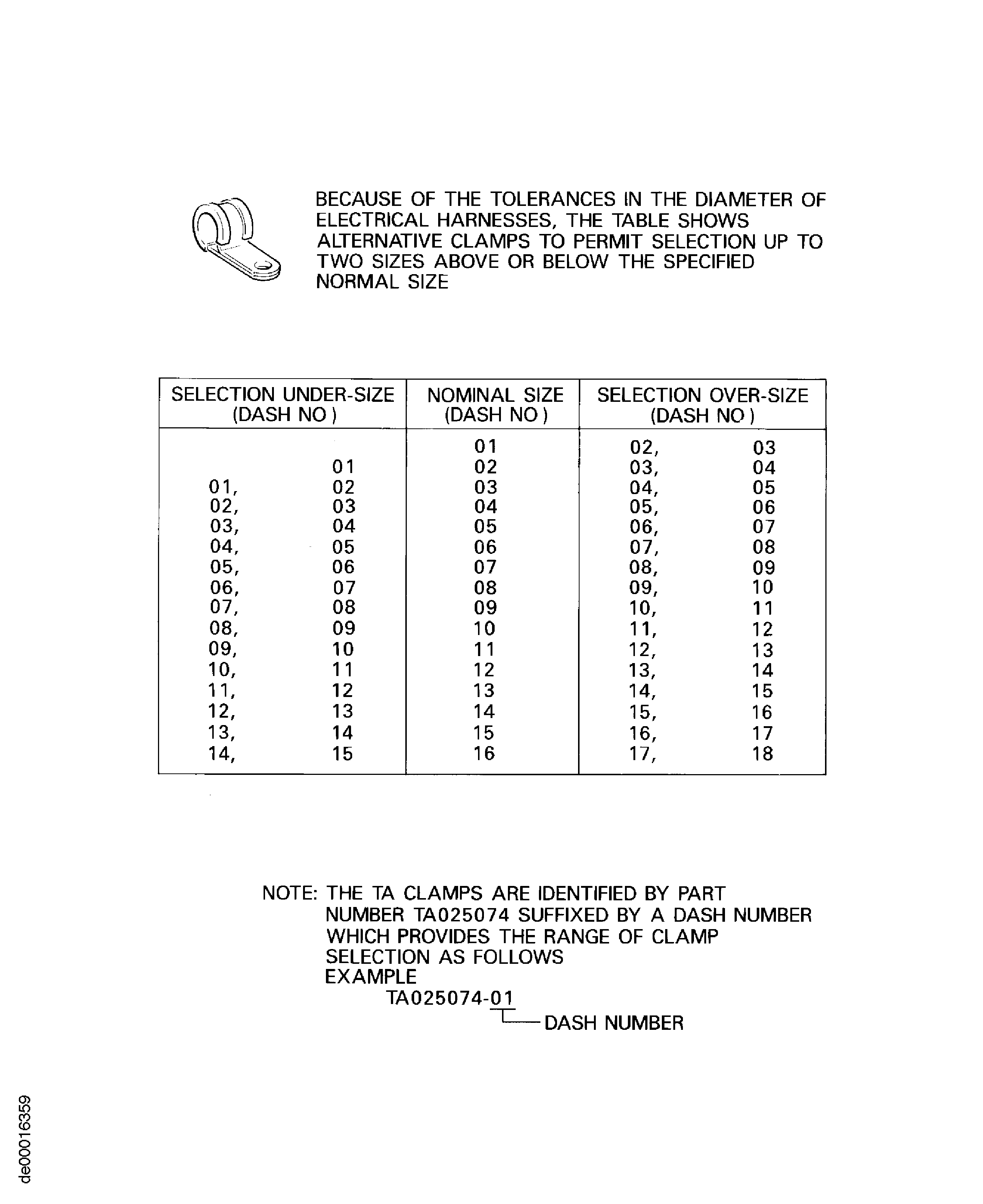

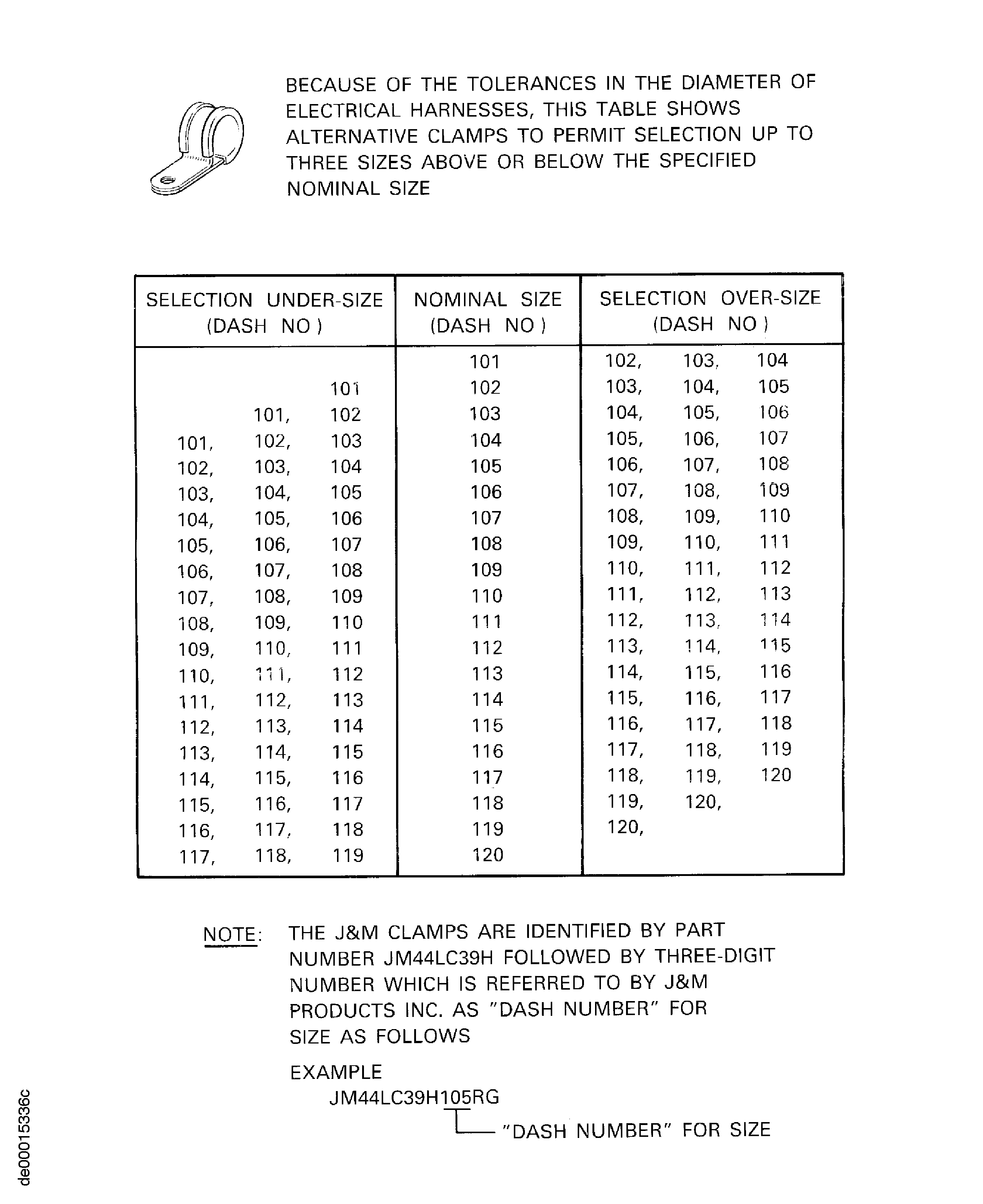

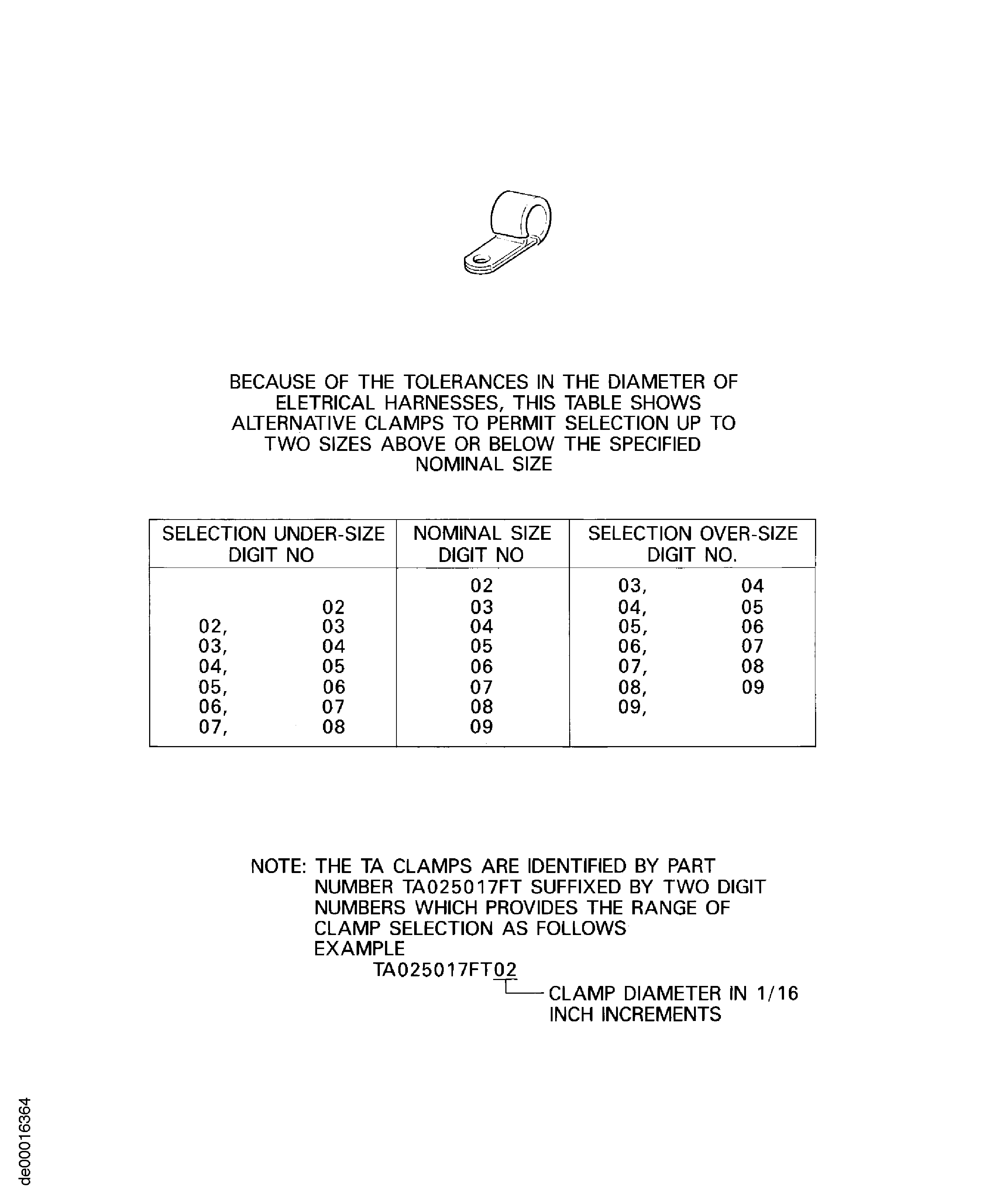

Figure: "HARNESS,OVERSIZE/UNDERSIZE CLIPS

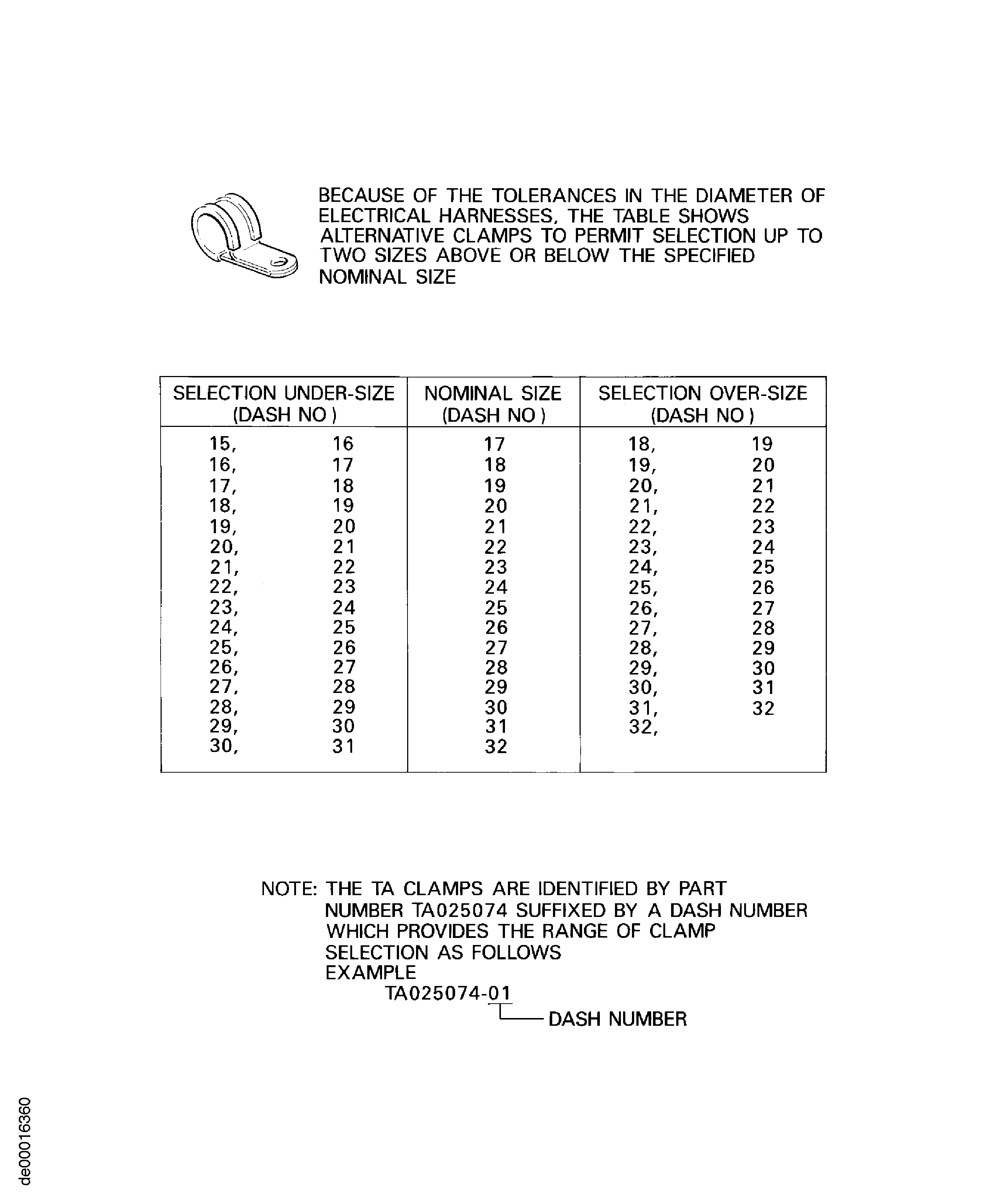

POWER PLANT ELECTRICAL HARNESS ALTERNATIVE CLAMPS
