DMC:V2500-A1-71-00-24-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B71002401 | POWER PLANT-F/C ROD SUPPORT BKTS, PRE SBN70-0115 | aa | ||
| SBN0115-01 | POWER PLANT-F/C ROD SUPPORT BKTS, PRE SBN70-0133 | ab | ||
| SBN0133-01 | POWER PLANT-F/C ROD SUPPORT BKTS, PRE SBN71-0102 | ac | ||
| SBN0102-01 | POWER PLANT-F/C ROD SUPPORT BKTS | ad | ||
| -002 | 740-5227-501 | INST - F/C ROD SUPPORT BKTS 51563 PRE SBN70-0133 | aa-ad | REF |
| -002A | 740-5227-503 | INSTL - FAN CASE SUPPORT BKTS 51563 POST SBN70-0133 | aa-ad | REF |
| 010 | 740-5225-501 | • BRACKET - L/H 51563 PRE SBN70-0115 | aa-ad | 1 |
| 010A | 740-5225-503 | • BRACKET - L/H 51563 POST SBN70-0115 | aa-ad | 1 |
| 020 | AS20625 | • NUT - .250 DIA U1653 | aa-ad | 2 |
| 030 | SP156E | • WASHER K7766 | aa-ad | 2 |
| 040 | AS22513 | • BOLT - .250 DIA X .812 U1653 | aa-ad | 2 |
| 100 | 740-5226-501 | • BRACKET - L/H 51563 PRE SBN70-0115 | aa-ad | 1 |
| 100A | 740-5226-503 | • BRACKET - R/H 51563 POST SBN70-0115 | aa-ad | 1 |
| 110 | AS20625 | • NUT - .250 DIA U1653 | aa-ad | 2 |
| 120 | SP156E | • WASHER K7766 | aa-ad | 2 |
| 130 | AS22513 | • BOLT - .250 DIA X .812 U1653 | aa-ad | 2 |
| 150 | 740-3086-503 | • BRACKET - HOLD OPEN ROD 51563 POST SBN71-0102 | ad | 2 |
| 154 | AS8623D | • NUT - REDUCED HEX,THIN, .190 DIA U1653 POST SBN71-0102 | ad | 8 |
| 157 | AN960C10L | • WASHER - FLAT 81352 POST SBN71-0102 | ad | 8 |
| 159 | A104-1-2D | • BOLT - HEX HEAD, .190 DIA X .550 K7766 POST SBN71-0102 | ad | 8 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

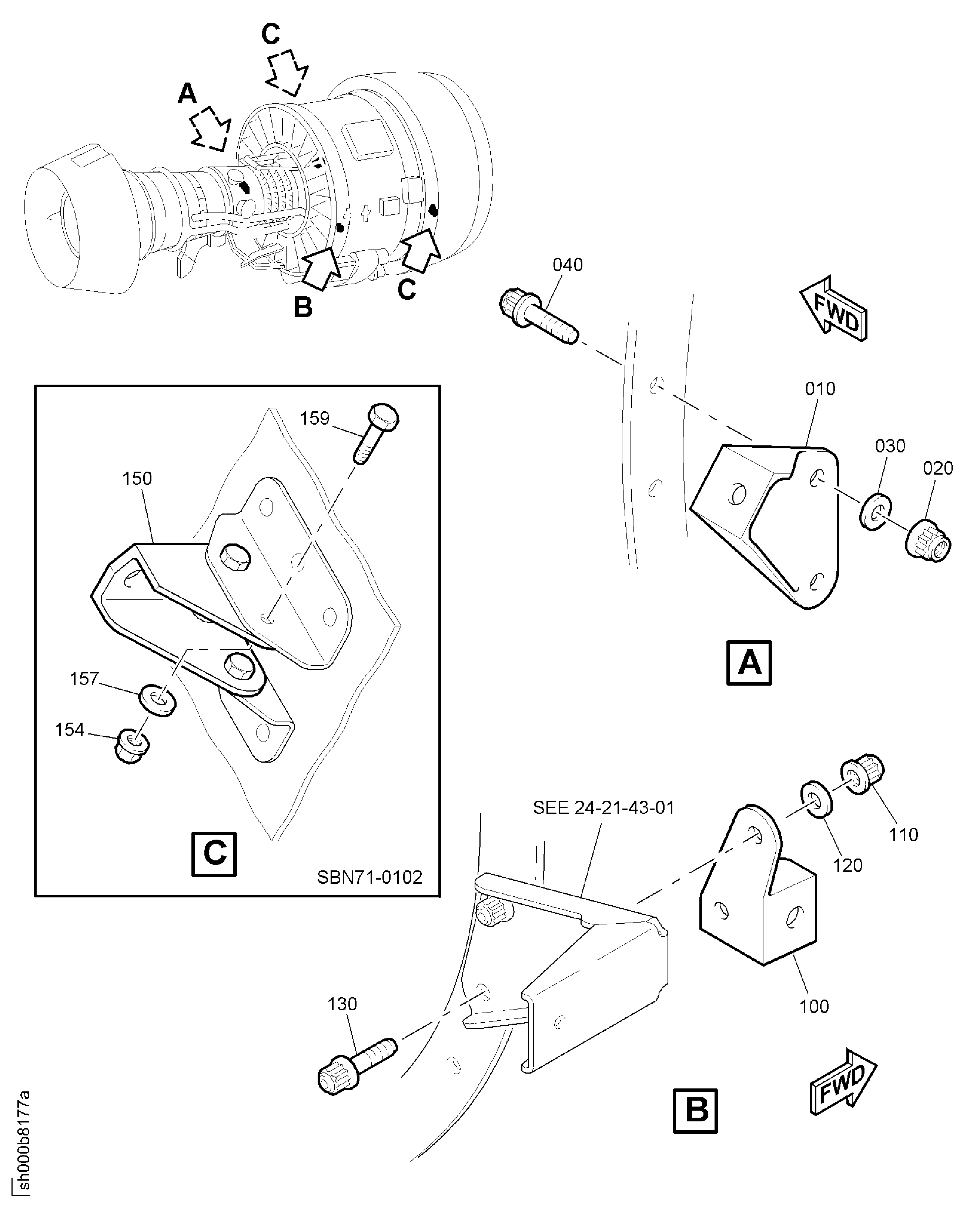

Figure: POWER PLANT-F/C ROD SUPPORT BKTS
BRACKETS F/C ROD SUPPORT
