DMC:V2500-A1-71-11-11-04A-941A-DIssue No:002.00Issue Date:2021-02-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 04 | ||||
| B71111104 | POWER PLANT - AIR INTAKE COWL, PRE SBN71-0126 | aa | ||
| SBN0126-01 | POWER PLANT - AIR INTAKE COWL, PRE SBN71-0015 | ab | ||
| SBN0015-01 | POWER PLANT - AIR INTAKE COWL, PRE SBN71-0102 | ac | ||
| SBN0102-01 | POWER PLANT - AIR INTAKE COWL, PRE SBN70-0036 | ad | ||
| SBN0036-01 | POWER PLANT - AIR INTAKE COWL, PRE SBN70-0073 | ae | ||
| SBN0073-01 | POWER PLANT - AIR INTAKE COWL, PRE SBN70-0626 | af | ||
| SBN0626-01 | POWER PLANT - AIR INTAKE COWL | ag | ||
| -001 | 740-3001-503 | COWL - NOSE, ASSEMBLY OF 51563 | aa-ag | REF |
| -001A | 740-3001-521 | COWL - NOSE, ASSEMBLY OF 51563 PRE SBN71-0126 | aa-ab | REF |
| -001B | 740-3001-523 | COWL - NOSE, ASSEMBLY OF 51563 POST SBN71-0126 PRE SBN71-0015 | aa-ac | REF |
| -001C | 740-3001-529 | COWL - NOSE, ASSEMBLY OF 51563 POST SBN71-0015 PRE SBN71-0102 | aa-ad | REF |
| -001D | 740-3001-531 | COWL - NOSE, ASSEMBLY OF 51563 POST SBN71-0102 PRE SBN70-0036 | aa-ae | REF |
| -001E | 740-3001-533 | COWL - NOSE, ASSEMBLY OF 51563 POST SBN70-0036 PRE SBN70-0073 | aa-ae | REF |
| -001F | 740-3001-535 | COWL - NOSE, ASSEMBLY OF 51563 POST SBN70-0073 PRE SBN70-0626 | af | REF |
| -001G | 740-3001-537 | COWL - NOSE, ASSEMBLY OF 51563 POST SBN70-0626 | ag | REF |
| 015 | CCR264CS3-2 | • RIVET - BLIND, COUNTERSUNK, HEAD 81349 POST SBN71-0126 | ab-ag | 10 |
| 020 | CCR264CS3-3 | • RIVET 11815 POST SBN71-0126 | ab-ag | 26 |
| 020A | CCR264CS3-4 | • RIVET - BLIND, COUNTERSUNK, HEAD 81349 (VRS2808) | ***** | 1 |
| 025 | ST1729E20X | • PACKER 77445 POST SBN71-0126 | ab-ag | 13 |
| 030 | NAS1791C4-2P | • NUTPLATE 80205 POST SBN71-0126 | ab-ag | 18 |
| 030A | NAS1791C4-1P | • NUT - CAPTIVE 80205 | ***** | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

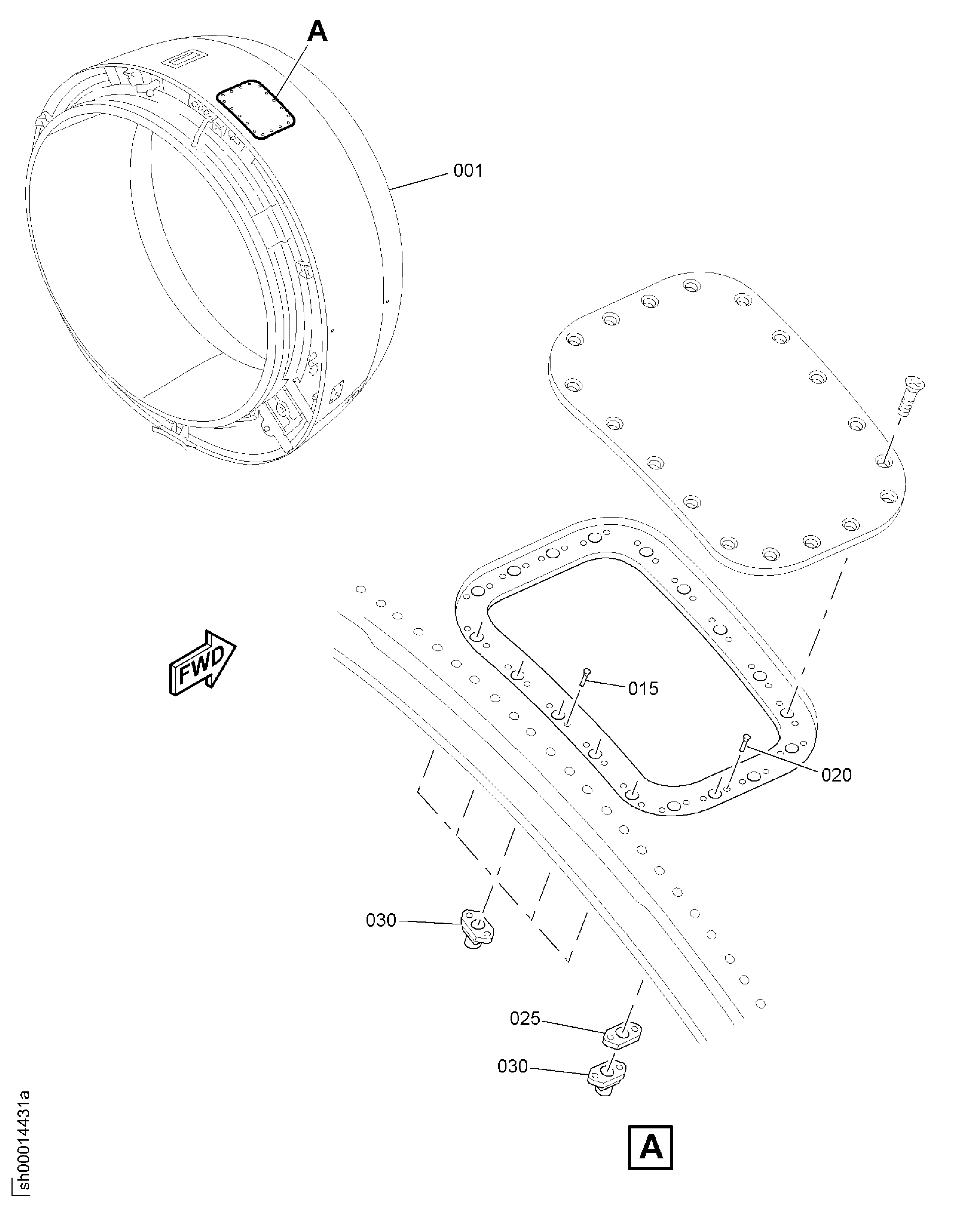

Figure: POWER PLANT-AIR INTAKE COWL
COWL AIR INTAKE
