DMC:V2500-A1-71-13-19-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B71131901 | FAN COWL STRAKES, PRE SBN70-0148 | aa | ||
| SBN0148-01 | FAN COWL STRAKES, PRE SBN71-0293 | ab | ||
| SBN0293-01 | FAN COWL STRAKES, PRE SBN70-0750 | ac | ||
| SBN0750-01 | FAN COWL STRAKES | ad | ||
| -006 | 745-4002-515 | • COWL - RIGHT HAND (PAINTED) 51563 POST SBN71-0293 | ac-ad | REF |
| 010 | 740-4106-501 | • STRAKE - LH 51563 | aa-ad | 1 |
| 020 | 740-4106-502 | • STRAKE - RH 51563 | aa-ad | 1 |
| 030 | H01-3 | • NUT KF030 | aa-ad | 30 |
| 040 | HL11VF6-18 | • BOLT 73197 | aa-ad | 30 |
| 050 | 740-3199-019 | • DECAL - NO STEP 51563 POST SBN70-0148 PRE SBN70-0747 | ***** | 1 |
| 053 | 740-3199-113G | • DECAL - NO STEP 51563 POST SBN70-0750 | ad | 1 |
| 060 | 740-3199-021 | • DECAL - NO GRAB 51563 POST SBN70-0148 PRE SBN70-0747 | ***** | 1 |
| 063 | 740-3199-115G | • DECAL - NO GRAB 51563 POST SBN70-0750 | ad | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

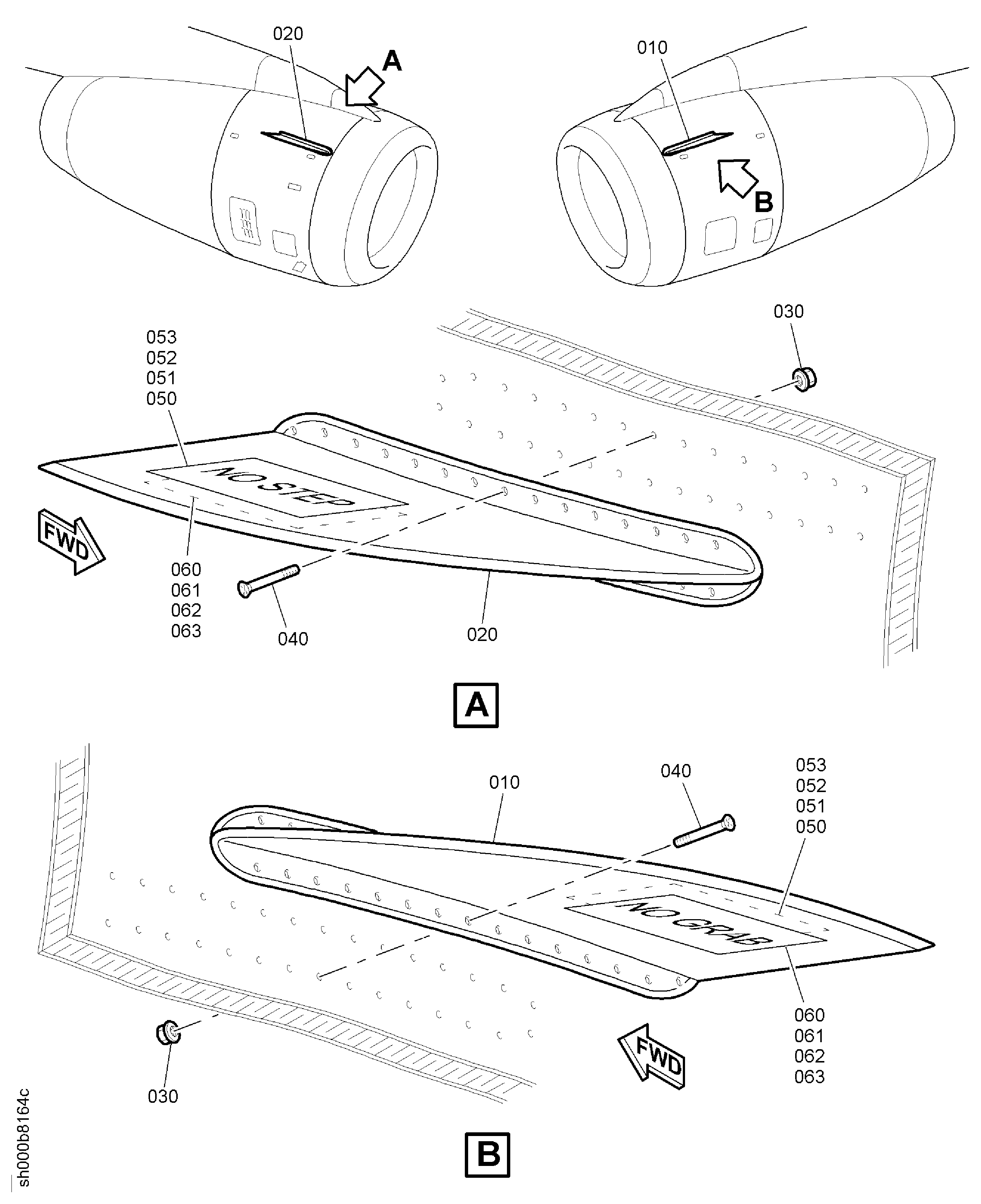

Figure: FAN COWL STRAKES
STRAKE INSTL FAN COWL
