DMC:V2500-A1-71-13-19-02A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| B71131902 | FAN COWL STRAKES, PRE SBN71-0260 | aa | ||
| SBN0260-01 | FAN COWL STRAKES, PRE SBN70-0747 | ab | ||
| SBN0747-01 | FAN COWL STRAKES | ac | ||
| 030 | 740-3199-061 | • DECAL - NO GRAB NO STEP (ESP) 51563 POST SBN71-0260 PRE SBN70-0747 | ab | 2 |
| 031 | 740-3199-139W | • DECAL - NO GRAB NO STEP 51563 POST SBN70-0747 | ac | 2 |
| 032 | 740-3199-139B | • DECAL - NO GRAB NO STEP 51563 POST SBN70-0747 | ac | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

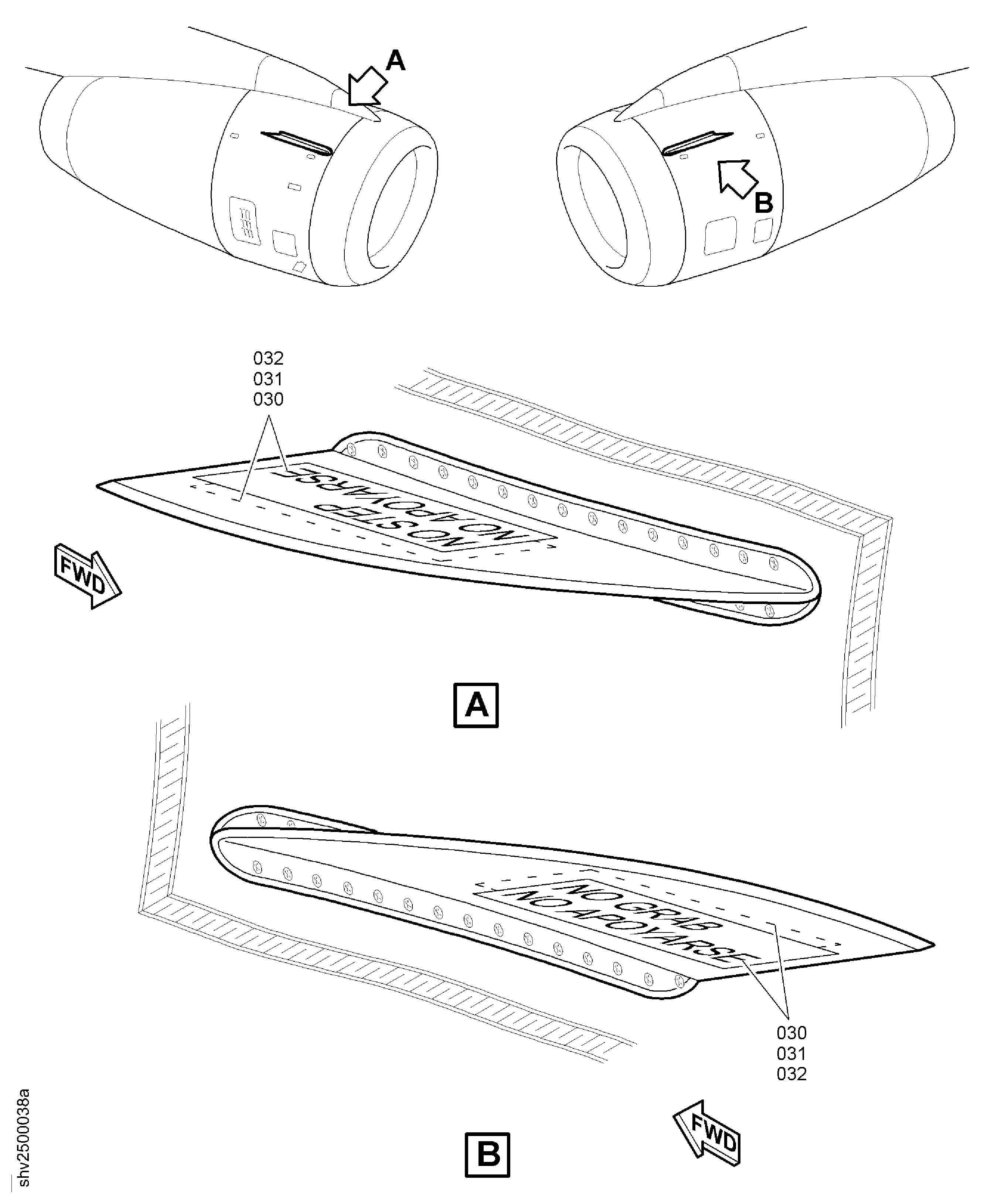

Figure: FAN COWL STRAKES
STRAKE INSTL FAN COWL
