DMC:V2500-A1-71-21-11-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B71211101 | POWER PLANT-FORWARD MOUNT SUPPORT, PRE SBE72-0045 | aa | ||
| SBE0045-01 | POWER PLANT-FORWARD MOUNT SUPPORT, PRE SBE72-0150 | ab | ||
| SBE0150-01 | POWER PLANT-FORWARD MOUNT SUPPORT, PRE SBE70-0490 | ac | ||
| SBE0490-01 | POWER PLANT-FORWARD MOUNT SUPPORT | ad | ||
| 100 | 5A6024 | • RACE - ASSY OUTER TUBE MOUNT | aa-ad | 1 |
| 110 | 4W0004 | • NUT - .375 DIA | aa-ad | 8 |
| 129 | AS20670 | • • PIN - STRAIGHT HEADLESS U1653 | aa-ad | 4 |
| 150 | 5A6025 | • MOUNT - A/O TUBE ENG FRONT PRE SBE70-0490 | aa-ad | 1 |
| 150A | 5A6025 | • MOUNT - A/O TUBE ENG FRONT ALT 5A1698 POST SBE70-0490 | aa-ad | 1 |
| -150B | 5A1698 | • MOUNT ALT 5A6025 POST SBE70-0490 | aa-ad | REF |
| 160 | AGS3735 | • • INSERT - SCREW THREAD U1653 | aa-ad | 6 |
| 500 | 5A8695 | • BRACKET - A/O T/MOUNT NO.2 ST PRE SBE72-0045 | aa-ab | 1 |
| 500A | 5A0390 | • BRACKET - A/O T/MOUNT NO.2 STRUT POST SBE72-0045 PRE SBE72-0150 | aa-ab | 1 |
| 500B | 5A1422 | • BRACKET - A/O T/MOUNT NO.2 POST SBE72-0150 | ac-ad | 1 |
| 510 | 4W0004 | • NUT - .375 DIA PRE SBE72-0150 | aa-ab | 6 |
| 510A | 4W0005 | • NUT - .4375 DIA POST SBE72-0150 | ac-ad | 6 |
| 520 | AS21226 | • BOLT - .375 DIA X 1.625 U1653 PRE SBE72-0150 | aa-ab | 6 |
| 520A | AS31430 | • BOLT U1653 POST SBE72-0150 | ac-ad | 6 |
| 540 | 5A0994 | • • BUSH - PIN THRUST,(VRS1105) POST SBE70-0811 | ***** | 2 |
| 700 | 5A8696 | • BRACKET - A/O T/MNT NO.10 ST PRE SBE72-0045 | aa-ab | 1 |
| 700A | 5A0391 | • BRACKET - A/O T/MOUNT NO.10 STRUT POST SBE72-0045 PRE SBE72-0150 | aa-ab | 1 |
| 700B | 5A1423 | • BRACKET - A/O T/MOUNT NO.10 POST SBE72-0150 | ac-ad | 1 |
| 710 | 4W0004 | • NUT - .375 DIA PRE SBE72-0150 | aa-ab | 6 |
| 710A | 4W0005 | • NUT - .4375 DIA POST SBE72-0150 | ac-ad | 6 |
| 720 | AS21226 | • BOLT - .375 DIA X 1.625 U1653 PRE SBE72-0150 | aa-ab | 6 |
| 720A | AS31430 | • BOLT U1653 POST SBE72-0150 | ac-ad | 6 |
| 740 | 5A0994 | • • BUSH - PIN THRUST,(VRS1105) POST SBE70-0811 | ***** | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

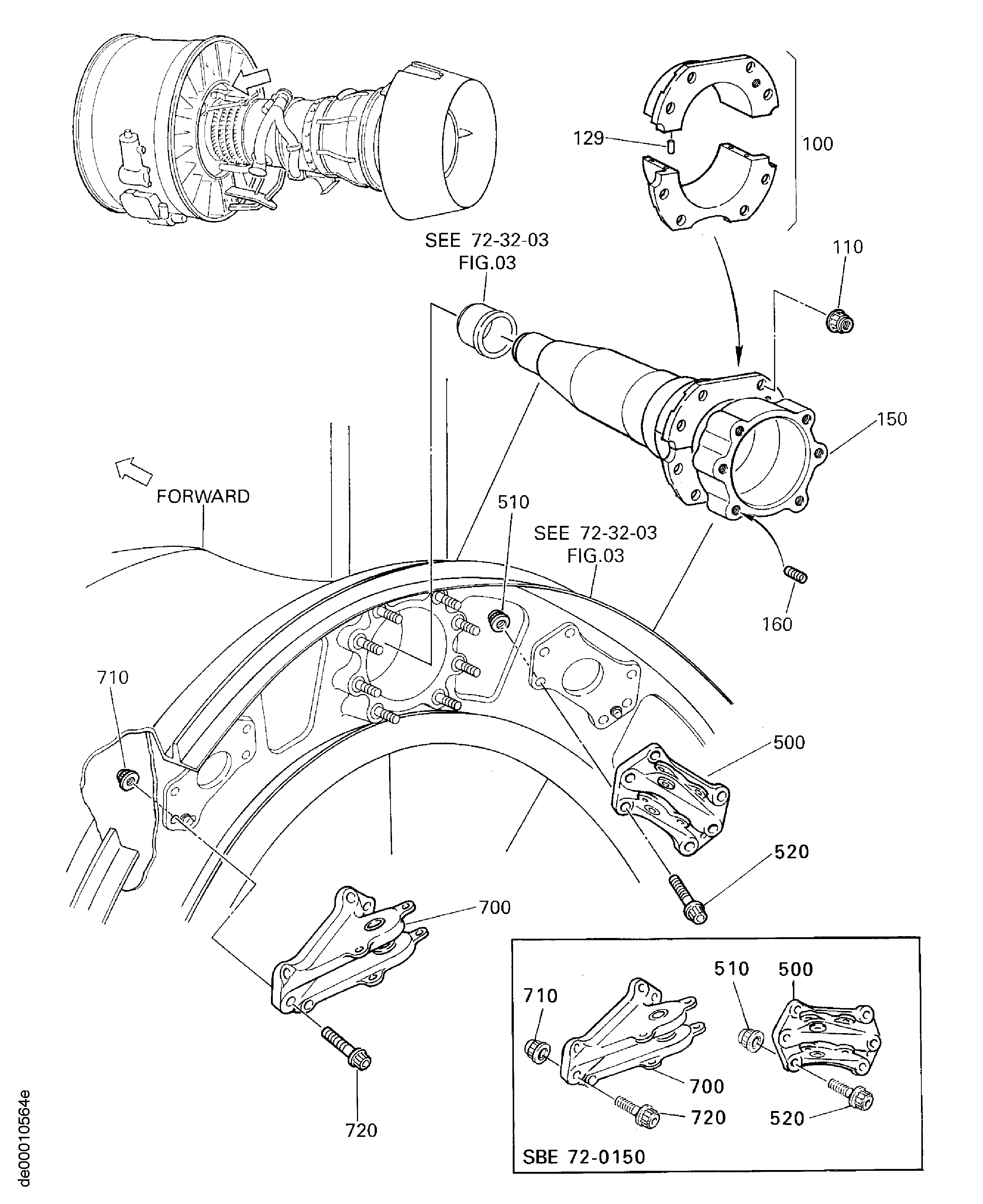

Figure: POWER PLANT-FORWARD MOUNT SUPPORT
FORWARD MOUNT SUPPORT
