DMC:V2500-A1-71-21-12-01A-941A-DIssue No:002.00Issue Date:2014-11-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B71211201 | POWER PLANT-FORWARD MOUNT, PRE SBN71-0135 | aa | ||
| SBN0135-01 | POWER PLANT-FORWARD MOUNT, PRE SBN71-0210 | ab | ||
| SBN0210-01 | POWER PLANT-FORWARD MOUNT, PRE SBN71-0280 | ac | ||
| SBN0280-01 | POWER PLANT-FORWARD MOUNT, PRE SBN70-0406 | ad | ||
| SBN0406-01 | POWER PLANT-FORWARD MOUNT | ae | ||
| 010 | 740-2010-509 | • MOUNT - ASSY,ENGINE FWD 51563 PRE SBN71-0135 | aa | REF |
| 010A | 740-2010-513 | • ENGINE - MOUNT ASSY, FWD 51563 POST SBN71-0135 | aa-ae | REF |
| 010B | 740-2010-517 | • MOUNT - ASSY,ENGINE FWD 51563 POST SBN71-0135 PRE SBN71-0210 | aa-ab | REF |
| 010C | 745-2010-501 | • MOUNT - ASSY,ENGINE FWD 51563 POST SBN71-0210 PRE SBN71-0280 | ac | REF |
| 010D | 745-2010-503 | • MOUNT - ASSY,ENGINE FWD 51563 POST SBN71-0280 | ac-ae | REF |
| 020 | MS21043-3 | • NUT 96906 | aa-ae | 12 |
| 030 | VN936NP3 | • WASHER 92215 | aa-ae | 12 |
| 040 | VN936NP3C | • WASHER 92215 | aa-ae | 12 |
| 050 | NAS6303U4 | • BOLT 80205 | aa-ae | 12 |
| 060 | 740-2050-503 | • RETAINER 51563 | aa-ae | 4 |
| 070 | 740-2022-505 | • PIN 51563 | aa-ae | 2 |
| 080 | 121203-7H7 | • BOLT 56878 PRE SBN71-0135 | aa | 6 |
| 080A | 275B0307-7H | • BOLT 51563 POST SBN71-0135 | aa-ae | 6 |
| 090 | VN936NP7C | • WASHER 92215 | aa-ae | 6 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

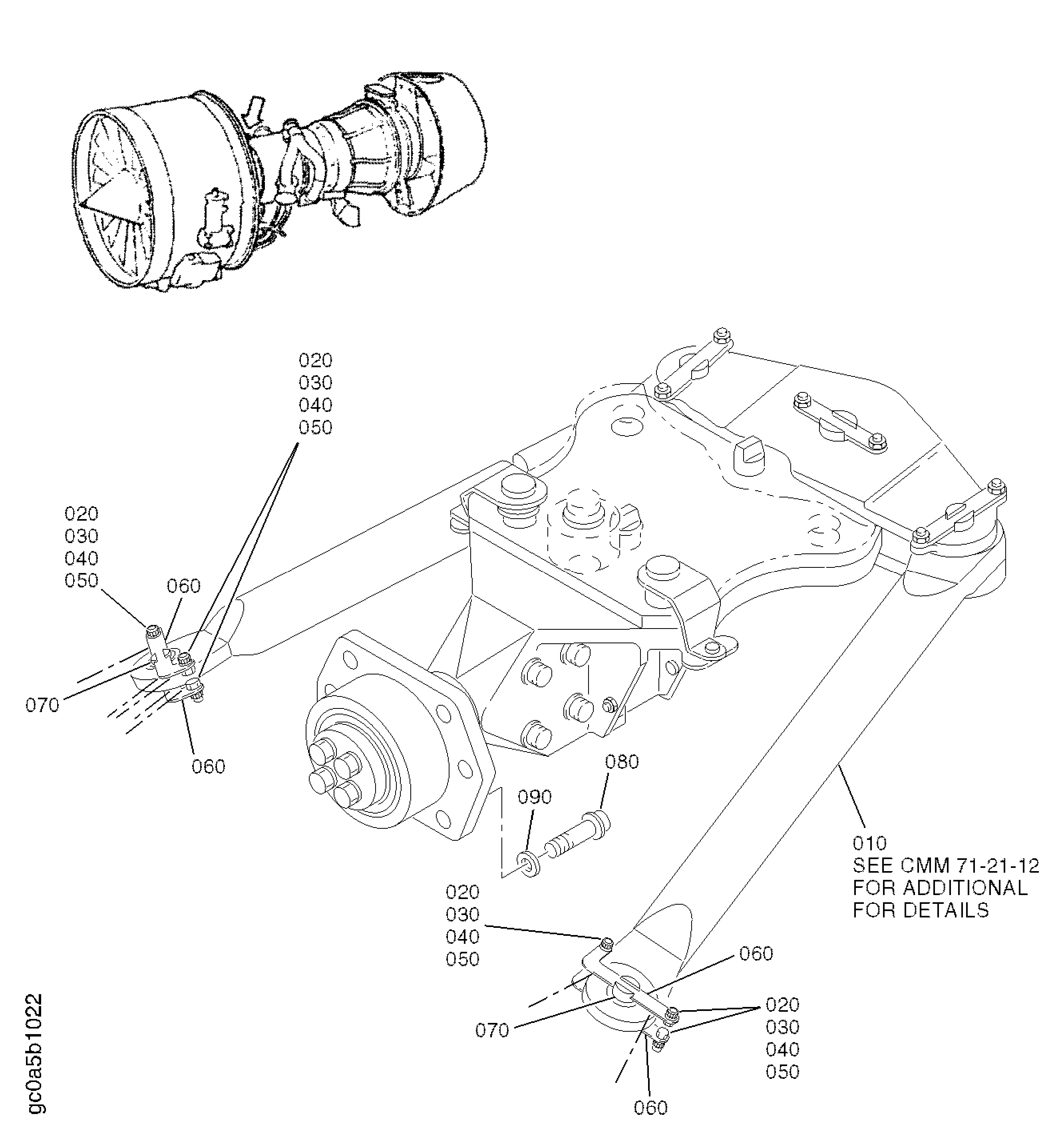

Figure: POWER PLANT-FORWARD MOUNT
FORWARD MOUNT ASSEMBLY
