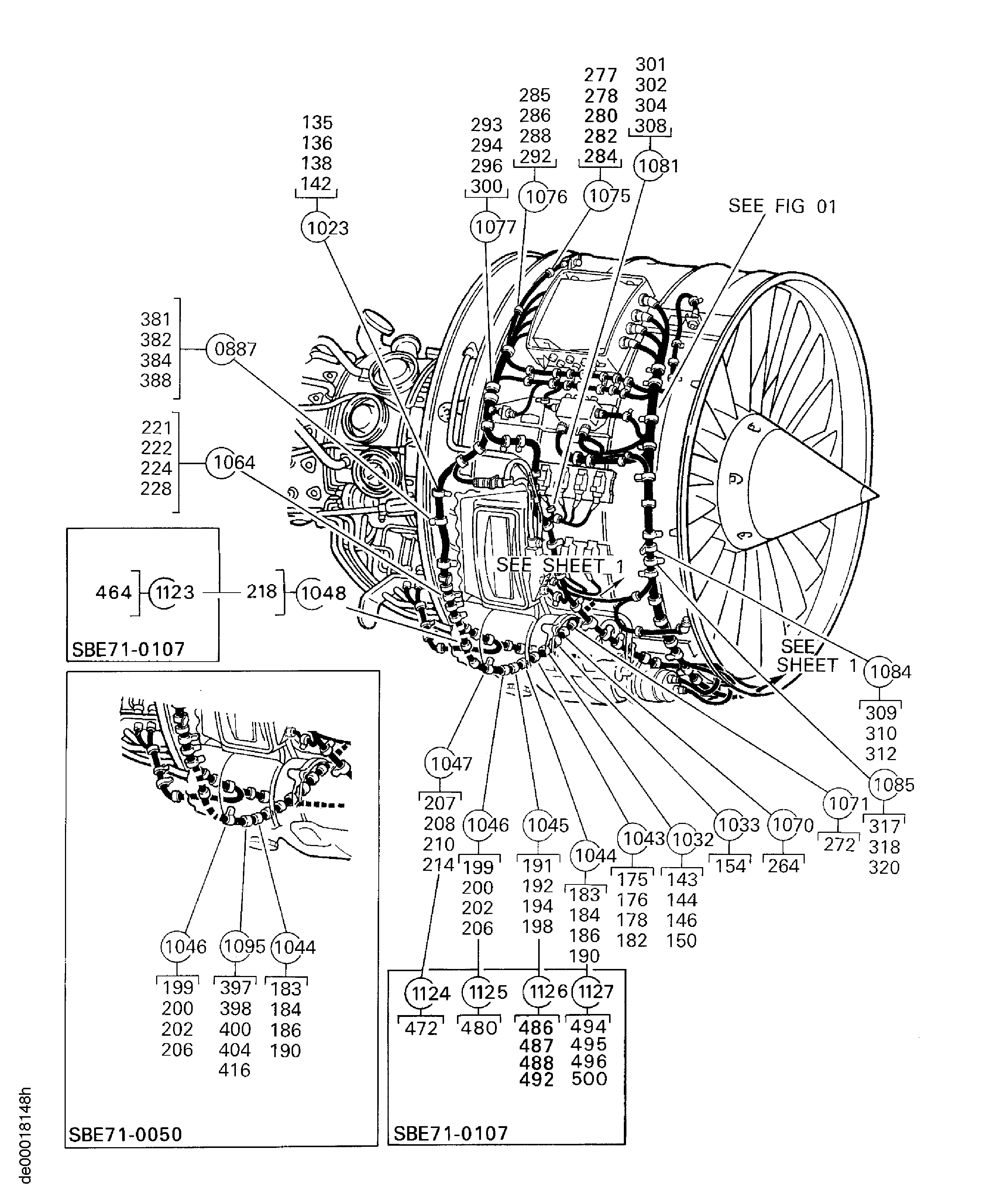

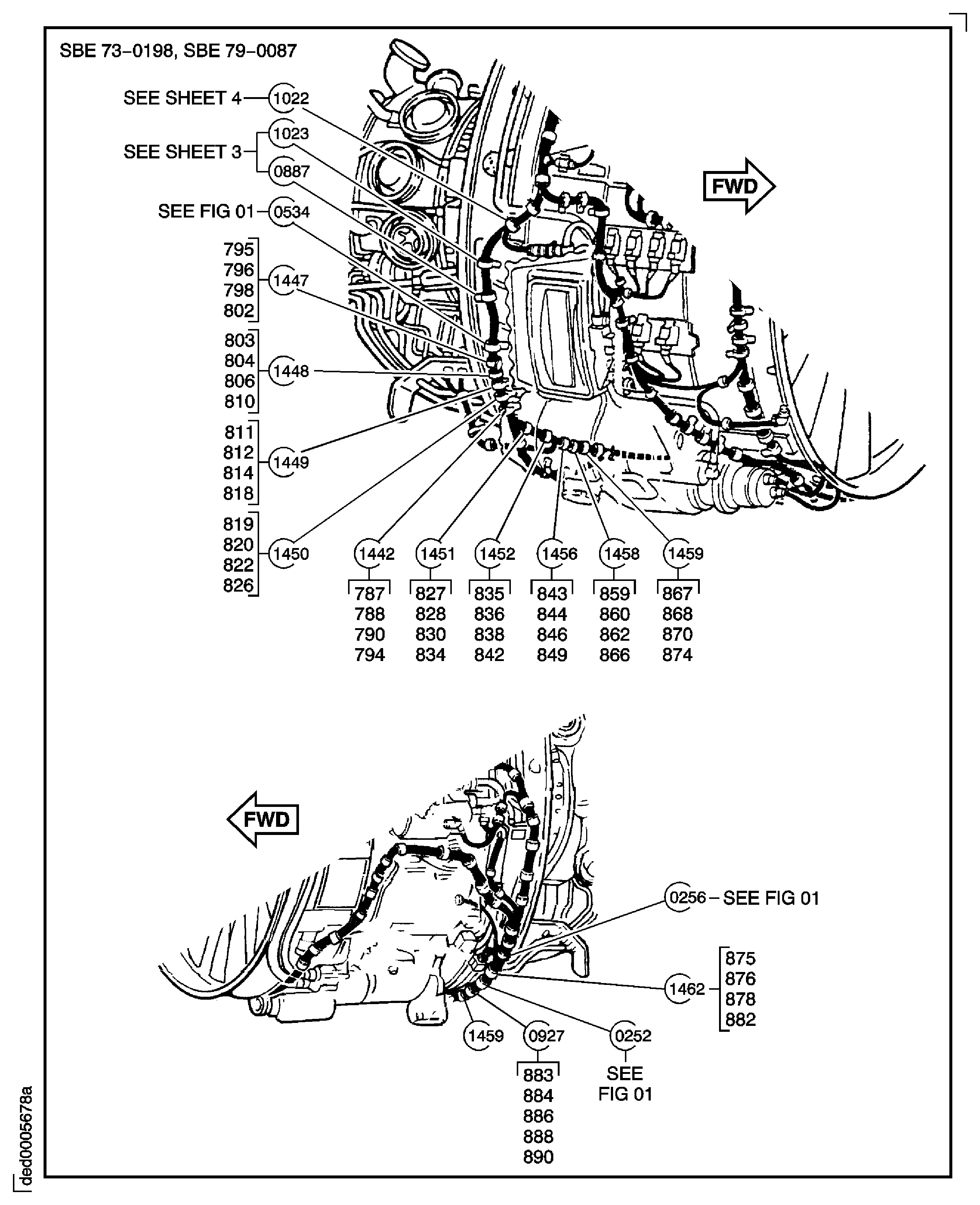

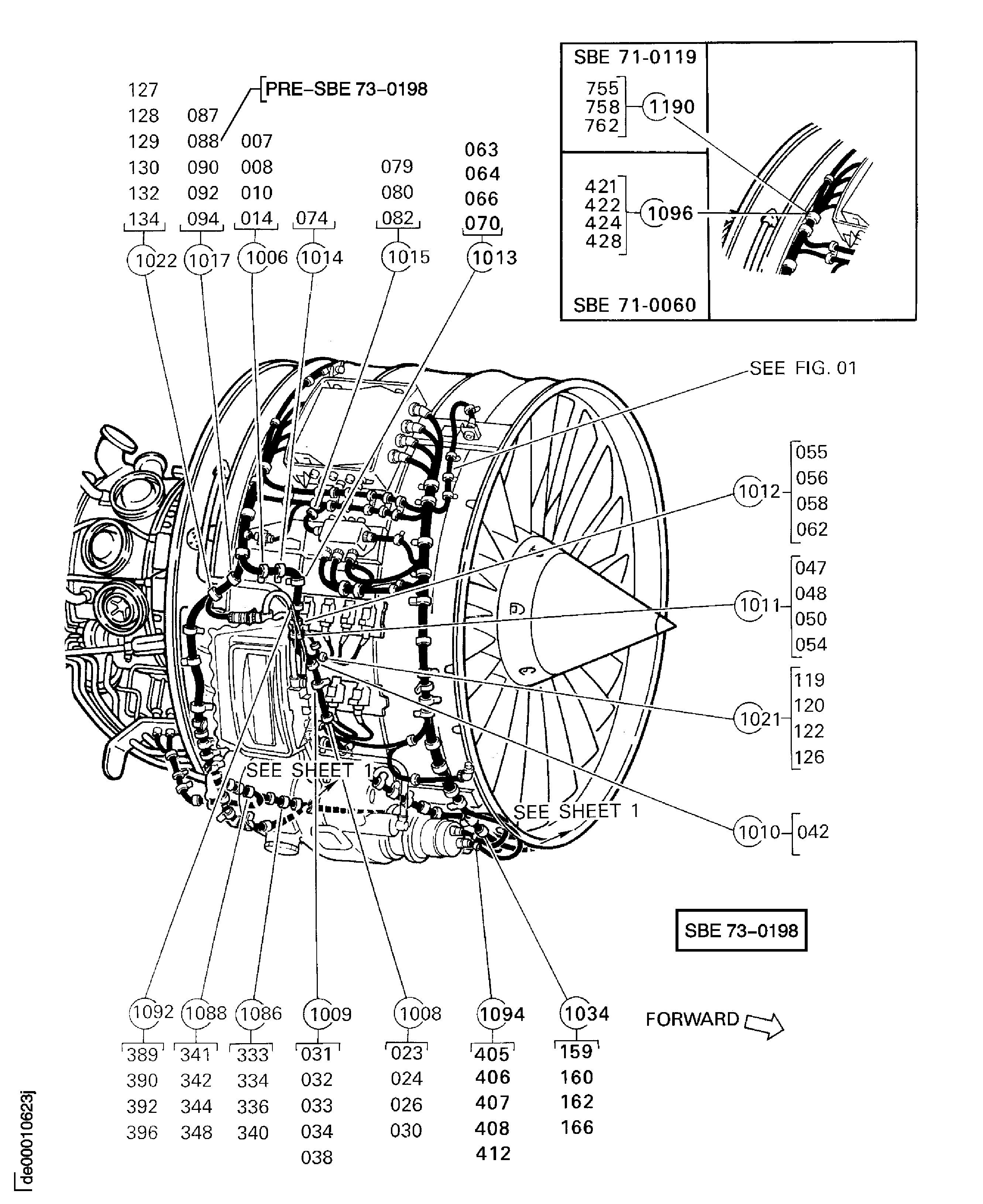

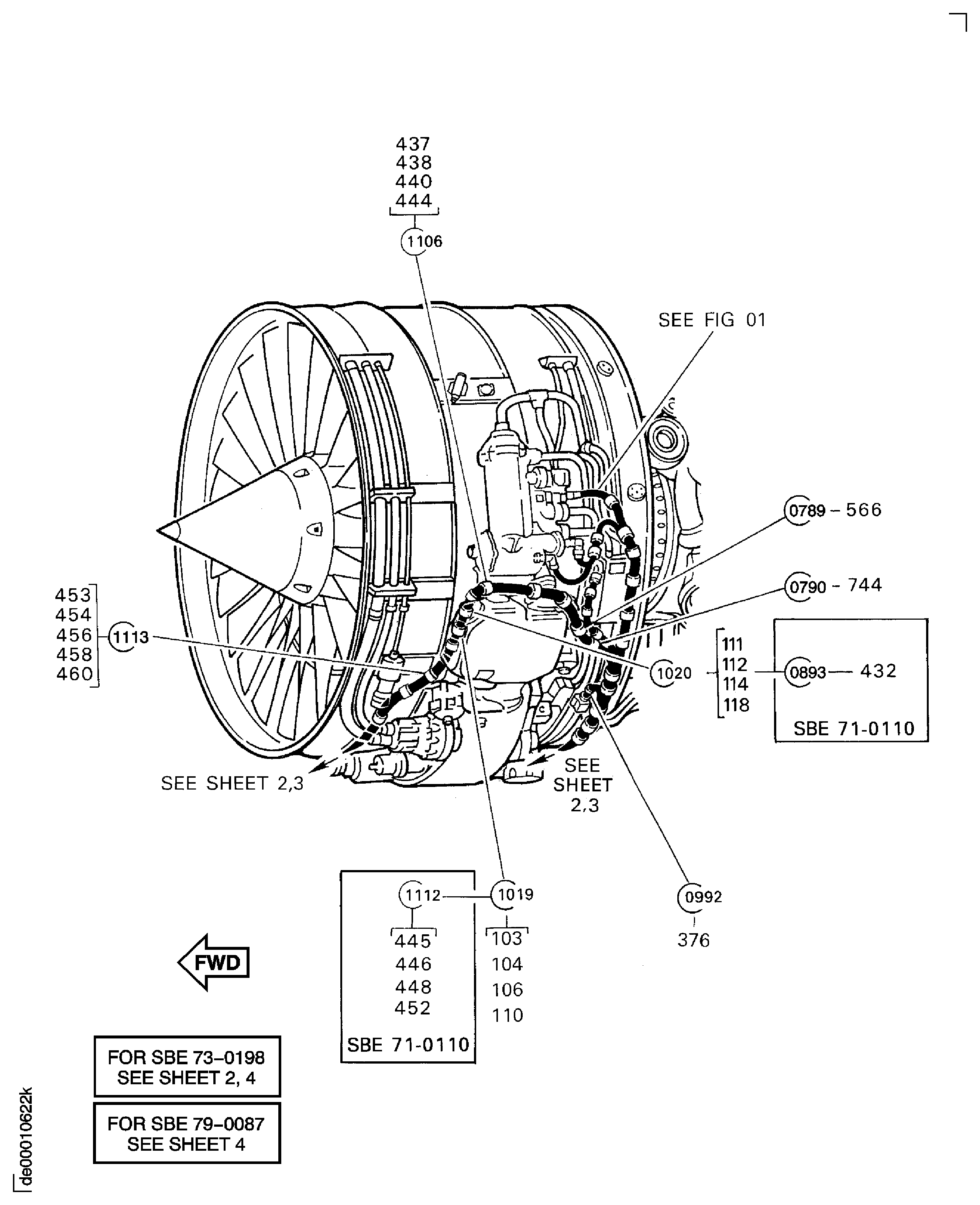

POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN

DMC:V2500-A1-71-51-41-02A-941A-D|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
02
000B71514102POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE73-0006aa
000SBE0006-01POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE71-0048ab
000SBE0048-01POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE71-0049ac
000SBE0049-01POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE71-0050ad
000SBE0050-01POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE71-0059ae
000SBE0059-01POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE71-0060af
000SBE0060-01POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE71-0063ag
000SBE0063-01POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE71-0064ah
000SBE0064-01POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE71-0067ai
000SBE0067-01POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE71-0107aj
000SBE0107-01POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE71-0110ak
000SBE0110-01POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE73-0040al
000SBE0040-01POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE71-0119am
000SBE0119-01POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE71-0109an
000SBE0109-01POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE79-0087ao
000SBE0087-01POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE73-0198ap
000SBE0198-01POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FANaq
0070074W0103• BOLT - .190 DIA X .500aa-aq1
0080085W1086• WASHERaa-aq1
010010JM44LC39H109RG• CLAMP
22175
PRE SBE71-0067		aa-aq1
010010ATA025074-12• CLAMP - .750 DIA
84971
ALT AS61910
POST SBE71-0067		aa-aq1
-010010BAS61910• CLAMP - 19.05 MM (0.750)
U1653
ALT TA025074-12
POST SBE71-0067		aa-aqREF
0140144W0043• NUT - .190 DIAaa-aq1
0230234W0103• BOLT - .190 DIA X .500aa-aq1
0240245W1086• WASHERaa-aq1
026026JM44LC39H104RG• CLAMP
22175
PRE SBE71-0067		aa-aq1
026026ATA025074-04• CLAMP - .250 DIA
84971
ALT AS61904
POST SBE71-0067		aa-aq1
-026026BAS61904• CLAMP - 9.53 MM (0.375)
U1653
ALT TA025074-04
POST SBE71-0067		aa-aqREF
0300304W0001• NUT - .190 DIAaa-aq1
0310314W0105• BOLT - .190 DIA X .625aa-aq1
0320325W1086• WASHERaa-aq1
033033JM44LC39H103RG• CLAMP
22175
PRE SBE71-0067		aa-aq1
033033ATA025074-04• CLAMP - .250 DIA
84971
ALT AS61902
POST SBE71-0067		aa-aq1
-033033BAS61902• CLAMP - 6.35 MM (0.250)
U1653
ALT TA025074-04
POST SBE71-0067		aa-aqREF
034034JM44LC39H107RG• CLAMP
22175
PRE SBE71-0067		aa-aq1
034034ATA025074-08• CLAMP - .500 DIA
84971
ALT AS61906
POST SBE71-0067		aa-aq1
-034034BAS61906• CLAMP - 12.70 MM (0.500)
U1653
ALT TA025074-08
POST SBE71-0067		aa-aqREF
0380384W0001• NUT - .190 DIAaa-aq1
042042JM44LC39H107RG• CLAMP
22175
PRE SBE71-0067		aa-aq1
042042ATA025074-08• CLAMP - .500 DIA
84971
ALT AS61906
POST SBE71-0067		aa-aq1
-042042BAS61906• CLAMP - 12.70 MM (0.500)
U1653
ALT TA025074-08
POST SBE71-0067		aa-aqREF
0470474W0103• BOLT - .190 DIA X .500aa-aq1
0480485W1086• WASHERaa-aq1
050050JM44LC39H107RG• CLAMP
22175
PRE SBE71-0067		aa-aq1
050050ATA025074-08• CLAMP - .500 DIA
84971
ALT AS61906
POST SBE71-0067		aa-aq1
-050050BAS61906• CLAMP - 12.70 MM (0.500)
U1653
ALT TA025074-08
POST SBE71-0067		aa-aqREF
0540544W0001• NUT - .190 DIAaa-aq1
0550554W0103• BOLT - .190 DIA X .500aa-aq1
0560565W1086• WASHERaa-aq1
058058JM44LC39H109RG• CLAMP
22175
PRE SBE71-0067		aa-aq1
058058ATA025074-12• CLAMP - .750 DIA
84971
ALT AS61910
POST SBE71-0067		aa-aq1
-058058BAS61910• CLAMP - 19.05 MM (0.750)
U1653
ALT TA025074-12
POST SBE71-0067		aa-aqREF
0620624W0001• NUT - .190 DIAaa-aq1
0630634W0103• BOLT - .190 DIA X .500
PRE SBE71-0049		aa-ac1
0640645W1086• WASHER
PRE SBE71-0049		aa-ac1
066066JM44LC39H109RG• CLAMP
22175
PRE SBE71-0049		aa-ac1
0700704W0001• NUT - .190 DIA
PRE SBE71-0049		aa-ac1
074074JM44LC39H109RG• CLAMP
22175
PRE SBE71-0067		aa-aq1
074074ATA025074-12• CLAMP - .750 DIA
84971
ALT AS61910
POST SBE71-0067		aa-aq1
-074074BAS61910• CLAMP - 19.05 MM (0.750)
U1653
ALT TA025074-12
POST SBE71-0067		aa-aqREF
0790794W0104• BOLT - .190 DIA X .562
PRE SBE71-0059		aa-ae1
079079A4W0110• BOLT - .190 DIA X .938
POST SBE71-0059		af-aq1
0800805W1086• WASHERaa-aq1
082082JM44LC39H104RG• CLAMP
22175
PRE SBE71-0067		aa-aq1
082082ATA025074-04• CLAMP - .250 DIA
84971
ALT AS61902
POST SBE71-0067		aa-aq1
-082082BAS61902• CLAMP - 6.35 MM (0.250)
U1653
ALT TA025074-04
POST SBE71-0067		aa-aqREF
0870874W0104• BOLT - .190 DIA X .562
PRE SBE71-0048		aa-ab1
087087A4W0116• BOLT - .190 DIA X 1.312
POST SBE71-0048
PRE SBE73-0198		aa-aq1
087087B4W0117• BOLT - .190 DIA X 1.375
ALT 4W0357
POST SBE73-0198		aa-aq1
087087C4W0357• BOLT - .190 DIA X 1.375
ALT 4W0117
POST SBE73-0198		aq1
0880885W1086• WASHER
PRE SBE73-0198		aa-ap1
090090JM44LC39H112RG• CLAMP
22175
PRE SBE71-0067		aa-aq1
090090ATA025074-18• CLAMP - 1.125 DIA
84971
ALT AS61916
POST SBE71-0067		aa-aq1
-090090BAS61916• CLAMP - 28.58 MM (1.125)
U1653
ALT TA025074-18
POST SBE71-0067		aa-aqREF
0920925W1032• SPACER - (20MM)
POST SBE71-0048
PRE SBE73-0198		ac-aq1
092092A5W1032• SPACER - (20MM)
ALT UP10481
POST SBE73-0198		ac-aq1
092092BUP10481• SPACER - 20MM
ALT 5W1032
POST SBE73-0198		aq1
0940944W0001• NUT - .190 DIAaa-aq1
1031034W0103• BOLT - .190 DIA X .500
PRE SBE71-0110		aa-ak1
1041045W1086• WASHER
PRE SBE71-0110		aa-ak1
106106JM44LC39H110RG• CLAMP
22175
PRE SBE71-0067		aa-aq1
106106ATA025074-15• CLAMP - .938 DIA
84971
ALT AS61913
POST SBE71-0067		aa-aq1
-106106BAS61913• CLAMP - 23.83 MM (0.938)
U1653
ALT TA025074-15
POST SBE71-0067		aa-aqREF
1101104W0001• NUT - .190 DIA
PRE SBE71-0110		aa-ak1
1111114W0103• BOLT - .190 DIA X .500
PRE SBE71-0110		aa-ak1
1121125W1086• WASHER
PRE SBE71-0110		aa-ak1
114114JM44LC39H110RG• CLAMP
22175
PRE SBE71-0067		aa-aq1
114114ATA025074-15• CLAMP - .938 DIA
84971
ALT AS61913
POST SBE71-0067		aa-aq1
-114114BAS61913• CLAMP - 23.83 MM (0.938)
U1653
ALT TA025074-15
POST SBE71-0067		aa-aqREF
1181184W0001• NUT - .190 DIA
PRE SBE71-0110		aa-ak1
1191194W0103• BOLT - .190 DIA X .500aa-aq1
1201205W1086• WASHERaa-aq1
122122JM44LC39H105RG• CLAMP
22175
PRE SBE71-0067		aa-aq1
122122ATA025074-05• CLAMP - .313 DIA
84971
ALT AS61903
POST SBE71-0067		aa-aq1
-122122BAS61903• CLAMP - 7.92 MM (0.312)
U1653
ALT TA025074-05
POST SBE71-0067		aa-aqREF
1261264W0001• NUT - .190 DIAaa-aq1
1271274W0104• BOLT - .190 DIA X .562
PRE SBE71-0048		aa-ab1
127127A4W0108• BOLT - .190 DIA X .812
POST SBE71-0048		aa-aq1
1281285W1086• WASHERaa-aq1
129129JM44LC39H103RG• CLAMP
22175
PRE SBE71-0067		aa-aq1
129129ATA025074-03• CLAMP - .188 DIA
84971
ALT AS61933
POST SBE71-0067		aa-aq1
-129129BAS61933• CLAMP - 4.78 MM (.188)
U1653
ALT TA025074-03
POST SBE71-0067		aa-aqREF
130130JM44LC39H112RG• CLAMP
22175
PRE SBE71-0067		aa-aq1
130130ATA025074-16• CLAMP - 1.000 DIA
84971
ALT AS61914
POST SBE71-0067		aa-aq1
-130130BAS61914• CLAMP - 25.40 MM (1.000)
U1653
ALT TA025074-16
POST SBE71-0067		aa-aqREF
1321325W1029• SPACER - (5MM)
POST SBE71-0048		ac-aq1
1341344W0043• NUT - .190 DIAaa-aq1
1351354W0103• BOLT - .190 DIA X .500aa-aq1
1361365W1086• WASHERaa-aq1
138138JM44LC39H112RG• CLAMP
22175
PRE SBE71-0067		aa-aq1
138138ATA025074-16• CLAMP - 1.000 DIA
84971
ALT AS61914
POST SBE71-0067		aa-aq1
-138138BAS61914• CLAMP - 25.40 MM (1.000)
U1653
ALT TA025074-16
POST SBE71-0067		aa-aqREF
1421424W0043• NUT - .190 DIAaa-aq1
1431434W0103• BOLT - .190 DIA X .500aa-aq1
1441445W1086• WASHERaa-aq1
146146JM44LC39H105RG• CLAMP
22175
PRE SBE71-0067		aa-aq1
146146ATA025074-06• CLAMP - .375 DIA
84971
ALT AS61904
POST SBE71-0067		aa-aq1
-146146BAS61904• CLAMP - 9.53 MM (0.375)
U1653
ALT TA025074-06
POST SBE71-0067		aa-aqREF
1501504W0043• NUT - .190 DIAaa-aq1
154154JM44LC39H105RG• CLAMP
22175
PRE SBE71-0067		aa-aq1
154154ATA025074-06• CLAMP - .375 DIA
84971
ALT AS61904
POST SBE71-0067		aa-aq1
-154154BAS61904• CLAMP - 9.53 MM (0.375)
U1653
ALT TA025074-06
POST SBE71-0067		aa-aqREF
1591594W0102• BOLT - .190 DIA X .438aa-aq1
1601605W1086• WASHERaa-aq1
162162JM44LC39H104RG• CLAMP
22175
PRE SBE71-0067		aa-aq1
162162ATA025074-04• CLAMP - .250 DIA
84971
ALT AS61902
POST SBE71-0067		aa-aq1
-162162BAS61902• CLAMP - 6.35 MM (0.250)
U1653
ALT TA025074-04
POST SBE71-0067		aa-aqREF
1661664W0043• NUT - .190 DIAaa-aq1
1751754W0103• BOLT - .190 DIA X .500aa-aq1
1761765W1086• WASHERaa-aq1
178178JM44LC39H105RG• CLAMP
22175
PRE SBE71-0050		aa-ad1
178178AJM44LC39H106RG• CLAMP
22175
POST SBE71-0050
PRE SBE71-0067		ae-aq1
178178BTA025074-06• CLAMP - .375 DIA
84971
ALT AS61904
POST SBE71-0067		ae-aq1
-178178CAS61904• CLAMP - 9.53 MM (0.375)
U1653
ALT TA025074-06
POST SBE71-0067		ae-aqREF
1821824W0001• NUT - .190 DIAaa-aq1
1831834W0103• BOLT - .190 DIA X .500
PRE SBE71-0107		aa-aj1
1841845W1086• WASHER
PRE SBE71-0107		aa-aj1
186186JM44LC39H105RG• CLAMP
22175
PRE SBE71-0050		aa-ad1
186186AJM44LC39H106RG• CLAMP
22175
POST SBE71-0050
PRE SBE71-0067		ae-aj1
186186BTA025074-06• CLAMP - .375 DIA
84971
ALT AS61904
POST SBE71-0067
PRE SBE71-0107		ae-aj1
-186186CAS61904• CLAMP - 9.53 MM (0.375)
U1653
POST SBE71-0067
PRE SBE71-0107		ae-ajREF
1901904W0001• NUT - .190 DIA
PRE SBE71-0107		aa-aj1
1911914W0103• BOLT - .190 DIA X .500
PRE SBE71-0003		*****1
1921925W1086• WASHER
PRE SBE71-0003		*****1
194194JM44LC39H105RG• CLAMP
22175
PRE SBE71-0003		*****1
1981984W0001• NUT - .190 DIA
PRE SBE71-0003		*****1
1991994W0103• BOLT - .190 DIA X .500
PRE SBE71-0107		aa-aj1
2002005W1086• WASHER
PRE SBE71-0107		aa-aj1
202202JM44LC39H105RG• CLAMP
22175
PRE SBE71-0050		aa-ad1
202202AJM44LC39H106RG• CLAMP
22175
POST SBE71-0050
PRE SBE71-0067		ae-aj1
202202BTA025074-06• CLAMP - .375 DIA
84971
ALT AS61904
POST SBE71-0067
PRE SBE71-0107		ae-aj1
-202202CAS61904• CLAMP - 9.53 MM (0.375)
U1653
POST SBE71-0067
PRE SBE71-0107		ae-ajREF
2062064W0001• NUT - .190 DIA
PRE SBE71-0107		aa-aj1
2072074W0103• BOLT - .190 DIA X .500
PRE SBE71-0003		*****1
2082085W1086• WASHER
PRE SBE71-0003		*****1
210210JM44LC39H105RG• CLAMP
22175
PRE SBE71-0003		*****1
2142144W0001• NUT - .190 DIA
PRE SBE71-0003		*****1
218218JM44LC39H105RG• CLAMP
22175
PRE SBE71-0050		aa-ad1
218218AJM44LC39H106RG• CLAMP
22175
POST SBE71-0050
PRE SBE71-0067		ae-aj1
218218BTA025074-06• CLAMP - .375 DIA
84971
ALT AS61904
POST SBE71-0067
PRE SBE71-0107		ae-aj1
-218218CAS61904• CLAMP - 9.53 MM (0.375)
U1653
POST SBE71-0067
PRE SBE71-0107		ae-ajREF
2212214W0164• BOLT - .250 DIA X .625
PRE SBE79-0087		aa-ao1
2222225W1088• WASHER
PRE SBE79-0087		aa-ao1
224224FEC3002-24B• CLIP
U5082
PRE SBE79-0087		aa-ao1
2282284W0002• NUT - .250 DIA
PRE SBE79-0087		aa-ao1
264264JM44LC39H105RG• CLAMP
22175
PRE SBE71-0067		aa-ao1
264264ATA025074-06• CLAMP - LOOP STYLE,CUSHION, .375 DIA
84971
ALT AS61904
POST SBE71-0067
PRE SBE79-0087		aa-ao1
-264264BAS61904• CLAMP - LOOP STYLE,CUSHION, 9.53 MM (0.375)
U1653
ALT TA025074-06
POST SBE71-0067
PRE SBE79-0087		aa-aoREF
272272JM44LC39H105RG• CLAMP
22175
PRE SBE71-0067		aa-al1
272272ATA025074-06• CLAMP - LOOP STYLE,CUSHION, .375 DIA
84971
ALT AS61904
POST SBE71-0067
PRE SBE73-0040		aa-al1
-272272BAS61904• CLAMP - LOOP STYLE,CUSHION, 9.53 MM (0.375)
U1653
ALT TA025074-08
POST SBE71-0067
PRE SBE73-0040		aa-alREF
272272CTA025074-08• CLAMP - LOOP STYLE,CUSHION, .500 DIA
84971
ALT AS61906
POST SBE73-0040		aj-al1
-272272DAS61906• CLAMP - LOOP STYLE,CUSHION, 12.70 MM (0.500)
U1653
ALT TA025074-06
POST SBE73-0040		aj-alREF
2772774W0106• BOLT - .190 DIA X .688
PRE SBE71-0064		aa-ah1
277277A4W0111• BOLT - .190 DIA X 1.000
POST SBE71-0064		ai-aq1
2782785W1086• WASHERaa-aq2
280280JM44LC39H107RG• CLAMP
22175
PRE SBE71-0067		aa-aq1
280280ATA025074-07• CLAMP - .438 DIA
84971
ALT AS61905
POST SBE71-0067		aa-aq1
-280280BAS61905• CLAMP - 11.13 MM (O.436)
U1653
ALT TA025074-07
POST SBE71-0067		aa-aqREF
2822825W1030• SPACER - (10MM)
POST SBE71-0064		ai-aq1
2842844W0001• NUT - .190 DIAaa-aq1
2852854W0103• BOLT - .190 DIA X .500
PRE SBE71-0119		aa-am1
285285A4W0102• BOLT - .190 DIA X .438
POST SBE71-0119		an-aq1
2862865W1086• WASHER
PRE SBE71-0119		aa-am1
288288JM44LC39H107RG• CLAMP
22175
PRE SBE71-0067		aa-am1
288288ATA025074-07• CLAMP - .438 DIA
84971
ALT AS61905
POST SBE71-0067
PRE SBE71-0119		aa-am1
-288288BAS61905• CLAMP - 11.13 MM (O.436)
U1653
ALT AS62507
POST SBE71-0067
PRE SBE71-0119		aa-amREF
288288CAS62507• CLAMP - 11.13 MM (0.438)
U1653
POST SBE71-0119		aj-am1
2922924W0001• NUT - .190 DIA
PRE SBE71-0119		aa-am1
292292A4W0043• NUT - .190 DIA
POST SBE71-0119		an-aq1
2932934W0104• BOLT - .190 DIA X .562aa-aq1
2942945W1086• WASHERaa-aq1
296296JM44LC39H117RG• CLAMP
22175
PRE SBE71-0067		aa-aq1
296296ATA025074-22• CLAMP - 1.375 DIA
84971
ALT AS61920
POST SBE71-0067		aa-aq1
-296296BAS61920• CLAMP - 34.93 MM (1.375)
U1653
ALT TA025074-22
POST SBE71-0067		aa-aqREF
3003004W0043• NUT - .190 DIAaa-aq1
3013014W0103• BOLT - .190 DIA X .500aa-aq1
3023025W1086• WASHERaa-aq1
304304JM44LC39H103RG• CLAMP
22175
PRE SBE71-0067		aa-aq1
304304ATA025074-01• CLAMP - LOOP STYLE,CUSHION, .062 DIA
84971
ALT AS61931
POST SBE71-0067		aa-aq1
-304304BAS61931• CLAMP - LOOP STYLE,CUSHION, 1.58 MM (.062)
U1653
ALT TA025074-01
POST SBE71-0067		aa-aqREF
3083084W0001• NUT - .190 DIAaa-aq1
3093094W0104• BOLT - .190 DIA X .562aa-aq1
3103105W1086• WASHERaa-aq1
312312JM44LC39H113RG• CLAMP
22175
PRE SBE71-0067		aa-aq1
312312ATA025074-18• CLAMP - 1.125 DIA
84971
ALT AS61916
POST SBE71-0067		aa-aq1
-312312BAS61916• CLAMP - 28.58 MM (1.125)
U1653
ALT TA025074-18
POST SBE71-0067		aa-aqREF
3173174W0104• BOLT - .190 DIA X .562aa-aq1
3183185W1086• WASHERaa-aq1
320320JM44LC39H113RG• CLAMP
22175
PRE SBE71-0067		aa-aq1
320320ATA025074-18• CLAMP - 1.125 DIA
84971
ALT AS61916
POST SBE71-0067		aa-aq1
-320320BAS61916• CLAMP - 28.58 MM (1.125)
U1653
ALT TA025074-18
POST SBE71-0067		aa-aqREF
3333334W0104• BOLT - .190 DIA X .562
PRE SBE71-0109		aa-an1
333333A4W0106• BOLT - .190 DIA X .688
POST SBE71-0109
PRE SBE79-0087		ao1
3343345W1086• WASHER
PRE SBE71-0109		aa-an2
334334A5W1086• WASHER
POST SBE71-0109
PRE SBE79-0087		ao1
336336JM44LC39H110RG• CLAMP
22175
PRE SBE71-0067		aa-an1
336336ATA025074-15• CLAMP - .938 DIA
84971
ALT AS61913
POST SBE71-0067
PRE SBE71-0109		aa-an1
-336336BAS61913• CLAMP - 23.83 MM (0.938)
U1653
ALT TA025074-15
POST SBE71-0067
PRE SBE71-0109		aa-anREF
336336CTA025074-16• CLAMP - 1.000 DIA
84971
ALT AS61914
POST SBE71-0109
PRE SBE79-0087		ao1
-336336DAS61914• CLAMP - 25.40 MM (1.000)
U1653
ALT TA025074-16
POST SBE71-0109
PRE SBE79-0087		aoREF
3383385W1029• SPACER - (5MM)
POST SBE71-0109
PRE SBE79-0087		ao1
3403404W0001• NUT - .190 DIA
PRE SBE79-0087		aa-ao1
3413414W0104• BOLT - .190 DIA X .562
PRE SBE71-0109		aa-an1
341341A4W0103• BOLT - .190 DIA X .500
POST SBE71-0109
PRE SBE79-0087		ao1
3423425W1086• WASHER
PRE SBE71-0109		aa-an2
342342A5W1086• WASHER
POST SBE71-0109
PRE SBE79-0087		ao1
344344JM44LC39H110RG• CLAMP
22175
PRE SBE71-0067		aa-an1
344344ATA025074-15• CLAMP - .938 DIA
84971
ALT AS61913
POST SBE71-0067
PRE SBE71-0109		aa-an1
-344344BAS61913• CLAMP - 23.83 MM (0.938)
U1653
ALT TA025074-15
POST SBE71-0067
PRE SBE71-0109		aa-anREF
344344CTA025074-17• CLAMP - 1.062 DIA
84971
ALT AS61915
POST SBE71-0109
PRE SBE79-0087		ao1
-344344DAS61915• CLAMP - 26.97 MM (1.062)
U1653
ALT TA025074-17
POST SBE71-0109
PRE SBE79-0087		aoREF
3483484W0001• NUT - .190 DIA
PRE SBE71-0109		aa-ao1
348348A4W0001• NUT - .190 DIA
POST SBE71-0109
PRE SBE79-0087		aa-ao1
376376JM44LC39H107RG• CLAMP
22175
PRE SBE71-0067		aa-aq1
376376ATA025074-08• CLAMP - .500 DIA
84971
ALT AS61906
POST SBE71-0067		aa-aq1
-376376BAS61906• CLAMP - 12.70 MM (0.500)
U1653
ALT TA025074-08
POST SBE71-0067		aa-aqREF
3813814W0107• BOLT - .190 DIA X .750aa-aq1
3823825W1086• WASHERaa-aq2
384384JM44LC39H112RG• CLAMP
22175
PRE SBE71-0067		aa-aq1
384384ATA025074-17• CLAMP - 1.062 DIA
84971
ALT AS61915
POST SBE71-0067		aa-aq1
-384384BAS61915• CLAMP - 26.97 MM (1.062)
U1653
ALT TA025074-17
POST SBE71-0067		aa-aqREF
3883884W0001• NUT - .190 DIAaa-aq1
3893894W0104• BOLT - .190 DIA X .562
POST SBE71-0049		ad-aq1
3903905W1086• WASHER
POST SBE71-0049
PRE SBE71-0105		*****2
392392JM44LC39H109RG• CLAMP
22175
POST SBE71-0049
PRE SBE71-0067		ad-aq1
392392ATA025074-12• CLAMP - .750 DIA
84971
ALT AS61910
POST SBE71-0067		ad-aq1
-392392BAS61910• CLAMP - 19.05 MM (0.750)
U1653
ALT TA025074-12
POST SBE71-0067		ad-aqREF
3963964W0001• NUT - .190 DIA
POST SBE71-0049		ad-aq1
3973974W0103• BOLT - .190 DIA X .500
POST SBE71-0050
PRE SBE71-0107		ae-aj1
3983985W1086• WASHER
POST SBE71-0050
PRE SBE71-0107		ae-aj2
400400JM44LC39H106RG• CLAMP
22175
POST SBE71-0050
PRE SBE71-0067		ae-aj1
400400ATA025074-06• CLAMP - .375 DIA
84971
ALT AS61904
POST SBE71-0067
PRE SBE71-0107		ae-aj1
-400400BAS61904• CLAMP - 9.53 MM (0.375)
U1653
POST SBE71-0067
PRE SBE71-0107		ae-ajREF
4044044W0001• NUT - .190 DIA
POST SBE71-0050
PRE SBE71-0107		ae-aj1
4054054W0104• BOLT - .190 DIA X .562
POST SBE71-0063
PRE SBE71-0111		*****1
4064065W1086• WASHER
POST SBE71-0063
PRE SBE71-0111		*****2
407407JM44LC39H109RG• CLAMP
22175
POST SBE71-0063
PRE SBE71-0111		*****1
408408JM44LC39H109RG• CLAMP
22175
POST SBE71-0063
PRE SBE71-0111		*****1
4124124W0001• NUT - .190 DIA
Optional Part
4W0001
POST SBE71-0063
PRE SBE71-0111		*****1
416416JM44LC39H105RG• CLAMP
22175
POST SBE73-0006
PRE SBE71-0067		ab-aq1
416416ATA025074-06• CLAMP - LOOP STYLE,CUSHION, .375 DIA
84971
ALT AS61904
POST SBE71-0067		ab-aq1
-416416BAS61904• CLAMP - LOOP STYLE,CUSHION, 9.53 MM (0.375)
U1653
ALT TA025074-06
POST SBE71-0067		ab-aqREF
4214214W0110• BOLT - .190 DIA X .938
Optional Part
4W0110
POST SBE71-0060
PRE SBE71-0119		ag-am1
4224225W1086• WASHER
POST SBE71-0060
PRE SBE71-0119		ag-am1
424424JM44LC39H114RG• CLIP
22175
POST SBE71-0060
PRE SBE71-0067		ag-am1
424424ATA025074-19• CLAMP - LOOP STYLE,CUSHION, 1.188 DIA
84971
ALT AS61917
POST SBE71-0067
PRE SBE71-0119		ag-am1
-424424BAS61917• CLAMP - LOOP STYLE,CUSHION, 30.18 MM (1.188)
U1653
POST SBE71-0067
PRE SBE71-0119		ag-amREF
4284284W0001• NUT - .190 DIA
Optional Part
4W0001
POST SBE71-0060
PRE SBE71-0119		ag-am1
432432TA025074-15• CLAMP - LOOP STYLE,CUSHION, .938 DIA
84971
ALT AS61913
POST SBE71-0110		al-aq1
-432432AAS61913• CLAMP - LOOP STYLE,CUSHION, 23.83 MM (0.938)
U1653
ALT TA025074-15
POST SBE71-0110		al-aqREF
4374374W0103• BOLT - .190 DIA X .500
Optional Part
4W0103
POST SBE71-0110
PRE SBE71-0118		*****1
4384385W1086• WASHER
POST SBE71-0110
PRE SBE71-0118		*****1
440440TA025074-17• CLAMP - LOOP STYLE,CUSHION, 1.062 DIA
84971
ALT AS61915
POST SBE71-0110
PRE SBE71-0118		*****1
-440440AAS61915• CLAMP - LOOP STYLE,CUSHION, 26.97 MM (1.062)
U1653
POST SBE71-0110
PRE SBE71-0118		*****REF
4444444W0001• NUT - .190 DIA
Optional Part
4W0001
POST SBE71-0110
PRE SBE71-0118		*****1
4454454W0103• BOLT - .190 DIA X .500
POST SBE71-0110		al-aq1
4464465W1086• WASHER
POST SBE71-0110		al-aq1
448448TA025074-17• CLAMP - LOOP STYLE,CUSHION, 1.062 DIA
84971
ALT AS61915
POST SBE71-0110		al-aq1
-448448AAS61915• CLAMP - LOOP STYLE,CUSHION, 26.97 MM (1.062)
U1653
ALT TA025074-17
POST SBE71-0110		al-aqREF
4524524W0043• NUT - .190 DIA
Optional Part
4W0043
POST SBE71-0110		al-aq1
4534534W0117• BOLT - .190 DIA X 1.375
POST SBE71-0110		al-aq1
4544545W1086• WASHER
POST SBE71-0110		al-aq1
456456TA025074-15• CLAMP - LOOP STYLE,CUSHION, .938 DIA
84971
ALT AS61913
POST SBE71-0110		al-aq1
-456456AAS61913• CLAMP - LOOP STYLE,CUSHION, 23.83 MM (0.938)
U1653
ALT TA025074-15
POST SBE71-0110		al-aqREF
4584585W1032• SPACER - SLEEVE, (20MM)
POST SBE71-0110		al-aq1
4604604W0043• NUT - .190 DIA
Optional Part
4W0043
POST SBE71-0110		al-aq1
464464TA025074-07• CLAMP - LOOP STYLE,CUSHION, .438 DIA
84971
ALT AS61905
POST SBE71-0107		ak-aq1
-464464AAS61905• CLAMP - LOOP STYLE,CUSHION, 11.13 MM (O.436)
U1653
ALT TA025074-07
POST SBE71-0107		ak-aqREF
472472TA025074-07• CLAMP - .438 DIA
84971
ALT AS61905
POST SBE71-0107		ak-aq1
-472472AAS61905• CLAMP - 11.13 MM (O.436)
U1653
ALT TA025074-07
POST SBE71-0107		ak-aqREF
480480TA025074-07• CLAMP - LOOP STYLE,CUSHION, .438 DIA
84971
ALT AS61905
POST SBE71-0107		ak-aq1
-480480AAS61905• CLAMP - LOOP STYLE,CUSHION, 11.13 MM (O.436)
U1653
ALT TA025074-07
POST SBE71-0107		ak-aqREF
4864864W0103• BOLT - .190 DIA X .500
Optional Part
4W0103
POST SBE71-0107		ak-aq1
487487K8831• WASHER - .190 DIA X 0,51 THK
POST SBE71-0107		ak-aq1
488488400WSS10• CLIP
83930
POST SBE71-0107		ak-aq1
4924924W0001• NUT - .190 DIA
Optional Part
4W0001
POST SBE71-0107		ak-aq1
4944944W0103• BOLT - .190 DIA X .500
Optional Part
4W0103
POST SBE71-0107		ak-aq1
495495K8831• WASHER - .190 DIA X 0,51 THK
POST SBE71-0107		ak-aq1
496496400WSS10• CLIP
83930
POST SBE71-0107		ak-aq1
5005004W0001• NUT - .190 DIA
Optional Part
4W0001
POST SBE71-0107		ak-aq1
540540TA025074-16• CLAMP - LOOP STYLE,CUSHION, 1.000 DIA
84971
ALT AS61914
POST SBE71-0109
PRE SBE79-0087		ao1
-540540AAS61914• CLAMP - LOOP STYLE,CUSHION, 25.40 MM (1.000)
U1653
ALT TA025074-16
POST SBE71-0109
PRE SBE79-0087		aoREF
5425424W0108• BOLT - .190 DIA X .812
Optional Part
4W0108
POST SBE71-0109
PRE SBE79-0087		ao1
5445444W2621• WASHER
POST SBE71-0109
PRE SBE79-0087		ao3
5485484W0001• NUT - .190 DIA
Optional Part
4W0001
POST SBE71-0109
PRE SBE79-0087		ao1
566566AS62504• CLAMP - LOOP ASSY ELEC HARNES, 6.35 MM (0.250)
U1653
POST SBE73-0040		am-aq1
744744AS62504• CLAMP - LOOP ASSY ELEC HARNES, 6.35 MM (0.250)
U1653
POST SBE73-0040		am-aq1
7557554W0103• BOLT - .190 DIA X .500
Optional Part
4W0103
POST SBE71-0119		an-aq1
758758AS62519• CLAMP - LOOP ASSY ELEC HARNES, 30.18 MM (1.188)
U1653
POST SBE71-0119		an-aq1
7627624W0043• NUT - .190 DIA
Optional Part
4W0043
POST SBE71-0119		an-aq1
7877874W0104• BOLT - .190 DIA X .562
POST SBE79-0087
PRE SBE73-0198		ap-aq1
787787A4W0104• BOLT - .190 DIA X .562
POST SBE73-0198		ap-aq1
787787B4W0344• BOLT - .190 DIA X .562
POST SBE73-0198		aq1
788788K8831• WASHER - .190 DIA X 0,51 THK
POST SBE79-0087		ap-aq2
790790AS62515• CLAMP - 23.83 MM (0.938)
U1653
POST SBE79-0087		ap-aq1
7947944W0001• NUT - .190 DIA
POST SBE79-0087		ap-aq1
7957954W0165• BOLT - .250 DIA X .688
POST SBE79-0087		ap-aq1
7967965W1088• WASHER
POST SBE79-0087		ap-aq1
798798FEC3002-24B• CLIP
U5082
POST SBE79-0087		ap-aq1
8028024W0002• NUT - .250 DIA
POST SBE79-0087		ap-aq1
8038034W0165• BOLT - .250 DIA X .688
POST SBE79-0087		ap-aq1
8048045W1088• WASHER
POST SBE79-0087		ap-aq1
806806FEC3002-24B• CLIP
U5082
POST SBE79-0087		ap-aq1
8108104W0002• NUT - .250 DIA
POST SBE79-0087		ap-aq1
8118114W0165• BOLT - .250 DIA X .688
POST SBE79-0087		ap-aq1
8128125W1088• WASHER
POST SBE79-0087		ap-aq1
814814FEC3002-24B• CLIP
U5082
POST SBE79-0087		ap-aq1
8188184W0002• NUT - .250 DIA
POST SBE79-0087		ap-aq1
8198194W0165• BOLT - .250 DIA X .688
POST SBE79-0087		ap-aq1
8208205W1088• WASHER
POST SBE79-0087		ap-aq1
822822FEC3002-24B• CLIP
U5082
POST SBE79-0087		ap-aq1
8268264W0002• NUT - .250 DIA
POST SBE79-0087		ap-aq1
8278274W0103• BOLT - .190 DIA X .500
POST SBE79-0087		ap-aq1
828828K8831• WASHER - .190 DIA X 0,51 THK
POST SBE79-0087		ap-aq1
830830AS62515• CLAMP - 23.83 MM (0.938)
U1653
POST SBE79-0087		ap-aq1
8348344W0001• NUT - .190 DIA
POST SBE79-0087		ap-aq1
8358354W0103• BOLT - .190 DIA X .500
POST SBE79-0087		ap-aq1
836836K8831• WASHER - .190 DIA X 0,51 THK
POST SBE79-0087		ap-aq1
838838AS62515• CLAMP - 23.83 MM (0.938)
U1653
POST SBE79-0087		ap-aq1
8428424W0001• NUT - .190 DIA
POST SBE79-0087		ap-aq1
8438434W0103• BOLT - .190 DIA X .500
POST SBE79-0087		ap-aq1
844844K8831• WASHER - .190 DIA X 0,51 THK
POST SBE79-0087		ap-aq1
846846AS61915• CLAMP - 26.97 MM (1.062)
U1653
POST SBE79-0087		ap-aq1
8498494W0001• NUT - .190 DIA
POST SBE79-0087		ap-aq1
8598594W0103• BOLT - .190 DIA X .500
POST SBE79-0087		ap-aq1
860860K8831• WASHER - .190 DIA X 0,51 THK
POST SBE79-0087		ap-aq1
862862AS61915• CLAMP - 26.97 MM (1.062)
U1653
POST SBE79-0087		ap-aq1
8668664W0001• NUT - .190 DIA
POST SBE79-0087		ap-aq1
8678674W0103• BOLT - .190 DIA X .500
POST SBE79-0087		ap-aq1
868868K8831• WASHER - .190 DIA X 0,51 THK
POST SBE79-0087		ap-aq1
870870AS61915• CLAMP - 26.97 MM (1.062)
U1653
POST SBE79-0087		ap-aq1
8748744W0001• NUT - .190 DIA
POST SBE79-0087		ap-aq1
8758754W0107• BOLT - .190 DIA X .750
POST SBE79-0087		ap-aq1
8768764W2621• WASHER
POST SBE79-0087		ap-aq3
878878AS61915• CLAMP - 26.97 MM (1.062)
U1653
POST SBE79-0087		ap-aq1
8828824W0001• NUT - .190 DIA
POST SBE79-0087		ap-aq1
8838834W0117• BOLT - .190 DIA X 1.375
POST SBE79-0087		ap-aq1
884884K8831• WASHER - .190 DIA X 0,51 THK
POST SBE79-0087		ap-aq1
886886AS61915• CLAMP - 26.97 MM (1.062)
U1653
POST SBE79-0087		ap-aq1
888888UP10481• SPACER - 20MM
POST SBE79-0087		ap-aq1
8908904W0001• NUT - .190 DIA
POST SBE79-0087		ap-aq1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Figure: POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN

EEC HARNESS FAN

EEC HARNESS FAN

EEC HARNESS FAN

EEC HARNESS FAN

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:22175
Enterprise Name:J AND M PRODUCTS INC
BU Name:J AND M PRODUCTS INC
Street:2435 N NAOMI STREET
City:BURBANK
State:CA
Zip Code:91504-3425
Country:USA
Manufacturer Code:83930
Enterprise Name:TRANSDIGM INC
BU Name:TRANSDIGM INC
Department:ADEL FASTENERS
Building:SANDWELL INDUSTRIAL ESTATE
Street:5000 TRIGGS STREET
City:LOS ANGELES
State:WEST MIDLANDS
Zip Code:B66 1QJ
Country:USA
Manufacturer Code:84971
Enterprise Name:KIRKHILL - TA MFG SUB OF ESTERLINE TECHNOLOGIES
BU Name:KIRKHILL - TA MFG SUB OF ESTERLINE TECHNOLOGIES
Department:TA MFG LTD
Street:28065 WEST FRANKLIN PARKWAY,VALENCIA
City:SANTA CLARITA
State:CALIFORNIA
Zip Code:GL1 2BS
Country:USA
Manufacturer Code:96906
Enterprise Name:MILITARY STANDARDS MANUAL 4120 3-M
BU Name:MILITARY STANDARDS MANUAL 4120 3-M
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:U1653
Enterprise Name:Society Of British Aerospace Companies, LTD.
Manufacturer Code:U5082
Enterprise Name:FARSOUND ENGINEERING LTD
BU Name:FARSOUND ENGINEERING LTD
Department:UNIT 3 HIGHAMS PARK IND EST
Street:JUBILEE AVENUE
City:LONDON
Zip Code:E4 9JD
Country:ENGLAND
Part Number:400WSS10
Part Name:CLIP
Manufacturer Code:83930
Part Number:4W0001
Part Name:NUT, OPTION - .190 DIA
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS20624NUT, SELF LOCKING DBL HEX - .190 DIAU1653
Part Number:4W0002
Part Name:NUT, SELF LOCKING DBL HEX - .250 DIA
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS20625NUT, SELF LOCKING, BIHEX, .250 DIAU1653
Part Number:4W0043
Part Name:NUT, SELF LOCKING, ASSEMBLY OF - .190 DIA
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS41104NUT - 0.19 DIAU1653
Part Number:4W0102
Part Name:BOLT, MACHINE DOUBLE HEX - .190 DIA X .438
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
4W0342BOLT - .190 DIA X .4380AM53
AS21407BOLT - 0.19 DIA X 0.438U1653
Part Number:4W0103
Part Name:BOLT - .190 DIA X .500
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS21408BOLT - 0.19 DIA X 0.500U1653
Part Number:4W0104
Part Name:BOLT - .190 DIA X .562
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
4W0344BOLT , BIHEX HD - .190 DIA X .5620AM53
Part Number:4W0105
Part Name:BOLT - MACHINE DOUBLE HEX, .190 DIA X .625
Manufacturer Code:0AM53
Part Number:4W0106
Part Name:BOLT - .190 DIA X .688
Manufacturer Code:0AM53
Part Number:4W0107
Part Name:BOLT - MACHINE DOUBLE HEX, .190 DIA X .750
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS21412BOLT - 0.190 DIA X 0.750U1653
Part Number:4W0108
Part Name:BOLT - .190 DIA X .812
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS21413BOLT - 0.190 DIA X 0.812U1653
Part Number:4W0110
Part Name:BOLT, MACHINE DOUBLE HEX - .190 DIA X .938
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS48015BOLT - 0.190 DIA X 0.438U1653
Part Number:4W0111
Part Name:BOLT - 0.190 DIA X 1.000
Manufacturer Code:0AM53
Part Number:4W0116
Part Name:BOLT, MACHINE DOUBLE HEX - .190 DIA X 1.312
Manufacturer Code:0AM53
Part Number:4W0117
Part Name:BOLT, MACHINE DOUBLE HEX - .190 DIA X 1.375
Manufacturer Code:0AM53
Part Number:4W0164
Part Name:BOLT - .250 DIA X .625
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS21510BOLT - .250 DIA X .625U1653
Part Number:4W0165
Part Name:BOLT, MACHINE DOUBLE HEX - .250 DIA X .688
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS21511BOLT- MACHINE DOUBLE HEX, .250 DIA X .688U1653
Part Number:4W0342
Part Name:BOLT - .190 DIA X .438
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
4W0102BOLT, MACHINE DOUBLE HEX - .190 DIA X .4380AM53
Part Number:4W0344
Part Name:BOLT , BIHEX HD - .190 DIA X .562
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
4W0104BOLT - .190 DIA X .5620AM53
Part Number:4W0357
Part Name:BOLT - 0.190 DIA X 10.375
Manufacturer Code:0AM53
Part Number:4W2621
Part Name:WASHER
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS12943WASHER - FLAT U1653
Part Number:5W1029
Part Name:SPACER, SLEEVE, (5MM)
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
UP10478SPACER, (5MM)0AM53
Part Number:5W1030
Part Name:SPACER, SLEEVE, (10MM)
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
UP10479SPACER - 10MM0AM53
Part Number:5W1032
Part Name:SPACER - (20MM)
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
UP10481SPACER - 20MM0AM53
Part Number:5W1086
Part Name:WASHER
Manufacturer Code:0AM53
Part Number:5W1088
Part Name:WASHER
Manufacturer Code:0AM53
Part Number:AS12943
Part Name:WASHER - FLAT
Manufacturer Code:U1653
Part Number:AS20624
Part Name:NUT, SELF LOCKING DBL HEX - .190 DIA
Manufacturer Code:U1653
Part Number:AS20625
Part Name:NUT, SELF LOCKING, BIHEX, .250 DIA
Manufacturer Code:U1653
Unit Of Issue:EA
Part Number:AS21407
Part Name:BOLT - 0.19 DIA X 0.438
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
MS9556-05BOLT96906
Part Number:AS21408
Part Name:BOLT - 0.19 DIA X 0.500
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
MS9556-06BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.50096906
Part Number:AS21412
Part Name:BOLT - 0.190 DIA X 0.750
Manufacturer Code:U1653
Part Number:AS21413
Part Name:BOLT - 0.190 DIA X 0.812
Manufacturer Code:U1653
Part Number:AS21510
Part Name:BOLT - .250 DIA X .625
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
MS9557-08BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.2500 - 28 X 0.62596906
Part Number:AS21511
Part Name:BOLT- MACHINE DOUBLE HEX, .250 DIA X .688
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
MS9557-09BOLT, MACHINE DOUBLE HEX96906
Part Number:AS41104
Part Name:NUT - 0.19 DIA
Manufacturer Code:U1653
Part Number:AS48015
Part Name:BOLT - 0.190 DIA X 0.438
Manufacturer Code:U1653
Part Number:AS61902
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
TA025074-04CLAMP - LOOP, CUSHION, 6.35 MM (0.250)84971
Part Number:AS61903
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
TA025074-05CLAMP - LOOP, CUSHION, 0.313 DIA84971
Part Number:AS61904
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Part Number:AS61905
Part Name:CLAMP, LOOP, 11.13 MM (0.436)
Manufacturer Code:U1653
Part Number:AS61906
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Part Number:AS61910
Part Name:CLAMP - 19.05 MM (0.750)
Manufacturer Code:U1653
Part Number:AS61913
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Part Number:AS61914
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Part Number:AS61915
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Part Number:AS61916
Part Name:CLAMP - 28.58 MM (1.125)
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
TA025074-18CLAMP - 28.58 MM (1.125 DIA)84971
Part Number:AS61917
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Part Number:AS61920
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Part Number:AS61931
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
TA025074-01CLAMP - 0.062 DIA84971
Part Number:AS61933
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
TA025074-03CLAMP - LOOP, CUSHION, 4.78 MM (0.188)84971
Part Number:AS62504
Part Name:CLAMP - LOOP, ELECTRICAL HARNESS, 6.35 MM (0.250), ASSEMBLY OF
Manufacturer Code:U1653
Part Number:AS62507
Part Name:CLAMP - LOOP, CUSHION, 11.13 MM (0.438)
Manufacturer Code:U1653
Part Number:AS62515
Part Name:CLAMP - 23.83 MM (0.938)
Manufacturer Code:U1653
Part Number:AS62519
Part Name:CLAMP - LOOP, CUSHION, 30.18MM (1.188)
Manufacturer Code:U1653
Part Number:FEC3002-24B
Part Name:CLIP
Manufacturer Code:U5082
Part Number:JM44LC39H103RG
Part Name:CLAMP - LOOP
Manufacturer Code:22175
Part Number:JM44LC39H104RG
Part Name:CLAMP - LOOP
Manufacturer Code:22175
Part Number:JM44LC39H105RG
Part Name:CLAMP - LOOP
Manufacturer Code:22175
Part Number:JM44LC39H106RG
Part Name:CLAMP - LOOP
Manufacturer Code:22175
Part Number:JM44LC39H107RG
Part Name:CLAMP - LOOP
Manufacturer Code:22175
Part Number:JM44LC39H109RG
Part Name:CLAMP - LOOP
Manufacturer Code:22175
Part Number:JM44LC39H110RG
Part Name:CLAMP - LOOP
Manufacturer Code:22175
Part Number:JM44LC39H112RG
Part Name:CLAMP - LOOP
Manufacturer Code:22175
Part Number:JM44LC39H113RG
Part Name:CLAMP - LOOP
Manufacturer Code:22175
Part Number:JM44LC39H114RG
Part Name:CLIP
Manufacturer Code:22175
Part Number:JM44LC39H117RG
Part Name:CLAMP
Manufacturer Code:22175
Part Number:K8831
Part Name:WASHER - .190 DIA X 0.51 THK
Manufacturer Code:0AM53
Part Number:MS9556-05
Part Name:BOLT
Manufacturer Code:96906
Optional Parts
Part NumberPart NameManufacturer
AS21407BOLT - 0.19 DIA X 0.438U1653
Part Number:MS9556-06
Part Name:BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500
Manufacturer Code:96906
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
AS21408BOLT - 0.19 DIA X 0.500U1653
Part Number:MS9557-08
Part Name:BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.2500 - 28 X 0.625
Manufacturer Code:96906
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
AS21010BOLT - .250 DIA X .625U1653
AS21510BOLT - .250 DIA X .625U1653
Part Number:MS9557-09
Part Name:BOLT, MACHINE DOUBLE HEX
Manufacturer Code:96906
Optional Parts
Part NumberPart NameManufacturer
AS21511BOLT- MACHINE DOUBLE HEX, .250 DIA X .688U1653
Link not Found
Part Number:TA025074-01
Part Name:CLAMP - 0.062 DIA
Manufacturer Code:84971
Optional Parts
Part NumberPart NameManufacturer
AS61931CLAMP - LOOP, CUSHIONU1653
Link not Found
Part Number:TA025074-03
Part Name:CLAMP - LOOP, CUSHION, 4.78 MM (0.188)
Manufacturer Code:84971
Optional Parts
Part NumberPart NameManufacturer
AS61933CLAMP - LOOP, CUSHIONU1653
Link not Found
Part Number:TA025074-04
Part Name:CLAMP - LOOP, CUSHION, 6.35 MM (0.250)
Manufacturer Code:84971
Optional Parts
Part NumberPart NameManufacturer
AS61902CLAMP - LOOP, CUSHIONU1653
Link not Found
Part Number:TA025074-05
Part Name:CLAMP - LOOP, CUSHION, 0.313 DIA
Manufacturer Code:84971
Optional Parts
Part NumberPart NameManufacturer
AS61903CLAMP - LOOP, CUSHIONU1653
Link not Found
Part Number:TA025074-06
Part Name:CLAMP - LOOP, CUSHION, 0.375 DIA
Manufacturer Code:84971
Link not Found
Part Number:TA025074-07
Part Name:CLAMP, LOOP, CUSHION 0.438 DIA
Manufacturer Code:84971
Link not Found
Part Number:TA025074-08
Part Name:CLAMP - LOOP, CUSHION, 0.5 DIA
Manufacturer Code:84971
Link not Found
Part Number:TA025074-12
Part Name:CLAMP - LOOP, CUSHION, 0.75 DIA
Manufacturer Code:84971
Link not Found
Part Number:TA025074-15
Part Name:CLAMP - LOOP, CUSHION, 0.938 DIA
Manufacturer Code:84971
Link not Found
Part Number:TA025074-16
Part Name:CLAMP - LOOP, CUSHION, 1.000 DIA
Manufacturer Code:84971
Link not Found
Part Number:TA025074-17
Part Name:CLAMP - LOOP, CUSHION, 1.062 DIA
Manufacturer Code:84971
Link not Found
Part Number:TA025074-18
Part Name:CLAMP - 28.58 MM (1.125 DIA)
Manufacturer Code:84971
Optional Parts
Part NumberPart NameManufacturer
AS61916CLAMP - 28.58 MM (1.125)U1653
Part Number:TA025074-19
Part Name:CLAMP - LOOP, CUSHION, 1.188 DIA
Manufacturer Code:84971
Link not Found
Part Number:TA025074-22
Part Name:CLAMP - LOOP, CUSHION, 1.375 DIA
Manufacturer Code:84971
Part Number:UP10478
Part Name:SPACER, (5MM)
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
5W1029SPACER, SLEEVE, (5MM)0AM53
Part Number:UP10479
Part Name:SPACER - 10MM
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
5W1030SPACER, SLEEVE, (10MM)0AM53
Part Number:UP10481
Part Name:SPACER - 20MM
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
5W1032SPACER - (20MM)0AM53
