DMC:V2500-A1-71-51-41-07A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 07 | ||||
| B71514107 | POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE71-0109 | aa | ||
| SBE0109-01 | POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN | ab | ||
| 025 | 4W0106 | • BOLT - .190 DIA X .688 POST SBE71-0109 PRE SBE79-0087 | ***** | 1 |
| 026 | 5W1086 | • WASHER POST SBE71-0109 PRE SBE79-0087 | ***** | 1 |
| 028 | TA025074-16 | • CLAMP - LOOP STYLE,CUSHION, 1.000 DIA 84971 ALT AS61914 POST SBE71-0109 PRE SBE79-0087 | ***** | 1 |
| -028A | AS61914 | • CLAMP - LOOP STYLE,CUSHION, 25.40 MM (1.000) U1653 ALT TA025074-16 POST SBE71-0109 PRE SBE79-0087 | ***** | REF |
| 030 | 5W1029 | • SPACER - SLEEVE, (5MM) POST SBE71-0109 PRE SBE79-0087 | ***** | 1 |
| 032 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE71-0109 PRE SBE79-0087 | ***** | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

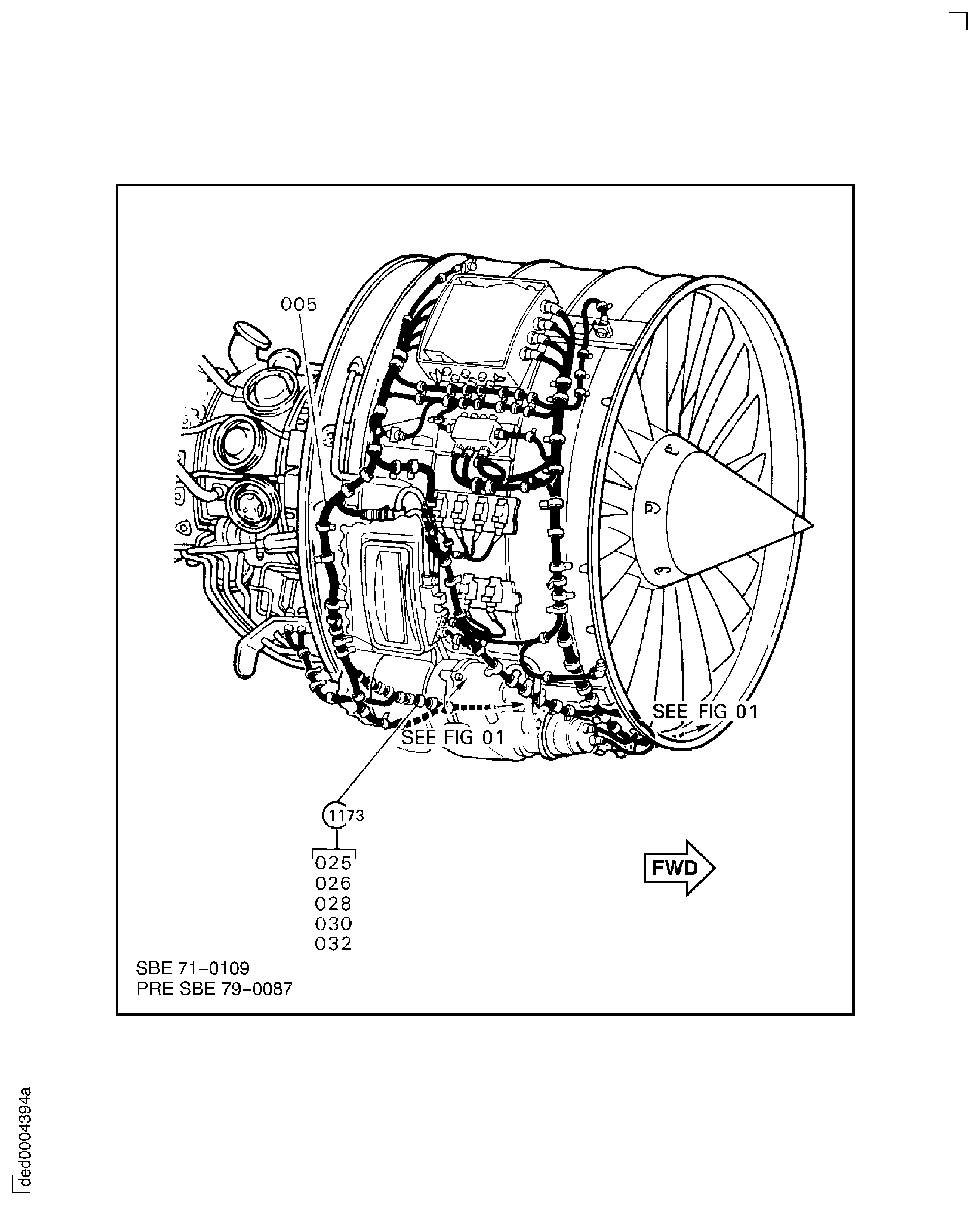

Figure: POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN
EEC HARNESS FAN
