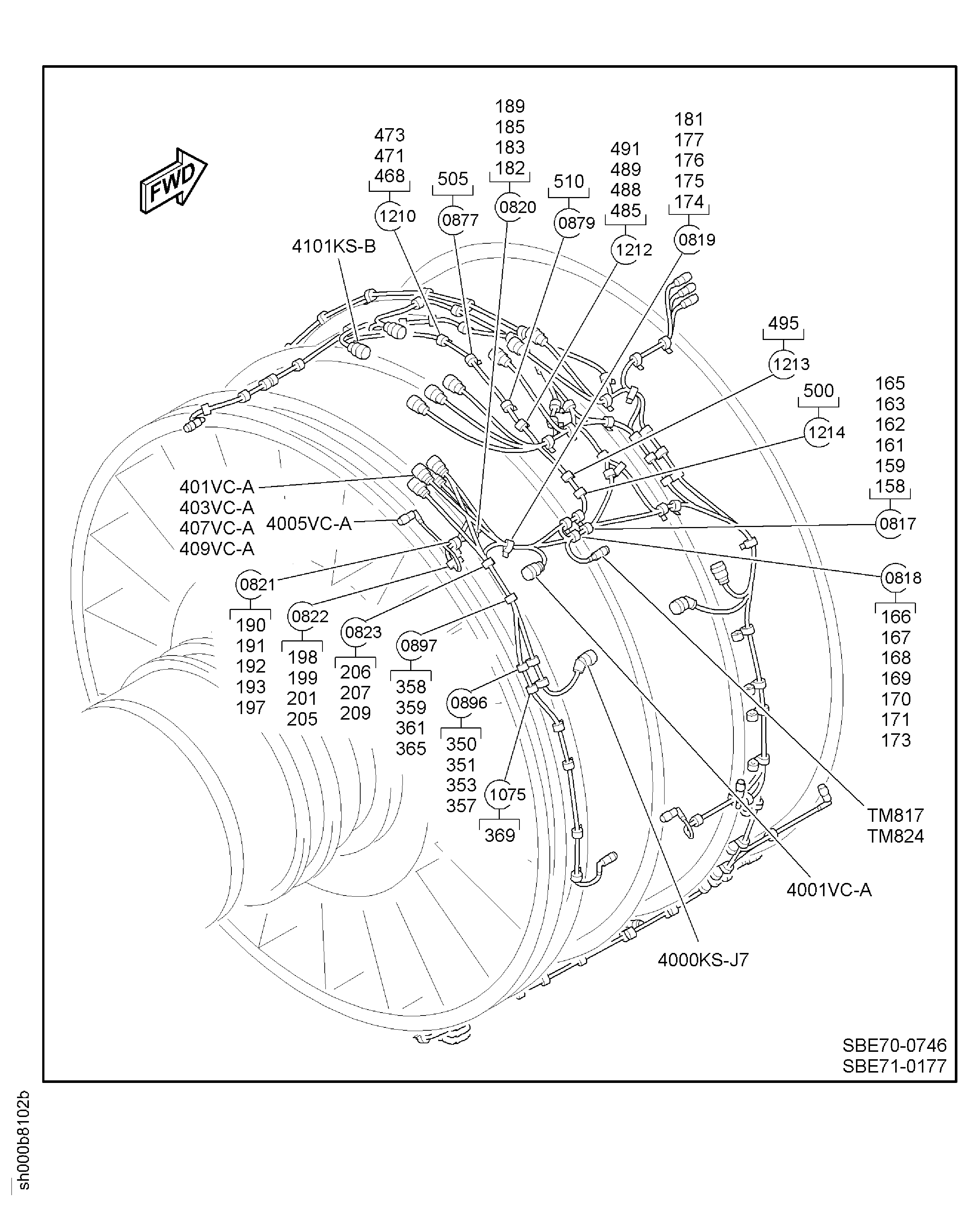

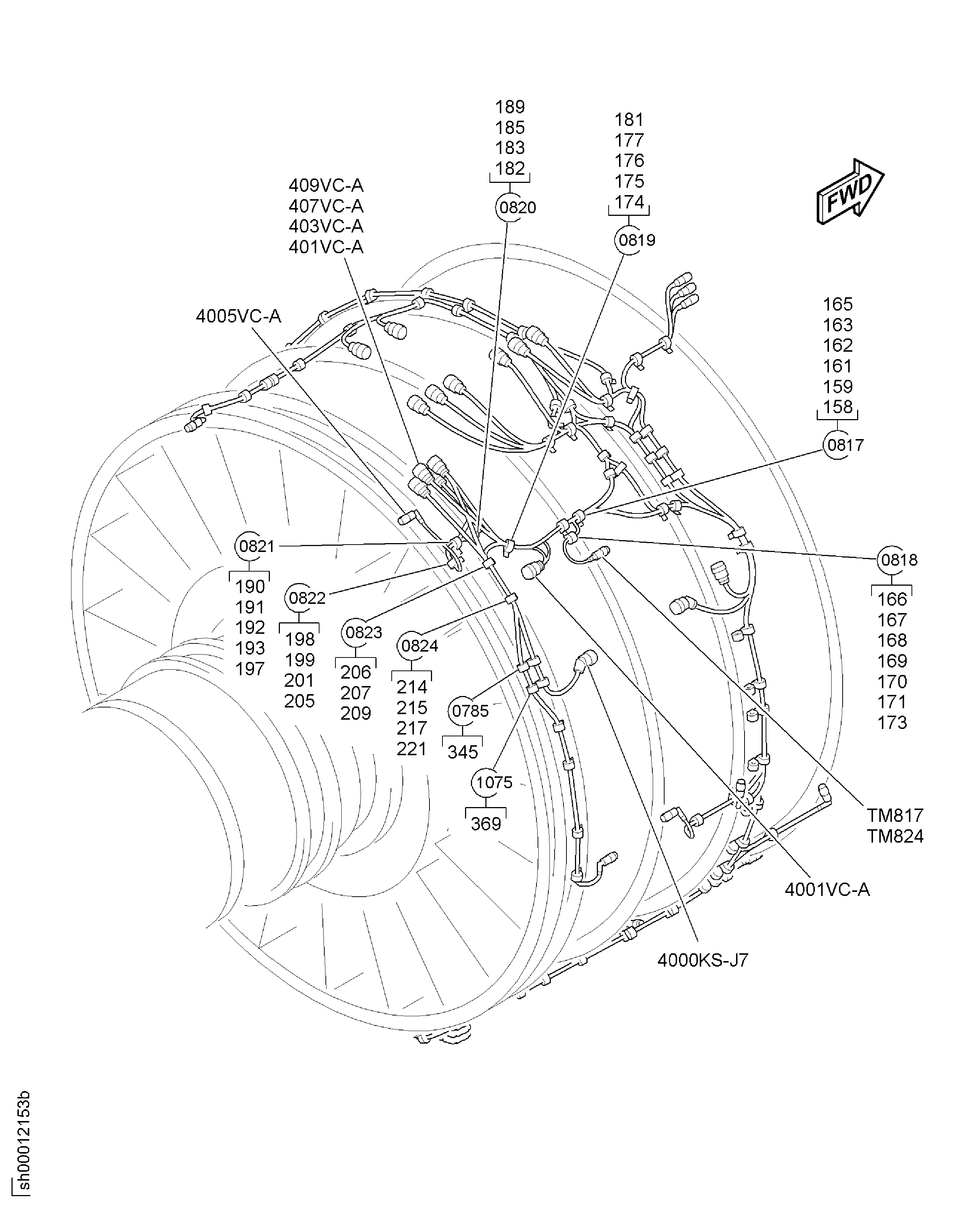

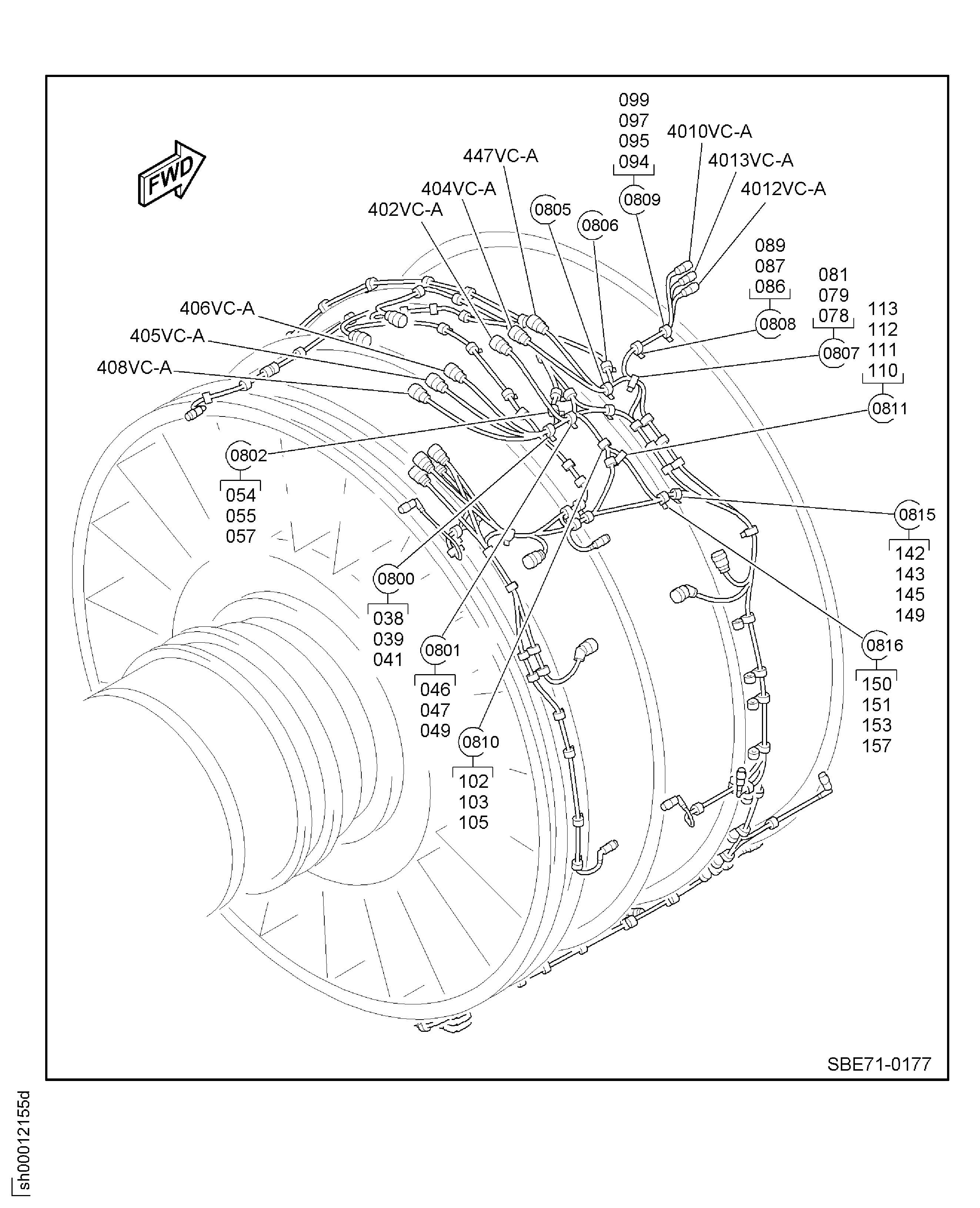

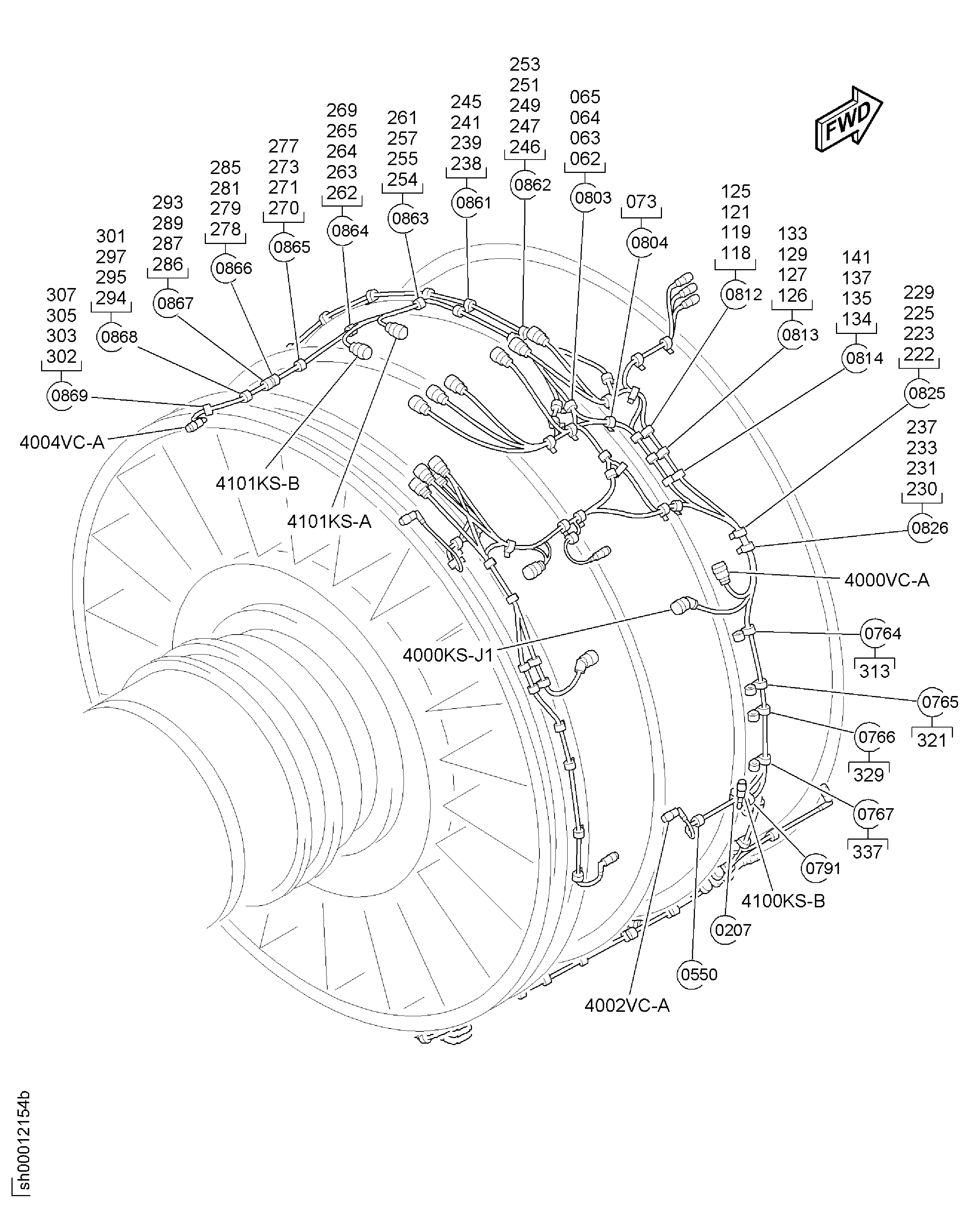

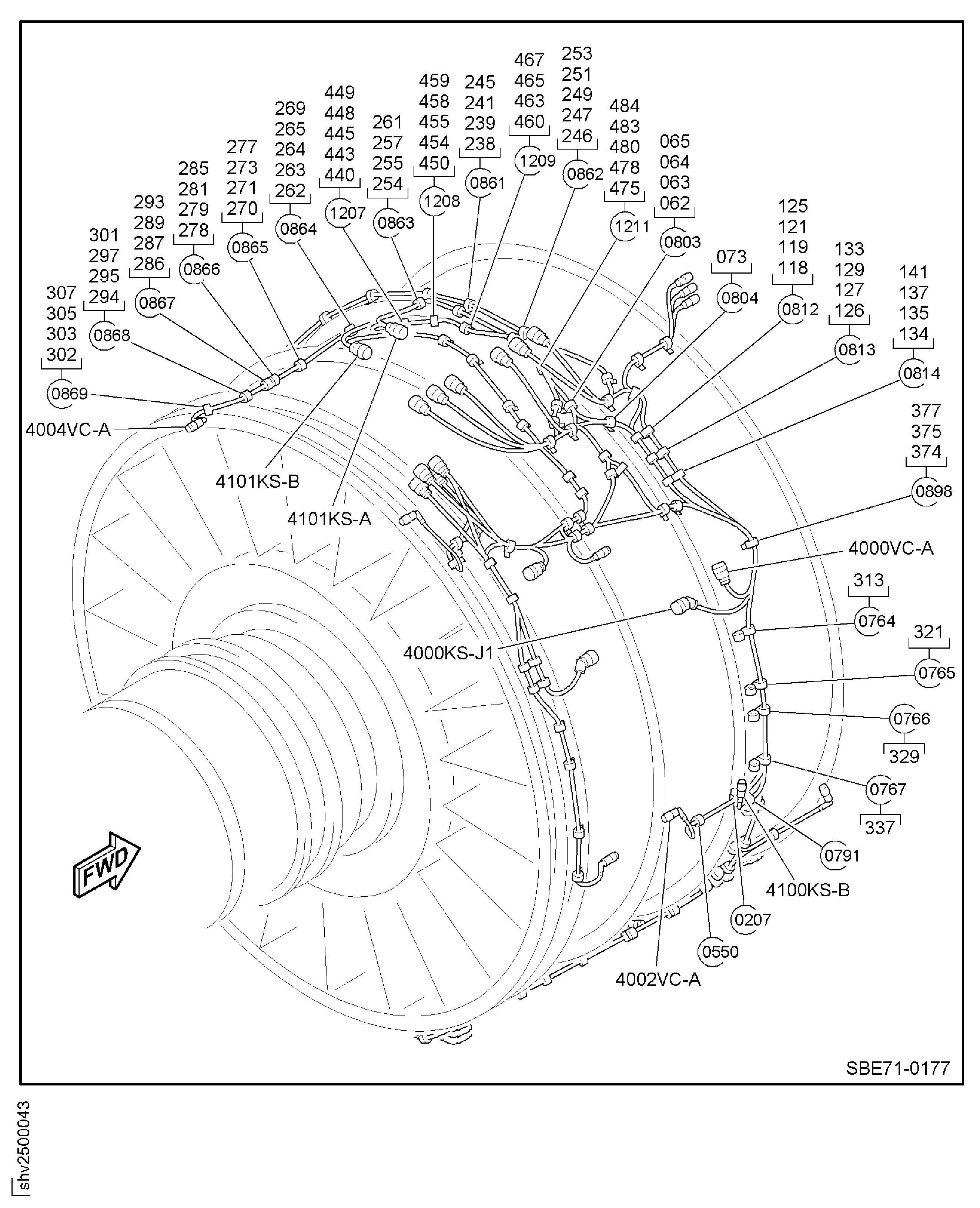

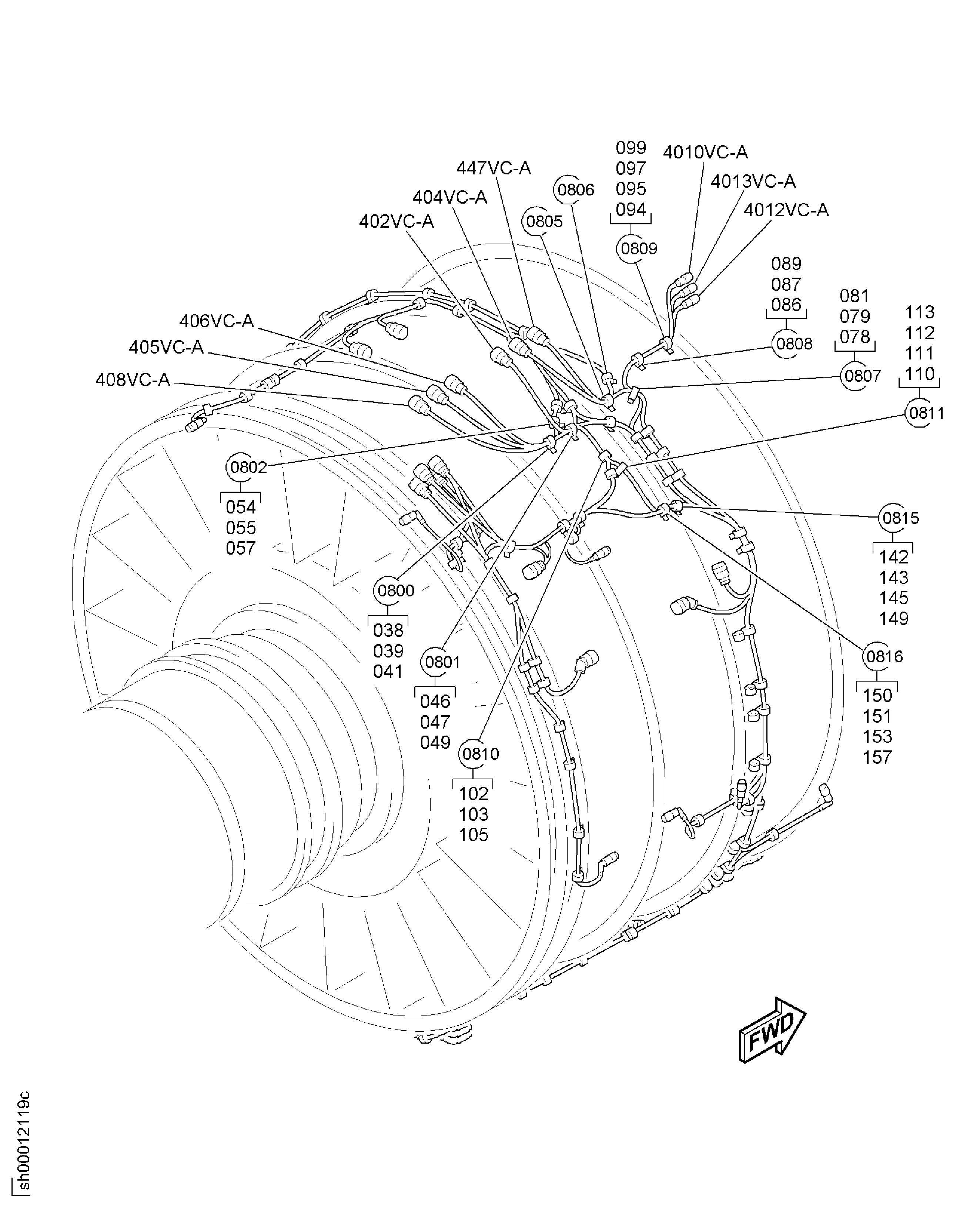

ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS

DMC:V2500-A1-71-51-42-01A-941A-D|Issue No:003.00|Issue Date:2020-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
01
000B71514201ELECTRICAL HARNESS - LIGHT DUTY - EEC, IGN SUPPLY HARNESS, PRE SBE71-0029aa
000SBE0029-01ELECTRICAL HARNESS - LIGHT DUTY - EEC, IGN SUPPLY HARNESS, PRE SBE71-0035ab
000SBE0035-01ELECTRICAL HARNESS - LIGHT DUTY - EEC, IGN SUPPLY HARNESS, PRE SBE71-0070ac
000SBE0070-01ELECTRICAL HARNESS - LIGHT DUTY - EEC, IGN SUPPLY HARNESS, PRE SBE70-0136ad
000SBE0136-01ELECTRICAL HARNESS - LIGHT DUTY - EEC, IGN SUPPLY HARNESS, PRE SBE71-0066ae
000SBE0066-01ELECTRICAL HARNESS - LIGHT DUTY - EEC, IGN SUPPLY HARNESS, PRE SBE70-0157af
000SBE0157-01ELECTRICAL HARNESS - LIGHT DUTY - EEC, IGN SUPPLY HARNESS, PRE SBE71-0067ag
000SBE0067-01ELECTRICAL HARNESS - LIGHT DUTY - EEC, IGN SUPPLY HARNESS, PRE SBE71-0019ah
000SBE0019-01ELECTRICAL HARNESS - LIGHT DUTY - EEC, IGN SUPPLY HARNESS, PRE SBN70-0097ai
000SBN0097-01ELECTRICAL HARNESS - LIGHT DUTY - EEC, IGN SUPPLY HARNESS, PRE SBE70-0290aj
000SBE0290-01ELECTRICAL HARNESS - LIGHT DUTY - EEC, IGN SUPPLY HARNESS, PRE SBE71-0177ak
000SBE0177-01ELECTRICAL HARNESS - LIGHT DUTY - EEC, IGN SUPPLY HARNESS, PRE SBN70-0627al
000SBN0627-01ELECTRICAL HARNESS - LIGHT DUTY - EEC, IGN SUPPLY HARNESS, PRE SBN71-0271am
000SBN0271-01ELECTRICAL HARNESS - LIGHT DUTY - EEC, IGN SUPPLY HARNESS, PRE SBE70-0746an
000SBE0746-01ELECTRICAL HARNESS - LIGHT DUTY - EEC, IGN SUPPLY HARNESSao
005005740-5870-503• HARNESS - EEC AND IGNITIION SUPPLY
51563
PRE SBE70-0136		aa-ai1
005005A740-5870-505• HARNESS - EEC AND IGNITIION SUPPLY
51563
POST SBE70-0136		ae-ao1
005005B740-5870-507• HARNESS - EEC AND IGNITIION SUPPLY
51563		aa-ao1
005005C740-5870-511• HARNESS - EEC AND IGNITION SUPPLY
51563
POST SBN70-0097		aj-ao1
005005D740-5870-513• HARNESS
51563
POST SBE70-0290
PRE SBE71-0177		ak1
005005E745-5870-503• HARNESS - EEC AND IGNITIION SUPPLY
51563
POST SBE71-0177		al-ao1
-005005F740-5870-9003• HARNESS
51563
POST SBE71-0177		al-aoREF
-005005G740-5870-9005• HARNESS
51563
POST SBE71-0177		al-aoREF
-005005H740-5870-9007• HARNESS
51563
POST SBE71-0177		al-aoREF
-005005J740-5870-9011• HARNESS
51563
POST SBE71-0177		al-aoREF
-005005K740-5870-9013• HARNESS
51563
POST SBE71-0177		al-aoREF
0380384W0103• BOLT - .190 DIA X .500aa-ao1
039039SP154D• WASHER - 0.190 DIA
K7766		aa-ao1
041041JM44LC39H109RG• CLAMP - LOOP
22175		aa-ao1
041041AJM44LC39H109RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ao1
041041BTA025074-12• CLAMP - LOOP, CUSHION, 0.75 DIA
84971
ALT AS61910
POST SBE71-0067		aa-ao1
-041041CAS61910• CLAMP - 19.05 MM (0.750)
U1653
ALT TA025074-12
POST SBE71-0067		ah-aoREF
0460464W0103• BOLT - .190 DIA X .500aa-ao1
047047SP154D• WASHER - 0.190 DIA
K7766		aa-ao1
049049JM44LC39H111RG• CLAMP - LOOP
22175		aa-ao1
049049AJM44LC39H111RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ao1
049049BTA025074-16• CLAMP - LOOP, CUSHION, 1.000 DIA
84971
ALT AS61914
POST SBE71-0067		aa-ao1
-049049CAS61914• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-16
POST SBE71-0067		ah-aoREF
0540544W0103• BOLT - .190 DIA X .500aa-ao1
055055SP154D• WASHER - 0.190 DIA
K7766		aa-ao1
057057JM44LC39H106RG• CLAMP - LOOP
22175		aa-ao1
057057AJM44LC39H106RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-al1
057057BTA025074-09• CLAMP - 0.562 DIA
84971
ALT AS61907
POST SBE71-0067
PRE SBN70-0627		aa-al1
-057057CAS61907• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-09
POST SBE71-0067
PRE SBN70-0627		ah-alREF
057057DTA025074-09• CLAMP - 0.562 DIA
84971
ALT AS61907
POST SBN70-0627		ah-al1
057057EAS61907• CLAMP - LOOP, CUSHION
U1653
ALT AS62509
POST SBN70-0627		am-ao1
057057FAS62509• CLAMP - 14.27 MM (0.562)
U1653
ALT TA025074-09
POST SBN70-0627		ah-al1
0620624W0104• BOLT - .190 DIA X .562aa-ao1
063063SP154D• WASHER - 0.190 DIA
K7766		aa-ao1
064064JM44LC39H106RG• CLAMP - LOOP
22175		aa-ao1
064064AJM44LC39H106RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-al1
064064BTA025074-05• CLAMP - LOOP, CUSHION, 0.313 DIA
84971
ALT AS61903
POST SBE71-0067
PRE SBN70-0627		aa-al1
-064064CAS61903• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-05
POST SBE71-0067
PRE SBN70-0627		ah-alREF
064064DTA025074-05• CLAMP - LOOP, CUSHION, 0.313 DIA
84971
ALT AS61903
POST SBN70-0627		ah-al1
064064EAS61903• CLAMP - LOOP, CUSHION
U1653
ALT AS62505
POST SBN70-0627		am-ao1
064064FAS62505• CLAMP - 7.92 MM (0.312)
U1653
ALT TA025074-05
POST SBN70-0627		ah-al1
065065JM44LC39H107RG• CLAMP - LOOP
22175		aa-ao1
065065AJM44LC39H107RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ao1
065065BTA025074-11• CLAMP - LOOP, CUSHION, 0.688 DIA
84971
ALT AS61909
POST SBE71-0067		aa-ao1
-065065CAS61909• CLAMP - LOOP STYLE, CUSHION, 17.48 MM (0.688)
U1653
ALT TA025074-11
POST SBE71-0067		ah-aoREF
073073JM44LC39H107RG• CLAMP - LOOP
22175		aa-ao1
073073AJM44LC39H107RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ao1
073073BTA025074-11• CLAMP - LOOP, CUSHION, 0.688 DIA
84971
ALT AS61909
POST SBE71-0067		aa-ao1
-073073CAS61909• CLAMP - LOOP STYLE, CUSHION, 17.48 MM (0.688)
U1653
ALT TA025074-11
POST SBE71-0067		ah-aoREF
078078AS21408• BOLT - .190 DIA X .500
U1653		aa-ao1
079079SP154D• WASHER - 0.190 DIA
K7766		aa-ao1
081081JM44LC39H107RG• CLAMP - LOOP
22175		aa-ao1
081081AJM44LC39H107RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ao1
081081BTA025074-10• CLAMP - LOOP, CUSHION, 0.625 DIA
84971
ALT AS61908
POST SBE71-0067		aa-ao1
-081081CAS61908• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-10
POST SBE71-0067		ah-aoREF
0860864W0103• BOLT - .190 DIA X .500aa-ao1
087087SP154D• WASHER - 0.190 DIA
K7766		aa-ao1
089089JM44LC39H104RG• CLAMP - LOOP
22175		aa-ao1
089089AJM44LC39H104RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ao1
089089BTA025074-03• CLAMP - LOOP, CUSHION, 4.78 MM (0.188)
84971
ALT AS61933
POST SBE71-0067		aa-ao1
-089089CAS61933• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-03
POST SBE71-0067		ah-aoREF
0940944W0103• BOLT - .190 DIA X .500
PRE SBE71-0066		aa-ae1
094094AAS21415• BOLT - BIHEX HD,.190 DIA X .938
U1653
POST SBE71-0066		af-ao1
095095SP154D• WASHER - 0.190 DIA
K7766		aa-ao1
097097JM44LC39H104RG• CLAMP - LOOP
22175		aa-ao1
097097AJM44LC39H104RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ao1
097097BTA025074-03• CLAMP - LOOP, CUSHION, 4.78 MM (0.188)
84971
ALT AS61933
POST SBE71-0067		aa-ao1
-097097CAS61933• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-03
POST SBE71-0067		ah-aoREF
099099ST1698D48• SPACER (10MM)
K4585
POST SBE71-0066		af-ao1
1021024W0103• BOLT - .190 DIA X .500aa-ao1
103103SP154D• WASHER - 0.190 DIA
K7766		aa-ao1
105105JM44LC39H108RG• CLAMP - LOOP
22175		aa-ao1
105105AJM44LC39H108RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ao1
105105BTA025074-10• CLAMP - LOOP, CUSHION, 0.625 DIA
84971
ALT AS61908
POST SBE71-0067		aa-ao1
-105105CAS61908• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-10
POST SBE71-0067		ah-aoREF
1101104W0103• BOLT - .190 DIA X .500aa-ao1
111111SP154D• WASHER - 0.190 DIA
K7766		aa-ao1
112112JM44LC39H108RG• CLAMP - LOOP
22175		aa-ao1
112112AJM44LC39H106RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ao1
112112BTA025074-06• CLAMP - LOOP, CUSHION, 0.375 DIA
84971
ALT AS61904
POST SBE71-0067		aa-ao1
-112112CAS61904• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-06
POST SBE71-0067		ah-aoREF
113113JM44LC39H104RG• CLAMP - LOOP
22175		aa-ao1
113113AJM44LC39H104RG• CLAMP - LOOP
22175
PRE SBE70-0157		aa-af1
118118AS21409• BOLT - 0.190 DIA X 0.562
U1653		aa-ao1
118118A4W0104• BOLT - .190 DIA X .562aa-ao1
119119SP154D• WASHER - 0.190 DIA
K7766		aa-ao1
121121JM44LC39H109RG• CLAMP - LOOP
22175		aa-ao1
121121AJM44LC39H109RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ao1
121121BTA025074-12• CLAMP - LOOP, CUSHION, 0.75 DIA
84971
ALT AS61910
POST SBE71-0067		aa-ao1
-121121CAS61910• CLAMP - 19.05 MM (0.750)
U1653
ALT TA025074-12
POST SBE71-0067		ah-aoREF
1251254W0001• NUT, OPTION - .190 DIAaa-ao1
126126AS21409• BOLT - 0.190 DIA X 0.562
U1653		aa-ao1
126126A4W0104• BOLT - .190 DIA X .562aa-ao1
127127SP154D• WASHER - 0.190 DIA
K7766		aa-ao1
129129JM44LC39H109RG• CLAMP - LOOP
22175		aa-ao1
129129AJM44LC39H109RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ao1
129129BTA025074-12• CLAMP - LOOP, CUSHION, 0.75 DIA
84971
ALT AS61910
POST SBE71-0067		aa-ao1
-129129CAS61910• CLAMP - 19.05 MM (0.750)
U1653
ALT TA025074-12
POST SBE71-0067		ah-aoREF
1331334W0001• NUT, OPTION - .190 DIAaa-ao1
134134AS21409• BOLT - 0.190 DIA X 0.562
U1653		aa-ao1
134134A4W0104• BOLT - .190 DIA X .562aa-ao1
135135SP154D• WASHER - 0.190 DIA
K7766		aa-ao1
137137JM44LC39H106RG• CLAMP - LOOP
22175		aa-ao1
137137AJM44LC39H106RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ao1
137137BTA025074-07• CLAMP - LOOP, CUSHION, 0.438 DIA
84971
ALT AS61905
POST SBE71-0067		aa-ao1
-137137CAS61905• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-07
POST SBE71-0067		ah-aoREF
141141AS41104• NUT - 0.19 DIA
U1653		aa-ao1
142142AS21408• BOLT - .190 DIA X .500
U1653		aa-ao1
143143SP154D• WASHER - 0.190 DIA
K7766		aa-ao1
145145JM44LC39H108RG• CLAMP - LOOP
22175		aa-ao1
145145AJM44LC39H108RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ao1
145145BTA025074-11• CLAMP - LOOP, CUSHION, 0.688 DIA
84971
ALT AS61909
POST SBE71-0067		aa-ao1
-145145CAS61909• CLAMP - LOOP STYLE, CUSHION, 17.48 MM (0.688)
U1653
ALT TA025074-11
POST SBE71-0067		ah-aoREF
149149AS41104• NUT - 0.19 DIA
U1653		aa-ao1
1501504W0103• BOLT - .190 DIA X .500aa-ao1
151151SP154D• WASHER - 0.190 DIA
K7766		aa-ao1
153153JM44LC39H108RG• CLAMP - LOOP
22175		aa-ao1
153153AJM44LC39H108RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ao1
153153BTA025074-11• CLAMP - LOOP, CUSHION, 0.688 DIA
84971
ALT AS61909
POST SBE71-0067		aa-ao1
-153153CAS61909• CLAMP - LOOP STYLE, CUSHION, 17.48 MM (0.688)
U1653
ALT TA025074-11
POST SBE71-0067		ah-aoREF
157157AS41104• NUT - 0.19 DIA
U1653		aa-ao1
1581584W0103• BOLT - .190 DIA X .500aa-ao1
159159SP154D• WASHER - 0.190 DIA
K7766		aa-ao1
161161JM44LC39H109RG• CLAMP - LOOP
22175		aa-ao1
161161AJM44LC39H109RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ao1
161161BTA025074-12• CLAMP - LOOP, CUSHION, 0.75 DIA
84971
ALT AS61910
POST SBE71-0067		aa-ao1
-161161CAS61910• CLAMP - 19.05 MM (0.750)
U1653
ALT TA025074-12
POST SBE71-0067		ah-aoREF
162162ST1698D47• SPACER (5MM)
K4585
POST SBE71-0177		al-ao1
163163TA025074-02• CLAMP - 0.125 DIA
84971
ALT AS61932
POST SBE71-0177		al-ao1
-163163AAS61932• CLAMP - LOOP 3.18 MM (.125)
U1653
ALT TA025074-02
POST SBE71-0177		al-aoREF
165165AS41104• NUT - 0.19 DIA
U1653		aa-ao1
166166AS21409• BOLT - 0.190 DIA X 0.562
U1653		aa-ao1
166166A4W0104• BOLT - .190 DIA X .562aa-ao1
166166BAS21415• BOLT - BIHEX HD,.190 DIA X .938
U1653
POST SBE71-0177		al-ao1
167167SP154D• WASHER - 0.190 DIA
K7766		aa-ao1
168168JM44LC39H103RG• CLAMP - LOOP
22175		aa-ao1
168168AJM44LC39H103RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ag1
168168BTA025074-05• CLAMP - LOOP, CUSHION, 0.313 DIA
84971
ALT AS61903
POST SBE71-0067
PRE SBE70-0115		aa-ag1
-168168CAS61903• CLAMP - LOOP, CUSHION
U1653
POST SBE71-0067
PRE SBE70-0115		*****REF
169169JM44LC39H108RG• CLAMP - LOOP
22175		aa-ao1
169169AJM44LC39H108RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ao1
169169BTA025074-11• CLAMP - LOOP, CUSHION, 0.688 DIA
84971
ALT AS61909
POST SBE71-0067		aa-ao1
-169169CAS61909• CLAMP - LOOP STYLE, CUSHION, 17.48 MM (0.688)
U1653
ALT TA025074-11
POST SBE71-0067		ah-aoREF
170170ST1698D48• SPACER (10MM)
K4585
POST SBE71-0177		al-ao1
171171TA025074-02• CLAMP - 0.125 DIA
84971
ALT AS61932
POST SBE71-0177		al-ao1
-171171AAS61932• CLAMP - LOOP 3.18 MM (.125)
U1653
ALT TA025074-02
POST SBE71-0177		al-aoREF
173173AS41104• NUT - 0.19 DIA
U1653		aa-ao1
174174AS21408• BOLT - .190 DIA X .500
U1653
PRE SBE71-0035		aa-ab1
174174AAS21415• BOLT - BIHEX HD,.190 DIA X .938
U1653
POST SBE71-0035		ac-ao1
175175SP154D• WASHER - 0.190 DIA
K7766		aa-ao1
176176ST1698D48• SPACER (10MM)
K4585
POST SBE71-0035		ac-ao1
177177JM44LC39H110RG• CLAMP - LOOP
22175		aa-ao1
177177AJM44LC39H109RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ao1
177177BTA025074-12• CLAMP - LOOP, CUSHION, 0.75 DIA
84971
ALT AS61910
POST SBE71-0067		aa-ao1
-177177CAS61910• CLAMP - 19.05 MM (0.750)
U1653
ALT TA025074-12
POST SBE71-0067		ah-aoREF
181181AS41104• NUT - 0.19 DIA
U1653		aa-ao1
1821824W0103• BOLT - .190 DIA X .500aa-ao1
183183SP154D• WASHER - 0.190 DIA
K7766		aa-ao1
185185JM44LC39H103RG• CLAMP - LOOP
22175		aa-ao1
185185AJM44LC39H103RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ao1
185185BTA025074-04• CLAMP - LOOP, CUSHION, 6.35 MM (0.250)
84971
ALT AS61902
POST SBE71-0067		aa-ao1
-185185CAS61902• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-04
POST SBE71-0067		ah-aoREF
189189AS41104• NUT - 0.19 DIA
U1653		aa-ao1
190190AS21410• BOLT - 0.19 DIA X 0.625
U1653
PRE SBE71-0035		aa-ab1
190190AAS21415• BOLT - BIHEX HD,.190 DIA X .938
U1653
POST SBE71-0035		ac-ao1
191191SP154D• WASHER - 0.190 DIA
K7766		aa-ao2
192192ST1698D48• SPACER (10MM)
K4585
POST SBE71-0035		ac-ao1
193193JM44LC39H103RG• CLAMP - LOOP
22175		aa-ao1
193193AJM44LC39H103RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ao1
193193BTA025074-04• CLAMP - LOOP, CUSHION, 6.35 MM (0.250)
84971
ALT AS61902
POST SBE71-0067		aa-ao1
-193193CAS61902• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-04
POST SBE71-0067		ah-aoREF
197197AS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653		aa-ao1
197197A4W0001• NUT, OPTION - .190 DIAaa-ao1
1981984W0103• BOLT - .190 DIA X .500aa-ao1
199199SP154D• WASHER - 0.190 DIA
K7766		aa-ao1
201201JM44LC39H103RG• CLAMP - LOOP
22175		aa-ao1
201201AJM44LC39H103RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ao1
201201BTA025074-04• CLAMP - LOOP, CUSHION, 6.35 MM (0.250)
84971
ALT AS61902
POST SBE71-0067		aa-ao1
-201201CAS61902• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-04
POST SBE71-0067		ah-aoREF
205205AS41104• NUT - 0.19 DIA
U1653		aa-ao1
206206AS21408• BOLT - .190 DIA X .500
U1653		aa-ao1
206206A4W0103• BOLT - .190 DIA X .500aa-ao1
207207SP154D• WASHER - 0.190 DIA
K7766		aa-ao1
209209JM44LC39H107RG• CLAMP - LOOP
22175		aa-ao1
209209AJM44LC39H107RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ao1
209209BTA025074-10• CLAMP - LOOP, CUSHION, 0.625 DIA
84971
ALT AS61908
POST SBE71-0067		aa-ao1
-209209CAS61908• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-10
POST SBE71-0067		ah-aoREF
214214AS21408• BOLT - .190 DIA X .500
U1653
PRE SBE71-0019		aa-ah1
215215SP154D• WASHER - 0.190 DIA
K7766
PRE SBE71-0019		aa-ah1
217217JM44LC39H107RG• CLAMP - LOOP
22175
PRE SBE71-0019		aa-ah1
221221AS41104• NUT - 0.19 DIA
U1653
PRE SBE71-0019		aa-ah1
222222AS21408• BOLT - .190 DIA X .500
U1653
PRE SBE71-0070		aa-ac1
223223SP154D• WASHER - 0.190 DIA
K7766
PRE SBE71-0070		aa-ac1
225225JM44LC39H114RG• CLIP
22175		aa-ao1
225225AJM44LC39H114RG• CLIP
22175
PRE SBE71-0070		aa-ac1
229229AS41104• NUT - 0.19 DIA
U1653
PRE SBE71-0070		aa-ac1
230230AS21408• BOLT - .190 DIA X .500
U1653
PRE SBE71-0070		aa-ac1
231231SP154D• WASHER - 0.190 DIA
K7766
PRE SBE71-0070		aa-ac1
233233JM44LC39H114RG• CLIP
22175		aa-ao1
233233AJM44LC39H114RG• CLIP
22175
PRE SBE71-0070		aa-ac1
237237AS41104• NUT - 0.19 DIA
U1653
PRE SBE71-0070		aa-ac1
2382384W0104• BOLT - .190 DIA X .562aa-ao1
239239SP154D• WASHER - 0.190 DIA
K7766		aa-ao1
241241JM44LC39H104RG• CLAMP - LOOP
22175		aa-ao1
241241AJM44LC39H104RG• CLAMP - LOOP
22175
PRE SBE70-0157		aa-ao1
241241BJM44LC39H108RG• CLAMP - LOOP
22175
POST SBE70-0157
PRE SBE71-0067		aa-ao1
241241CTA025074-11• CLAMP - LOOP, CUSHION, 0.688 DIA
84971
ALT AS61909
POST SBE71-0067		aa-ao1
-241241DAS61909• CLAMP - LOOP STYLE, CUSHION, 17.48 MM (0.688)
U1653
ALT TA025074-11
POST SBE71-0067		ah-aoREF
245245AS41104• NUT - 0.19 DIA
U1653		aa-ao1
2462464W0104• BOLT - .190 DIA X .562aa-ao1
246246AAS21416• BOLT - BIHEX HD, .190 DIA X 1.000
U1653
POST SBE71-0177		al-ao1
247247SP154D• WASHER - 0.190 DIA
K7766		aa-ao1
249249JM44LC39H104RG• CLAMP - LOOP
22175		aa-ao1
249249AJM44LC39H104RG• CLAMP - LOOP
22175
PRE SBE70-0157		aa-ao1
249249BJM44LC39H108RG• CLAMP - LOOP
22175
POST SBE70-0157
PRE SBE71-0067		aa-ao1
249249CTA025074-11• CLAMP - LOOP, CUSHION, 0.688 DIA
84971
ALT AS61909
POST SBE71-0067		aa-ao1
-249249DAS61909• CLAMP - LOOP STYLE, CUSHION, 17.48 MM (0.688)
U1653
ALT TA025074-11
POST SBE71-0067		ah-aoREF
251251TA025074-02• CLAMP - 0.125 DIA
84971
ALT AS61932
POST SBE71-0177		al-ao1
-251251AAS61932• CLAMP - LOOP 3.18 MM (.125)
U1653
ALT TA025074-02
POST SBE71-0177		al-aoREF
253253AS41104• NUT - 0.19 DIA
U1653
PRE SBE71-0177		aa-ak1
253253A4W0001• NUT, OPTION - .190 DIA
POST SBE71-0177		al-ao1
2542544W0103• BOLT - .190 DIA X .500aa-ao1
255255SP154D• WASHER - 0.190 DIA
K7766		aa-ao1
257257JM44LC39H106RG• CLAMP - LOOP
22175		aa-ao1
257257AJM44LC39H106RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ag1
257257BTA025074-08• CLAMP - LOOP, CUSHION, 0.5 DIA
84971
ALT AS61906
POST SBE71-0067
PRE SBN70-0627		ah-al1
-257257CAS61906• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-08
POST SBE71-0067
PRE SBN70-0627		ah-alREF
257257DTA025074-08• CLAMP - LOOP, CUSHION, 0.5 DIA
84971
ALT AS61906
POST SBN70-0627		ah-al1
257257EAS61906• CLAMP - LOOP, CUSHION
U1653
ALT AS62508
POST SBN70-0627		am-ao1
257257FAS62508• CLAMP - 12.70 MM (0.500)
U1653
ALT TA025074-08
POST SBN70-0627		ah-al1
2612614W0001• NUT, OPTION - .190 DIAaa-ao1
262262AS21408• BOLT - .190 DIA X .500
U1653
PRE SBE71-0029		aa1
262262AAS21415• BOLT - BIHEX HD,.190 DIA X .938
U1653
POST SBE71-0029		ab-ao1
263263SP154D• WASHER - 0.190 DIA
K7766		aa-ao1
264264ST1698D48• SPACER (10MM)
K4585
POST SBE71-0029		ab-ao1
265265JM44LC39H103RG• CLAMP - LOOP
22175		aa-ao1
265265AJM44LC39H103RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ao1
265265BTA025074-04• CLAMP - LOOP, CUSHION, 6.35 MM (0.250)
84971
ALT AS61902
POST SBE71-0067		aa-ao1
-265265CAS61902• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-04
POST SBE71-0067		ah-aoREF
2692694W0001• NUT, OPTION - .190 DIAaa-ao1
2702704W0103• BOLT - .190 DIA X .500aa-ao1
271271SP154D• WASHER - 0.190 DIA
K7766		aa-ao1
273273JM44LC39H103RG• CLAMP - LOOP
22175		aa-ao1
273273AJM44LC39H103RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ao1
273273BTA025074-04• CLAMP - LOOP, CUSHION, 6.35 MM (0.250)
84971
ALT AS61902
POST SBE71-0067		aa-ao1
-273273CAS61902• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-04
POST SBE71-0067		ah-aoREF
2772774W0001• NUT, OPTION - .190 DIAaa-ao1
2782784W0103• BOLT - .190 DIA X .500aa-ao1
279279SP154D• WASHER - 0.190 DIA
K7766		aa-ao1
281281JM44LC39H103RG• CLAMP - LOOP
22175		aa-ao1
281281AJM44LC39H103RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ao1
281281BTA025074-04• CLAMP - LOOP, CUSHION, 6.35 MM (0.250)
84971
ALT AS61902
POST SBE71-0067		aa-ao1
-281281CAS61902• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-04
POST SBE71-0067		ah-aoREF
2852854W0001• NUT, OPTION - .190 DIAaa-ao1
2862864W0103• BOLT - .190 DIA X .500aa-ao1
287287SP154D• WASHER - 0.190 DIA
K7766		aa-ao1
289289JM44LC39H103RG• CLAMP - LOOP
22175		aa-ao1
289289AJM44LC39H103RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ao1
289289BTA025074-04• CLAMP - LOOP, CUSHION, 6.35 MM (0.250)
84971
ALT AS61902
POST SBE71-0067		aa-ao1
-289289CAS61902• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-04
POST SBE71-0067		ah-aoREF
293293AS41104• NUT - 0.19 DIA
U1653		aa-ao1
2942944W0103• BOLT - .190 DIA X .500aa-ao1
295295SP154D• WASHER - 0.190 DIA
K7766		aa-ao1
297297JM44LC39H103RG• CLAMP - LOOP
22175		aa-ao1
297297AJM44LC39H103RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ao1
297297BTA025074-04• CLAMP - LOOP, CUSHION, 6.35 MM (0.250)
84971
ALT AS61902
POST SBE71-0067		aa-ao1
-297297CAS61902• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-04
POST SBE71-0067		ah-aoREF
301301AS41104• NUT - 0.19 DIA
U1653		aa-ao1
302302AS21408• BOLT - .190 DIA X .500
U1653		aa-ao1
302302AAS21424• BOLT - 0.19 DIA X 1.5
U1653		aa-ao1
303303SP154D• WASHER - 0.190 DIA
K7766		aa-ao1
305305JM44LC39H103RG• CLAMP - LOOP
22175		aa-ao1
305305AJM44LC39H103RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ao1
305305BTA025074-04• CLAMP - LOOP, CUSHION, 6.35 MM (0.250)
84971
ALT AS61902
POST SBE71-0067		aa-ao1
-305305CAS61902• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-04
POST SBE71-0067		ah-aoREF
307307740-5451-501• SPACER
51563		aa-ao1
307307AST1698D51• SPACER
K4585		aa-ao1
313313JM44LC39H109RG• CLAMP - LOOP
22175		aa-ao1
313313AJM44LC39H109RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ao1
313313BTA025074-12• CLAMP - LOOP, CUSHION, 0.75 DIA
84971
ALT AS61910
POST SBE71-0067		aa-ao1
-313313CAS61910• CLAMP - 19.05 MM (0.750)
U1653
ALT TA025074-12
POST SBE71-0067		ah-aoREF
321321JM44LC39H109RG• CLAMP - LOOP
22175		aa-ao1
321321AJM44LC39H109RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ao1
321321BTA025074-12• CLAMP - LOOP, CUSHION, 0.75 DIA
84971
ALT AS61910
POST SBE71-0067		aa-ao1
-321321CAS61910• CLAMP - 19.05 MM (0.750)
U1653
ALT TA025074-12
POST SBE71-0067		ah-aoREF
329329JM44LC39H109RG• CLAMP - LOOP
22175		aa-ao1
329329AJM44LC39H109RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ao1
329329BTA025074-12• CLAMP - LOOP, CUSHION, 0.75 DIA
84971
ALT AS61910
POST SBE71-0067		aa-ao1
-329329CAS61910• CLAMP - 19.05 MM (0.750)
U1653
ALT TA025074-12
POST SBE71-0067		ah-aoREF
337337JM44LC39H109RG• CLAMP - LOOP
22175		aa-ao1
337337AJM44LC39H109RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ao1
337337BTA025074-12• CLAMP - LOOP, CUSHION, 0.75 DIA
84971
ALT AS61910
POST SBE71-0067		aa-ao1
-337337CAS61910• CLAMP - 19.05 MM (0.750)
U1653
ALT TA025074-12
POST SBE71-0067		ah-aoREF
345345JM44LC39H107RG• CLAMP - LOOP
22175		aa-ao1
350350AS21408• BOLT - .190 DIA X .500
U1653		aa-ao1
350350AAS21408• BOLT - .190 DIA X .500
U1653
POST SBE71-0019		ai-ao1
351351SP154D• WASHER - 0.190 DIA
K7766		aa-ao1
351351ASP154D• WASHER - 0.190 DIA
K7766
POST SBE71-0019		ai-ao1
353353JM44LC39H107RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ao1
353353ATA025074-10• CLAMP - LOOP, CUSHION, 0.625 DIA
84971
ALT AS61908
POST SBE71-0067		aa-ao1
-353353BAS61908• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-10
POST SBE71-0067		ah-aoREF
353353CJM44LC39H107RG• CLAMP - LOOP
22175
POST SBE71-0019		ai-ao1
3573574W0001• NUT, OPTION - .190 DIAaa-ao1
357357AAS20624• NUT, SELF LOCKING DBL HEX - .190 DIA
U1653
POST SBE71-0019		ai-ao1
3583584W0103• BOLT - .190 DIA X .500aa-ao1
358358AAS21408• BOLT - .190 DIA X .500
U1653
POST SBE71-0019		ai-ao1
359359SP154D• WASHER - 0.190 DIA
K7766		aa-ao1
359359ASP154D• WASHER - 0.190 DIA
K7766
POST SBE71-0019		ai-ao1
361361JM44LC39H107RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ao1
361361ATA025074-10• CLAMP - LOOP, CUSHION, 0.625 DIA
84971
ALT AS61908
POST SBE71-0067		aa-ao1
-361361BAS61908• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-10
POST SBE71-0067		ah-aoREF
361361CJM44LC39H107RG• CLAMP - LOOP
22175
POST SBE71-0019		ai-ao1
365365AS41104• NUT - 0.19 DIA
U1653		aa-ao1
365365AAS41104• NUT - 0.19 DIA
U1653
POST SBE71-0019		ai-ao1
369369JM44LC39H107RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-ao1
369369ATA025074-10• CLAMP - LOOP, CUSHION, 0.625 DIA
84971
ALT AS61908
POST SBE71-0067		aa-ao1
-369369BAS61908• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-10
POST SBE71-0067		ah-aoREF
369369CJM44LC39H107RG• CLAMP - LOOP
22175
POST SBE71-0019		ai-ao1
3743744W0103• BOLT - .190 DIA X .500
Optional Part
4W0103
POST SBE71-0070		ad-ao1
375375SP154D• WASHER - 0.190 DIA
K7766
POST SBE71-0070		ad-ao1
377377JM44LC39H114RG• CLIP
22175
POST SBE71-0070
PRE SBE71-0067		ad-ao1
377377ATA025074-19• CLAMP - LOOP, CUSHION, 1.188 DIA
84971
ALT AS61917
POST SBE71-0067		ad-ao1
-377377BAS61917• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-19
POST SBE71-0067		ah-aoREF
440440AS21418• BOLT - MACHINE, DOUBLE HEXAGON - 0.190 DIA X 1.125
U1653
POST SBE71-0177		al-ao1
443443TA025074-02• CLAMP - 0.125 DIA
84971
ALT AS61932
POST SBE71-0177		al-ao1
-443443AAS61932• CLAMP - LOOP 3.18 MM (.125)
U1653
ALT TA025074-02
POST SBE71-0177		al-aoREF
445445ST1698D49• SPACER - 15 MM
K4585
POST SBE71-0177		al-ao1
448448SP154D• WASHER - 0.190 DIA
K7766
POST SBE71-0177		al-ao1
4494494W0001• NUT, OPTION - .190 DIA
Optional Part
4W0001
POST SBE71-0177		al-ao1
4504504W0106• BOLT - .190 DIA X .688
Optional Part
4W0106
POST SBE71-0177		al-ao1
454454TA025074-02• CLAMP - 0.125 DIA
84971
ALT AS61932
POST SBE71-0177		al-ao1
-454454AAS61932• CLAMP - LOOP 3.18 MM (.125)
U1653
ALT TA025074-02
POST SBE71-0177		al-aoREF
455455ST1698D47• SPACER (5MM)
K4585
POST SBE71-0177		al-ao1
458458SP154D• WASHER - 0.190 DIA
K7766
POST SBE71-0177		al-ao1
4594594W0001• NUT, OPTION - .190 DIA
Optional Part
4W0001
POST SBE71-0177		al-ao1
4604604W0103• BOLT - .190 DIA X .500
Optional Part
4W0103
POST SBE71-0177		al-ao1
463463TA025074-02• CLAMP - 0.125 DIA
84971
ALT AS61932
POST SBE71-0177		al-ao1
-463463AAS61932• CLAMP - LOOP 3.18 MM (.125)
U1653
ALT TA025074-02
POST SBE71-0177		al-aoREF
465465SP154D• WASHER - 0.190 DIA
K7766
POST SBE71-0177		al-ao1
4674674W0001• NUT, OPTION - .190 DIA
Optional Part
4W0001
POST SBE71-0177		al-ao1
4684684W0103• BOLT - .190 DIA X .500
Optional Part
4W0103
POST SBE71-0177
PRE SBN71-0271		al-am1
468468A4W0104• BOLT - .190 DIA X .562
Optional Part
4W0104
POST SBN71-0271		an-ao1
471471TA025074-02• CLAMP - 0.125 DIA
84971
ALT AS61932
POST SBE71-0177
PRE SBN71-0271		al-am1
-471471AAS61932• CLAMP - LOOP 3.18 MM (.125)
U1653
ALT TA025074-02
POST SBE71-0177
PRE SBN71-0271		al-amREF
471471BTA025074-02• CLAMP - 0.125 DIA
84971
ALT AS61932
POST SBN71-0271		al-am2
471471CAS61932• CLAMP - LOOP 3.18 MM (.125)
U1653
ALT TA025074-02
POST SBN71-0271		al-am2
473473SP154D• WASHER - 0.190 DIA
K7766
POST SBE71-0177
PRE SBE70-0746		al-an1
473473ASP154D• WASHER - 0.190 DIA
K7766
POST SBE70-0746		ao1
4754754W0104• BOLT - .190 DIA X .562
Optional Part
4W0104
POST SBE71-0177		al-ao1
478478TA025074-02• CLAMP - 0.125 DIA
84971
ALT AS61932
POST SBE71-0177		al-ao1
-478478AAS61932• CLAMP - LOOP 3.18 MM (.125)
U1653
ALT TA025074-02
POST SBE71-0177		al-aoREF
480480TA025074-11• CLAMP - LOOP, CUSHION, 0.688 DIA
84971
ALT AS61909
POST SBE71-0177		al-ao1
-480480AAS61909• CLAMP - LOOP STYLE, CUSHION, 17.48 MM (0.688)
U1653
ALT TA025074-11
POST SBE71-0177		al-aoREF
483483SP154D• WASHER - 0.190 DIA
K7766
POST SBE71-0177		al-ao1
4844844W0001• NUT, OPTION - .190 DIA
Optional Part
4W0001
POST SBE71-0177		al-ao1
4854854W0106• BOLT - .190 DIA X .688
Optional Part
4W0106
POST SBE71-0177		al-ao1
488488TA025074-02• CLAMP - 0.125 DIA
84971
ALT AS61932
POST SBE71-0177		al-ao1
-488488AAS61932• CLAMP - LOOP 3.18 MM (.125)
U1653
ALT TA025074-02
POST SBE71-0177		al-aoREF
489489ST1698D47• SPACER (5MM)
K4585
POST SBE71-0177		al-ao1
491491SP154D• WASHER - 0.190 DIA
K7766
POST SBE71-0177		al-ao1
495495TA025074-02• CLAMP - 0.125 DIA
84971
ALT AS61932
POST SBE71-0177		am-ap1
-495495AAS61932• CLAMP - LOOP 3.18 MM (.125)
U1653
ALT TA025074-02
POST SBE71-0177		al-aoREF
500500TA025074-02• CLAMP - 0.125 DIA
84971
ALT AS61932
POST SBE71-0177		al-ao1
-500500AAS61932• CLAMP - LOOP 3.18 MM (.125)
U1653
ALT TA025074-02
POST SBE71-0177		al-aoREF
505505TA025074-02• CLAMP - 0.125 DIA
84971
ALT AS61932
POST SBE71-0177
PRE SBE70-0746		al-an1
-505505AAS61932• CLAMP - LOOP 3.18 MM (.125)
U1653
ALT TA025074-02
POST SBE71-0177
PRE SBE70-0746		an-aoREF
505505BTA025074-02• CLAMP - 0.125 DIA
84971
POST SBE70-0746		ao1
-505505CAS61932• CLAMP - LOOP 3.18 MM (.125)
U1653
POST SBE70-0746		aoREF
510510TA025074-02• CLAMP - 0.125 DIA
84971
ALT AS61932
POST SBE71-0177
PRE SBE70-0746		al-an1
-510510AAS61932• CLAMP - LOOP 3.18 MM (.125)
U1653
ALT TA025074-02
POST SBE71-0177
PRE SBE70-0746		al-anREF
510510BTA025074-02• CLAMP - 0.125 DIA
84971
POST SBE70-0746		ao1
-510510CAS61932• CLAMP - LOOP 3.18 MM (.125)
U1653
POST SBE70-0746		aoREF
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Figure: ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS

HARNESS EEC AND IGNITION SUPPLY

HARNESS EEC AND IGNITION SUPPLY

HARNESS EEC AND IGNITION SUPPLY

HARNESS EEC AND IGNITION SUPPLY

HARNESS EEC AND IGNITION SUPPLY

HARNESS EEC AND IGNITION SUPPLY

Change Type:

Deleted Incorrect SB Reference And Corrected Applicability.

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:22175
Enterprise Name:J AND M PRODUCTS INC
BU Name:J AND M PRODUCTS INC
Street:2435 N NAOMI STREET
City:BURBANK
State:CA
Zip Code:91504-3425
Country:USA
Manufacturer Code:51563
Enterprise Name:ROHR INC, A COLLINS AEROSPACE COMPANY
BU Name:ROHR INC, A COLLINS AEROSPACE COMPANY
Street:850 LAGOON DRIVE
City:CHULA VISTA
State:CA
Zip Code:91910-2098
Country:USA
Phone Number:1-619-691-2089
Fax Number:1-619-691-6195
Manufacturer Code:84971
Enterprise Name:KIRKHILL - TA MFG SUB OF ESTERLINE TECHNOLOGIES
BU Name:KIRKHILL - TA MFG SUB OF ESTERLINE TECHNOLOGIES
Department:TA MFG LTD
Street:28065 WEST FRANKLIN PARKWAY,VALENCIA
City:SANTA CLARITA
State:CALIFORNIA
Zip Code:GL1 2BS
Country:USA
Manufacturer Code:96906
Enterprise Name:MILITARY STANDARDS MANUAL 4120 3-M
BU Name:MILITARY STANDARDS MANUAL 4120 3-M
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:K4585
Enterprise Name:SHORT BROS PLC
BU Name:NULL
Street:AIRPORT ROAD
P.O. Box:PO BOX 241 BT3
City:QUEENS ISLAND
State:BELFAST
Zip Code:9DZ
Country:UNITED KINGDOM
Manufacturer Code:K7766
Enterprise Name:K7766
BU Name:British Standards Institution
Street:2 Park Street
City:London
Zip Code:AW1A 2BS
Country:England
Manufacturer Code:U1653
Enterprise Name:Society Of British Aerospace Companies, LTD.
Part Number:4W0001
Part Name:NUT, OPTION - .190 DIA
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS20624NUT, SELF LOCKING DBL HEX - .190 DIAU1653
Part Number:4W0103
Part Name:BOLT - .190 DIA X .500
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS21408BOLT - 0.19 DIA X 0.500U1653
Part Number:4W0104
Part Name:BOLT - .190 DIA X .562
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
4W0344BOLT , BIHEX HD - .190 DIA X .5620AM53
Part Number:4W0106
Part Name:BOLT - .190 DIA X .688
Manufacturer Code:0AM53
Part Number:4W0344
Part Name:BOLT , BIHEX HD - .190 DIA X .562
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
4W0104BOLT - .190 DIA X .5620AM53
Part Number:740-5451-501
Part Name:SPACER
Manufacturer Code:51563
Part Number:740-5870-503
Part Name:HARNESS - EEC AND IGNITIION SUPPLY
Manufacturer Code:51563
Part Number:740-5870-505
Part Name:HARNESS - EEC AND IGNITIION SUPPLY
Manufacturer Code:51563
Part Number:740-5870-507
Part Name:HARNESS - EEC AND IGNITIION SUPPLY
Manufacturer Code:51563
Part Number:740-5870-511
Part Name:HARNESS - EEC AND IGNITION SUPPLY
Manufacturer Code:51563
Part Number:740-5870-513
Part Name:HARNESS
Manufacturer Code:51563
Part Number:740-5870-9003
Part Name:HARNESS
Manufacturer Code:51563
Part Number:740-5870-9005
Part Name:HARNESS
Manufacturer Code:51563
Part Number:740-5870-9007
Part Name:HARNESS
Manufacturer Code:51563
Part Number:740-5870-9011
Part Name:HARNESS
Manufacturer Code:51563
Part Number:740-5870-9013
Part Name:HARNESS
Manufacturer Code:51563
Part Number:745-5870-503
Part Name:HARNESS - EEC AND IGNITIION SUPPLY
Manufacturer Code:51563
Part Number:AS20624
Part Name:NUT, SELF LOCKING DBL HEX - .190 DIA
Manufacturer Code:U1653
Part Number:AS21408
Part Name:BOLT - 0.19 DIA X 0.500
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
MS9556-06BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.50096906
Part Number:AS21409
Part Name:BOLT - 0.190 DIA X 0.562
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
MS9556-07BOLT - MACHINE, DOUBLE HEXAGON, EXTERNAL WASHER HEAD, 0.190 - 32 X 0.56296906
Part Number:AS21410
Part Name:BOLT - .190 DIA X .625
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
MS9556-08BOLT96906
Part Number:AS21415
Part Name:BOLT - BIHEX HD,.190 DIA X .938
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
MS9556-13BOLT - MACHINE DOUBLE HEXAGON96906
Part Number:AS21416
Part Name:BOLT - .190 DIA X .625
Manufacturer Code:U1653
Unit Of Issue:EA
Part Number:AS21418
Part Name:BOLT - MACHINE, DOUBLE HEXAGON - 0.190 DIA X 1.125
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
MS9556-16BOLT - DOUBLE HEXAGON96906
Part Number:AS21424
Part Name:BOLT - 0.19 DIA X 1.5
Manufacturer Code:U1653
Part Number:AS41104
Part Name:NUT - 0.19 DIA
Manufacturer Code:U1653
Part Number:AS61902
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
TA025074-04CLAMP - LOOP, CUSHION, 6.35 MM (0.250)84971
Part Number:AS61903
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
TA025074-05CLAMP - LOOP, CUSHION, 0.313 DIA84971
Part Number:AS61904
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Part Number:AS61905
Part Name:CLAMP, LOOP, 11.13 MM (0.436)
Manufacturer Code:U1653
Part Number:AS61906
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Part Number:AS61907
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Part Number:AS61908
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
TA025074-10CLAMP, LOOP, CUSHION, 0.625 DIA84971
Part Number:AS61909
Part Name:CLAMP - LOOP STYLE, CUSHION, 17.48 MM (0.688)
Manufacturer Code:U1653
Unit Of Issue:EA
Part Number:AS61910
Part Name:CLAMP - 19.05 MM (0.750)
Manufacturer Code:U1653
Part Number:AS61914
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Part Number:AS61917
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Link not Found
Part Number:AS61932
Part Name:CLAMP - LOOP 3.18 MM (.125)
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
TA025074-02CLAMP - 0.125 DIA84971
Part Number:AS61933
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
TA025074-03CLAMP - LOOP, CUSHION, 4.78 MM (0.188)84971
Part Number:AS62505
Part Name:CLAMP - 7.92 MM (0.312)
Manufacturer Code:U1653
Part Number:AS62508
Part Name:CLAMP - 12.70 MM (0.500)
Manufacturer Code:U1653
Part Number:AS62509
Part Name:CLAMP - 14.27 MM (0.562)
Manufacturer Code:U1653
Part Number:JM44LC39H103RG
Part Name:CLAMP - LOOP
Manufacturer Code:22175
Part Number:JM44LC39H104RG
Part Name:CLAMP - LOOP
Manufacturer Code:22175
Part Number:JM44LC39H106RG
Part Name:CLAMP - LOOP
Manufacturer Code:22175
Part Number:JM44LC39H107RG
Part Name:CLAMP - LOOP
Manufacturer Code:22175
Part Number:JM44LC39H108RG
Part Name:CLAMP - LOOP
Manufacturer Code:22175
Part Number:JM44LC39H109RG
Part Name:CLAMP - LOOP
Manufacturer Code:22175
Part Number:JM44LC39H110RG
Part Name:CLAMP - LOOP
Manufacturer Code:22175
Part Number:JM44LC39H111RG
Part Name:CLAMP - LOOP
Manufacturer Code:22175
Part Number:JM44LC39H114RG
Part Name:CLIP
Manufacturer Code:22175
Part Number:MS9556-06
Part Name:BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500
Manufacturer Code:96906
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
AS21408BOLT - 0.19 DIA X 0.500U1653
Part Number:MS9556-07
Part Name:BOLT - MACHINE, DOUBLE HEXAGON, EXTERNAL WASHER HEAD, 0.190 - 32 X 0.562
Manufacturer Code:96906
Optional Parts
Part NumberPart NameManufacturer
AS21409BOLT - 0.190 DIA X 0.562U1653
Part Number:MS9556-08
Part Name:BOLT
Manufacturer Code:96906
Optional Parts
Part NumberPart NameManufacturer
AS21410BOLT - .190 DIA X .625U1653
Part Number:MS9556-13
Part Name:BOLT - MACHINE DOUBLE HEXAGON
Manufacturer Code:96906
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
AS21415BOLT - BIHEX HD,.190 DIA X .938U1653
Part Number:MS9556-16
Part Name:BOLT - DOUBLE HEXAGON
Manufacturer Code:96906
Optional Parts
Part NumberPart NameManufacturer
AS21418BOLT - MACHINE, DOUBLE HEXAGON - 0.190 DIA X 1.125U1653
Part Number:SP154D
Part Name:WASHER - 0.190 DIA
Manufacturer Code:K7766
Part Number:ST1698D47
Part Name:SPACER (5MM)
Manufacturer Code:K4585
Part Number:ST1698D48
Part Name:SPACER (10MM)
Manufacturer Code:K4585
Link not Found
Link not Found
Part Number:TA025074-02
Part Name:CLAMP - 0.125 DIA
Manufacturer Code:84971
Optional Parts
Part NumberPart NameManufacturer
AS61932CLAMP - LOOP 3.18 MM (.125)84971
AS61932CLAMP - LOOP 3.18 MM (.125)U1653
Part Number:TA025074-03
Part Name:CLAMP - LOOP, CUSHION, 4.78 MM (0.188)
Manufacturer Code:84971
Optional Parts
Part NumberPart NameManufacturer
AS61933CLAMP - LOOP, CUSHIONU1653
Part Number:TA025074-04
Part Name:CLAMP - LOOP, CUSHION, 6.35 MM (0.250)
Manufacturer Code:84971
Optional Parts
Part NumberPart NameManufacturer
AS61902CLAMP - LOOP, CUSHIONU1653
Part Number:TA025074-05
Part Name:CLAMP - LOOP, CUSHION, 0.313 DIA
Manufacturer Code:84971
Optional Parts
Part NumberPart NameManufacturer
AS61903CLAMP - LOOP, CUSHIONU1653
Part Number:TA025074-06
Part Name:CLAMP - LOOP, CUSHION, 0.375 DIA
Manufacturer Code:84971
Part Number:TA025074-07
Part Name:CLAMP, LOOP, CUSHION 0.438 DIA
Manufacturer Code:84971
Part Number:TA025074-08
Part Name:CLAMP - LOOP, CUSHION, 0.5 DIA
Manufacturer Code:84971
Part Number:TA025074-09
Part Name:CLAMP - 0.562 DIA
Manufacturer Code:84971
Part Number:TA025074-10
Part Name:CLAMP, LOOP, CUSHION, 0.625 DIA
Manufacturer Code:84971
Optional Parts
Part NumberPart NameManufacturer
AS61908CLAMP - LOOP, CUSHIONU1653
Part Number:TA025074-11
Part Name:CLAMP - LOOP, CUSHION, 0.688 DIA
Manufacturer Code:84971
Part Number:TA025074-12
Part Name:CLAMP - LOOP, CUSHION, 0.75 DIA
Manufacturer Code:84971
Part Number:TA025074-16
Part Name:CLAMP - LOOP, CUSHION, 1.000 DIA
Manufacturer Code:84971
Part Number:TA025074-19
Part Name:CLAMP - LOOP, CUSHION, 1.188 DIA
Manufacturer Code:84971
