| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| B71514202 | ELECTRICAL HARNESS - LIGHT DUTY - EEC, IGN SUPPLY HARNESS, PRE SBE70-0136 | aa | ||
| SBE0136-01 | ELECTRICAL HARNESS - LIGHT DUTY - EEC, IGN SUPPLY HARNESS, PRE SBN70-0181 | ab | ||
| SBN0181-01 | ELECTRICAL HARNESS - LIGHT DUTY - EEC, IGN SUPPLY HARNESS, PRE SBN70-0097 | ac | ||
| SBN0097-01 | ELECTRICAL HARNESS - LIGHT DUTY - EEC, IGN SUPPLY HARNESS, PRE SBE70-0290 | ad | ||
| SBE0290-01 | ELECTRICAL HARNESS - LIGHT DUTY - EEC, IGN SUPPLY HARNESS, PRE SBN70-0745 | ae | ||
| SBN0745-01 | ELECTRICAL HARNESS - LIGHT DUTY - EEC, IGN SUPPLY HARNESS, PRE SBE71-0320 | af | ||
| SBE0320-01 | ELECTRICAL HARNESS - LIGHT DUTY - EEC, IGN SUPPLY HARNESS, PRE SBE71-0324 | ag | ||
| SBE0324-01 | ELECTRICAL HARNESS - LIGHT DUTY - EEC, IGN SUPPLY HARNESS, PRE SBE71-0350 | ah | ||
| SBE0350-01 | ELECTRICAL HARNESS - LIGHT DUTY - EEC, IGN SUPPLY HARNESS | ai | ||
| -001 | 740-5870-503 | • HARNESS - EEC AND IGNITIION SUPPLY 51563 PRE SBE70-0136 | aa-ac | REF |
| -001A | 740-5870-505 | • HARNESS - EEC AND IGNITIION SUPPLY 51563 POST SBE70-0136 | ab-ai | REF |
| -001B | 740-5870-507 | • HARNESS - EEC AND IGNITIION SUPPLY 51563 PRE SBN70-0097 | aa-ac | REF |
| -001C | 740-5870-511 | • HARNESS - EEC AND IGNITION SUPPLY 51563 POST SBN70-0097 PRE SBE70-0290 | ad | REF |
| -001D | 740-5870-513 | • HARNESS 51563 POST SBE70-0290 PRE SBE71-0177 | ***** | REF |
| 010 | SES0032 | • • BACKSHELL U0546 (FIN 4000KS) PRE SBE71-0320 | aa-af | 1 |
| 010A | 4W7001 | • • BACKSHELL (IAE Ref No.) (KA0054-21F09C JK1-019) POST SBE71-0320 | ag-ah | 1 |
| 025 | D38999-26KG41PN | • • CONNECTOR 14283 (FIN 4000KS) | aa-af | 1 |
| -030 | 5000-068-00-20 | • • PIN - CONTACT 14283 | ***** | 20 |
| 045 | SES0032 | • • BACKSHELL U0546 (FIN 4000KS) PRE SBE71-0320 | aa-af | 1 |
| 045A | 4W7001 | • • BACKSHELL (IAE Ref No.) (KA0054-21F09C JK1-019) POST SBE71-0320 | ag-ah | 1 |
| 060 | D38999-26KG41PD | • • CONNECTOR 14283 (FIN 4000KS) | aa-af | 1 |
| -065 | 5000-068-00-20 | • • PIN - CONTACT 14283 | ***** | 20 |
| 080 | 380AS003M2412A3 | • • BACKSHELL 51563 PRE SBE70-0136 | aa | 1 |
| 080A | 387AS008M2412A3 | • • BACKSHELL 06324 POST SBE70-0136 PRE SBN70-0097 | aa-ac | 1 |
| 080B | 387-034-1 | • • BACKSHELL 06324 POST SBN70-0097 | aa-ag | 1 |
| 095 | BSK12F24-30SD | • • CONNECTOR 49367 (FIN 4000VC) | aa-ad | 1 |
| 095A | ESC10SE62430SN | • • • CONNECTOR - ELECTRICAL K0378 POST SBE70-0290 PRE SBN70-0745 | ae-af | 1 |
| 095B | ESC10SE62430SN0 | • • • CONNECTOR - RECEPTACLE K0378 POST SBN70-0745 | ae-af | 1 |
| -100 | BA4120-36LD | • • CONTACT - SOCKET 49367 | ***** | 16 |
| 115 | 380AS003M2412A3 | • • BACKSHELL 51563 PRE SBE70-0136 | aa | 1 |
| 115A | 387AS008M2412A3 | • • BACKSHELL 06324 (FIN 4001VC) | aa-ac | 1 |
| 115B | 387-034-1 | • • BACKSHELL 06324 POST SBN70-0097 | aa-af | 1 |
| 130 | BSK12F24-30SD06 | • • CONNECTOR 49367 (FIN 4001VC) | aa-ad | 1 |
| 130A | ESC10SE62430S6 | • • • CONNECTOR K0378 POST SBE70-0290 PRE SBN70-0745 | ae-af | 1 |
| 130B | ESC10SE62430S60 | • • • CONNECTOR K0378 POST SBN70-0745 | ae-af | 1 |
| 150 | 380AA003M1203A | • • BACKSHELL 51563 PRE SBE70-0136 | aa | 1 |
| 150A | 387AJ008M1203A | • • BACKSHELL 06324 (FIN 4002VC) | aa-af | 1 |
| 165 | BSK12F12-03SD | • • CONNECTOR 49367 (FIN 4002VC) | aa-ad | 1 |
| 165A | ESC10SE61203SN | • • • CONNECTOR K0378 POST SBE70-0290 PRE SBN70-0745 | ae-af | 1 |
| 165B | ESC10SE61203SN0 | • • • CONNECTR K0378 POST SBN70-0745 | ae-af | 1 |
| -170 | BA4120-36LD | • • CONTACT - SOCKET 49367 | ***** | 16 |
| 185 | 380AA003M1203A | • • BACKSHELL 51563 PRE SBE70-0136 | aa | 1 |
| 185A | 387AJ008M1203A | • • BACKSHELL 06324 (FIN 4003VC) | aa-af | 1 |
| 200 | BSK12F12-03SD | • • CONNECTOR 49367 (FIN 4003VC) | aa-ad | 1 |
| 200A | ESC10SE61203SN | • • • CONNECTOR K0378 POST SBE70-0290 PRE SBN70-0745 | ae-af | 1 |
| 200B | ESC10SE61203SN0 | • • • CONNECTR K0378 POST SBN70-0745 | ae-af | 1 |
| -205 | BA4120-36LD | • • CONTACT - SOCKET 49367 | ***** | 16 |
| 220 | 380AA003M1606A | • • BACKSHELL 51563 PRE SBE70-0136 PRE SBE71-0350 | aa | 1 |
| 220A | 387AJ008M1606A | • • BACKSHELL 06324 (FIN 4004VC) | aa-af | 1 |
| 220B | 4W7004 | • • BACKSHELL VENDOR PN (380AA003M1606A-98Z) POST SBE71-0350 | ah | 1 |
| 235 | BSK12F16-10SD | • • CONNECTOR 49367 (FIN 4004VC) | aa-ad | 1 |
| 235A | ESC10SE61610SN | • • • CONNECTOR K0378 POST SBE70-0290 PRE SBN70-0745 | ae-af | 1 |
| 235B | ESC10SE61610SN0 | • • • CONNECTR K0378 POST SBN70-0745 | ae-af | 1 |
| 250 | 380AA003M1606A | • • BACKSHELL 51563 PRE SBE70-0136 PRE SBE71-0350 | aa | 1 |
| 250A | 387AJ008M1606A | • • BACKSHELL 06324 (FIN 4005VC) | aa-af | 1 |
| 250B | 4W7004 | • • BACKSHELL VENDOR PN (380AA003M1606A-98Z) POST SBE71-0350 | ah | 1 |
| 265 | BSK12F16-10SD | • • CONNECTOR 49367 (FIN 4005VC) | aa-ad | 1 |
| 265A | ESC10SE61610SN | • • • CONNECTOR K0378 POST SBE70-0290 PRE SBN70-0745 | ae-af | 1 |
| 265B | ESC10SE61610SN0 | • • • CONNECTR K0378 POST SBN70-0745 | ae-af | 1 |
| -270 | BA4120-36LD | • • CONTACT - SOCKET 49367 | ***** | 16 |
| 285 | 380AS003M1203A2 | • • BACKSHELL 51563 PRE SBE70-0136 | aa | 1 |
| 285A | 387AS008M1203A2 | • • BACKSHELL 06324 (FIN 4012VC) | aa-af | 1 |
| 300 | BSK12F12-03SD06 | • • CONNECTOR 49367 (FIN 4012VC) | aa-ad | 1 |
| 300A | ESC10SE61203S6 | • • • CONNECTOR K0378 POST SBE70-0290 PRE SBN70-0745 | ae-af | 1 |
| 300B | ESC10SE61203S60 | • • • CONNECTOR K0378 POST SBN70-0745 | ae-af | 1 |
| 320 | 380AS003M1203A2 | • • BACKSHELL 51563 PRE SBE70-0136 | aa | 1 |
| 320A | 387AS008M1203A2 | • • BACKSHELL 06324 (FIN 4013VC) | aa-af | 1 |
| 335 | BSK12F12-03SD | • • CONNECTOR 49367 | aa-af | 1 |
| 335A | ESC10SE61203SN | • • • CONNECTOR K0378 POST SBE70-0290 PRE SBN70-0745 | ae-af | 1 |
| 335B | ESC10SE61203SN0 | • • • CONNECTR K0378 POST SBN70-0745 | ae-af | 1 |
| 355 | 380AS003M2016A3 | • • BACKSHELL 51563 PRE SBE70-0136 | aa | 1 |
| 355A | 387AS008M2016A3 | • • BACKSHELL 06324 (FIN 402VC) | aa-ac | 1 |
| 355B | 387-034 | • • BACKSHELL 51563 POST SBN70-0097 | aa-af | 1 |
| 370 | E0442SE20-39PN | • • CONNECTOR F0225 (FIN 402VC) | aa-af | 1 |
| 390 | 380AS003M2010A3 | • • BACKSHELL 51563 PRE SBE70-0136 | aa | 1 |
| 390A | 387AS008M2010A3 | • • BACKSHELL 06324 (FIN 403VC) | aa-af | 1 |
| 405 | E0442SE20-39P6 | • • CONNECTOR F0225 (FIN 403VC) | aa-af | 1 |
| -410 | BA4016-50LD | • • PIN - CONTACT 49367 ALT 8522-6179A | ***** | 16 |
| -410A | 8522-6179A | • • PIN - CONTACT F0225 ALT BA4024-18-50LD POST SBN70-0181 | ***** | REF |
| -410B | BA4024-18-50LD | • • PIN - CONTACT 49367 ALT 8522-2349A POST SBN70-0181 | ***** | REF |
| -410C | 8522-2349A | • • PIN - CONTACT F0225 ALT BA4016-50LD POST SBN70-0181 | ***** | REF |
| 425 | 380AS003M1610A3 | • • BACKSHELL 51563 PRE SBE70-0136 | aa | 1 |
| 425A | 387AS008M1610A3 | • • BACKSHELL 06324 (FIN 406VC) | aa-af | 1 |
| 440 | E0442SE16-24PN | • • CONNECTOR F0225 | aa-af | 1 |
| 455 | 380AS003M1610A3 | • • BACKSHELL 51563 PRE SBE70-0136 | aa | 1 |
| 455A | 387AS008M1612A3 | • • BACKSHELL 06324 POST SBE70-0136 PRE SBE71-0324 | ab-ag | 1 |
| 455B | 4W7002 | • • BACKSHELL POST SBE71-0324 | ah | 1 |
| 470 | E0442SE16-24P6 | • • CONNECTOR F0225 (FIN 407VC) | aa-af | 1 |
| -475 | 8522-2349A | • • PIN - CONTACT F0225 POST SBN70-0181 | ***** | REF |
| 490 | 380AS003M1406A3 | • • BACKSHELL 51563 PRE SBE70-0136 | aa | 1 |
| 490A | 387AS008M1406A3 | • • BACKSHELL 06324 (FIN 4101KS) | aa-af | 1 |
| 505 | BSK12F14-07SD | • • CONNECTOR 49367 (FIN 4101KS) | aa-ad | 1 |
| 505A | ESC10SE61407SN | • • • CONNECTOR K0378 POST SBE70-0290 PRE SBN70-0745 | ae-af | 1 |
| 505B | ESC10SE61407SN0 | • • • CONNECTR K0378 POST SBN70-0745 | ae-af | 1 |
| 525 | 380AS003M1406A3 | • • BACKSHELL 51563 PRE SBE70-0136 | aa | 1 |
| 525A | 387AS008M1406A3 | • • BACKSHELL 06324 (FIN 4101KS) | aa-af | 1 |
| 540 | BSK12F14-07SD07 | • • CONNECTOR 49367 (FIN 4101KS) | aa-ad | 1 |
| 540A | ESC10SE61407S7 | • • • CONNECTOR K0378 POST SBE70-0290 PRE SBN70-0745 | ae-af | 1 |
| 540B | ESC10SE61407S70 | • • • CONNECTR K0378 POST SBN70-0745 | ae-af | 1 |
| -600 | EJS25791 | • • CABLE 51563 | ***** | 1 |
| -610 | EJS26012 | • • CABLE 51563 | ***** | 1 |
| -620 | EJS25529 | • • CABLE 51563 | ***** | 1 |
| -630 | EJS25528 | • • CABLE 51563 | ***** | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

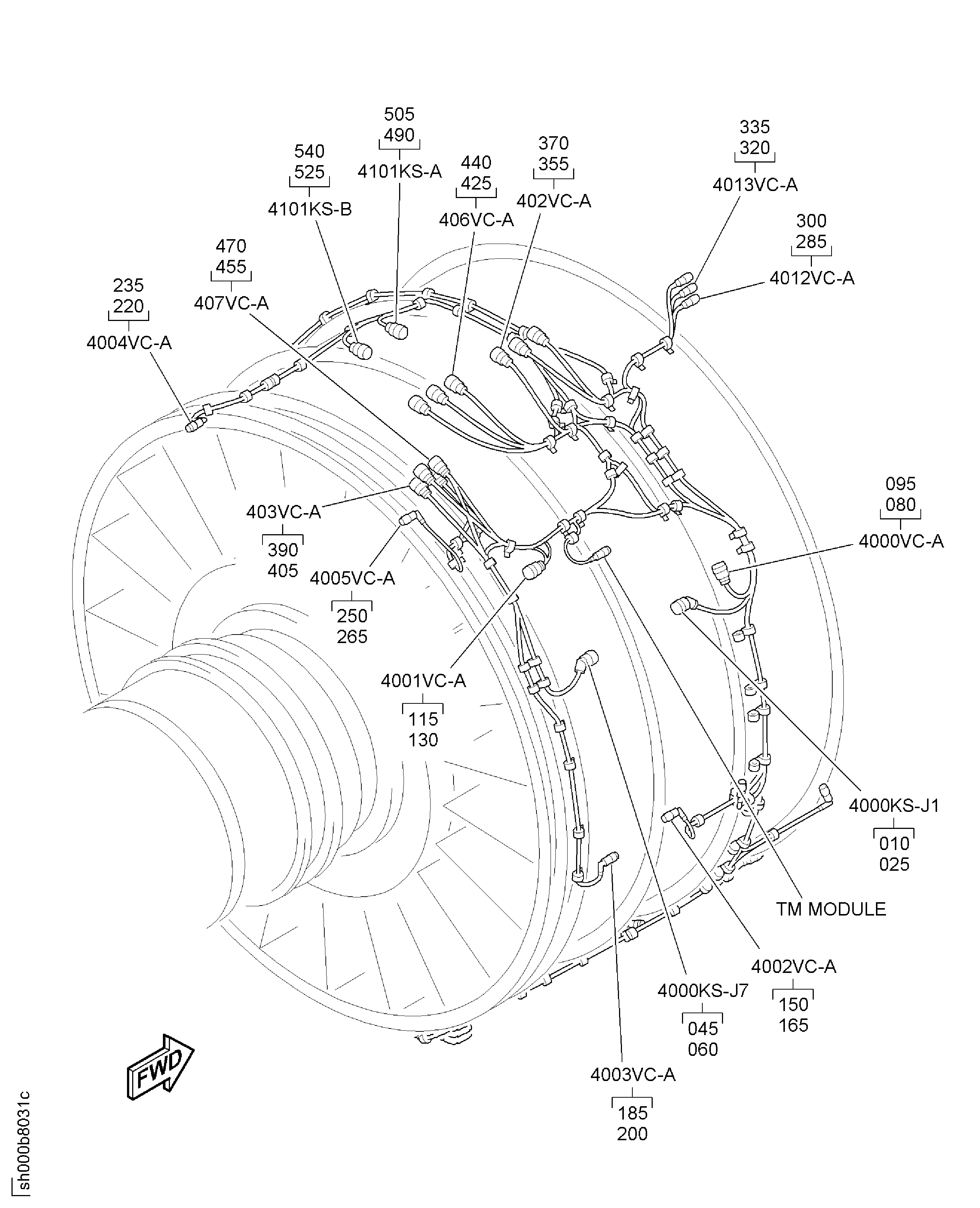

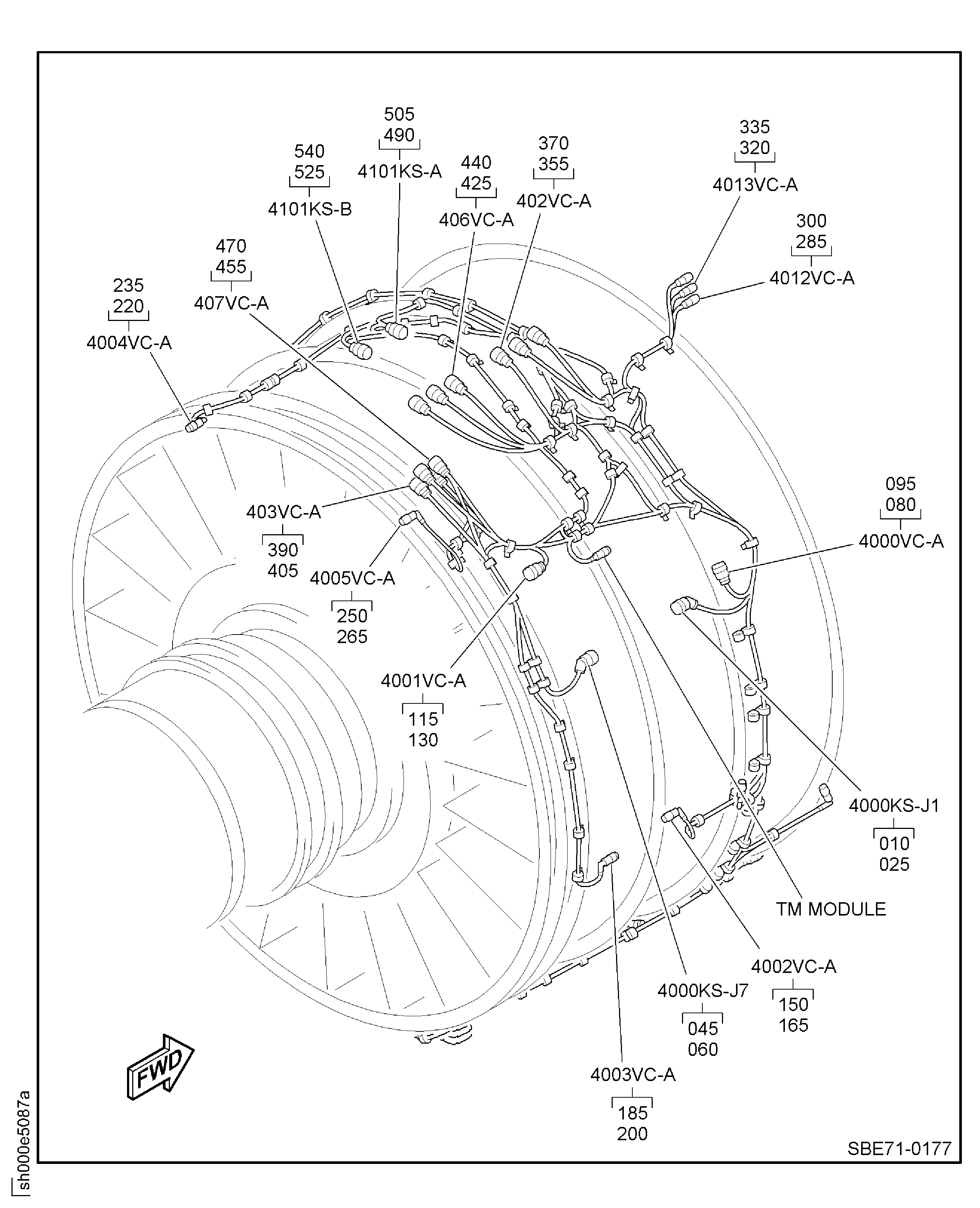

Figure: ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS
HARNESS EEC AND IGNITION SUPPLY
HARNESS EEC AND IGNITION SUPPLY
