ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS

DMC:V2500-A1-71-51-42-05A-941A-D|Issue No:004.00|Issue Date:2021-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
05
000B71514205ELECTRICAL HARNESS - LIGHT DUTY - EEC, IGN SUPPLY HARNESS, PRE SBE71-0006aa
000SBE0006-01ELECTRICAL HARNESS - LIGHT DUTY - EEC, IGN SUPPLY HARNESS, PRE SBE71-0031ab
000SBE0031-01ELECTRICAL HARNESS - LIGHT DUTY - EEC, IGN SUPPLY HARNESS, PRE SBE71-0070ac
000SBE0070-01ELECTRICAL HARNESS - LIGHT DUTY - EEC, IGN SUPPLY HARNESS, PRE SBE70-0136ad
000SBE0136-01ELECTRICAL HARNESS - LIGHT DUTY - EEC, IGN SUPPLY HARNESS, PRE SBE71-0067ae
000SBE0067-01ELECTRICAL HARNESS - LIGHT DUTY - EEC, IGN SUPPLY HARNESS, PRE SBE71-0104af
000SBE0104-01ELECTRICAL HARNESS - LIGHT DUTY - EEC, IGN SUPPLY HARNESS, PRE SBE71-0019ag
000SBE0019-01ELECTRICAL HARNESS - LIGHT DUTY - EEC, IGN SUPPLY HARNESS, PRE SBN70-0097ah
000SBN0097-01ELECTRICAL HARNESS - LIGHT DUTY - EEC, IGN SUPPLY HARNESS, PRE SBE70-0290ai
000SBE0290-01ELECTRICAL HARNESS - LIGHT DUTY - EEC, IGN SUPPLY HARNESS, PRE SBE71-0177aj
000SBE0177-01ELECTRICAL HARNESS - LIGHT DUTY - EEC, IGN SUPPLY HARNESS, PRE SBN70-0627ak
000SBN0627-01ELECTRICAL HARNESS - LIGHT DUTY - EEC, IGN SUPPLY HARNESSal
-005005S3120HARNESS - EEC AND IGNITION SUPPLY
51563		aa-alREF
-005005A740-5870-503HARNESS - EEC AND IGNITIION SUPPLY
51563
PRE SBE70-0136		aa-ahREF
-005005B740-5870-505HARNESS - EEC AND IGNITIION SUPPLY
51563
POST SBE70-0136		ae-alREF
-005005C740-5870-507HARNESS - EEC AND IGNITIION SUPPLY
51563		aa-alREF
-005005D740-5870-511HARNESS - EEC AND IGNITION SUPPLY
51563
POST SBN70-0097		aj-alREF
-005005E740-5870-513HARNESS
51563
POST SBE70-0290
PRE SBE71-0177		akREF
080080740-5443-503• BRACKET
51563		aa-al1
0810814W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA
Optional Part
AS20625		aa-al2
0840844W0166• BOLT - MACHINE, DOUBLE HEXAGON, .250 DIA X .750
Optional Part
AS21512		aa-al2
090090740-5444-503• BRACKET
51563		aa-al1
100100740-5452-503• RACEWAY - ASSEMBLY OF
51563		aa-al1
1011014W0103• BOLT - .190 DIA X .500aa-al1
108108AS41104• NUT - 0.19 DIA
U1653		aa-al1
1251254W0103• BOLT - .190 DIA X .500aa-al1
126126SP154D• WASHER - 0.190 DIA
K7766		aa-al1
128128JM44LC39H105RG• CLAMP - LOOP
22175		aa-al1
128128AJM44LC39H105RG• CLAMP - LOOP
22175
PRE SBE71-0067		aa-al1
128128BTA025074-07• CLAMP - LOOP, CUSHION, 0.438 DIA
84971
ALT AS61905
POST SBE71-0067
PRE SBN70-0627		aa-al1
-128128CAS61905• CLAMP - LOOP, CUSHION
U1653
ALT TA025074-07
POST SBE71-0067
PRE SBN70-0627		af-akREF
128128DTA025074-07• CLAMP - LOOP, CUSHION, 0.438 DIA
84971
POST SBN70-0627		aa-al1
128128EAS61905• CLAMP - LOOP, CUSHION
U1653
ALT AS62507
POST SBN70-0627		aa-al1
128128FAS62507• CLAMP - LOOP, CUSHION, 11.13 MM (0.438)
U1653
ALT AS61905
POST SBN70-0627		aa-al1
1321324W0001• NUT, OPTION - .190 DIAaa-al1
280280740-5445-503• BRACKET
51563		aa-al1
2812814W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA
Optional Part
AS20625		aa-al2
2842844W0163• BOLT, MACHINE DOUBLE HEX - .250 DIA X .562
Optional Part
AS21509		aa-al2
300300740-5424-505• RACEWAY - ASSEMBLY OF
51563		aa-al1
3013014W0103• BOLT - .190 DIA X .500
Optional Part
AS21408		aa-al1
3083084W0001• NUT, OPTION - .190 DIA
Optional Part
AS20624		aa-al1
3093094W0103• BOLT - .190 DIA X .500
Optional Part
AS21408		aa-al1
3163164W0001• NUT, OPTION - .190 DIA
Optional Part
AS20624		aa-al1
500500740-5447-507• BRACKET
51563		aa-al1
5015014W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA
Optional Part
AS20625		aa-al2
5045044W0164• BOLT OPTION - .250 DIA X .625
Optional Part
AS21510		aa-al2
600600745-5496-501• TUBE - RACEWAY
51563
POST SBE71-0177		al1
6026024W0103• BOLT - .190 DIA X .500
Optional Part
AS21408
POST SBE71-0177		al2
6076074W0001• NUT, OPTION - .190 DIA
Optional Part
AS20624
POST SBE71-0177		al2
610610745-5494-501• BRACKET - RAFT, ASSEMBLY OF
51563
POST SBE71-0177		al1
6126124W0103• BOLT - .190 DIA X .500
Optional Part
AS21408
POST SBE71-0177		al1
6156154W0001• NUT, OPTION - .190 DIA
Optional Part
AS20624
POST SBE71-0177		al1
6166164W0164• BOLT OPTION - .250 DIA X .625
Optional Part
AS21510
POST SBE71-0177		al2
6186184W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA
Optional Part
AS20625
POST SBE71-0177		al2
620620740-5429-501• BRACKET
51563
POST SBE71-0177		al1
6246244W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA
Optional Part
AS20625
POST SBE71-0177		al2
6286284W0164• BOLT OPTION - .250 DIA X .625
Optional Part
AS21510
POST SBE71-0177		al2
630630745-5495-501• BRACKET
51563
POST SBE71-0177		al1
6346344W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA
Optional Part
AS20625
POST SBE71-0177		al2
6386384W0164• BOLT OPTION - .250 DIA X .625
Optional Part
AS21510
POST SBE71-0177		al2
640640740-5426-501• BRACKET
51563
POST SBE71-0177		al1
6446444W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA
Optional Part
AS20625
POST SBE71-0177		al2
6486484W0164• BOLT OPTION - .250 DIA X .625
Optional Part
AS21510
POST SBE71-0177		al2
650650740-5426-501• BRACKET
51563
POST SBE71-0177		al1
690690740-5887-501• BRACKET
51563		aa-al1
690690A740-5887-501• BRACKET
51563
POST SBE71-0019		ah-al1
6916914W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIAaa-al2
691691AAS20625• NUT, SELF LOCKING, BIHEX, .250 DIA
U1653
POST SBE71-0019		ah-al2
6946944W0164• BOLT OPTION - .250 DIA X .625aa-al2
694694AAS21510• BOLT - 0.25 DIA X 0.625
U1653
POST SBE71-0019		ah-al2
-700700740-5228-505• BRACKET - ASSEMBLY SUPPORT
51563
PRE SBE71-0070		aa-ac1
-704704AS21508• BOLT - 0.25 DIA X 0.500
U1653
PRE SBE71-0070		aa-ac4
-720720740-5476-503• BRACKET
51563
PRE SBE71-0070		aa-ac1
750750740-5124-501• BRACKET - SUPPORT
51563		aa-al1
750750A740-5132-501• BRACKET - SUPPORT
51563		aa-al1
7517514W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIAaa-al2
752752SP155E• WASHER
K7766		aa-al1
754754AS23024• BOLT
U1653		aa-al2
754754AAS23023• BOLT
U1653		aa-al2
755755SP155E• WASHER
K7766		aa-al1
760760740-5124-503• BRACKET - SUPPORT
51563		aa-al1
760760A740-5132-503• BRACKET - SUPPORT
51563		aa-al1
770770740-5432-503• BRACKET
51563		aa-al1
770770A740-5432-503• BRACKET
51563
PRE SBE71-0006		aa-al1
770770B740-5432-505• BRACKET - CABLE SUPPORT
51563
POST SBE71-0006		aa-al1
7717714W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIAaa-al1
772772ST1698E37• SPACER
51563		aa-al1
774774AS23017• BOLT - 0.25 DIA X 1.062
U1653		aa-al1
780780740-5230-501• BRACKET
51563		aa-al1
781781NAS1291C4M• NUT
80205		aa-al2
781781ANAS1291C4M• NUT
80205
ALT H42-4		aa-al2
-781781BH42-4• NUT - .250 DIA
15653
ALT NAS1291C4M		aa-alREF
782782SP155E• WASHER
K7766		aa-al2
783783740-5923-501• PACKING, PIECE
51563		aa-al1
784784NAS7204U6• BOLT, CSK
80205		aa-al2
800800740-5223-503• RAFT - ASSEMBLY OF
51563		aa-al1
800800A740-5223-505• RAFT - ASSEMBLY OF
51563
(SEE 75-28-49)		aa-al1
8018014W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIAaa-al1
8048044W0162• BOLT, MACHINE DOUBLE HEX - .250 DIA X .500aa-al2
8058054W0165• BOLT, MACHINE DOUBLE HEX - .250 DIA X .688aa-al1
810810740-5449-505• BRACKET
51563		aa-al1
810810A740-5475-501• BRACKET
51563
PRE SBE71-0070		aa-ac1
814814AS21408• BOLT - .190 DIA X .500
U1653		aa-al2
814814AAS21408• BOLT - .190 DIA X .500
U1653
PRE SBE71-0070		aa-ac2
830830740-5446-505• BRACKET
51563		aa-al1
830830A740-5446-507• BRACKET
51563		aa-al1
8318314W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIAaa-al2
8348344W0164• BOLT OPTION - .250 DIA X .625aa-al2
840840740-5460-501• BRACKET
51563		aa-al1
840840A740-5460-503• BRACKET
51563		aa-al1
8418414W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIAaa-al2
8448444W0168• BOLT, MACHINE DOUBLE HEX - .250 DIA X .875aa-al2
850850740-5426-501• BRACKET
51563		aa-al1
8518514W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIAaa-al1
8548544W0164• BOLT OPTION - .250 DIA X .625aa-al1
860860740-5467-501• BRACKET
51563		aa-al1
8618614W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIAaa-al2
8648644W0164• BOLT OPTION - .250 DIA X .625aa-al2
890890740-5433-507• BRACKET
51563		aa-al1
890890A740-5433-507• BRACKET
51563
PRE SBE71-0104		aa-af1
890890B740-5490-501• BRACKET
51563
POST SBE71-0104		ag-al1
900900740-5439-505• BRACKET - RAFT
51563
PRE SBE71-0177		aa-ak1
900900A740-5439-507• BRACKET - RAFT
51563
POST SBE71-0177		al1
9019014W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIAaa-al2
9049044W0164• BOLT OPTION - .250 DIA X .625aa-al2
905905SP154D• WASHER - 0.190 DIA
K7766		aa-al2
9069064W0105• BOLT - MACHINE DOUBLE HEX, .190 DIA X .625aa-al2
910910740-5438-507• RAFT - ASSEMBLY OF
51563		aa-al1
910910A740-5438-507• RAFT - ASSEMBLY OF
51563
PRE SBE71-0104		aa-af1
910910B740-5491-501• RAFT - ASSEMBLY OF
51563
POST SBE71-0104		ag-al1
9119114W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIAaa-al2
912912SP155D• WASHER - FLAT
K7766		aa-al2
9149144W0103• BOLT - .190 DIA X .500
PRE SBE71-0177		aa-ak2
914914A4W0103• BOLT - .190 DIA X .500
POST SBE71-0177		al2
9159154W0164• BOLT OPTION - .250 DIA X .625aa-al2
920920740-5429-501• BRACKET
51563		aa-al1
930930740-5229-501• BRACKET
51563		aa-al1
930930A740-5229-501• BRACKET
51563
PRE SBE71-0031		aa-ac1
930930B740-5229-503• BRACKET
51563
POST SBE71-0031
PRE SBE71-0070		aa-al1
930930C740-5429-501• BRACKET
51563
POST SBE71-0070		aa-al1
9319314W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIAaa-al2
9349344W0164• BOLT OPTION - .250 DIA X .625aa-al2
940940740-5436-505• BRACKET
51563		aa-ak1
940940A740-5437-501• BRACKET
51563		aa-ak1
9419414W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIAaa-al2
9449444W0164• BOLT OPTION - .250 DIA X .625aa-al2
950950740-5437-501• BRACKET
51563		aa-al1
960960740-5429-501• BRACKET
51563		aa-al1
970970740-5425-505• BRACKET
51563		aa-al1
9719714W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIAaa-al2
9749744W0164• BOLT OPTION - .250 DIA X .625aa-al2
980980740-5441-503• BRACKET
51563		aa-ak1
9819814W0002• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIAaa-al2
9849844W0164• BOLT OPTION - .250 DIA X .625aa-al2
990990740-5442-503• BRACKET
51563		aa-al1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

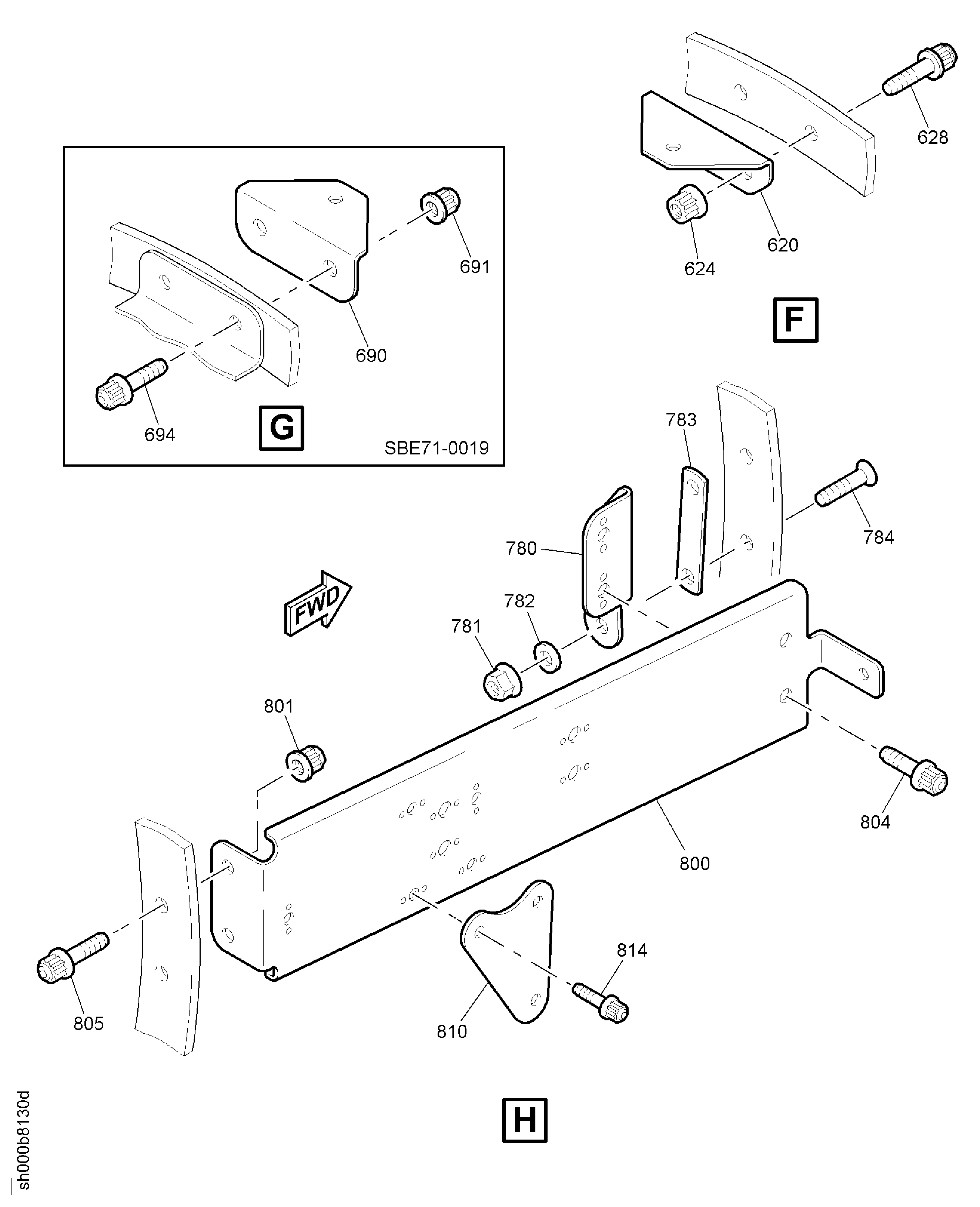

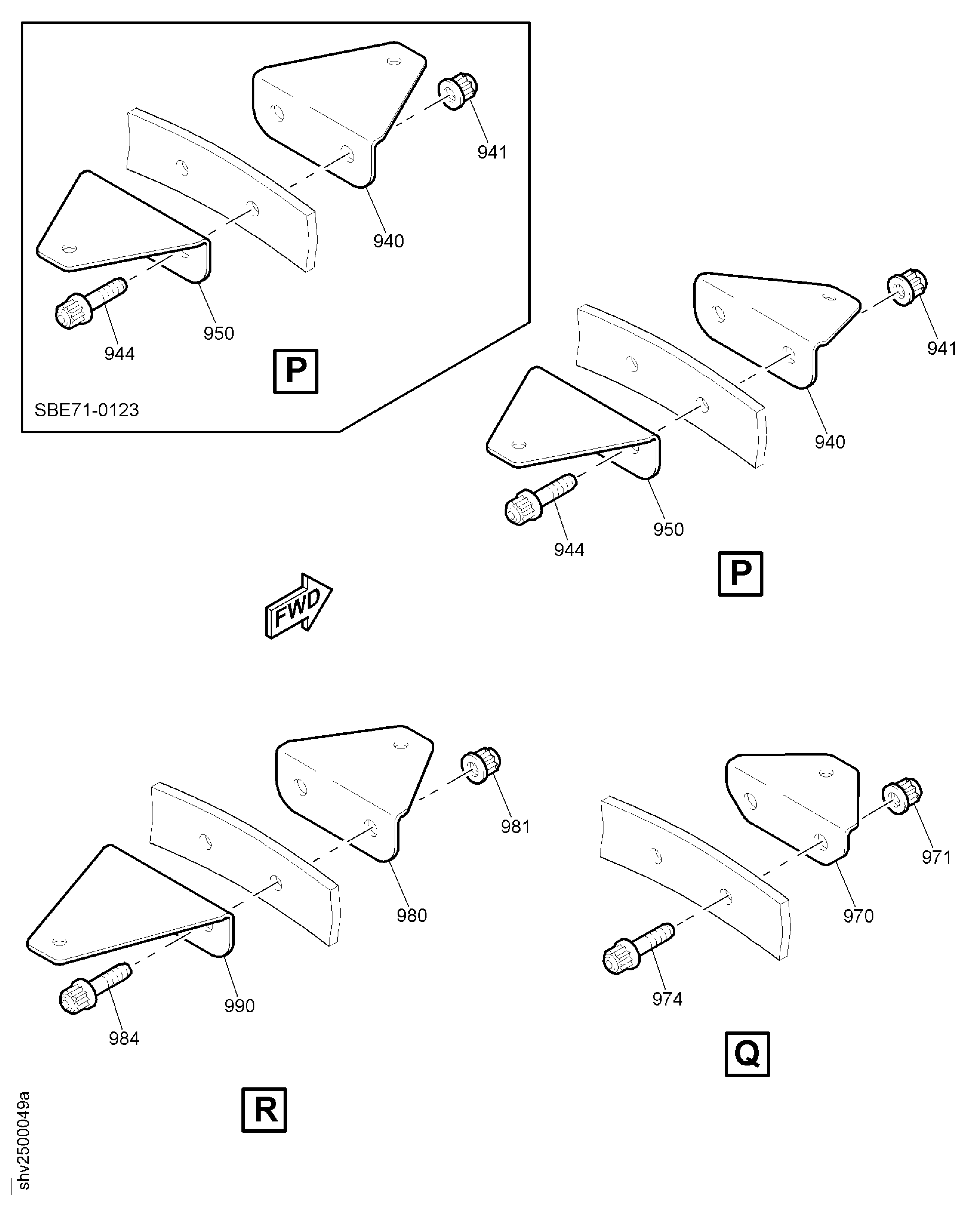

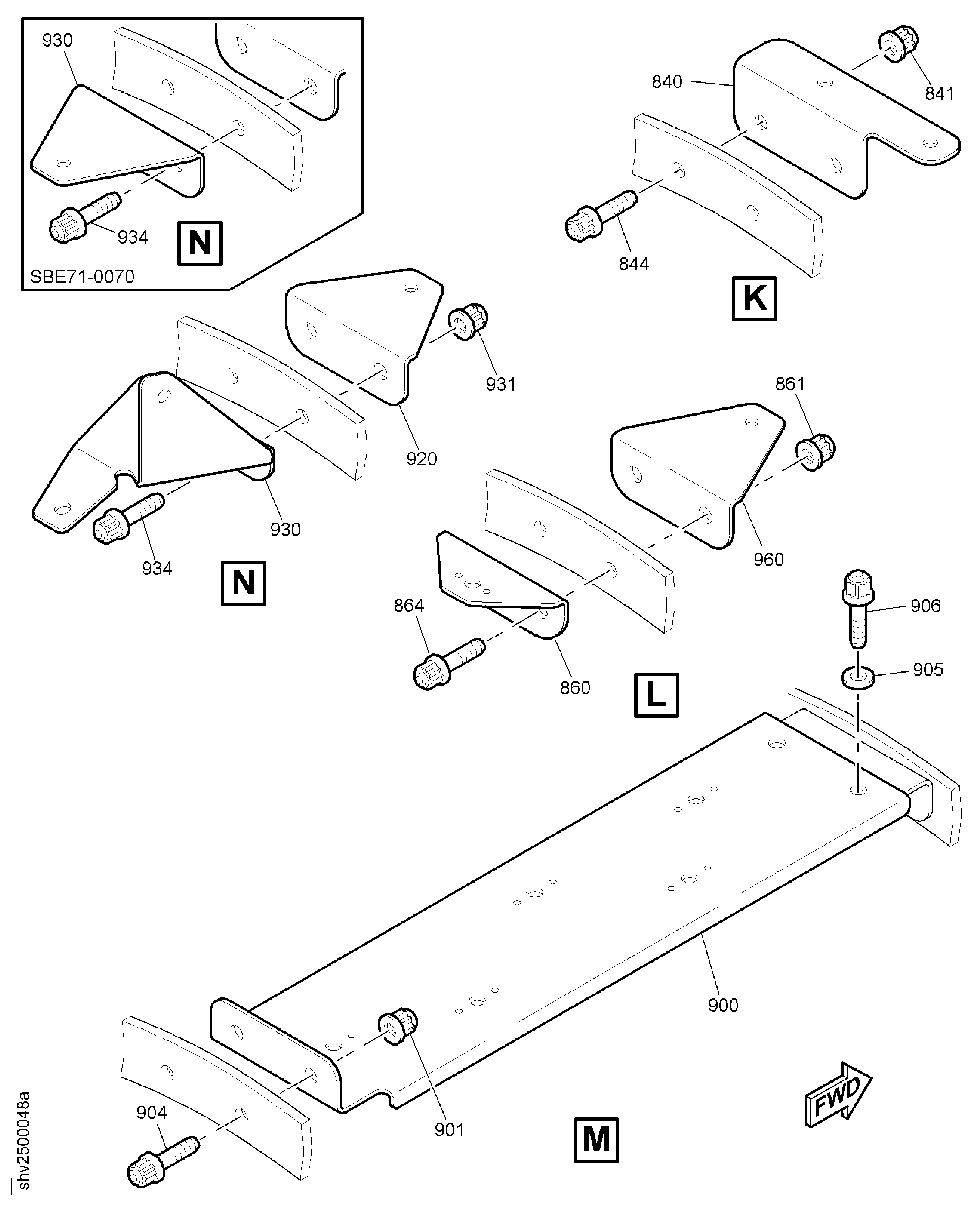

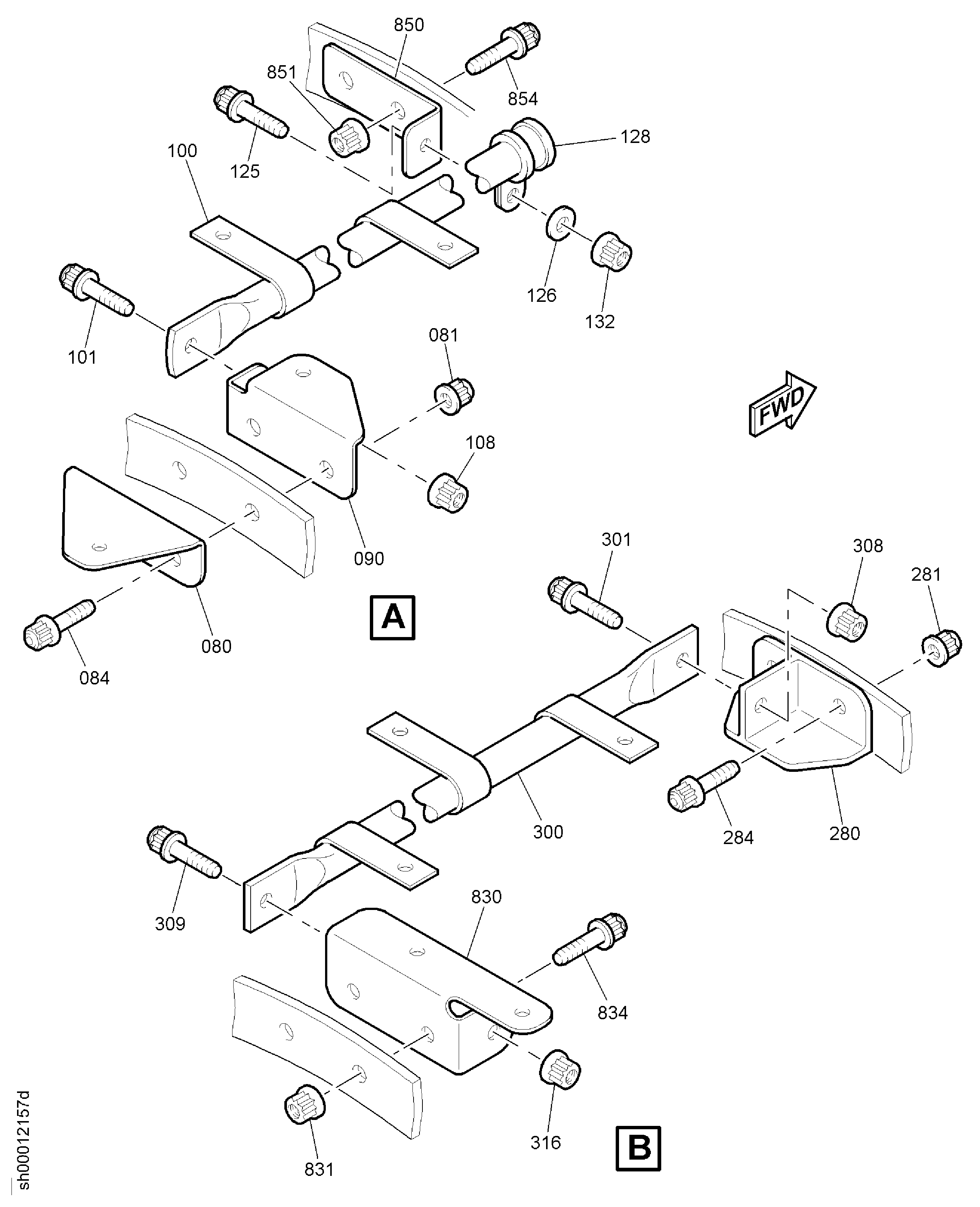

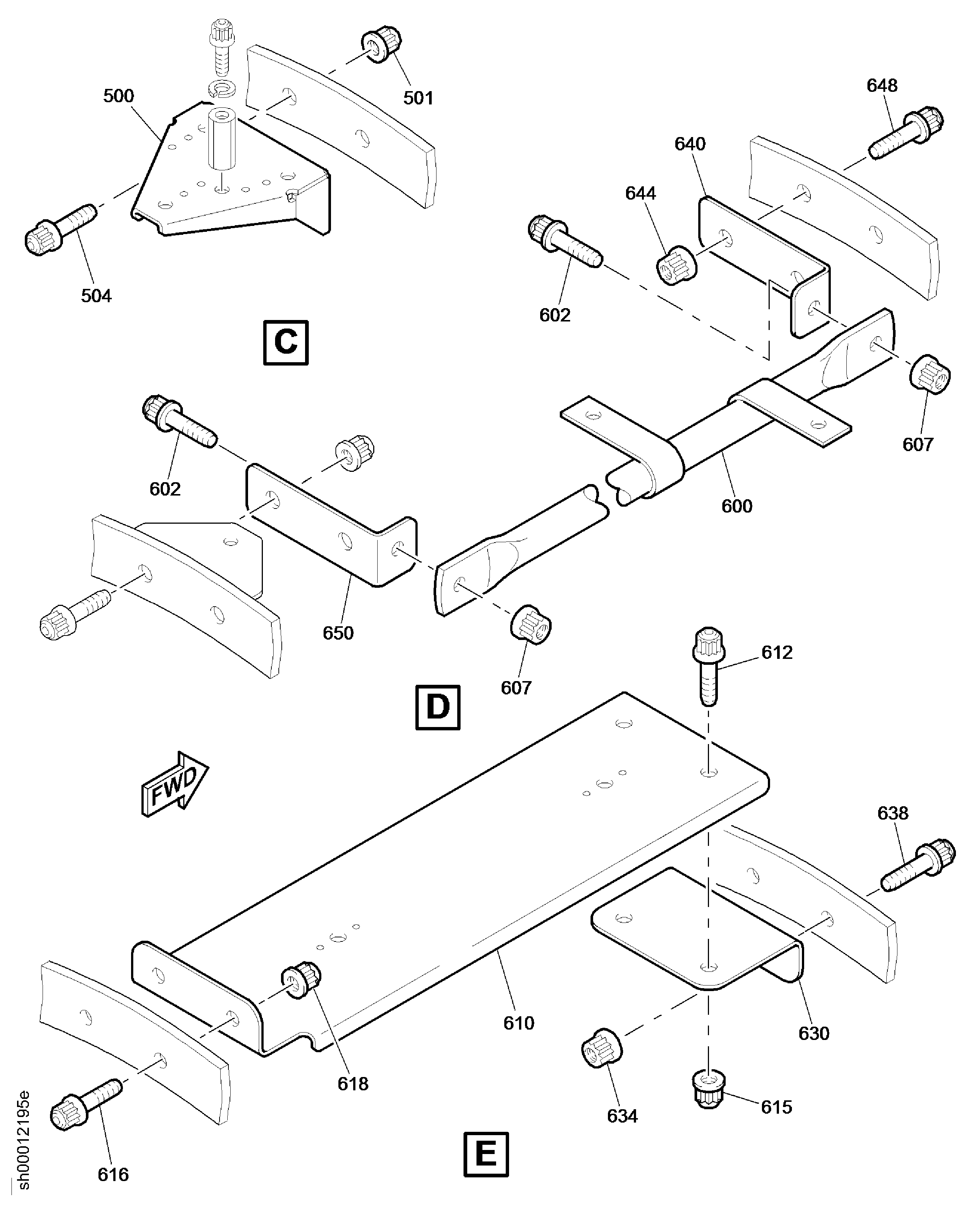

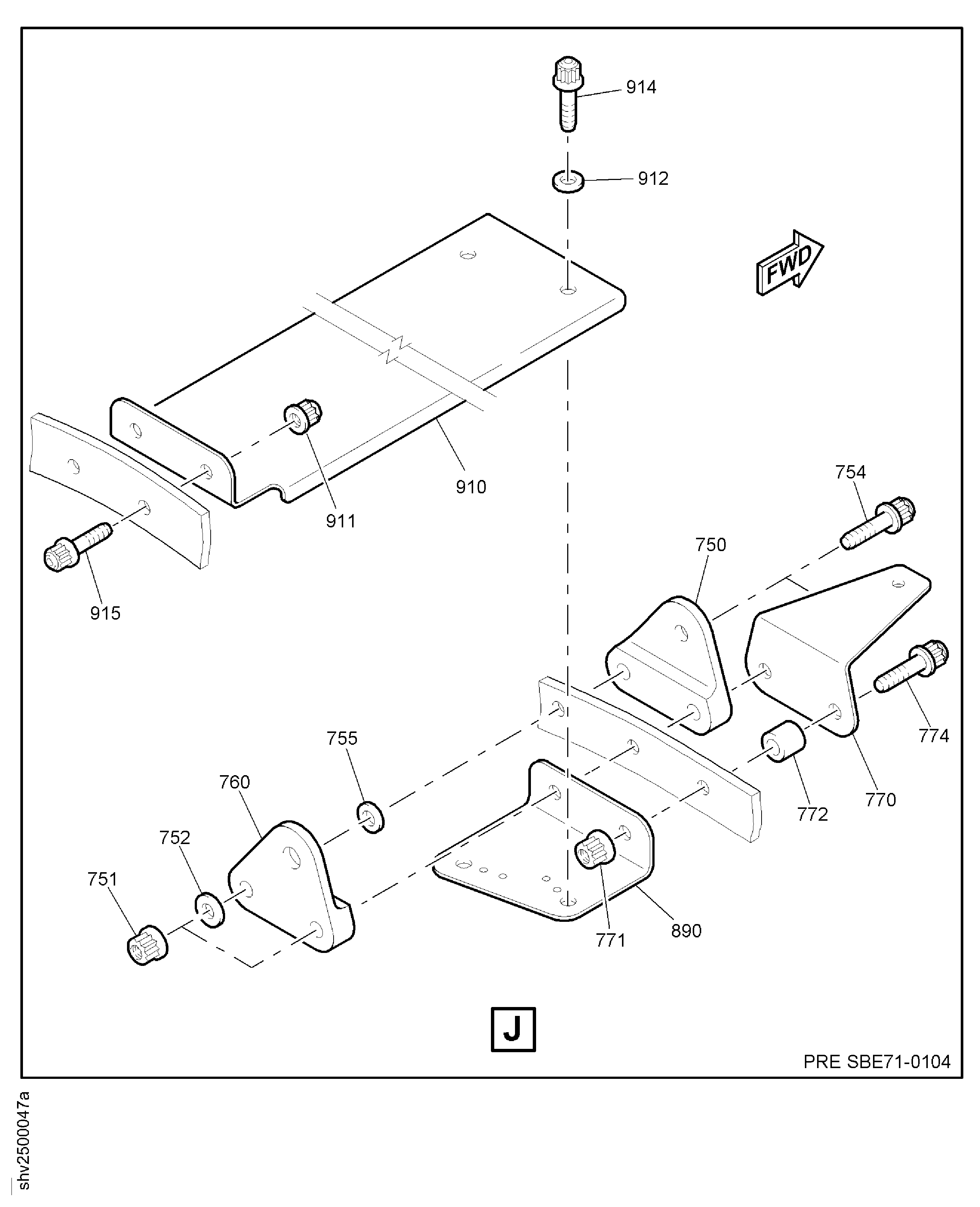

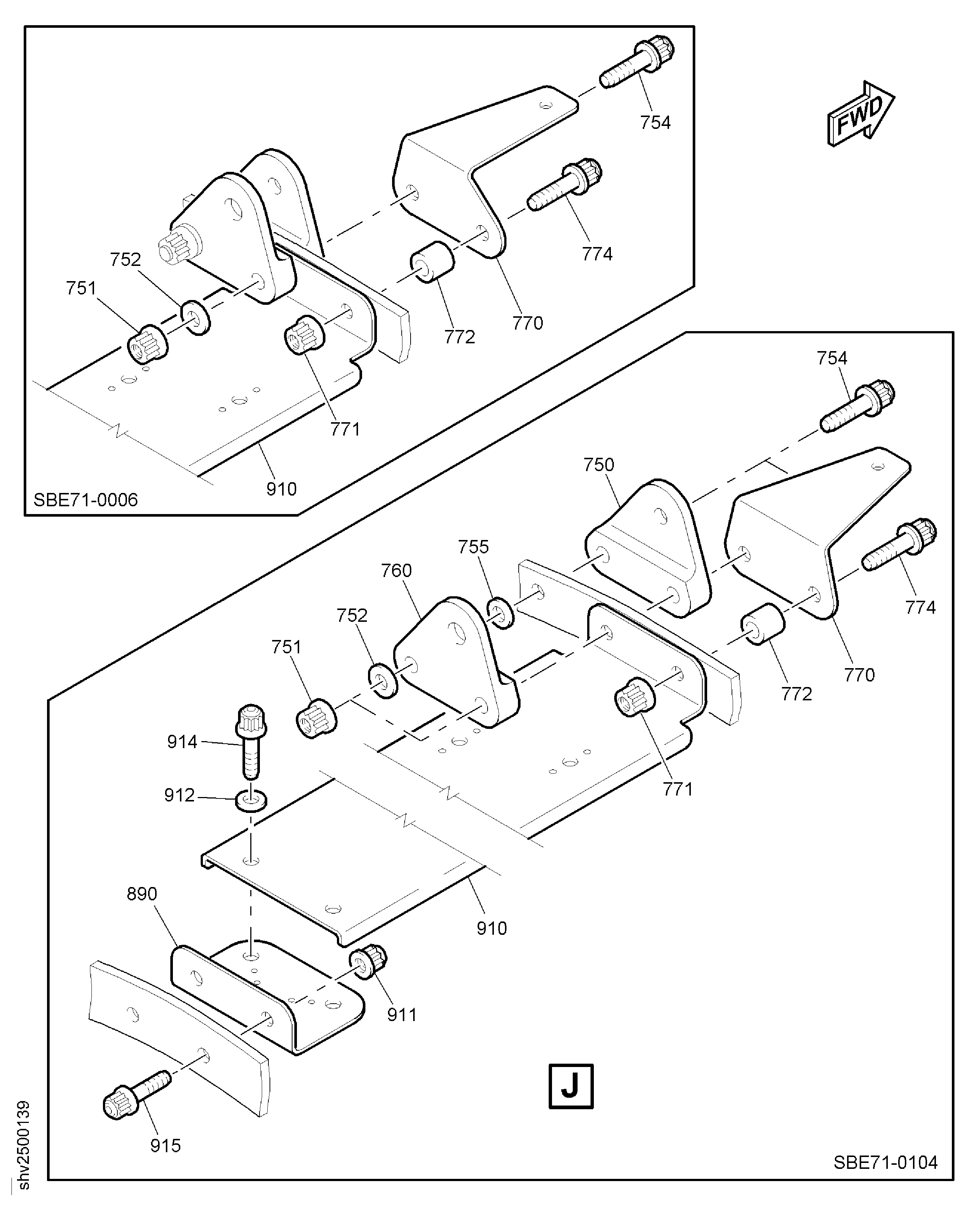

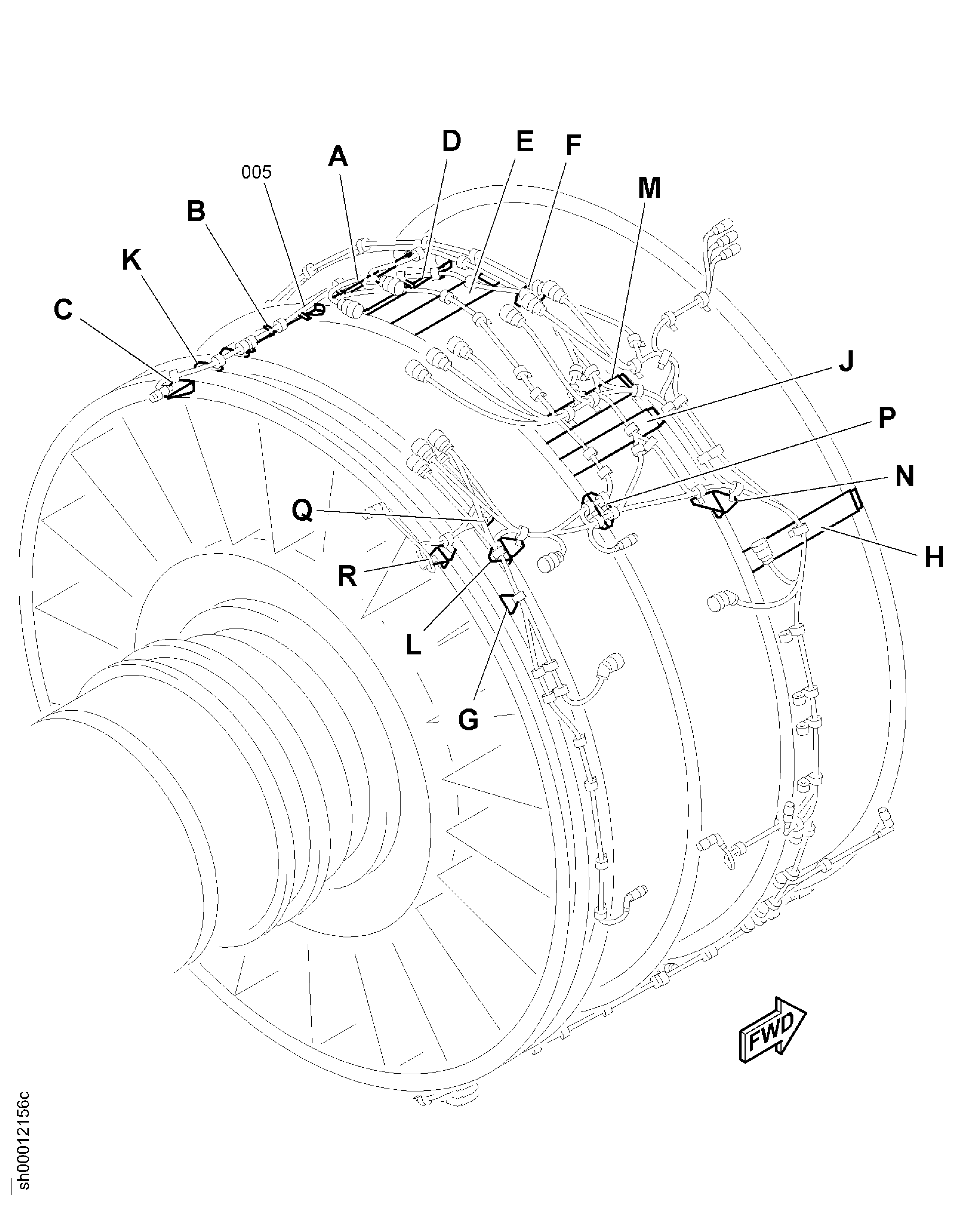

Figure: ELECT HARNESS-LIGHT DUTY-EEC/IGN SUPPLY HARNESS

HARNESS EEC AND IGNITION SUPPLY

HARNESS EEC AND IGNITION SUPPLY

HARNESS EEC AND IGNITION SUPPLY

HARNESS EEC AND IGNITION SUPPLY

HARNESS EEC AND IGNITION SUPPLY

HARNESS EEC AND IGNITION SUPPLY

HARNESS EEC AND IGNITION SUPPLY

HARNESS EEC AND IGNITION SUPPLY

Change Type:

Deleted Incorrect SB Reference And Corrected Effectivity.

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:15653
Enterprise Name:ALCOA FASTENING SYSTEMS
BU Name:ALCOA FASTENING SYSTEMS
Department:FULLERTON OPERATIONS PLANT 1
Street:800 S.STATE COLLEGE BOULEVARD
City:FULLERTON
State:CA
Zip Code:92831
Country:USA
Phone Number:1-714-871-1550
Fax Number:1-714-680-0175
Internet:www.alcoa.com
Manufacturer Code:22175
Enterprise Name:J AND M PRODUCTS INC
BU Name:J AND M PRODUCTS INC
Street:2435 N NAOMI STREET
City:BURBANK
State:CA
Zip Code:91504-3425
Country:USA
Manufacturer Code:51563
Enterprise Name:ROHR INC, A COLLINS AEROSPACE COMPANY
BU Name:ROHR INC, A COLLINS AEROSPACE COMPANY
Street:850 LAGOON DRIVE
City:CHULA VISTA
State:CA
Zip Code:91910-2098
Country:USA
Phone Number:1-619-691-2089
Fax Number:1-619-691-6195
Manufacturer Code:80205
Enterprise Name:NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES ASSO OF AMERICAN, INC
BU Name:NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES ASSO OF AMERICAN, INC
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:84971
Enterprise Name:KIRKHILL - TA MFG SUB OF ESTERLINE TECHNOLOGIES
BU Name:KIRKHILL - TA MFG SUB OF ESTERLINE TECHNOLOGIES
Department:TA MFG LTD
Street:28065 WEST FRANKLIN PARKWAY,VALENCIA
City:SANTA CLARITA
State:CALIFORNIA
Zip Code:GL1 2BS
Country:USA
Manufacturer Code:96906
Enterprise Name:MILITARY STANDARDS MANUAL 4120 3-M
BU Name:MILITARY STANDARDS MANUAL 4120 3-M
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:K7766
Enterprise Name:K7766
BU Name:British Standards Institution
Street:2 Park Street
City:London
Zip Code:AW1A 2BS
Country:England
Manufacturer Code:U1653
Enterprise Name:Society Of British Aerospace Companies, LTD.
Part Number:4W0001
Part Name:NUT, OPTION - .190 DIA
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS20624NUT, SELF LOCKING DBL HEX - .190 DIAU1653
Part Number:4W0002
Part Name:NUT, SELF LOCKING DBL HEX - .250 DIA
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS20625NUT, SELF LOCKING, BIHEX, .250 DIAU1653
Part Number:4W0103
Part Name:BOLT - .190 DIA X .500
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS21408BOLT - 0.19 DIA X 0.500U1653
Part Number:4W0105
Part Name:BOLT - MACHINE DOUBLE HEX, .190 DIA X .625
Manufacturer Code:0AM53
Part Number:4W0162
Part Name:BOLT, MACHINE DOUBLE HEX - .250 DIA X .500
Manufacturer Code:0AM53
Part Number:4W0163
Part Name:BOLT, MACHINE DOUBLE HEX - .250 DIA X .562
Manufacturer Code:0AM53
Part Number:4W0164
Part Name:BOLT - .250 DIA X .625
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS21510BOLT - .250 DIA X .625U1653
Part Number:4W0165
Part Name:BOLT, MACHINE DOUBLE HEX - .250 DIA X .688
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS21511BOLT- MACHINE DOUBLE HEX, .250 DIA X .688U1653
Part Number:4W0166
Part Name:BOLT, MACHINE DOUBLE HEX - .250 DIA X .750
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS21512BOLT - 0.25 DIA X 0.750U1653
Part Number:4W0168
Part Name:BOLT, MACHINE DOUBLE HEX - .250 DIA X .875
Manufacturer Code:0AM53
Part Number:740-5124-501
Part Name:BRACKET - SUPPORT
Manufacturer Code:51563
Part Number:740-5124-503
Part Name:BRACKET - SUPPORT
Manufacturer Code:51563
Part Number:740-5132-501
Part Name:BRACKET - SUPPORT
Manufacturer Code:51563
Part Number:740-5132-503
Part Name:BRACKET - SUPPORT
Manufacturer Code:51563
Part Number:740-5223-503
Part Name:RAFT - ASSEMBLY OF
Manufacturer Code:51563
Part Number:740-5223-505
Part Name:RAFT - ASSEMBLY OF
Manufacturer Code:51563
Part Number:740-5228-505
Part Name:BRACKET - ASSEMBLY SUPPORT
Manufacturer Code:51563
Part Number:740-5229-501
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5229-503
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5230-501
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5424-505
Part Name:RACEWAY - ASSEMBLY
Manufacturer Code:51563
Part Number:740-5425-505
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5426-501
Part Name:BRACKET, RACEWAY SUPPORT
Manufacturer Code:51563
Part Number:740-5429-501
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5432-503
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5432-505
Part Name:BRACKET - CABLE SUPPORT
Manufacturer Code:51563
Part Number:740-5433-507
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5436-505
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5437-501
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5438-507
Part Name:RAFT - ASSEMBLY OF
Manufacturer Code:51563
Part Number:740-5439-505
Part Name:BRACKET - RAFT
Manufacturer Code:51563
Part Number:740-5439-507
Part Name:BRACKET, RAFT
Manufacturer Code:51563
Part Number:740-5441-503
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5442-503
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5443-503
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5444-503
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5445-503
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5446-505
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5446-507
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5447-507
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5449-505
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5452-503
Part Name:RACEWAY - ASSEMBLY
Manufacturer Code:51563
Part Number:740-5460-501
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5460-503
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5467-501
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5475-501
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5476-503
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5490-501
Part Name:BRACKET, CABLE SUPPORT
Manufacturer Code:51563
Part Number:740-5491-501
Part Name:RAFT - ASSEMBLY OF
Manufacturer Code:51563
Part Number:740-5870-503
Part Name:HARNESS - EEC AND IGNITIION SUPPLY
Manufacturer Code:51563
Part Number:740-5870-505
Part Name:HARNESS - EEC AND IGNITIION SUPPLY
Manufacturer Code:51563
Part Number:740-5870-507
Part Name:HARNESS - EEC AND IGNITIION SUPPLY
Manufacturer Code:51563
Part Number:740-5870-511
Part Name:HARNESS - EEC AND IGNITION SUPPLY
Manufacturer Code:51563
Part Number:740-5870-513
Part Name:HARNESS
Manufacturer Code:51563
Part Number:740-5887-501
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5923-501
Part Name:PACKING
Manufacturer Code:51563
Part Number:745-5494-501
Part Name:BRACKET - RAFT, ASSEMBLY OF
Manufacturer Code:51563
Part Number:745-5495-501
Part Name:BRACKET
Manufacturer Code:51563
Part Number:745-5496-501
Part Name:TUBE - RACEWAY
Manufacturer Code:51563
Part Number:AS20624
Part Name:NUT, SELF LOCKING DBL HEX - .190 DIA
Manufacturer Code:U1653
Part Number:AS20625
Part Name:NUT, SELF LOCKING, BIHEX, .250 DIA
Manufacturer Code:U1653
Unit Of Issue:EA
Part Number:AS21009
Part Name:BOLT - 0.25 DIA X 0.562
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
MS9557-07BOLT96906
Part Number:AS21010
Part Name:BOLT - .250 DIA X .625
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
MS9557-08BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.2500 - 28 X 0.62596906
Part Number:AS21408
Part Name:BOLT - 0.19 DIA X 0.500
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
MS9556-06BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.50096906
Part Number:AS21508
Part Name:BOLT - BIHEX HD, .250 DIA X .500
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
MS9557-06BOLT - DOUBLE HEXAGON96906
Part Number:AS21509
Part Name:BOLT - 0.25 DIA X 0.562
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
MS9557-07BOLT96906
Part Number:AS21510
Part Name:BOLT - .250 DIA X .625
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
MS9557-08BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.2500 - 28 X 0.62596906
Part Number:AS21511
Part Name:BOLT- MACHINE DOUBLE HEX, .250 DIA X .688
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
MS9557-09BOLT, MACHINE DOUBLE HEX96906
Part Number:AS21512
Part Name:BOLT - 0.25 DIA X 0.750
Manufacturer Code:U1653
Part Number:AS23017
Part Name:BOLT - 0.25 DIA X 1.062
Manufacturer Code:U1653
Part Number:AS23023
Part Name:BOLT
Manufacturer Code:U1653
Part Number:AS23024
Part Name:BOLT
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
AS57224BOLTU1653
AS61424BOLT - 0.250 UNJFU1653
Part Number:AS41104
Part Name:NUT - 0.19 DIA
Manufacturer Code:U1653
Part Number:AS54624
Part Name:BOLT, .250 DIA X 1.500
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
AS23524BOLT - 0.250 DIA X 1.500U1653
Part Number:AS57224
Part Name:BOLT
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
AS54624BOLT, .250 DIA X 1.500U1653
AS61424BOLT - 0.250 UNJFU1653
Part Number:AS61424
Part Name:BOLT - 0.250 UNJF
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
AS54624BOLT, .250 DIA X 1.500U1653
AS57224BOLTU1653
Part Number:AS61905
Part Name:CLAMP, LOOP, 11.13 MM (0.436)
Manufacturer Code:U1653
Part Number:AS62507
Part Name:CLAMP - LOOP, CUSHION, 11.13 MM (0.438)
Manufacturer Code:U1653
Part Number:H42-4
Part Name:NUT - .250 DIA
Manufacturer Code:15653
Optional Parts
Part NumberPart NameManufacturer
NAS1291C4MNUT80205
Part Number:JM44LC39H105RG
Part Name:CLAMP - LOOP
Manufacturer Code:22175
Part Number:MS9556-06
Part Name:BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500
Manufacturer Code:96906
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
AS21408BOLT - 0.19 DIA X 0.500U1653
Part Number:MS9557-06
Part Name:BOLT - DOUBLE HEXAGON
Manufacturer Code:96906
Optional Parts
Part NumberPart NameManufacturer
AS21508BOLT - BIHEX HD, .250 DIA X .500U1653
Part Number:MS9557-07
Part Name:BOLT
Manufacturer Code:96906
Optional Parts
Part NumberPart NameManufacturer
AS21009BOLT - 0.25 DIA X 0.562U1653
AS21509BOLT - 0.25 DIA X 0.562U1653
Part Number:MS9557-08
Part Name:BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.2500 - 28 X 0.625
Manufacturer Code:96906
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
AS21010BOLT - .250 DIA X .625U1653
AS21510BOLT - .250 DIA X .625U1653
Part Number:MS9557-09
Part Name:BOLT, MACHINE DOUBLE HEX
Manufacturer Code:96906
Optional Parts
Part NumberPart NameManufacturer
AS21511BOLT- MACHINE DOUBLE HEX, .250 DIA X .688U1653
Part Number:NAS1291C4M
Part Name:NUT
Manufacturer Code:80205
Optional Parts
Part NumberPart NameManufacturer
H42-4NUT - .250 DIA15653
Part Number:NAS7204U6
Part Name:BOLT - CSK
Manufacturer Code:80205
Part Number:S3120
Part Name:HARNESS - EEC AND IGNITION SUPPLY
Manufacturer Code:51563
Part Number:SP154D
Part Name:WASHER - 0.190 DIA
Manufacturer Code:K7766
Part Number:SP155D
Part Name:WASHER - FLAT
Manufacturer Code:K7766
Part Number:SP155E
Part Name:WASHER
Manufacturer Code:K7766
Link not Found
Part Number:TA025074-07
Part Name:CLAMP, LOOP, CUSHION 0.438 DIA
Manufacturer Code:84971
