DMC:V2500-A1-71-51-44-04A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 04 | ||||
| B71514404 | ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESS, PRE SBE70-0156 | aa | ||
| SBE0156-01 | ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESS, PRE SBE70-0324 | ab | ||
| SBE0324-01 | ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESS, PRE SBE70-0367 | ac | ||
| SBE0367-01 | ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESS, PRE SBE70-0638 | ad | ||
| SBE0638-01 | ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESS | ae | ||
| 010 | 5A9249 | • • RECEPTCL (FIN 4002VC) | aa-ae | 1 |
| 010A | ESC10KE01203PN0 | • • CONNECTR (FIN 4002VC) | aa-ae | 1 |
| 015 | 5A9269 | • • • CONTACT - SOCKET PRE SBE70-0156 | aa | 3 |
| 015A | ESC30P16BC | • • • CONTACT - PLUG POST SBE70-0156 | ab-ae | 3 |
| 029 | MS3187-16-2 | • • PLUG - SEALING 96906 | aa-ae | 1 |
| 030 | 5A9249 | • • RECEPTCL (FIN 4003VC) | aa-ae | 1 |
| 030A | ESC10KE01203PN0 | • • CONNECTR (FIN 4003VC) | aa-ae | 1 |
| 035 | 5A9269 | • • • CONTACT - SOCKET PRE SBE70-0156 | aa | 3 |
| 035A | ESC30P16BC | • • • CONTACT - PLUG POST SBE70-0156 | ab-ae | 3 |
| 049 | MS3187-16-2 | • • PLUG - SEALING 96906 | aa-ae | 1 |
| 050 | 5A9260 | • • RECEPTCL (FIN 4100KS-D) | aa-ae | 1 |
| 050A | ESC10SE61407SN0 | • • CONNECTR (FIN 4100KS-D) | aa-ae | 1 |
| 055 | 5A9271 | • • • CONTACT - SOCKET PRE SBE70-0156 | aa | 7 |
| 055A | ESC30S16BC | • • • CONTACT - SOCKET POST SBE70-0156 | ab-ae | 7 |
| 069 | MS3187-16-2 | • • PLUG - SEALING 96906 | aa-ae | 3 |
| 070 | 5A9261 | • • RECEPTCL (FIN 4100KS-C) | aa-ae | 1 |
| 070A | ESC10SE61407S60 | • • CONNECTR (FIN 4100KS-C) | aa-ae | 1 |
| 075 | 5A9271 | • • • CONTACT - SOCKET PRE SBE70-0156 | aa | 7 |
| 075A | ESC30S16BC | • • • CONTACT - SOCKET POST SBE70-0156 | ab-ae | 7 |
| 089 | MS3187-16-2 | • • PLUG - SEALING 96906 | aa-ae | 3 |
| 090 | 5A9258 | • • PLUG PRE SBE70-0156 | aa-ae | 1 |
| 090A | ESC10SE61203SN0 | • • CONNECTR (FIN 4000JH1-A) | aa-ae | 1 |
| 095 | 5A9271 | • • • CONTACT - SOCKET PRE SBE70-0156 | aa | 3 |
| 095A | ESC30S16BC | • • • CONTACT - SOCKET POST SBE70-0156 | ab-ae | 3 |
| 109 | MS3187-16-2 | • • PLUG - SEALING 96906 | aa-ae | 1 |
| 110 | 5A9258 | • • PLUG PRE SBE70-0156 | aa-ae | 1 |
| 110A | ESC10SE61203SN0 | • • CONNECTR (FIN 40000JH2-A) | aa-ae | 1 |
| 115 | 5A9271 | • • • CONTACT - SOCKET PRE SBE70-0156 | aa | 3 |
| 115A | ESC30S16BC | • • • CONTACT - SOCKET POST SBE70-0156 | ab-ae | 3 |
| 129 | MS3187-16-2 | • • PLUG - SEALING 96906 | aa-ae | 1 |
| 889 | 5A9189 | • • KNITMESH PRE SBE70-0367 | aa-ac | 1 |
| 894 | 5A9194 | • • CABLE PRE SBE70-0324 | aa-ac | 1 |
| 894A | ESW1202-022-012 | • • CABLE - ELECTRICAL (SPARE IS U440179) ALT 5A9194 POST SBE70-0324 PRE SBE70-0367 | aa-ac | 1 |
| -894B | 5A9194 | • • CABLE - 16AWG(2C) ALT ESW1202-022-012 POST SBE70-0324 PRE SBE70-0367 | ac | REF |
| 894C | ESW1202-022-012 | • • CABLE - ELECTRICAL (SPARE IS U440179) POST SBE70-0367 PRE SBE70-0638 | ad | 1 |
| 894D | U440179 | • • CABLE - 30ME,100FT REEL ALT ESW1202-022-012 (BLK ESW1202-022-012) | ad | 1 |
| -894E | ESW1202-022-012 | • • CABLE - ELECTRICAL (SPARE IS U440179) ALT U440179 POST SBE70-0638 | ad | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

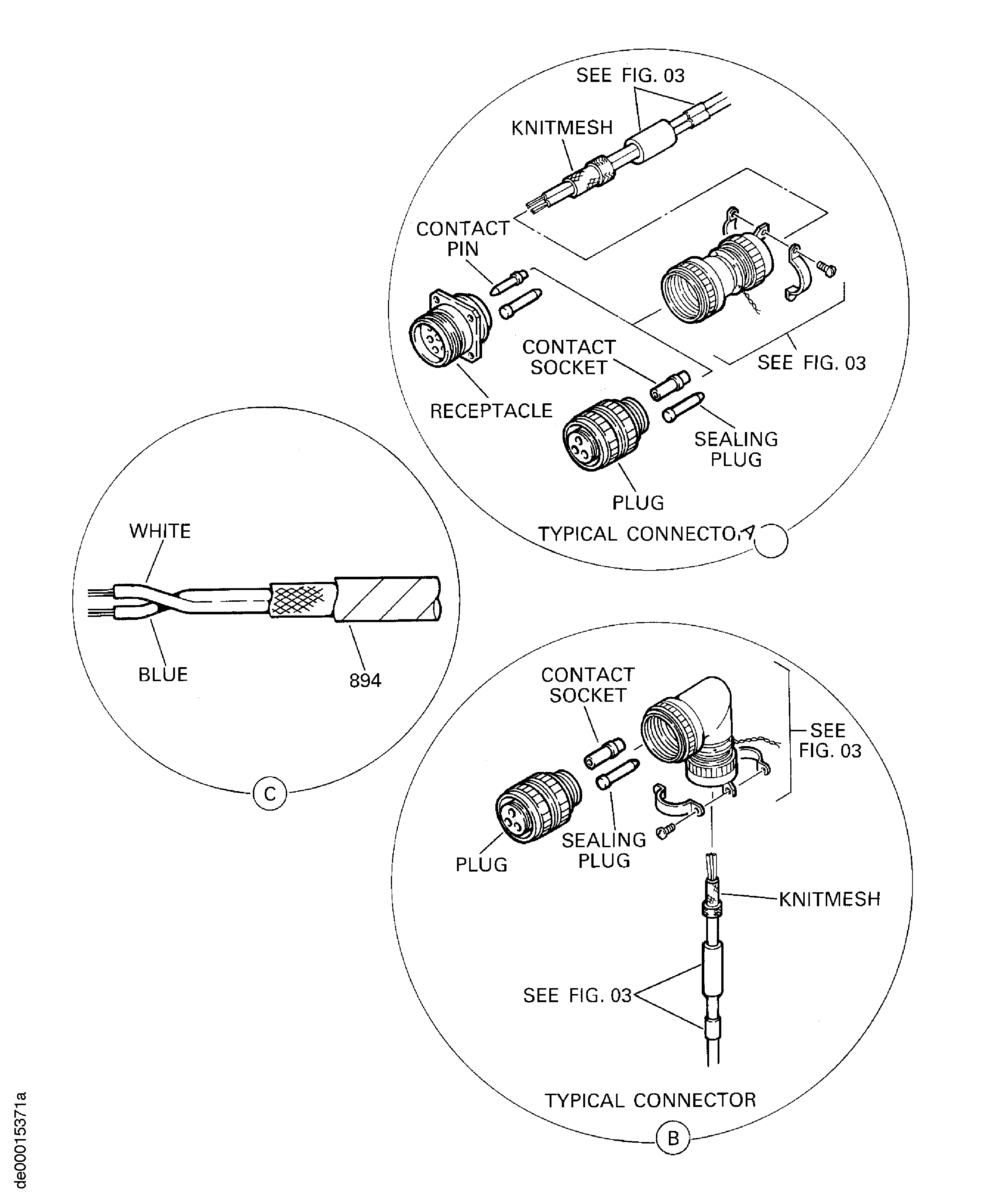

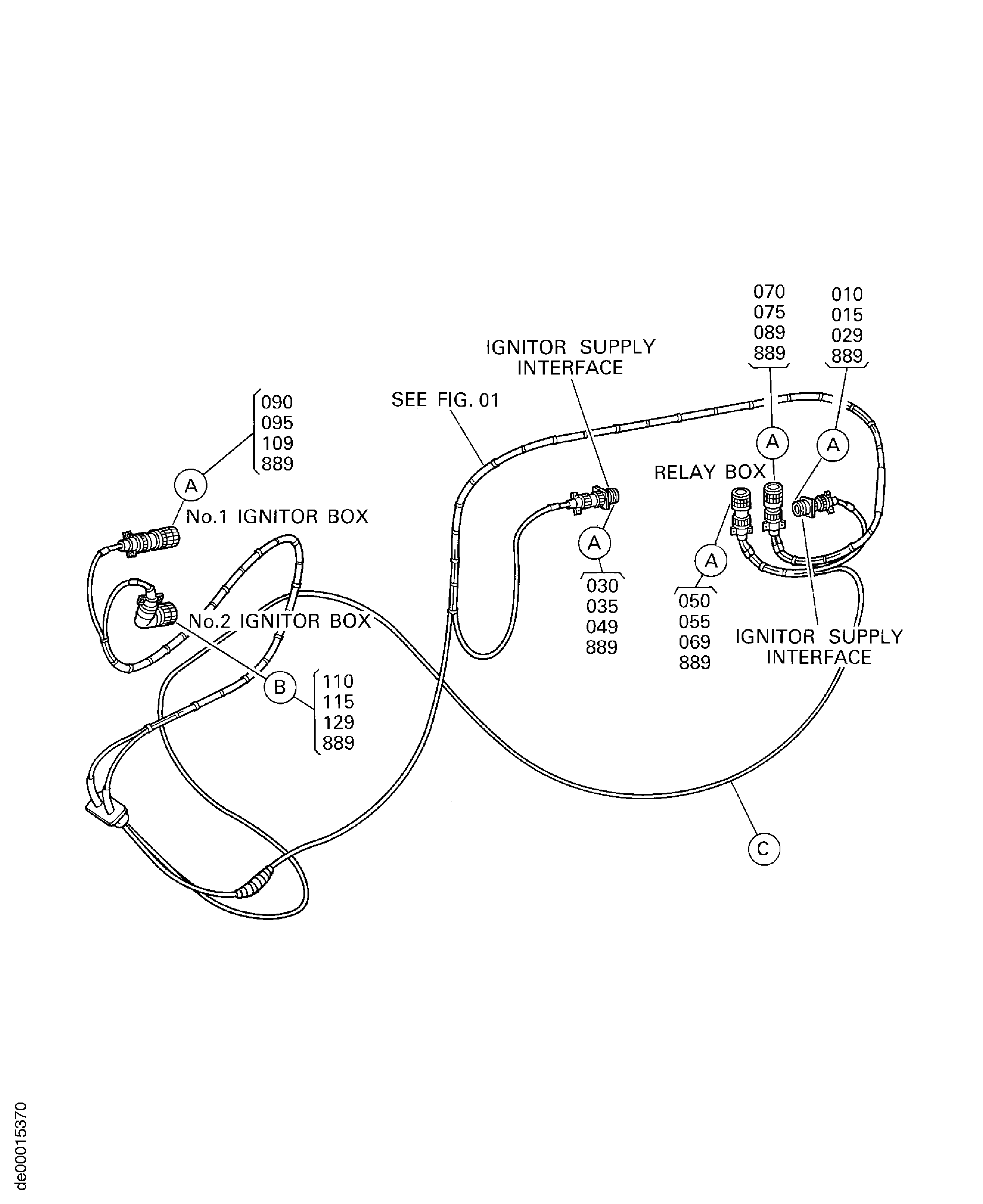

Figure: ELECT HARNESS-LIGHT DUTY-IGNITION SUPPLY HARNESS
IGNITION SUPPLY HARNESS
IGNITION SUPPLY HARNESS
