BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN

DMC:V2500-A1-71-51-50-01A-941A-D|Issue No:002|Issue Date:2014-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig. Item	Part No.	Description	Effect/Model Applic.	UPA
01
000	B71515001	BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN, PRE SBE79-0005	aa
000	SBE0005-01	BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN, PRE SBE72-0052	ab
000	SBE0052-01	BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN, PRE SBE71-0107	ac
000	SBE0107-01	BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN, PRE SBE73-0045	ad
000	SBE0045-01	BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN, PRE SBE71-0109	ae
000	SBE0109-01	BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN, PRE SBE79-0087	af
000	SBE0087-01	BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN, PRE SBE70-0734	ag
000	SBE0734-01	BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN	ah
080080	FEB5022	• STRAP - BONDING U5082	aa-ah	1

081081	HL94DU8	• COLLAR 73197	aa-ah	1
083083	HL12V8-4	• PIN 73197	aa-ah	1
084084	4W2622	• WASHER	aa-ah	1
085085	4W0002	• NUT - .250 DIA	aa-ah	1
087087	4W0164	• BOLT - .250 DIA X .625	aa-ah	1
088088	4W2622	• WASHER	aa-ah	1

100100	5A8787	• TUBE - A/O RACEWAY CLIPPING PRE SBE71-0107	aa-ac	1
100100A	6A5105	• TUBE - A/O RACEWAY CLIPPING POST SBE71-0107 PRE SBE71-0109	ad-ae	1
100100B	5A8802	• TUBE - A/O-RACEWAY CLIPPING POST SBE71-0109 PRE SBE79-0087	af	1
100100C	6A6237	• TUBE - A/O FANCASE POST SBE79-0087	ag-ah	1

101101	4W0101	• BOLT - .190 DIA X .375 PRE SBE79-0005	aa	1
101101A	4W0102	• BOLT - .190 DIA X .438 POST SBE79-0005	ab-ah	1
108108	4W0043	• NUT - .190 DIA	aa-ah	1
112112	400WSS8	• CLIP 83930 PRE SBE73-0045	aa-ad	1
112112A	AS62408	• CLIP - 12.70 MM (0.500) U1653 POST SBE73-0045	ae-ah	1
117117	4W0115	• BOLT - .190 DIA X 1.250 PRE SBE72-0052	aa-ab	1
117117A	4W0116	• BOLT - .190 DIA X 1.312 POST SBE72-0052 PRE SBE71-0109	aa-ae	1
117117B	4W0126	• BOLT - .190 DIA X 1.938 POST SBE71-0109 PRE SBE79-0087	af	1
118118	5W1086	• WASHER PRE SBE79-0087	aa-af	2
120120	400WSS8	• CLIP 83930 PRE SBE79-0087	aa-af	1
122122	5W1031	• SPACER - (15MM) PRE SBE71-0109	aa-ae	1
122122A	5W1031	• SPACER - (15MM) POST SBE71-0109 PRE SBE79-0087	af	2
124124	4W0001	• NUT - .190 DIA PRE SBE79-0087	aa-af	1
128128	400WSS8	• CLIP 83930 PRE SBE71-0109	aa-ae	1
136136	400WSS8	• CLIP 83930 PRE SBE71-0109	aa-ae	1
144144	400WSS8	• CLIP 83930 PRE SBE71-0109	aa-ae	1
152152	400WSS8	• CLIP 83930 PRE SBE71-0109	aa-ae	1
160160	400WSS8	• CLIP 83930 PRE SBE71-0109	aa-ae	1
169169	AS62408	• CLIP - 12.70 MM (0.500) U1653 POST SBE79-0087	ag-ah	1

214214	5W1063	• • LUG - BRAZED PRE SBE71-0107	aa-ac	18
214214A	5W1063	• • LUG - BRAZED POST SBE71-0107 PRE SBE71-0109	ad-ae	17
214214B	UP11155	• • BRACKET - INTER TUBE SUPPORT POST SBE71-0109 PRE SBE79-0087	af	22
214214C	UP11155	• • BRACKET - INTER TUBE SUPPORT POST SBE79-0087	ag-ah	9
218218	5W8491	• • LUG - BRAZED PRE SBE79-0087	aa-af	4
240240	AS15781	• • WIRE - THRUST U1653 POST SBE79-0087	ag-ah	1
241241	AS15705	• • NUT - TUBE COUPLING U1653 POST SBE79-0087	ag-ah	1
242242	AS15730	• • FERRULE - WELDING TUBE U1653 POST SBE79-0087	ag-ah	1
500500	6A6233	• TUBE - A/O FANCASE POST SBE79-0087	ag-ah	1

536536	AS62408	• CLIP - 12.70 MM (0.500) U1653 POST SBE79-0087	ag-ah	1

614614	UP11155	• • BRACKET - INTER TUBE SUPPORT POST SBE79-0087	ag-ah	8
618618	5W8491	• • LUG - BRAZED POST SBE79-0087	ag-ah	4
642642	AS15810	• • ADAPTOR - STRAIGHT TUBE U1653 POST SBE79-0087	ag-ah	1
700700	6A6231	• TUBE - A/O RACEWAY-FANCASE POST SBE79-0087	ag-ah	1

728728	AS62416	• CLIP - 25.40 MM (1.000) U1653 POST SBE79-0087	ag-ah	1

814814	UP11158	• • BRACKET - INTER TUBE SUPPORT POST SBE79-0087	ag-ah	9
880880	740-5180-503	• BRACKET 51563 (SEE 30-21-49)	aa-ah	1

881881	NAS1291C4M	• NUT 80205	aa-ah	2
881881A	H42-4	• NUT - .250 DIA 15653 ALT NAS1291C4M	aa-ah	2
882882	SP155E	• WASHER	aa-ah	2
883883	740-5923-501	• PACKING 51563	aa-ah	1
884884	NAS7204U6	• BOLT 80205	aa-ah	2

890890	740-5434-503	• BRACKET 51563	aa-ah	1

891891	NAS1291C4M	• NUT 80205	aa-ah	2
891891A	H42-4	• NUT - .250 DIA 15653 ALT NAS1291C4M	aa-ah	2
894894	4W0164	• BOLT - .250 DIA X .625	aa-ah	2

900900	740-5179-501	• RAFT - ASSY 51563 (SEE 30-21-49)	aa-ah	1

904904	AS21510	• BOLT - .250 DIA X .625 U1653	aa-ah	2
904904A	4W0164	• BOLT - .250 DIA X .625	aa-ah	2

920920	740-5431-503	• BRACKET 51563	aa-ah	1

921921	4W0002	• NUT - .250 DIA	aa-ah	2
924924	4W0164	• BOLT - .250 DIA X .625	aa-ah	2

940940	740-5430-503	• BRACKET 51563	aa-ah	1

941941	4W0002	• NUT - .250 DIA	aa-ah	2
944944	AS23024	• BOLT U1653	aa-ah	2
944944A	AS23023	• BOLT U1653	aa-ah	2
945945	SP155E	• WASHER	aa-ah	2

960960	740-5425-505	• BRACKET 51563	aa-ah	2

961961	4W0002	• NUT - .250 DIA	aa-ah	4
964964	4W0164	• BOLT - .250 DIA X .625	aa-ah	4

980980	740-5124-502	• BRACKET - SUPPORT 51563	aa-ah	1
980980A	740-5132-502	• BRACKET - SUPPORT 51563 PRE SBE70-0734	aa-ag	1
980980B	740-5132-501	• BRACKET - SUPPORT 51563 POST SBE70-0734	ah	1
990990	740-5124-504	• BRACKET - SUPPORT 51563	aa-ah	1
990990A	740-5132-504	• BRACKET - SUPPORT 51563 PRE SBE70-0734	aa-ag	1
990990B	740-5132-503	• BRACKET - SUPPORT 51563 POST SBE70-0734	ah	1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	15653
Enterprise Name:	ALCOA FASTENING SYSTEMS
BU Name:	ALCOA FASTENING SYSTEMS
Department:	FULLERTON OPERATIONS PLANT 1
Street:	800 S.STATE COLLEGE BOULEVARD
City:	FULLERTON
State:	CA
Zip Code:	92831
Country:	USA
Phone Number:	1-714-871-1550
Fax Number:	1-714-680-0175
Internet:	www.alcoa.com

Manufacturer Code:	51563
Enterprise Name:	ROHR INC, A COLLINS AEROSPACE COMPANY
BU Name:	ROHR INC, A COLLINS AEROSPACE COMPANY
Street:	850 LAGOON DRIVE
City:	CHULA VISTA
State:	CA
Zip Code:	91910-2098
Country:	USA
Phone Number:	1-619-691-2089
Fax Number:	1-619-691-6195

Manufacturer Code:	73197
Enterprise Name:	HI SHEAR CORP
BU Name:	HI SHEAR CORP
Street:	2600 SKYPARK DRIVE
City:	TORRANCE
State:	CALIFORNIA
Zip Code:	90509-2975
Country:	USA

Manufacturer Code:	80205
Enterprise Name:	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES ASSO OF AMERICAN, INC
BU Name:	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES ASSO OF AMERICAN, INC
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN

Export Control

Copyright

Applicability

Figure: BRACKETS & RACEWAYS-HARNESS SUPPORT-FAN

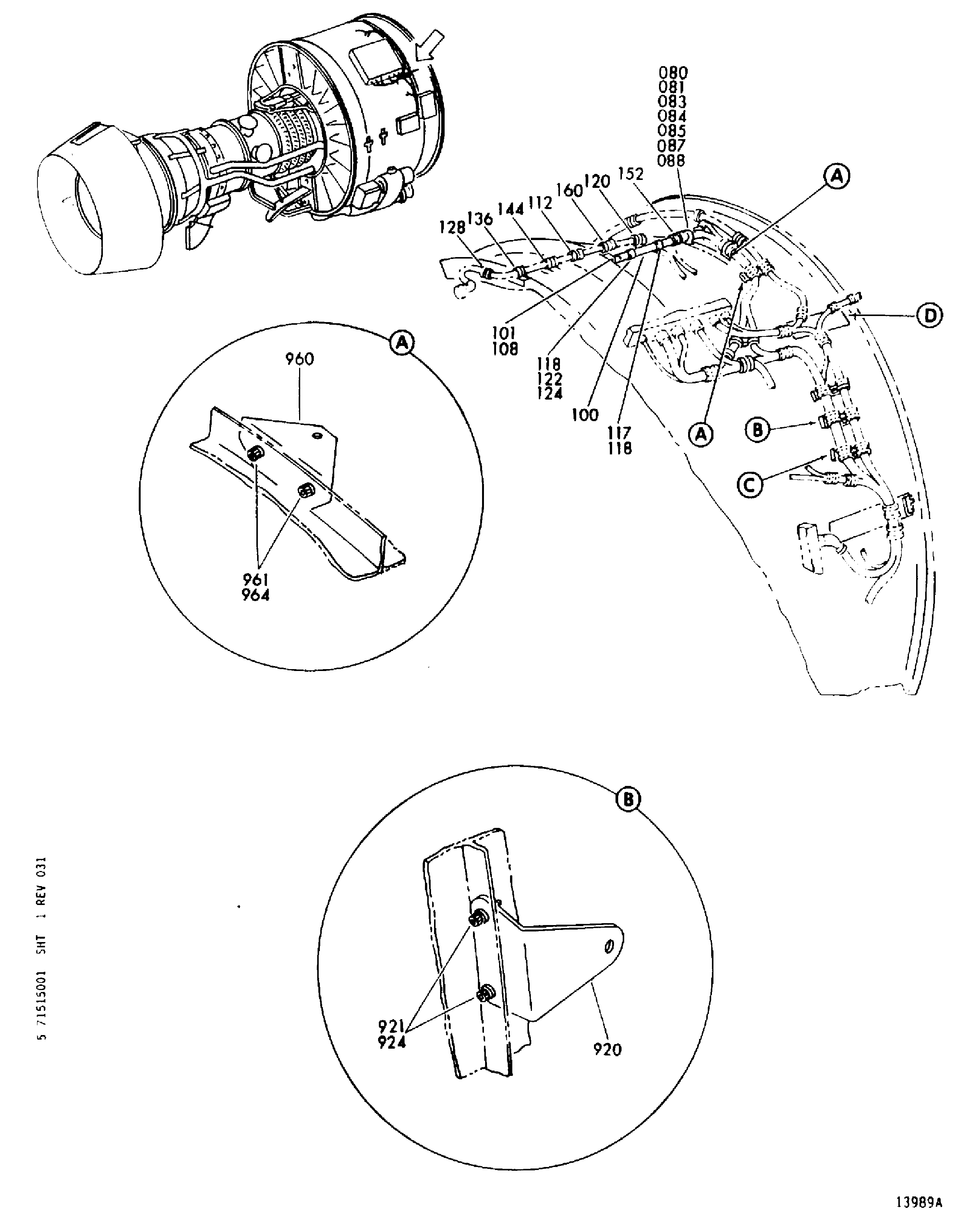

Raceways Fan Harness Support

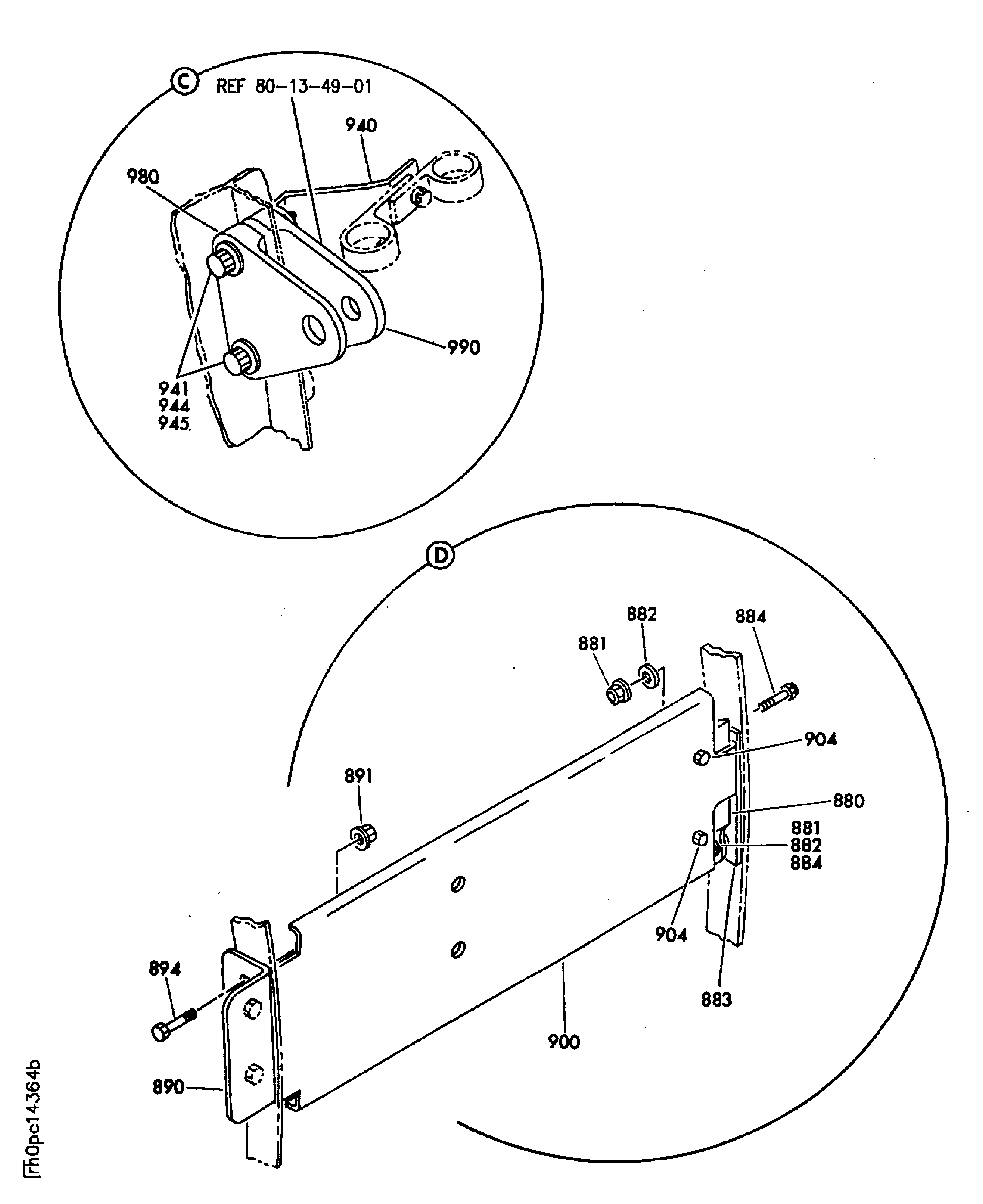

Raceways Fan Harness Support

Manufacturer Code:	83930
Enterprise Name:	TRANSDIGM INC
BU Name:	TRANSDIGM INC
Department:	ADEL FASTENERS
Building:	SANDWELL INDUSTRIAL ESTATE
Street:	5000 TRIGGS STREET
City:	LOS ANGELES
State:	WEST MIDLANDS
Zip Code:	B66 1QJ
Country:	USA

Manufacturer Code:	96906
Enterprise Name:	MILITARY STANDARDS MANUAL 4120 3-M
BU Name:	MILITARY STANDARDS MANUAL 4120 3-M
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

Manufacturer Code:	U1653
Enterprise Name:	Society Of British Aerospace Companies, LTD.

Part Number:	400WSS8
Part Name:	CLIP, LOOP TYPE
Manufacturer Code:	83930

Part Number:	AS20624
Part Name:	NUT, SELF LOCKING DBL HEX - .190 DIA
Manufacturer Code:	U1653

Part Number:	AS20625
Part Name:	NUT, SELF LOCKING, BIHEX, .250 DIA
Manufacturer Code:	U1653
Unit Of Issue:	EA

Part Number:	AS41104
Part Name:	NUT - 0.19 DIA
Manufacturer Code:	U1653
