DMC:V2500-A1-71-52-42-01A-941A-DIssue No:004.00Issue Date:2020-11-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B71524201 | ELECTRICAL HARNESS - LIGHT DUTY - FIRE DETECTION SYSTEM B, PRE SBE70-0136 | aa | ||
| SBE0136-01 | ELECTRICAL HARNESS - LIGHT DUTY - FIRE DETECTION SYSTEM B, PRE SBE70-0158 | ab | ||
| SBE0158-01 | ELECTRICAL HARNESS - LIGHT DUTY - FIRE DETECTION SYSTEM B, PRE SBE71-0067 | ac | ||
| SBE0067-01 | ELECTRICAL HARNESS - LIGHT DUTY - FIRE DETECTION SYSTEM B, PRE SBE71-0112 | ad | ||
| SBE0112-01 | ELECTRICAL HARNESS - LIGHT DUTY - FIRE DETECTION SYSTEM B, PRE SBN70-0097 | ae | ||
| SBN0097-01 | ELECTRICAL HARNESS - LIGHT DUTY - FIRE DETECTION SYSTEM B, PRE SBE70-0393 | af | ||
| SBE0393-01 | ELECTRICAL HARNESS - LIGHT DUTY - FIRE DETECTION SYSTEM B, PRE SBN70-0664 | ag | ||
| SBN0664-01 | ELECTRICAL HARNESS - LIGHT DUTY - FIRE DETECTION SYSTEM B, PRE SBE79-0087 | ah | ||
| SBE0087-01 | ELECTRICAL HARNESS - LIGHT DUTY - FIRE DETECTION SYSTEM B, PRE SBE70-0746 | ai | ||
| SBE0746-01 | ELECTRICAL HARNESS - LIGHT DUTY - FIRE DETECTION SYSTEM B | aj | ||
| -002 | 740-5409-505 | ARRANGEMENT - CORE ELECTRICALRICS 51563 | aa-aj | REF |
| 005 | 740-5862-501 | • HARNESS - FIRE DETECT 51563 | aa-aj | 1 |
| 005A | 740-5862-503 | • HARNESS - FIRE DETECT (SYS B) 51563 | aa-aj | 1 |
| 005B | 740-5862-505 | • HARNESS - FIRE DETECT (SYS B) 51563 POST SBE70-0136 | ab-aj | 1 |
| 005C | 740-5862-503 | • HARNESS - FIRE DETECT (SYS B) 51563 POST SBE70-0158 | ac-aj | 1 |
| 005D | 740-5862-507 | • HARNESS - FIRE DETECT (SYS B) 51563 POST SBN70-0097 | af-aj | 1 |
| 005E | 745-5862-501 | • HARNESS 51563 POST SBE70-0393 | ag-aj | 1 |
| -010 | 740-5967-501 | • HARNESS - CORE SERVICES 51563 | aa-aj | REF |
| -010A | 740-5967-523 | • HARNESS - CORE SERVICES 51563 POST SBE79-0087 | ai-aj | REF |
| 038 | AS21408 | • BOLT - .190 DIA X .500 U1653 | aa-aj | 1 |
| 038A | AS21408 | • BOLT - .190 DIA X .500 U1653 POST SBE70-0158 PRE SBE70-0746 | ac-ai | 1 |
| 038B | 4W0103 | • BOLT - .190 DIA X .500 POST SBE70-0746 | aj | 1 |
| 040 | SP154D | • WASHER - 0.190 DIA K7766 | aa-aj | 1 |
| 040A | SP154D | • WASHER - 0.190 DIA K7766 POST SBE70-0158 PRE SBE70-0746 | ac-ai | 1 |
| 040B | SP154D | • WASHER - 0.190 DIA K7766 POST SBE70-0746 | aj | 1 |
| 043 | JM44LC39H101RG | • CLAMP - LOOP 22175 | aa-aj | 1 |
| 043A | TA027000PH02WC | • CLIP 84971 | aa-aj | 1 |
| 043B | TA027000PH02WC | • CLIP 84971 POST SBE70-0158 | ac-aj | 1 |
| 043C | TA025074-03 | • CLAMP - LOOP, CUSHION, 4.78 MM (0.188) 84971 ALT AS61933 POST SBE71-0067 PRE SBE70-0746 | ad-ai | 1 |
| -043D | AS61933 | • CLAMP - LOOP, CUSHION U1653 ALT TA025074-03 POST SBE71-0067 PRE SBE70-0746 | ad-ai | REF |
| 043E | TA025074-03 | • CLAMP - LOOP, CUSHION, 4.78 MM (0.188) 84971 ALT AS61933 POST SBE70-0746 | ad-ai | 1 |
| -043F | AS61933 | • CLAMP - LOOP, CUSHION U1653 ALT TA025074-03 POST SBE70-0746 | ad-ai | REF |
| 045 | AS41104 | • NUT - 0.19 DIA U1653 | aa-aj | 1 |
| 045A | AS41104 | • NUT - 0.19 DIA U1653 POST SBE70-0158 PRE SBE70-0746 | ac-ai | 1 |
| 045B | AS41104 | • NUT - 0.19 DIA U1653 POST SBE70-0746 | aj | 1 |
| 046 | AS21408 | • BOLT - .190 DIA X .500 U1653 | aa-aj | 1 |
| 046A | AS21408 | • BOLT - .190 DIA X .500 U1653 POST SBE70-0158 PRE SBE70-0746 | ac-ai | 1 |
| 046B | 4W0103 | • BOLT - .190 DIA X .500 POST SBE70-0746 | aj | 1 |
| 049 | SP154D | • WASHER - 0.190 DIA K7766 | aa-aj | 1 |
| 049A | SP154D | • WASHER - 0.190 DIA K7766 POST SBE70-0158 PRE SBE70-0746 | ac-ai | 1 |
| 049B | SP154D | • WASHER - 0.190 DIA K7766 POST SBE70-0746 | aj | 1 |
| 051 | JM44LC39H101RG | • CLAMP - LOOP 22175 | aa-aj | 1 |
| 051A | TA027000PH03WC | • CLIP 84971 | aa-aj | 1 |
| 051B | TA027000PH03WC | • CLIP 84971 POST SBE70-0158 | ac-aj | 1 |
| 051C | TA025074-03 | • CLAMP - LOOP, CUSHION, 4.78 MM (0.188) 84971 ALT AS61933 POST SBE71-0067 PRE SBE70-0746 | ad-ai | 1 |
| -051D | AS61933 | • CLAMP - LOOP, CUSHION U1653 ALT TA025074-03 POST SBE71-0067 PRE SBE70-0746 | ad-ai | REF |
| 051E | TA025074-03 | • CLAMP - LOOP, CUSHION, 4.78 MM (0.188) 84971 ALT AS61933 POST SBE70-0746 | ad-ai | 1 |
| -051F | AS61933 | • CLAMP - LOOP, CUSHION U1653 ALT TA025074-03 POST SBE70-0746 | ad-ai | REF |
| 053 | AS20624 | • NUT, SELF LOCKING DBL HEX - .190 DIA U1653 | aa-aj | 1 |
| 053A | AS20624 | • NUT, SELF LOCKING DBL HEX - .190 DIA U1653 POST SBE70-0158 PRE SBE70-0746 | ac-ai | 1 |
| 053B | 4W0001 | • NUT, OPTION - .190 DIA POST SBE70-0746 | aj | 1 |
| 055 | TA027000PH03WC | • CLIP 84971 | aa-aj | 1 |
| 055A | TA027000PH03WC | • CLIP 84971 POST SBE70-0158 | ac-aj | 1 |
| 055B | TA025074-04 | • CLAMP - LOOP, CUSHION, 6.35 MM (0.250) 84971 ALT AS61902 POST SBE71-0067 PRE SBE70-0746 | ad-ai | 1 |
| -055C | AS61902 | • CLAMP - LOOP, CUSHION U1653 ALT TA025074-04 POST SBE71-0067 PRE SBE70-0746 | ad-ai | REF |
| 055D | TA025074-04 | • CLAMP - LOOP, CUSHION, 6.35 MM (0.250) 84971 ALT AS61902 POST SBE70-0746 | ad-ai | 1 |
| -055E | AS61902 | • CLAMP - LOOP, CUSHION U1653 ALT TA025074-04 POST SBE70-0746 | ad-ai | REF |
| 061 | AS21408 | • BOLT - .190 DIA X .500 U1653 POST SBE71-0112 | ae-aj | 1 |
| 063 | K8831 | • WASHER - .190 DIA X 0.51 THK POST SBE71-0112 | ae-aj | 2 |
| 065 | AS62503 | • CLAMP - LOOP, CUSHION, 4.77 MM (0.188) U1653 POST SBE71-0112 | ae-aj | 1 |
| 067 | AS20624 | • NUT, SELF LOCKING DBL HEX - .190 DIA U1653 POST SBE71-0112 | ae-aj | 1 |
| 080 | AS21407 | • BOLT - .190 DIA X .500 U1653 POST SBE79-0087 PRE SBE70-0746 | ai | 1 |
| 080A | AS21407 | • BOLT - .190 DIA X .500 U1653 POST SBE70-0746 | aj | 1 |
| 081 | SP154D | • WASHER - 0.190 DIA K7766 POST SBE79-0087 PRE SBE70-0746 | ai | 1 |
| 081A | SP154D | • WASHER - 0.190 DIA K7766 POST SBE70-0746 | aj | 1 |
| 083 | TA025074-05 | • CLAMP - LOOP, CUSHION, 0.313 DIA 84971 POST SBE79-0087 PRE SBE70-0746 | ai | 1 |
| 083A | TA025074-05 | • CLAMP - LOOP, CUSHION, 0.313 DIA 84971 POST SBE70-0746 | aj | 1 |
| -083B | AS61903 | • CLAMP - LOOP, CUSHION U1653 POST SBE70-0746 | aj | REF |
| 087 | 4W0001 | • NUT, OPTION - .190 DIA Optional Part 4W0001 POST SBE79-0087 PRE SBE70-0746 | ai | 1 |
| 087A | 4W0001 | • NUT, OPTION - .190 DIA Optional Part 4W0001 POST SBE70-0746 | aj | 1 |
| 100 | 380AS003M1204A2 | • • BACKSHELL 51563 PRE SBE70-0136 | aa | 1 |
| 100A | 387AS008M1204A2 | • • BACKSHELL 06324 (FIN 4001WD2) | aa-aj | 1 |
| 100B | ESC77E14 | • • CLAMP - BACKSHELL U1653 POST SBN70-0664 | ah-aj | 1 |
| 150 | 892-26K14S5SN | • • CONNECTOR F0225 (FIN 4001WD2) | aa-aj | 1 |
| 150A | MS3459KS14S5S | • • CONNECTOR - ELECTRICAL 96906 POST SBN70-0664 | ah-aj | 1 |
| 200 | 380AS003M1204A2 | • • BACKSHELL 51563 PRE SBE70-0136 | aa | 1 |
| 200A | 387AS008M1204A2 | • • BACKSHELL 06324 (FIN 454VCAB) POST SBE70-0136 | aa-aj | 1 |
| 250 | E0442SE12-03PN | • • CONNECTOR F0225 (FIN 454VCA) | aa-aj | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

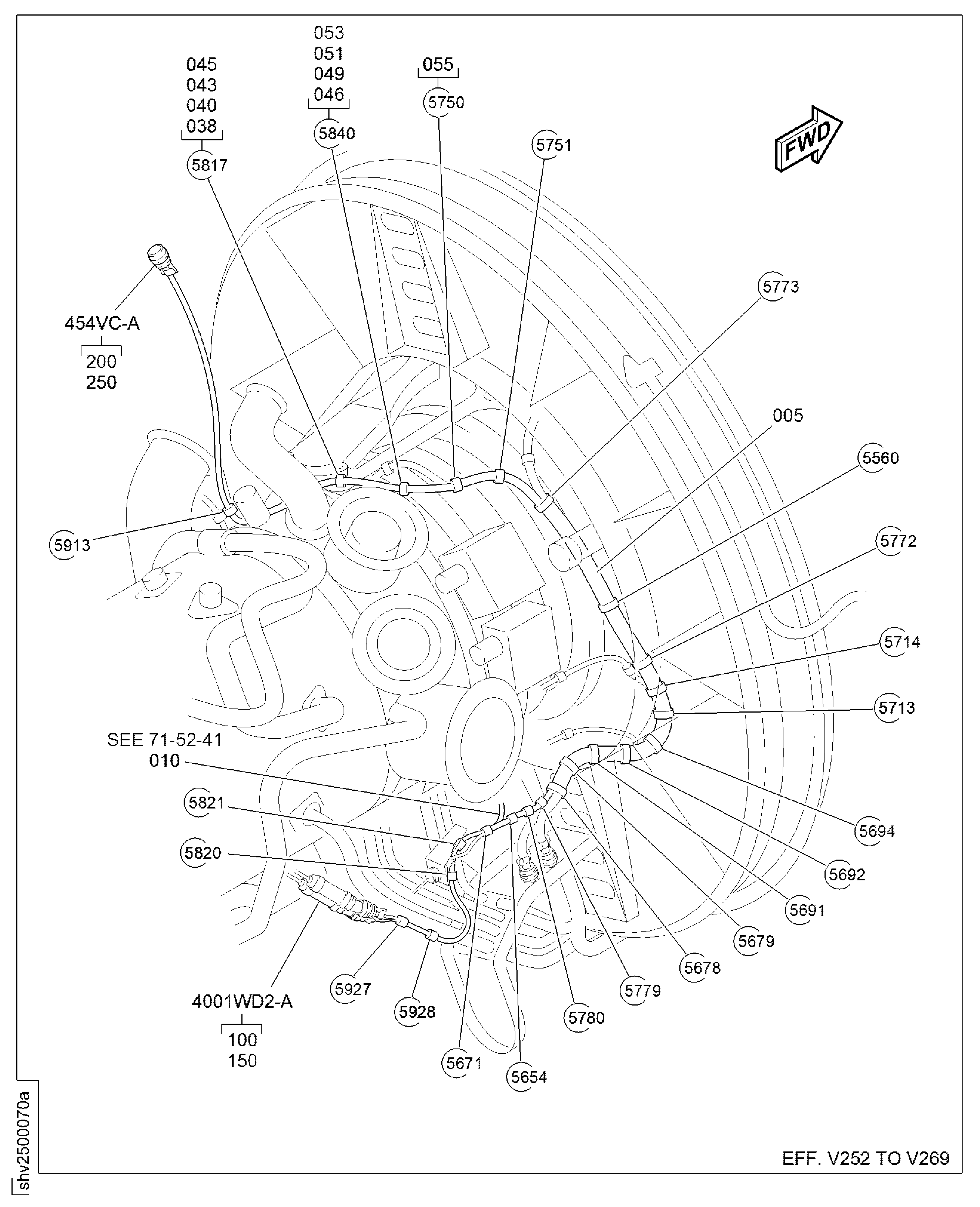

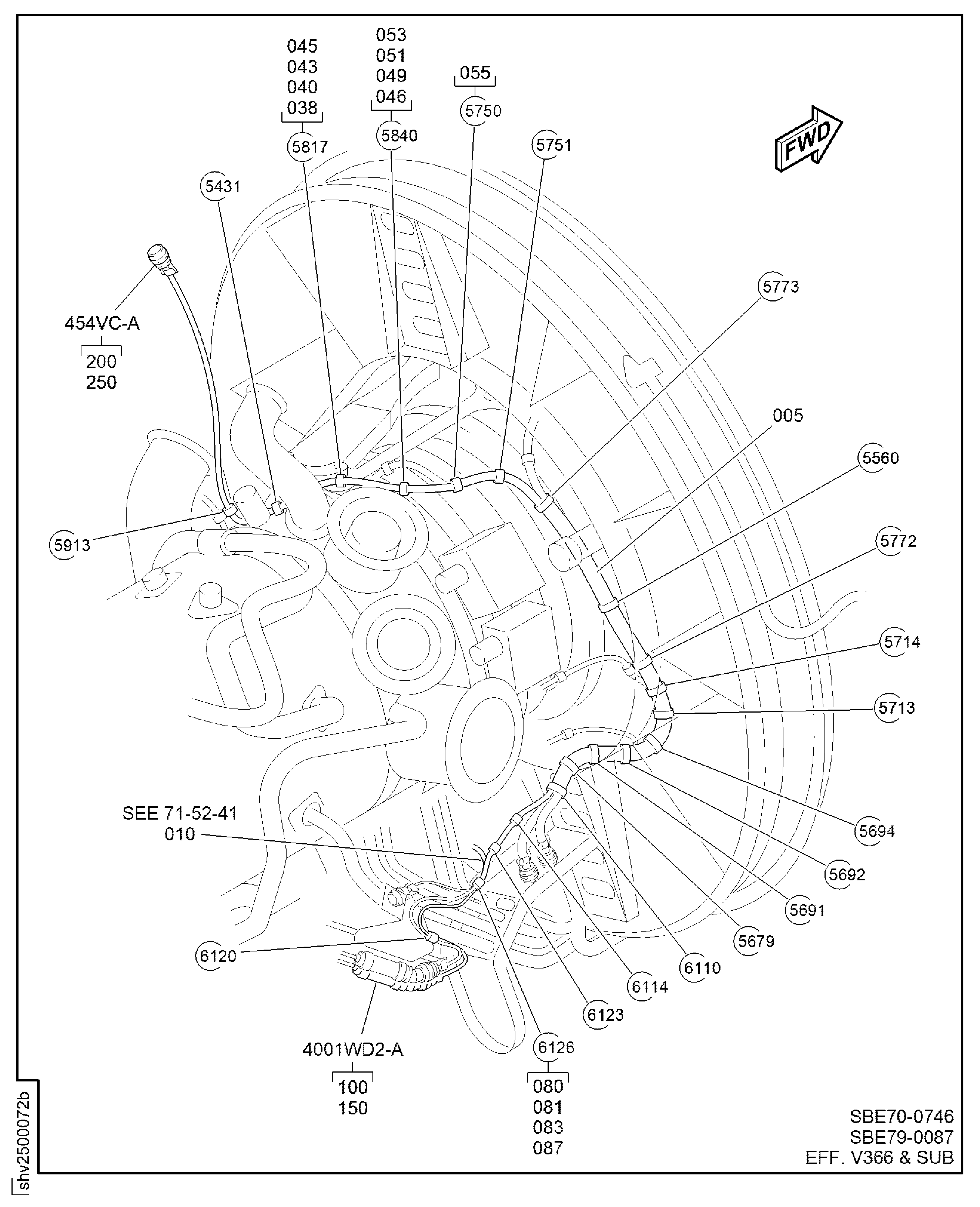

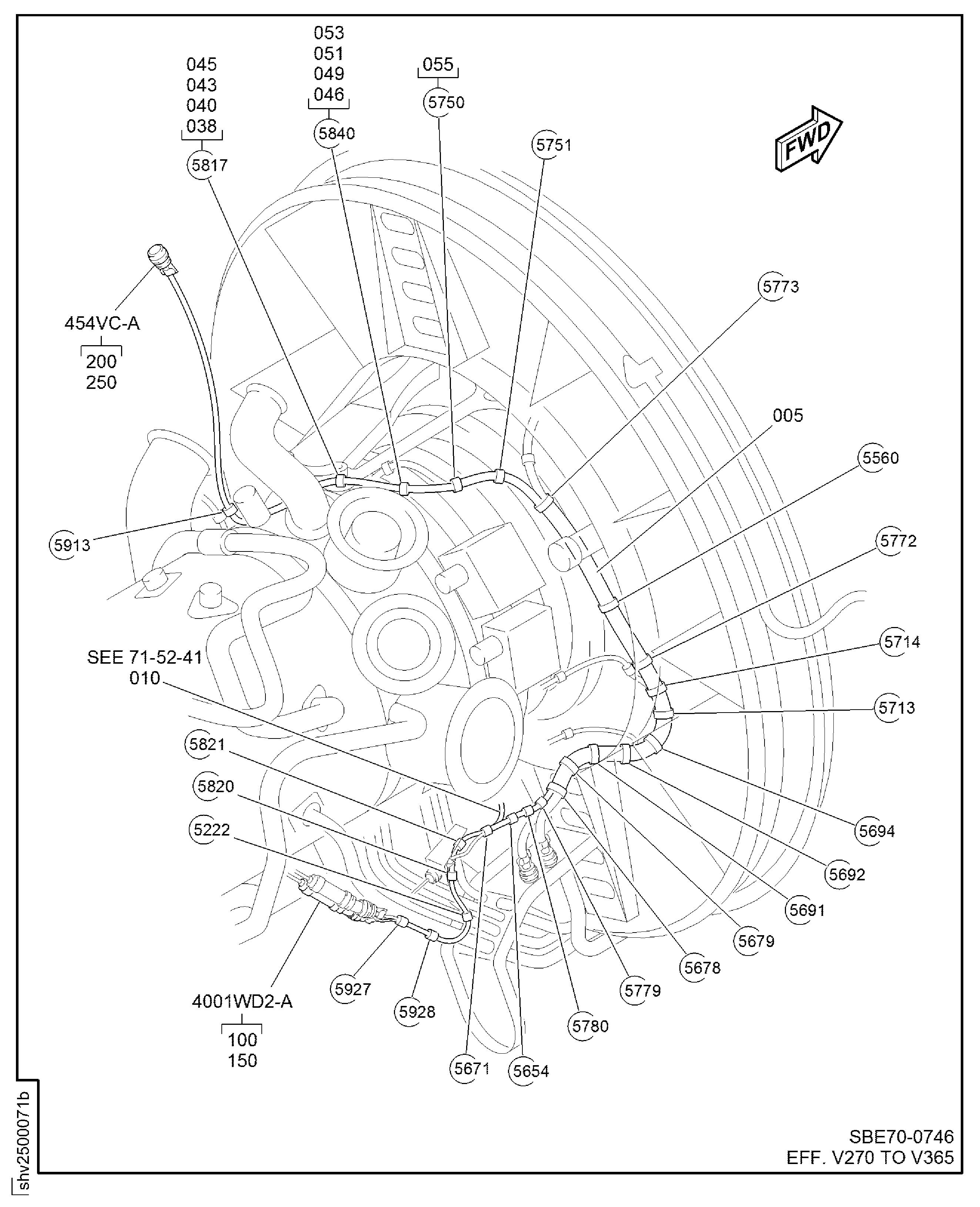

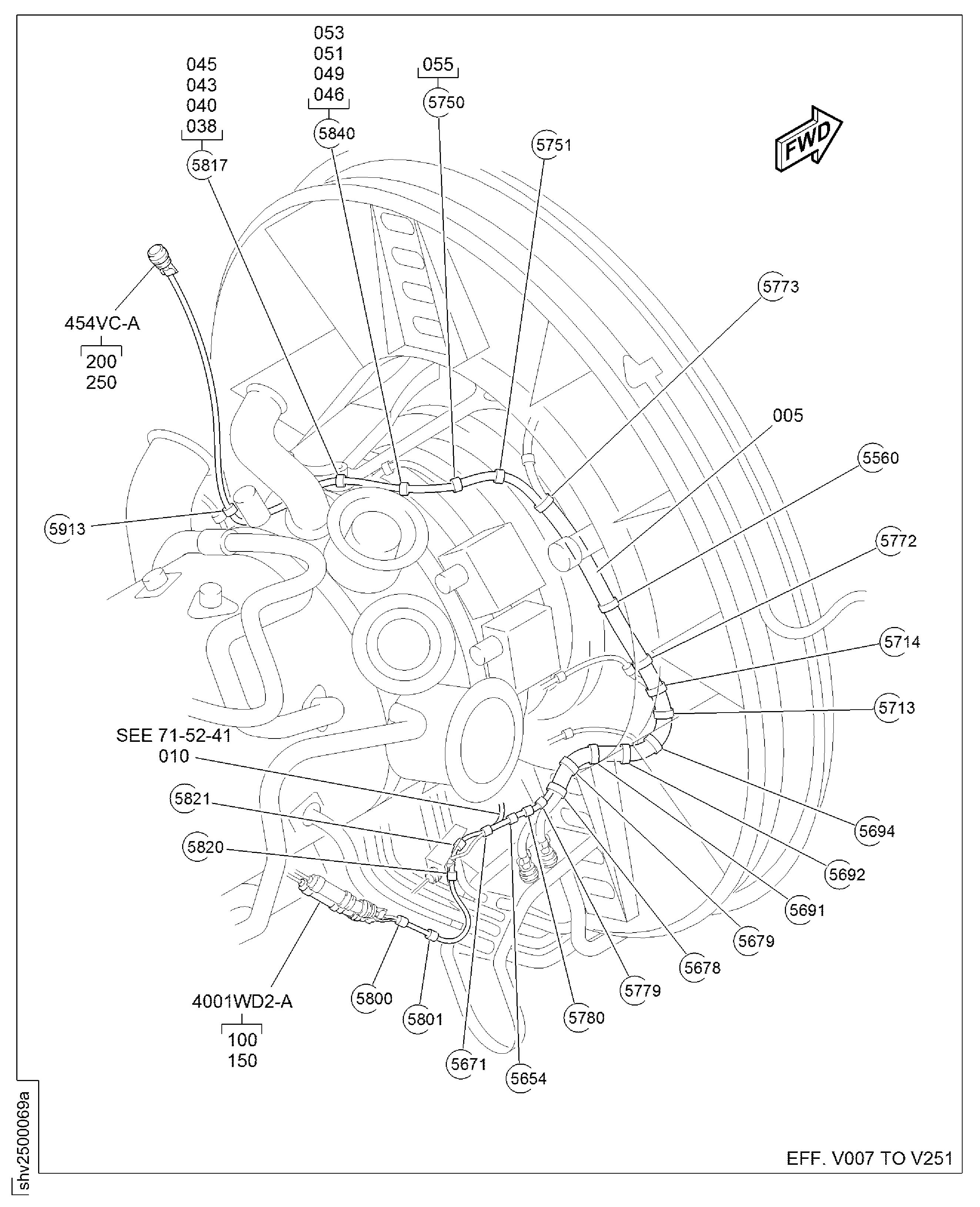

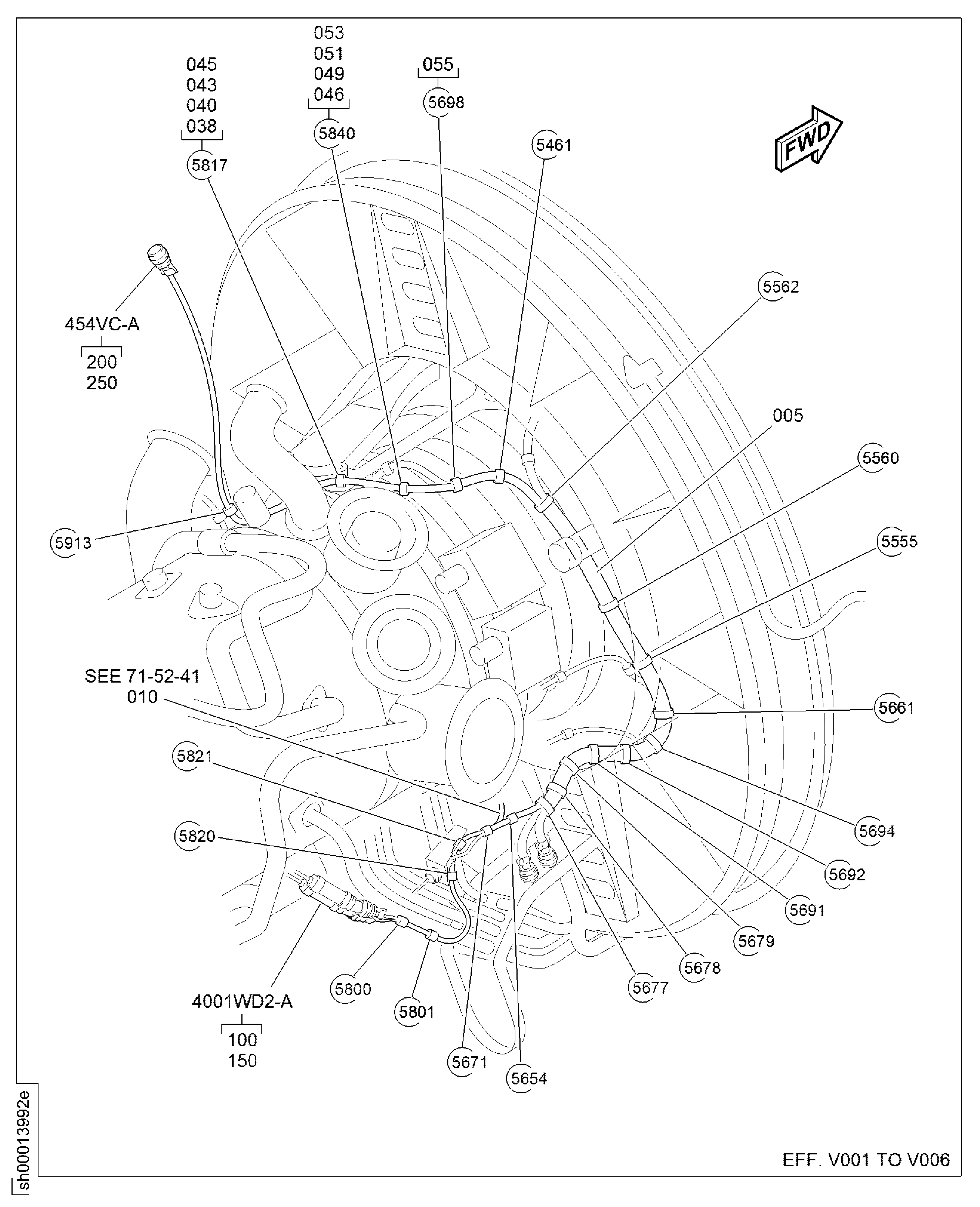

Figure: ELECT HARNESS-LIGHT DUTY-FIRE DETECTION SYSTEM B
HARNESS FIRE DETECTION (SYS B)
HARNESS FIRE DETECTION (SYS B)
HARNESS FIRE DETECTION (SYS B)
HARNESS FIRE DETECTION (SYS B)
HARNESS FIRE DETECTION (SYS B)
