DMC:V2500-A1-71-52-42-05A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 05 | ||||
| B71524205 | ELECT HARNESS-LIGHT DUTY-FIRE DETECTION SYSTEM B, PRE SBE70-0158 | aa | ||
| SBE0158-01 | ELECT HARNESS-LIGHT DUTY-FIRE DETECTION SYSTEM B | ab | ||
| -005 | 740-5862-501 | HARNESS - FIRE DETECT 51563 | aa-ab | REF |
| -010 | 740-5457-505 | • BRACKET 51563 Optional Part 740-5457-505 (SEE 72–41–00) | aa-ab | REF |
| -010A | 740-5457-505 | • BRACKET 51563 POST SBE70-0158 | ab | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

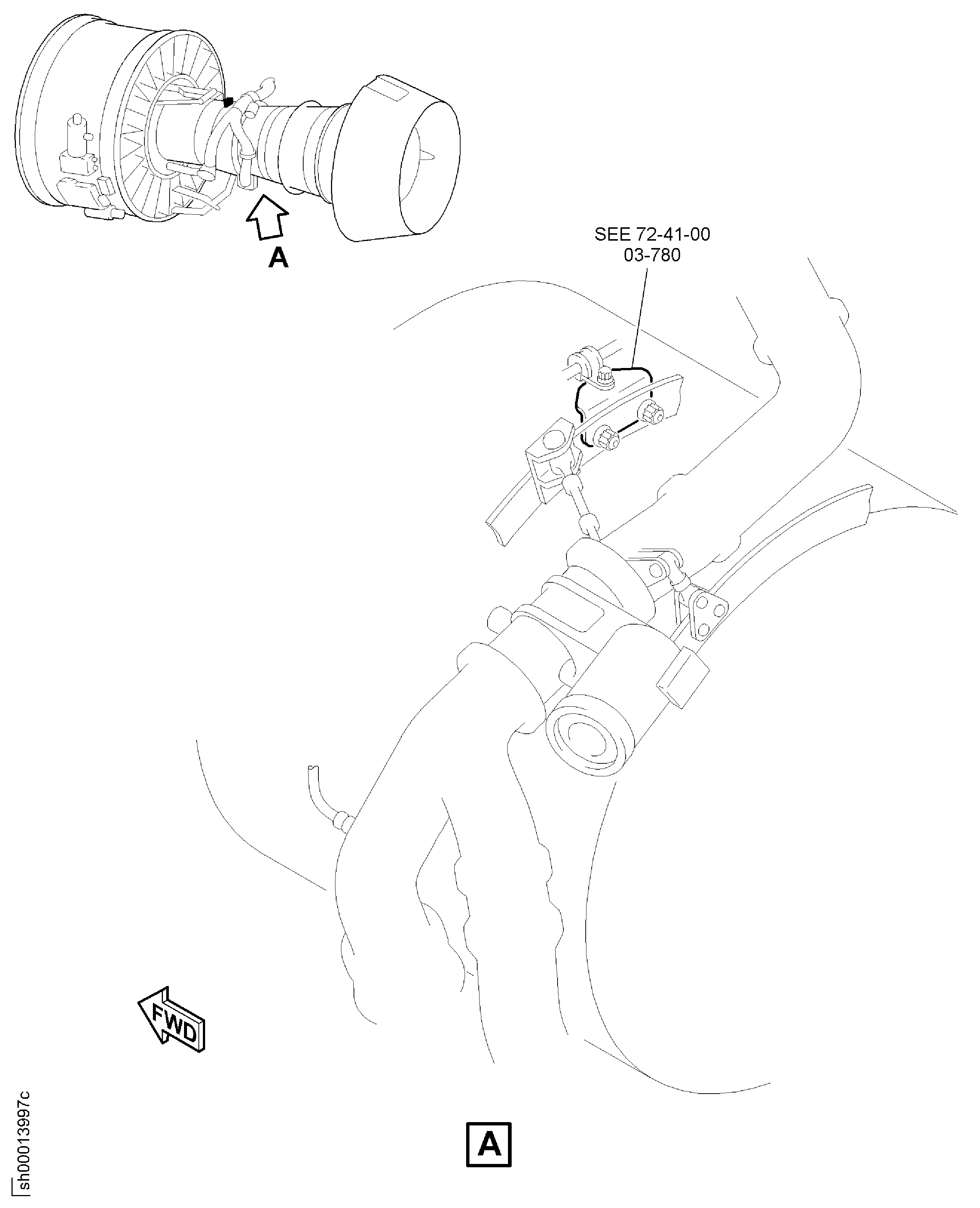

Figure: ELECT HARNESS-LIGHT DUTY-FIRE DETECTION SYSTEM B
HARNESS FIRE DETECTION
