DMC:V2500-A1-71-52-43-05A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 05 | ||||
| B71524305 | ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE, PRE SBE71-0063 | aa | ||
| SBE0063-01 | ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE, PRE SBE70-0108 | ab | ||
| SBE0108-01 | ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE | ac | ||
| 100 | 5W2556 | • RACEWAY - HARNESS PRE SBE70-0108 | aa-ac | 1 |
| 100A | 5W2176 | • RACEWAY - ASSY OF POST SBE70-0108 | aa-ac | 1 |
| 214 | 5W1063 | • • LUG - BRAZED | aa-ac | 4 |
| 940 | 5W2166 | • BRACKET POST SBE71-0063 PRE SBE71-0111 | ***** | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

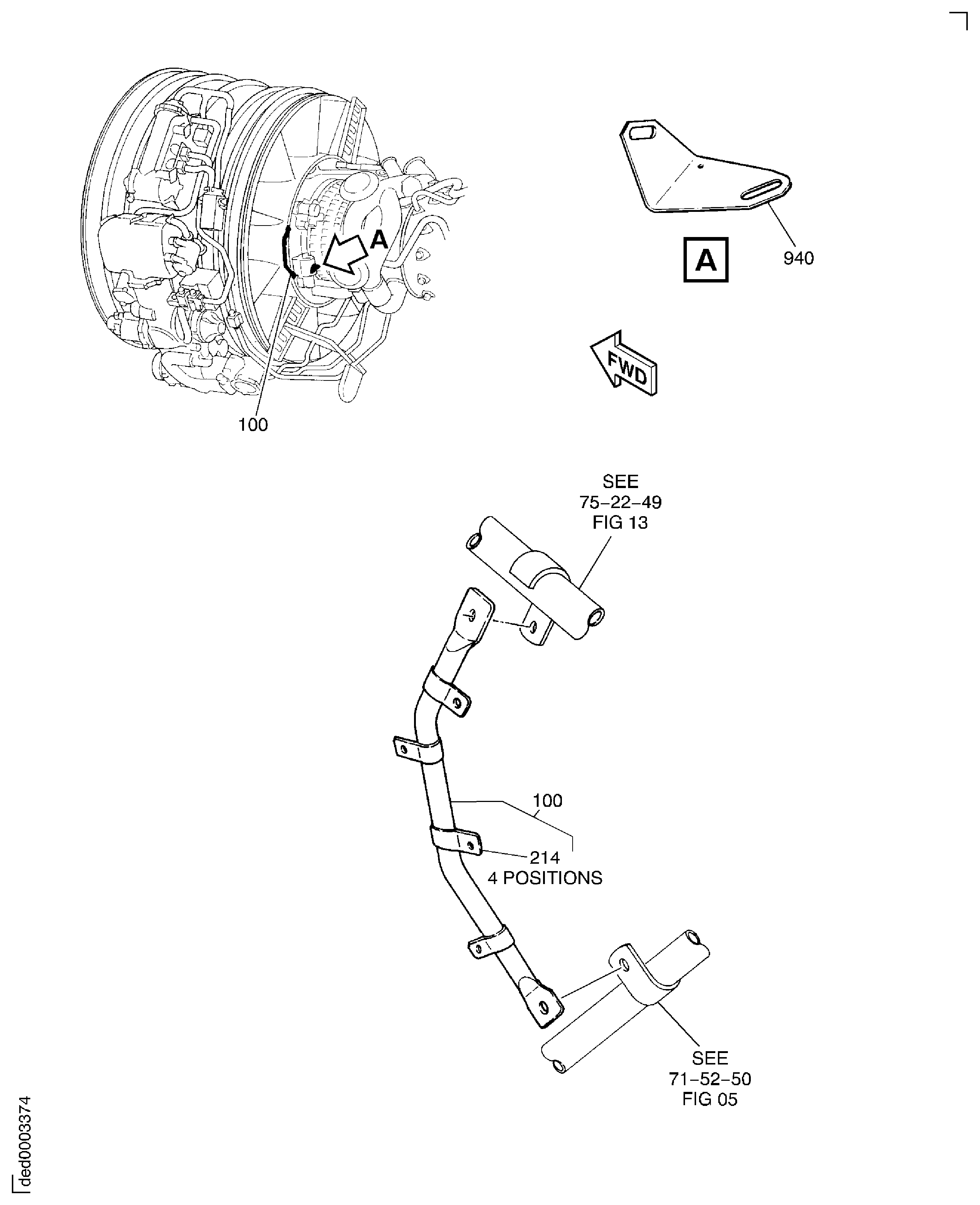

Figure: ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE
EEC HARNESS CORE
