DMC:V2500-A1-71-52-43-06A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 06 | ||||
| B71524306 | ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE, PRE SBE71-0303 | aa | ||
| SBE0303-01 | ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE, PRE SBE70-0982 | ab | ||
| SBE0982-01 | ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE | ac | ||
| 005 | 6A8933 | • HARNESS - ASSY VOLTAGE DIVIDER POST SBE71-0303 PRE SBE72-0553 | ***** | 1 |
| 060 | U323092 | • • SLEEVE - .187 DIA HTMS 3/16 INDEF POST SBE70-0982 PRE SBE72-0553 | ***** | 1 |
| -060A | HTSCE3-16-2-0-9 | • • SLEEVE - SHRINK K1010 POST SBE70-0982 PRE SBE72-0553 | ***** | REF |
| 070 | U323090 | • • SLEEVE - .375 DIA HTMS 3/8 INDEF POST SBE70-0982 PRE SBE72-0553 | ***** | 1 |
| -070A | HTSCE3-8-2-0-9 | • • SLEEVE - SHRINK K1010 POST SBE70-0982 PRE SBE72-0553 | ***** | REF |
| 085 | TMS1-4 | • • SLEEVE - SHRINK, WHITE K1010 POST SBE70-0982 PRE SBE72-0553 | ***** | 1 |
| -085A | TMSSCE1-4-2-0-9 | • • SLEEVE - SHRINK, WHITE 6.35MM DIA K1010 POST SBE70-0982 PRE SBE72-0553 | ***** | REF |
| 090 | TMS3-8 | • • SLEEVE - SHRINK, WHITE K1010 POST SBE70-0982 PRE SBE72-0553 | ***** | 1 |
| -090A | TMSSCE3-8-2-0-9 | • • SLEEVE - IDENT K1010 POST SBE70-0982 PRE SBE72-0553 | ***** | REF |
| 203 | AS62205 | • CLIP U1653 POST SBE71-0303 PRE SBE72-0553 | ***** | 1 |
| 300 | 6A8967 | • BOLT - ASSY POST SBE71-0303 PRE SBE72-0553 | ***** | 1 |
| 308 | 4W0344 | • BOLT - .190 DIA X .562 Optional Part 4W0344 POST SBE71-0303 PRE SBE72-0553 | ***** | 1 |
| 311 | AS62203 | • CLIP U1653 POST SBE71-0303 PRE SBE72-0553 | ***** | 1 |
| 314 | 4W0001 | • NUT - .190 DIA POST SBE71-0303 PRE SBE72-0553 | ***** | 1 |
| 320 | AS27831 | • NUT - .138 DIA U1653 POST SBE71-0303 PRE SBE72-0553 | ***** | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

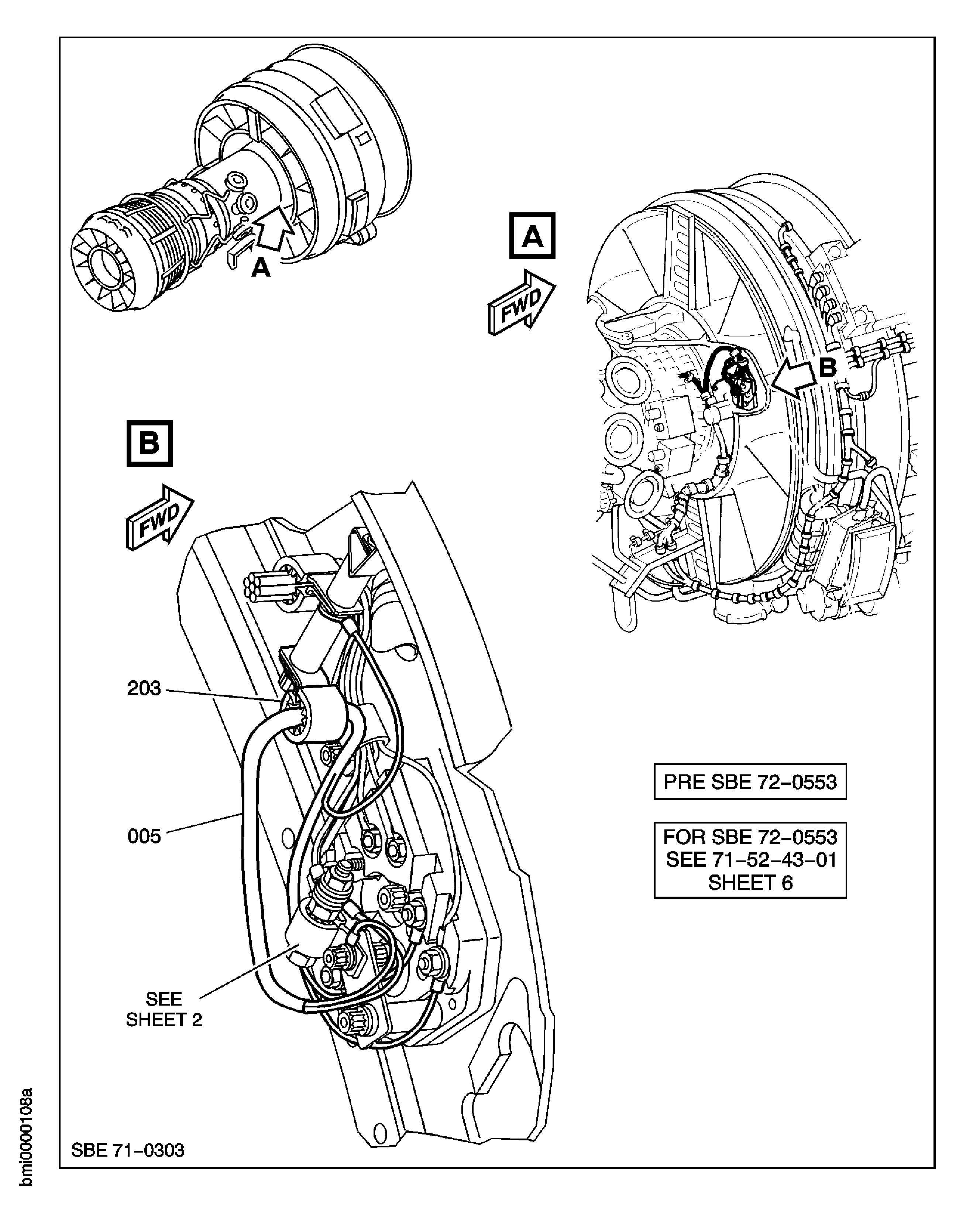

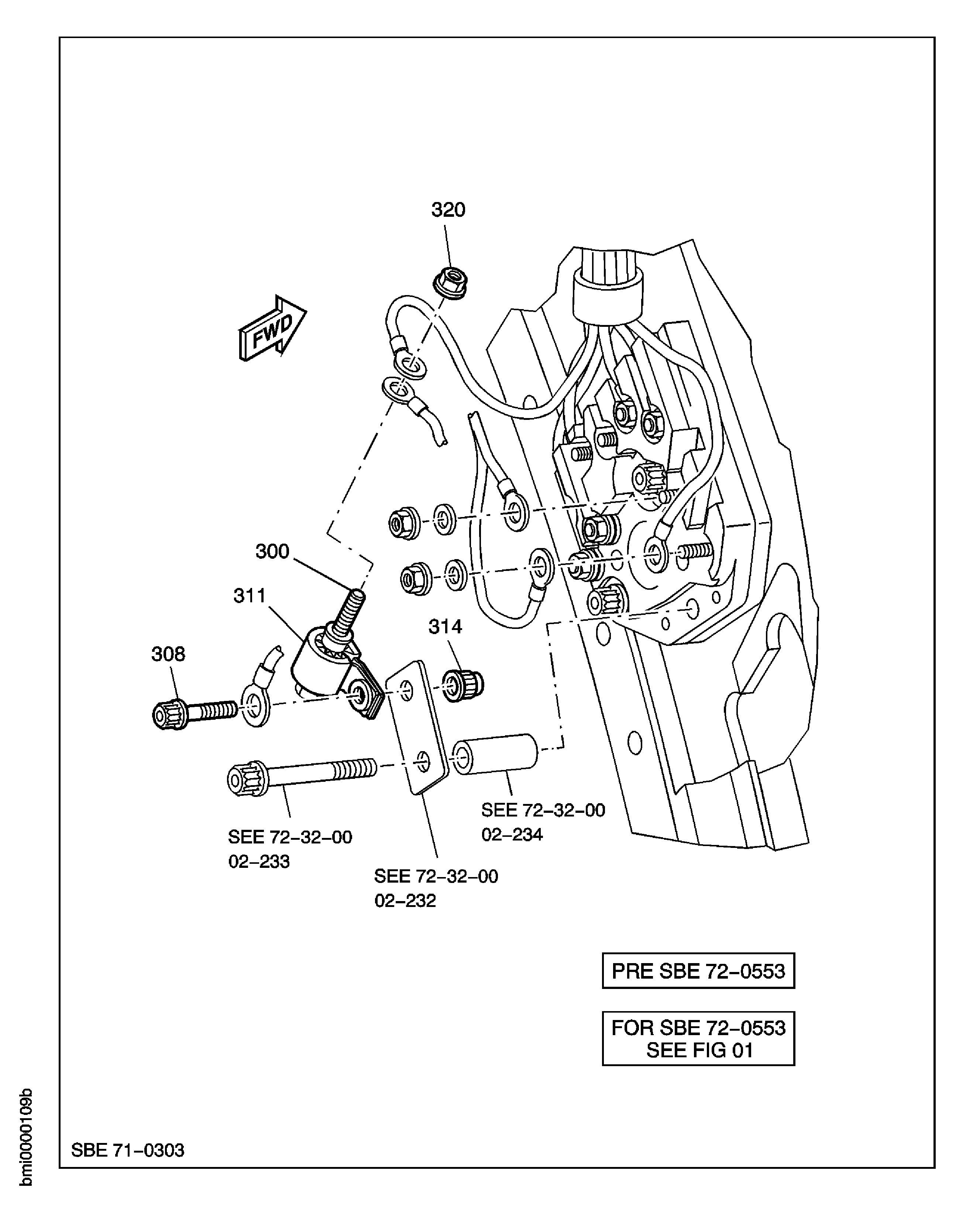

Figure: ELECTRICAL HARNESS-LIGHT DUTY-EEC HARNESS-CORE
EEC HARNESS CORE
EEC HARNESS CORE
