ELECT HARNESS-LIGHT DUTY-EEC LINK HARNESS-CORE

DMC:V2500-A1-71-52-44-01A-941A-D|Issue No:001|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig. Item	Part No.	Description	Effect/Model Applic.	UPA
01
000	B71524401	ELECT HARNESS-LIGHT DUTY-EEC LINK HARNESS-CORE, PRE SBE70-0022	aa
000	SBE0022-01	ELECT HARNESS-LIGHT DUTY-EEC LINK HARNESS-CORE, PRE SBE71-0054	ab
000	SBE0054-01	ELECT HARNESS-LIGHT DUTY-EEC LINK HARNESS-CORE, PRE SBE70-0156	ac
000	SBE0156-01	ELECT HARNESS-LIGHT DUTY-EEC LINK HARNESS-CORE, PRE SBE70-0270	ad
000	SBE0270-01	ELECT HARNESS-LIGHT DUTY-EEC LINK HARNESS-CORE, PRE SBE71-0120	ae
000	SBE0120-01	ELECT HARNESS-LIGHT DUTY-EEC LINK HARNESS-CORE, PRE SBE70-0374	af
000	SBE0374-01	ELECT HARNESS-LIGHT DUTY-EEC LINK HARNESS-CORE, PRE SBE71-0289	ag
000	SBE0289-01	ELECT HARNESS-LIGHT DUTY-EEC LINK HARNESS-CORE	ah
005005	2A1491	• HARNESS - WIRING CORE PRE SBE70-0156	aa-af	1
005005A	6A4719	• HARNESS - ASSY CORE POST SBE70-0156 PRE SBE70-0270	aa-af	1
005005B	6A4719	• HARNESS - ASSY CORE POST SBE70-0270 PRE SBE70-0374	aa-af	1
005005C	6A5877	• HARNESS - ASSY CORE POST SBE70-0374	ag-ah	1

020020	AS27830	• NUT - .1120-40UNJC U1653	aa-ah	4
022022	AS36505	• SCREW - .112 DIA X .312 U1653	aa-ah	4
025025	2A1446	• NUT	aa-ah	2
027027	2A1447	• NUT	aa-ah	2
070070	4W0118	• BOLT - .190 DIA X 1.438	aa-ah	1
070070A	4W0103	• BOLT - .190 DIA X .500	aa-ah	1
071071	AN960XC10L	• WASHER 81352 PRE SBE70-0022	aa-ah	1
071071A	5W1086	• WASHER POST SBE70-0022	aa-ah	1
073073	471-7	• CLIP 83930 PRE SBE71-0054	aa-ah	1
073073A	TA0210046FT07	• CLIP 84971 ALT ST1455-07 POST SBE71-0054 PRE SBE71-0289	aa-ah	1
073073B	ST1455-07	• CLIP 77445 ALT TA0210046FT07 POST SBE71-0054 PRE SBE71-0289	ac-ag	1
073073C	TA025022-07	• CLAMP - 11.13 MM (0.438) 84971 POST SBE71-0289	aa-ah	1
077077	4W0043	• NUT - .190 DIA	aa-ah	1
102102	4W0103	• BOLT - .190 DIA X .500	aa-ah	1
103103	AN960XC10L	• WASHER 81352 PRE SBE70-0022	aa-ah	1
103103A	5W1086	• WASHER POST SBE70-0022	aa-ah	1
105105	471-7	• CLIP 83930 PRE SBE71-0054	aa-ah	1
105105A	TA0210046FT07	• CLIP 84971 ALT ST1455-07 POST SBE71-0054 PRE SBE71-0289	aa-ah	1
105105B	ST1455-07	• CLIP 77445 ALT TA0210046FT07 POST SBE71-0054 PRE SBE71-0289	ac-ag	1
105105C	TA025022-07	• CLAMP - 11.13 MM (0.438) 84971 POST SBE71-0289	aa-ah	1
109109	4W0043	• NUT - .190 DIA	aa-ah	1
110110	4W0107	• BOLT - .190 DIA X .750	aa-ah	1
111111	AN960XC10L	• WASHER 81352 PRE SBE70-0022	aa-ah	1
111111A	5W1086	• WASHER POST SBE70-0022	aa-ah	1
113113	471-5	• CLIP 83930 PRE SBE71-0054	aa-ah	1
113113A	TA0210046FT05	• CLIP 84971 ALT ST1455-05 POST SBE71-0054 PRE SBE71-0289	aa-ah	1
113113B	ST1455-05	• CLIP 77445 ALT TA0210046FT05 POST SBE71-0054 PRE SBE71-0289	ac-ag	1
113113C	TA025022-05	• CLAMP - 7.92 MM (0.312) 84971 POST SBE71-0289	aa-ah	1
114114	471-4	• CLIP 83930 PRE SBE71-0054	aa-ah	1
114114A	TA0210046FT04	• CLIP 84971 ALT ST1455-04 POST SBE71-0054 PRE SBE71-0289	aa-ah	1
114114B	ST1455-04	• CLIP 77445 ALT TA0210046FT04 POST SBE71-0054 PRE SBE71-0289	ac-ag	1
114114C	TA025022-04	• CLAMP - 6.35 MM (0.250) 84971 POST SBE71-0289	aa-ah	1
117117	4W0001	• NUT - .190 DIA	aa-ah	1
118118	4W0105	• BOLT - .190 DIA X .625 PRE SBE71-0120	aa-ae	1
118118A	4W0110	• BOLT - .190 DIA X .938 POST SBE71-0120	af-ah	1
119119	AN960XC10L	• WASHER 81352 PRE SBE70-0022	aa-ah	2
119119A	5W1086	• WASHER POST SBE70-0022	aa-ah	2
121121	471-4	• CLIP 83930 PRE SBE71-0054	aa-ah	1
121121A	TA0210046FT04	• CLIP 84971 ALT ST1455-04 POST SBE71-0054 PRE SBE71-0289	aa-ah	1
121121B	ST1455-04	• CLIP 77445 ALT TA0210046FT04 POST SBE71-0054 PRE SBE71-0289	ac-ag	1
121121C	TA025022-04	• CLAMP - 6.35 MM (0.250) 84971 POST SBE71-0289	aa-ah	1

123123	LK64582	• SPACER POST SBE71-0120	af-ah	1

125125	4W0001	• NUT - .190 DIA	aa-ah	1
126126	4W0103	• BOLT - .190 DIA X .500 PRE SBE71-0120	aa-ae	1
127127	AN960XC10L	• WASHER 81352 PRE SBE70-0022	aa-ae	1
127127A	5W1086	• WASHER POST SBE70-0022 PRE SBE71-0120	aa-ae	1
129129	471-4	• CLIP 83930 PRE SBE71-0054	aa-ae	1
129129A	TA0210046FT04	• CLIP 84971 ALT ST1455-04 POST SBE71-0054 PRE SBE71-0120	ac-ae	1
129129B	ST1455-04	• CLIP 77445 ALT TA0210046FT04 POST SBE71-0054 PRE SBE71-0120	ac-ae	1
129129C	TA0210046FT04	• CLIP 84971 ALT ST1455-04 POST SBE71-0120 PRE SBE71-0289	ac-ae	1
129129D	ST1455-04	• CLIP 77445 ALT TA0210046FT04 POST SBE71-0120 PRE SBE71-0289	ac-ae	1
129129E	TA025022-04	• CLAMP - 6.35 MM (0.250) 84971 POST SBE71-0289	aa-ah	1
133133	4W0043	• NUT - .190 DIA PRE SBE71-0120	aa-ae	1
134134	4W0103	• BOLT - .190 DIA X .500	aa-ah	1
135135	AN960XC10L	• WASHER 81352 PRE SBE70-0022	aa-ah	1
135135A	5W1086	• WASHER POST SBE70-0022	aa-ah	1
137137	471-4	• CLIP 83930 PRE SBE71-0054	aa-ah	1
137137A	TA0210046FT04	• CLIP 84971 ALT ST1455-04 POST SBE71-0054 PRE SBE71-0289	aa-ah	1
137137B	ST1455-04	• CLIP 77445 ALT TA0210046FT04 POST SBE71-0054 PRE SBE71-0289	ac-ag	1
137137C	TA025022-04	• CLAMP - 6.35 MM (0.250) 84971 POST SBE71-0289	aa-ah	1
141141	4W0043	• NUT - .190 DIA	aa-ah	1

- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

EEC LINK HARNESS CORE

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	77445
Enterprise Name:	PRATT AND WHITNEY
BU Name:	PRATT & WHITNEY
Street:	400 MAIN STREET
City:	EAST HARTFORD
Country:	USA
Phone Number:	8605657700

Manufacturer Code:	83930
Enterprise Name:	TRANSDIGM INC
BU Name:	TRANSDIGM INC
Department:	ADEL FASTENERS
Building:	SANDWELL INDUSTRIAL ESTATE
Street:	5000 TRIGGS STREET
City:	LOS ANGELES
State:	WEST MIDLANDS
Zip Code:	B66 1QJ
Country:	USA

Manufacturer Code:	84971
Enterprise Name:	KIRKHILL - TA MFG SUB OF ESTERLINE TECHNOLOGIES
BU Name:	KIRKHILL - TA MFG SUB OF ESTERLINE TECHNOLOGIES
Department:	TA MFG LTD
Street:	28065 WEST FRANKLIN PARKWAY,VALENCIA
City:	SANTA CLARITA
State:	CALIFORNIA
Zip Code:	GL1 2BS
Country:	USA

Manufacturer Code:	96906
Enterprise Name:	MILITARY STANDARDS MANUAL 4120 3-M
BU Name:	MILITARY STANDARDS MANUAL 4120 3-M
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

Manufacturer Code:	U1653
Enterprise Name:	Society Of British Aerospace Companies, LTD.

Part Number:	2A1446
Part Name:	NUT
Manufacturer Code:	0AM53

Part Number:	2A1447
Part Name:	NUT
Manufacturer Code:	0AM53

Part Number:	2A1491
Part Name:	HARNESS - WIRING CORE
Manufacturer Code:	0AM53

Part Number:	471-4
Part Name:	CLIP - LOOP
Manufacturer Code:	83930

Part Number:	471-5
Part Name:	CLIP - LOOP
Manufacturer Code:	83930

Part Number:	471-7
Part Name:	CLIP - LOOP
Manufacturer Code:	83930

Part Number:

4W0001

Part Name:

NUT, OPTION - .190 DIA

Manufacturer Code:

0AM53

Optional Parts

Part Number	Part Name	Manufacturer
AS20624	NUT, SELF LOCKING DBL HEX - .190 DIA	U1653

Part Number:

4W0043

Part Name:

NUT, SELF LOCKING, ASSEMBLY OF - .190 DIA

Manufacturer Code:

0AM53

Optional Parts

Part Number	Part Name	Manufacturer
AS41104	NUT - 0.19 DIA	U1653

Part Number:

4W0103

Part Name:

BOLT - .190 DIA X .500

Manufacturer Code:

0AM53

Optional Parts

Part Number	Part Name	Manufacturer
AS21408	BOLT - 0.19 DIA X 0.500	U1653

Part Number:	4W0105
Part Name:	BOLT - MACHINE DOUBLE HEX, .190 DIA X .625
Manufacturer Code:	0AM53

Part Number:

4W0107

Part Name:

BOLT - MACHINE DOUBLE HEX, .190 DIA X .750

Manufacturer Code:

0AM53

Optional Parts

Part Number	Part Name	Manufacturer
AS21412	BOLT - 0.190 DIA X 0.750	U1653

Part Number:

4W0110

Part Name:

BOLT, MACHINE DOUBLE HEX - .190 DIA X .938

Manufacturer Code:

0AM53

Optional Parts

Part Number	Part Name	Manufacturer
AS48015	BOLT - 0.190 DIA X 0.438	U1653

Part Number:	4W0118
Part Name:	BOLT - 0.190 DIA X 1.438
Manufacturer Code:	0AM53

Part Number:	5W1086
Part Name:	WASHER
Manufacturer Code:	0AM53

Part Number:	6A4719
Part Name:	HARNESS - CORE, ASSEMBLY OF
Manufacturer Code:	0AM53

Part Number:	6A5877
Part Name:	HARNESS - CORE, ASSEMBLY OF
Manufacturer Code:	0AM53

Part Number:	AS20624
Part Name:	NUT, SELF LOCKING DBL HEX - .190 DIA
Manufacturer Code:	U1653

Part Number:

AS21408

Part Name:

BOLT - 0.19 DIA X 0.500

Manufacturer Code:

U1653

Unit Of Issue:

Optional Parts

Part Number	Part Name	Manufacturer
MS9556-06	BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500	96906

Part Number:	AS21412
Part Name:	BOLT - 0.190 DIA X 0.750
Manufacturer Code:	U1653

Part Number:	AS27830
Part Name:	NUT, ASSEMBLED WASHER - .1120-40UNJC
Manufacturer Code:	U1653

Part Number:	AS36505
Part Name:	SCREW - .112 DIA X .312
Manufacturer Code:	U1653
Unit Of Issue:	EA

Part Number:	AS41104
Part Name:	NUT - 0.19 DIA
Manufacturer Code:	U1653

Part Number:	AS48015
Part Name:	BOLT - 0.190 DIA X 0.438
Manufacturer Code:	U1653

Part Number:	LK64582
Part Name:	SPACER
Manufacturer Code:	0AM53

Part Number:

MS9556-06

Part Name:

BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500

Manufacturer Code:

96906

Unit Of Issue:

Optional Parts

Part Number	Part Name	Manufacturer
AS21408	BOLT - 0.19 DIA X 0.500	U1653

Part Number:	ST1455-04
Part Name:	CLAMP - LOOP, CUSHION
Manufacturer Code:	77445

Part Number:	ST1455-05
Part Name:	CLAMP - LOOP, CUSHION
Manufacturer Code:	77445

Part Number:	ST1455-07
Part Name:	CLAMP - LOOP, CUSHION
Manufacturer Code:	77445

Part Number:	TA0210046FT04
Part Name:	CLIP
Manufacturer Code:	0AM53

Part Number:	TA0210046FT04
Part Name:	CLIP
Manufacturer Code:	84971

Part Number:	TA0210046FT05
Part Name:	CLIP
Manufacturer Code:	84971

Part Number:	TA0210046FT07
Part Name:	CLIP
Manufacturer Code:	84971

Part Number:	TA025022-04
Part Name:	CLAMP, LOOP STYLE,CUSHION - 6.35 MM (0.250)
Manufacturer Code:	84971

Part Number:	TA025022-05
Part Name:	CLAMP - 7.92 MM (0.312)
Manufacturer Code:	84971

Part Number:	TA025022-07
Part Name:	CLAMP - 11.13 MM (0.438)
Manufacturer Code:	84971

ELECT HARNESS-LIGHT DUTY-EEC LINK HARNESS-CORE

Export Control

Copyright

Applicability

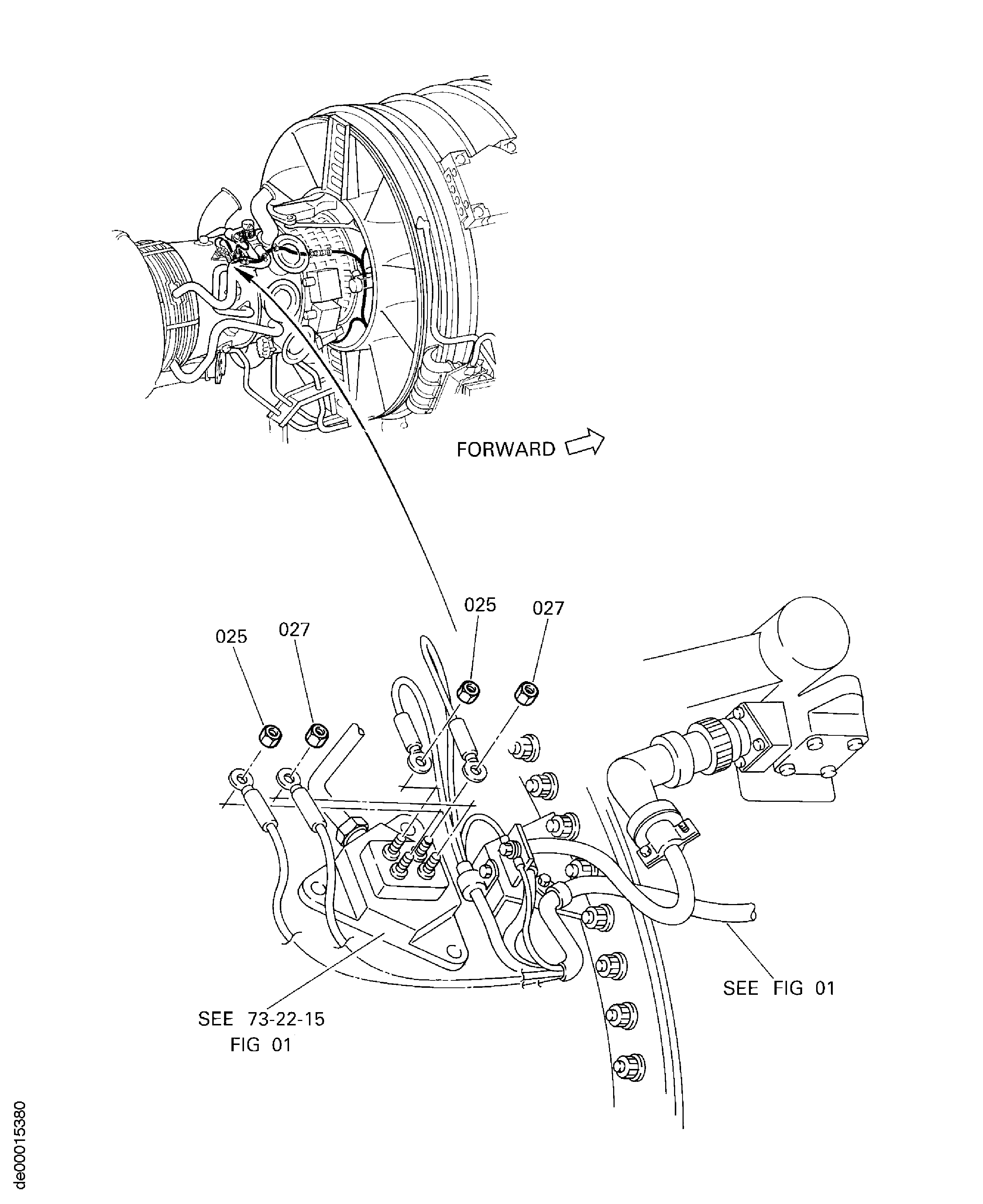

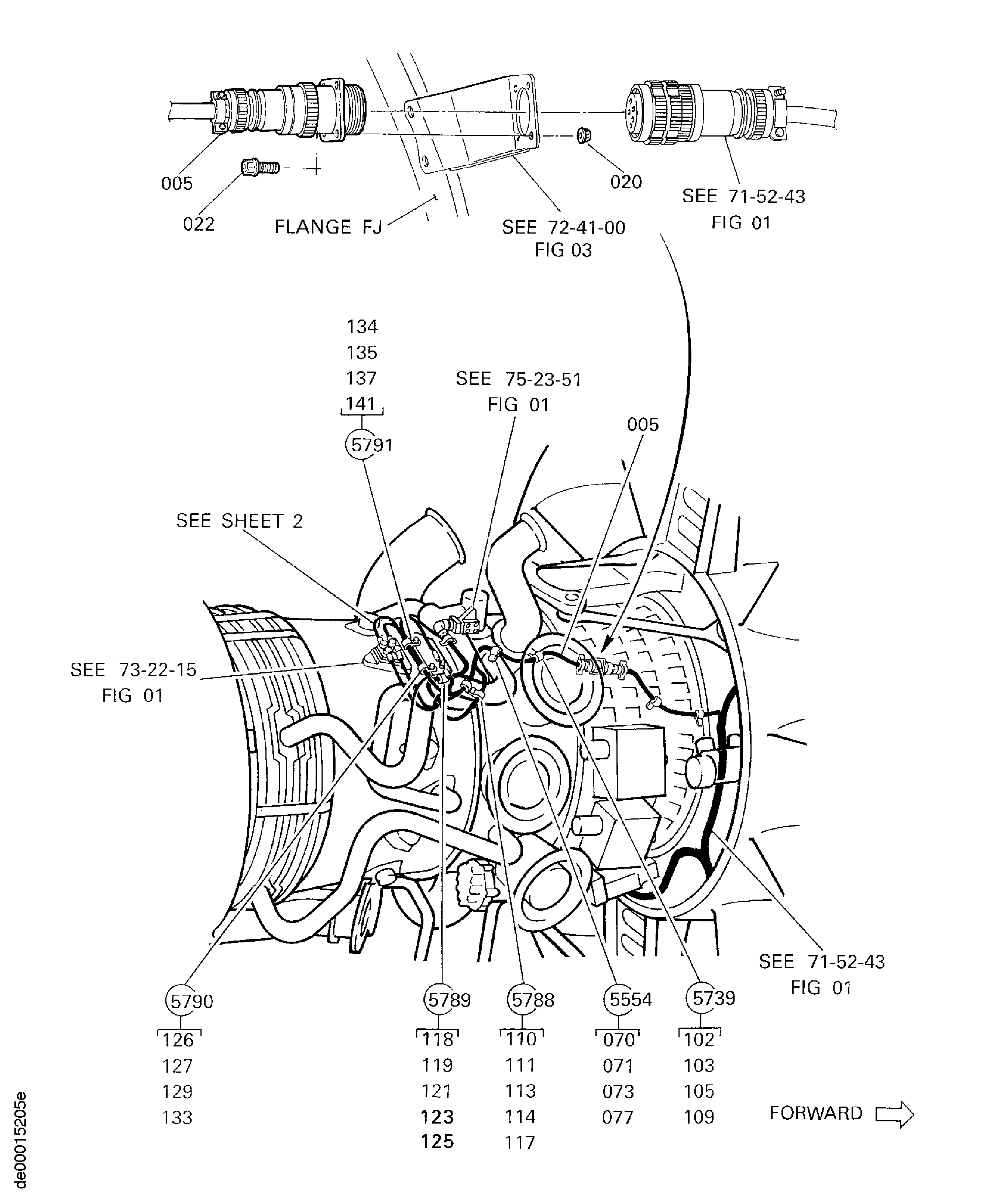

Figure: ELECT HARNESS-LIGHT DUTY-EEC LINK HARNESS-CORE
