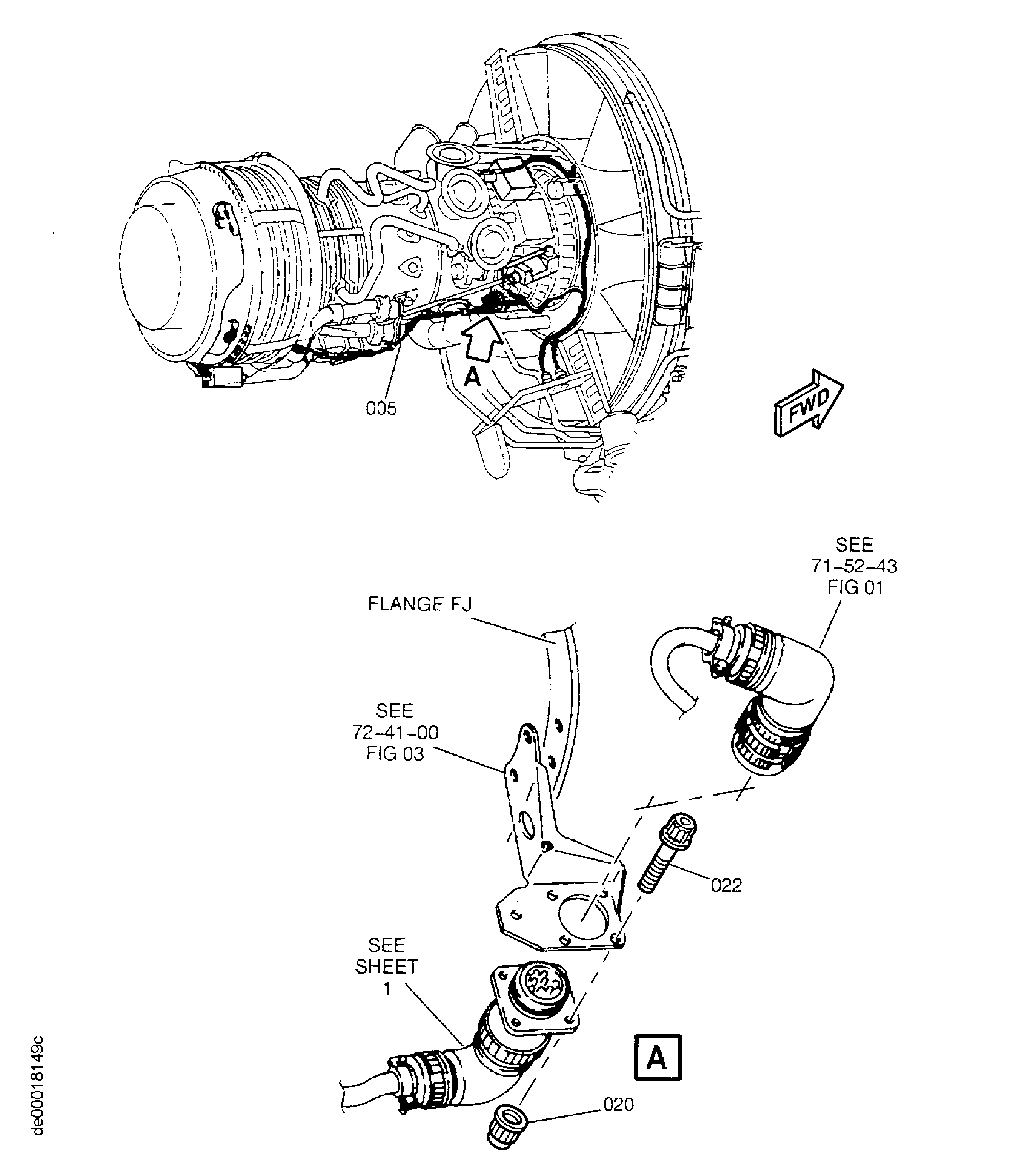

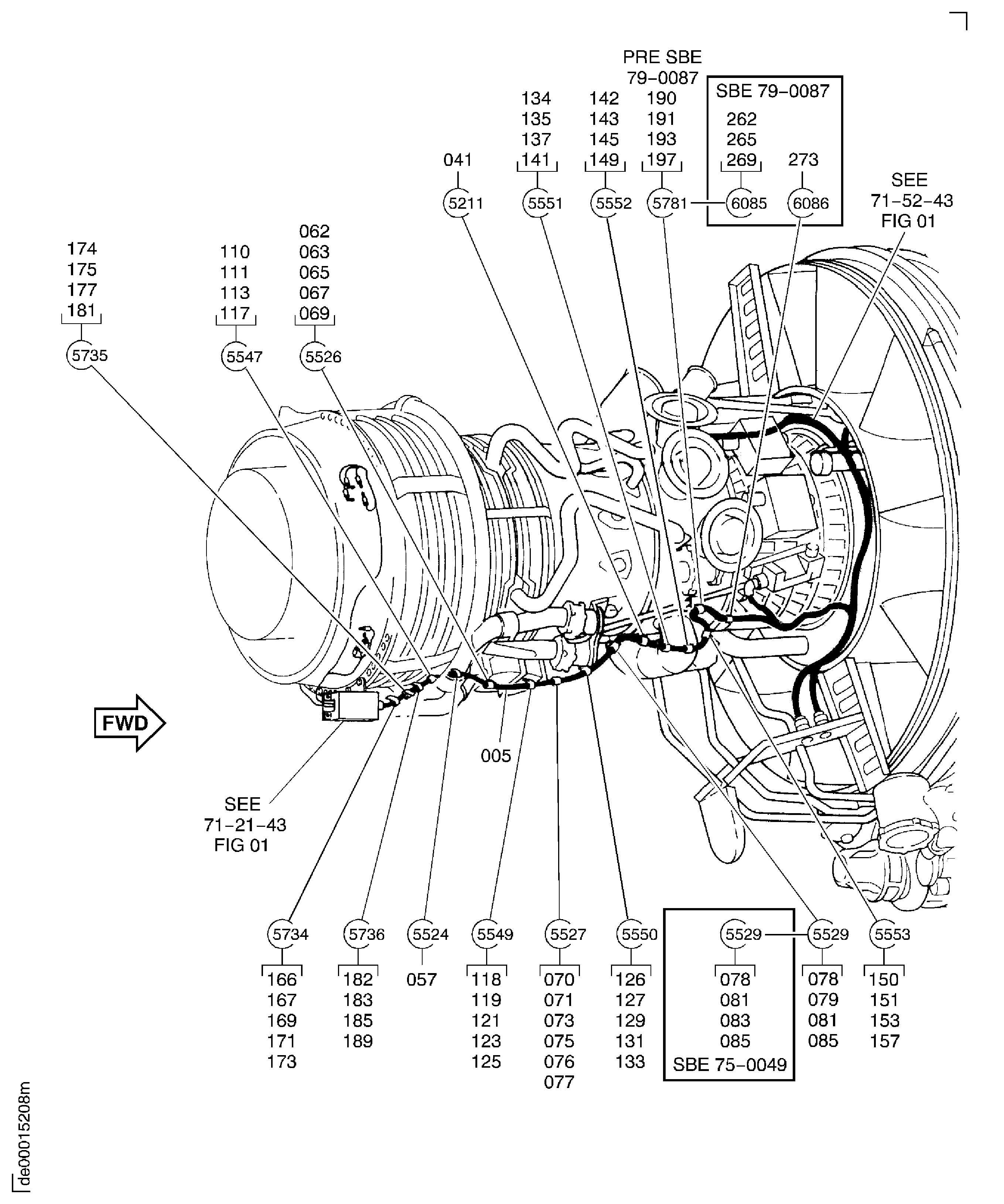

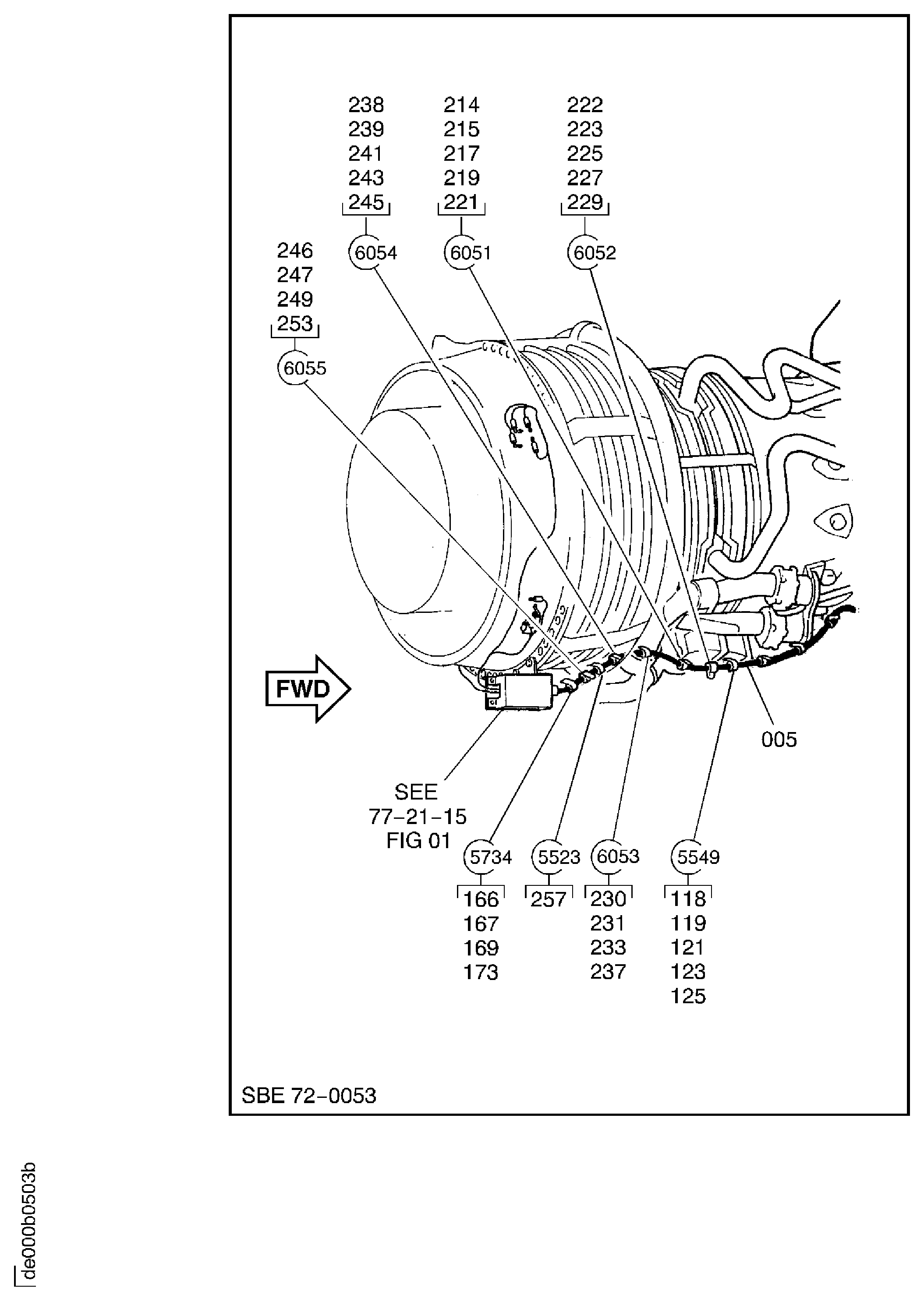

ELECTRICAL HARNESS-LIGHT DUTY-EGT HARNESS

DMC:V2500-A1-71-52-45-01A-941A-D|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
01
000B71524501ELECTRICAL HARNESS-LIGHT DUTY-EGT HARNESS, PRE SBE70-0022aa
000SBE0022-01ELECTRICAL HARNESS-LIGHT DUTY-EGT HARNESS, PRE SBE71-0054ab
000SBE0054-01ELECTRICAL HARNESS-LIGHT DUTY-EGT HARNESS, PRE SBE72-0053ac
000SBE0053-01ELECTRICAL HARNESS-LIGHT DUTY-EGT HARNESS, PRE SBE71-0061ad
000SBE0061-01ELECTRICAL HARNESS-LIGHT DUTY-EGT HARNESS, PRE SBE70-0156ae
000SBE0156-01ELECTRICAL HARNESS-LIGHT DUTY-EGT HARNESS, PRE SBE72-0063af
000SBE0063-01ELECTRICAL HARNESS-LIGHT DUTY-EGT HARNESS, PRE SBE70-0270ag
000SBE0270-01ELECTRICAL HARNESS-LIGHT DUTY-EGT HARNESS, PRE SBE75-0049ah
000SBE0049-01ELECTRICAL HARNESS-LIGHT DUTY-EGT HARNESS, PRE SBE70-0374ai
000SBE0374-01ELECTRICAL HARNESS-LIGHT DUTY-EGT HARNESS, PRE SBE79-0087aj
000SBE0087-01ELECTRICAL HARNESS-LIGHT DUTY-EGT HARNESS, PRE SBE71-0289ak
000SBE0289-01ELECTRICAL HARNESS-LIGHT DUTY-EGT HARNESSal
0050052A1490• HARNESS - WIRING CORE
PRE SBE70-0156		aa-al1
005005A6A4720• HARNESS - ASSY
POST SBE70-0156
PRE SBE70-0270		aa-al1
005005B6A4720• HARNESS - ASSY
POST SBE70-0270
PRE SBE70-0374		aa-al1
005005C6A5878• HARNESS - ASSY CORE
POST SBE70-0374		aa-al1
020020AS27830• NUT - .1120-40UNJC
U1653		aa-al4
022022AS36505• SCREW - .112 DIA X .312
U1653		aa-al4
041041471-4• CLIP
83930
PRE SBE71-0054		aa-al1
041041ATA0210046FT05• CLIP
84971
ALT ST1455-05
POST SBE71-0054
PRE SBE71-0289		aa-al1
041041BST1455-05• CLIP
77445
ALT TA0210046FT05
POST SBE71-0054
PRE SBE71-0289		ac-ak1
041041CTA025022-05• CLAMP - 7.92 MM (0.312)
84971
POST SBE71-0289		aa-al1
057057471-4• CLIP
83930
PRE SBE71-0054		aa-ac1
057057ATA0210046FT05• CLIP
84971
ALT ST1455-05
POST SBE71-0054
PRE SBE72-0053		aa-ac1
057057BST1455-05• CLIP
77445
ALT TA0210046FT05
POST SBE71-0054
PRE SBE72-0053		ac1
0620624W0113• BOLT - .190 DIA X 1.125
PRE SBE72-0053		aa-ac1
0630635W1086• WASHER
PRE SBE72-0053		aa-ac1
065065471-4• CLIP
83930
PRE SBE71-0054		aa-ac1
065065ATA0210046FT05• CLIP
84971
ALT ST1455-05
POST SBE71-0054
PRE SBE72-0053		aa-ac1
065065BST1455-05• CLIP
77445
POST SBE71-0054
PRE SBE72-0053		ac1
0670675W1031• SPACER - (15MM)
PRE SBE72-0053		aa-ac1
0690694W0001• NUT - .190 DIA
PRE SBE72-0053		aa-ac1
0700704W0114• BOLT - .190 DIA X 1.188aa-al1
0710715W1086• WASHERaa-al1
073073471-4• CLIP
83930
PRE SBE71-0054		aa-al1
073073ATA0210046FT05• CLIP
84971
ALT ST1455-05
POST SBE71-0054
PRE SBE71-0289		aa-al1
073073BST1455-05• CLIP
77445
ALT TA0210046FT05
POST SBE71-0054
PRE SBE71-0289		ac-ak1
073073CTA025022-05• CLAMP - 7.92 MM (0.312)
84971
POST SBE71-0289		aa-al1
0750755W1030• SPACER - (10MM)aa-al1
0760765W1029• SPACER - (5MM)aa-al1
0770774W0001• NUT - .190 DIAaa-al1
0780784W0104• BOLT - .190 DIA X .562
PRE SBE75-0049		aa-ah1
078078A4W0114• BOLT - .190 DIA X 1.188
POST SBE75-0049		ai-al1
0790795W1086• WASHER
PRE SBE75-0049		aa-ah2
081081471-4• CLIP
83930
PRE SBE71-0054		aa-al1
081081ATA0210046FT05• CLIP
84971
ALT ST1455-05
POST SBE71-0054
PRE SBE71-0289		aa-al1
081081BST1455-05• CLIP
77445
ALT TA0210046FT05
POST SBE71-0054
PRE SBE71-0289		ac-ak1
081081CTA025022-05• CLAMP - 7.92 MM (0.312)
84971
POST SBE71-0289		aa-al1
083083LK67295• SPACER
POST SBE75-0049		ai-al1
0850854W0001• NUT - .190 DIAaa-al1
1101104W0102• BOLT - .190 DIA X .438
PRE SBE72-0053		aa-ac1
111111AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-ac1
111111A5W1086• WASHER
POST SBE70-0022
PRE SBE72-0053		aa-ac1
113113471-4• CLIP
83930
PRE SBE71-0054		aa-ac1
113113ATA0210046FT05• CLIP
84971
ALT ST1455-05
POST SBE71-0054
PRE SBE72-0053		aa-ac1
113113BST1455-05• CLIP
77445
ALT TA0210046FT05
POST SBE71-0054
PRE SBE72-0053		ac1
1171174W0001• NUT - .190 DIA
PRE SBE72-0053		aa-ac1
1181184W0112• BOLT - .190 DIA X 1.062
PRE SBE72-0053		aa-ac1
118118A4W0109• BOLT - .190 DIA X .875
POST SBE72-0053		ad-al1
119119AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-al1
119119A5W1086• WASHER
POST SBE70-0022		aa-al1
121121471-4• CLIP
83930
PRE SBE71-0054		aa-al1
121121ATA0210046FT05• CLIP
84971
ALT ST1455-05
POST SBE71-0054
PRE SBE71-0289		aa-al1
121121BST1455-05• CLIP
77445
ALT TA0210046FT05
POST SBE71-0054
PRE SBE71-0289		ac-ak1
121121CTA025022-05• CLAMP - 7.92 MM (0.312)
84971
POST SBE71-0289		aa-al1
1231235W1031• SPACER - (15MM)
PRE SBE72-0053		aa-ac1
123123A5W1030• SPACER - (10MM)
POST SBE72-0053		ad-al1
1251254W0001• NUT - .190 DIAaa-al1
1261264W0109• BOLT - .190 DIA X .875aa-al1
127127AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-al1
127127A5W1086• WASHER
POST SBE70-0022		aa-al1
129129471-4• CLIP
83930
PRE SBE71-0054		aa-al1
129129ATA0210046FT05• CLIP
84971
ALT ST1455-05
POST SBE71-0054
PRE SBE71-0289		aa-al1
129129BST1455-05• CLIP
77445
ALT TA0210046FT05
POST SBE71-0054
PRE SBE71-0289		ac-ak1
129129CTA025022-05• CLAMP - 7.92 MM (0.312)
84971
POST SBE71-0289		aa-al1
1311315W1030• SPACER - (10MM)aa-al1
1331334W0001• NUT - .190 DIAaa-al1
1341344W0102• BOLT - .190 DIA X .438aa-al1
135135AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-al1
135135A5W1086• WASHER
POST SBE70-0022		aa-al1
137137471-4• CLIP
83930
PRE SBE71-0054		aa-ak1
137137ATA0210046FT05• CLIP
84971
ALT ST1455-05
POST SBE71-0054
PRE SBE71-0289		aa-ak1
137137BST1455-05• CLIP
77445
ALT TA0210046FT05
POST SBE71-0054
PRE SBE71-0289		ac-ak1
137137CTA025022-05• CLAMP - 7.92 MM (0.312)
84971
POST SBE71-0289		al1
1411414W0001• NUT - .190 DIAaa-al1
1421424W0103• BOLT - .190 DIA X .500aa-al1
143143AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-al1
143143A5W1086• WASHER
POST SBE70-0022		aa-al1
145145471-4• CLIP
83930
PRE SBE71-0054		aa-al1
145145ATA0210046FT05• CLIP
84971
ALT ST1455-05
POST SBE71-0054
PRE SBE71-0289		aa-al1
145145BST1455-05• CLIP
77445
ALT TA0210046FT05
POST SBE71-0054
PRE SBE71-0289		ac-ak1
145145CTA025022-05• CLAMP - 7.92 MM (0.312)
84971
POST SBE71-0289		aa-al1
1491494W0043• NUT - .190 DIAaa-al1
1501504W0103• BOLT - .190 DIA X .500aa-al1
151151AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-al1
151151A5W1086• WASHER
POST SBE70-0022		aa-al1
153153471-4• CLIP
83930
PRE SBE71-0054		aa-al1
153153ATA0210046FT05• CLIP
84971
ALT ST1455-05
POST SBE71-0054
PRE SBE71-0289		aa-al1
153153BST1455-05• CLIP
77445
ALT TA0210046FT05
POST SBE71-0054
PRE SBE71-0289		ac-ak1
153153CTA025022-05• CLAMP - 7.92 MM (0.312)
84971
POST SBE71-0289		aa-al1
1571574W0043• NUT - .190 DIAaa-al1
1661664W0115• BOLT - .190 DIA X 1.250
PRE SBE72-0053		aa-ac1
166166A4W0102• BOLT - .190 DIA X .438
POST SBE72-0053		ad-al1
166166B4W0109• BOLT - .190 DIA X .875
POST SBE71-0061		ae-al1
167167AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-al1
167167A5W1086• WASHER
POST SBE70-0022		aa-al1
169169471-7• CLIP
83930
PRE SBE71-0054		ac-ak1
169169ATA0210046FT07• CLIP
84971
ALT ST1455-07
POST SBE71-0054
PRE SBE71-0289		ac-ak1
169169BST1455-07• CLIP
77445
ALT TA0210046FT07
POST SBE71-0054
PRE SBE71-0054		ac-ak1
169169CTA025022-07• CLAMP - 11.13 MM (0.438)
84971
POST SBE71-0289		aa-al1
1711715W1032• SPACER - (20MM)
PRE SBE72-0053		aa-ac1
171171A5W1030• SPACER - (10MM)
POST SBE71-0061		ae-al1
1731734W0001• NUT - .190 DIAaa-al1
1741744W0102• BOLT - .190 DIA X .438
PRE SBE72-0053		aa-ac1
174174A4W0109• BOLT - .190 DIA X .875
POST SBE71-0061		ae-al1
175175AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-ac1
175175A5W1086• WASHER
POST SBE70-0022
PRE SBE72-0053		aa-ac1
177177471-7• CLIP
83930
PRE SBE71-0054		aa-ac1
177177ATA0210046FT05• CLIP
84971
ALT ST1455-05
POST SBE71-0054
PRE SBE72-0053		ac1
177177BST1455-05• CLIP
77445
ALT TA0210046FT05
POST SBE71-0054
PRE SBE72-0053		ac1
1811814W0001• NUT - .190 DIA
PRE SBE72-0053		aa-ac1
1821824W0102• BOLT - .190 DIA X .438
PRE SBE72-0053		aa-ac1
183183AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-ac1
183183A5W1086• WASHER
POST SBE70-0022
PRE SBE72-0053		aa-ac1
185185471-4• CLIP
83930
PRE SBE71-0054		aa-ac1
185185ATA0210046FT05• CLIP
84971
ALT ST1455-05
POST SBE71-0054
PRE SBE72-0053		ac1
185185BST1455-05• CLIP
77445
ALT TA0210046FT05
POST SBE71-0054
PRE SBE72-0053		ac1
1891894W0001• NUT - .190 DIA
PRE SBE72-0053		aa-ac1
1901904W0103• BOLT - .190 DIA X .500
PRE SBE79-0087		aa-aj1
191191AN960XC10L• WASHER
81352
PRE SBE70-0022		aa-aj1
191191A5W1086• WASHER
POST SBE70-0022
PRE SBE79-0087		aa-aj1
193193471-4• CLIP
83930
PRE SBE71-0054		aa-aj1
193193ATA0210046FT05• CLIP
84971
ALT ST1455-05
POST SBE71-0054
PRE SBE79-0087		ac-aj1
193193BST1455-05• CLIP
77445
ALT TA0210046FT05
POST SBE71-0054
PRE SBE79-0087		ac-aj1
193193CTA025022-05• CLAMP - 7.92 MM (0.312)
84971
POST SBE71-0289		aa-al1
1971974W0001• NUT - .190 DIA
PRE SBE79-0087		aa-aj1
2142144W0110• BOLT - .190 DIA X .938
POST SBE72-0053		ad-al1
2152155W1086• WASHER
POST SBE72-0053		ad-al1
217217TA0210046FT05• CLIP
84971
ALT ST1455-05
POST SBE72-0053
PRE SBE71-0289		ad-al1
217217AST1455-05• CLIP
77445
ALT TA0210046FT05
POST SBE72-0053
PRE SBE71-0289		ad-ak1
217217BTA025022-05• CLAMP - 7.92 MM (0.312)
84971
POST SBE71-0289		ad-al1
2192195W1030• SPACER - (10MM)
POST SBE72-0053		ad-al1
2212214W0001• NUT - .190 DIA
POST SBE72-0053		ad-al1
2222224W0112• BOLT - .190 DIA X 1.062
POST SBE72-0053		ad-al1
2232235W1086• WASHER
POST SBE72-0053		ad-al1
225225TA0210046FT05• CLIP
84971
ALT ST1455-05
POST SBE72-0053
PRE SBE71-0289		ad-al1
225225AST1455-05• CLIP
77445
ALT TA0210046FT05
POST SBE72-0053
PRE SBE71-0289		ad-ak1
225225BTA025022-05• CLAMP - 7.92 MM (0.312)
84971
POST SBE71-0289		ad-al1
2272275W1031• SPACER - (15MM)
POST SBE72-0053		ad-al1
2292294W0001• NUT - .190 DIA
POST SBE72-0053		ad-al1
2302304W0102• BOLT - .190 DIA X .438
POST SBE72-0053		ad-al1
2312315W1086• WASHER
POST SBE72-0053		ad-al1
233233TA0210046FT05• CLIP
84971
ALT ST1455-05
POST SBE72-0053
PRE SBE71-0289		ad-al1
233233AST1455-05• CLIP
77445
ALT TA0210046FT05
POST SBE72-0053
PRE SBE71-0289		ad-ak1
233233BTA025022-05• CLAMP - 7.92 MM (0.312)
84971
POST SBE71-0289		ad-al1
2372374W0001• NUT - .190 DIA
POST SBE72-0053		ad-al1
2382384W0102• BOLT - .190 DIA X .438
POST SBE72-0053
PRE SBE72-0063		ad-af1
238238AAS21414• BOLT - .190 DIA X .875
U1653
POST SBE72-0063		ad-al1
2392395W1086• WASHER
POST SBE72-0053		ad-al1
241241TA0210046FT05• CLIP
84971
ALT ST1455-05
POST SBE72-0053
PRE SBE71-0289		ad-al1
241241AST1455-05• CLIP
77445
ALT TA0210046FT05
POST SBE72-0053
PRE SBE71-0289		ad-ak1
241241BTA025022-05• CLAMP - 7.92 MM (0.312)
84971
POST SBE71-0289		ad-al1
243243LK69353• SPACER
POST SBE72-0063		ag-al1
2452454W0001• NUT - .190 DIA
POST SBE72-0053		ad-al1
2462464W0102• BOLT - .190 DIA X .438
POST SBE72-0053		ad-al1
2472475W1086• WASHER
POST SBE72-0053		ad-al1
249249TA0210046FT05• CLIP
84971
ALT ST1455-05
POST SBE72-0053
PRE SBE71-0289		ad-al1
249249AST1455-05• CLIP
77445
ALT TA0210046FT05
POST SBE72-0053
PRE SBE71-0289		ad-ak1
249249BTA025022-05• CLAMP - 7.92 MM (0.312)
84971
POST SBE71-0289		ad-al1
2532534W0001• NUT - .190 DIA
POST SBE72-0053		ad-al1
257257TA0210046FT05• CLIP
84971
ALT ST1455-05
POST SBE72-0053
PRE SBE71-0289		ad-al1
257257AST1455-05• CLIP
77445
ALT TA0210046FT05
POST SBE72-0053
PRE SBE71-0289		ad-ak1
257257BTA025022-05• CLAMP - 7.92 MM (0.312)
84971
POST SBE71-0289		ad-al1
2622624W0102• BOLT - .190 DIA X .438
Optional Part
4W0102
POST SBE79-0087		ak-al1
265265ST1455-05• CLIP
77445
ALT TA0210046FT05
POST SBE79-0087
PRE SBE71-0289		ak-al1
265265ATA0210046FT05• CLIP
84971
ALT ST1455-05
POST SBE79-0087
PRE SBE71-0289		ak1
265265BTA025022-05• CLAMP - 7.92 MM (0.312)
84971
POST SBE71-0289		ak-al1
2692694W0043• NUT - .190 DIA
Optional Part
4W0043
POST SBE79-0087		ak-al1
2702704W0112• BOLT - .190 DIA X 1.062
POST SBE79-0087		ak-al1
273273ST1455-05• CLIP
77445
ALT TA0210046FT05
POST SBE79-0087
PRE SBE71-0289		ak-al1
273273ATA0210046FT05• CLIP
84971
ALT ST1455-05
POST SBE79-0087
PRE SBE71-0289		ak1
273273BTA025022-05• CLAMP - 7.92 MM (0.312)
84971
POST SBE71-0289		ak-al1
275275LK42781• SPACER
POST SBE79-0087		ak-al1
2772774W0001• NUT - .190 DIA
POST SBE79-0087		ak-al1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Figure: ELECTRICAL HARNESS-LIGHT DUTY-EGT HARNESS

EGT HARNESS

EGT HARNESS

EGT HARNESS

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:77445
Enterprise Name:PRATT AND WHITNEY
BU Name:PRATT & WHITNEY
Street:400 MAIN STREET
City:EAST HARTFORD
Country:USA
Phone Number:8605657700
Manufacturer Code:83930
Enterprise Name:TRANSDIGM INC
BU Name:TRANSDIGM INC
Department:ADEL FASTENERS
Building:SANDWELL INDUSTRIAL ESTATE
Street:5000 TRIGGS STREET
City:LOS ANGELES
State:WEST MIDLANDS
Zip Code:B66 1QJ
Country:USA
Manufacturer Code:84971
Enterprise Name:KIRKHILL - TA MFG SUB OF ESTERLINE TECHNOLOGIES
BU Name:KIRKHILL - TA MFG SUB OF ESTERLINE TECHNOLOGIES
Department:TA MFG LTD
Street:28065 WEST FRANKLIN PARKWAY,VALENCIA
City:SANTA CLARITA
State:CALIFORNIA
Zip Code:GL1 2BS
Country:USA
Manufacturer Code:96906
Enterprise Name:MILITARY STANDARDS MANUAL 4120 3-M
BU Name:MILITARY STANDARDS MANUAL 4120 3-M
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:U1653
Enterprise Name:Society Of British Aerospace Companies, LTD.
Part Number:2A1490
Part Name:HARNESS - WIRING CORE
Manufacturer Code:0AM53
Part Number:471-4
Part Name:CLIP - LOOP
Manufacturer Code:83930
Part Number:471-7
Part Name:CLIP - LOOP
Manufacturer Code:83930
Part Number:4W0001
Part Name:NUT, OPTION - .190 DIA
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS20624NUT, SELF LOCKING DBL HEX - .190 DIAU1653
Part Number:4W0043
Part Name:NUT, SELF LOCKING, ASSEMBLY OF - .190 DIA
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS41104NUT - 0.19 DIAU1653
Part Number:4W0102
Part Name:BOLT, MACHINE DOUBLE HEX - .190 DIA X .438
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
4W0342BOLT - .190 DIA X .4380AM53
AS21407BOLT - 0.19 DIA X 0.438U1653
Part Number:4W0103
Part Name:BOLT - .190 DIA X .500
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS21408BOLT - 0.19 DIA X 0.500U1653
Part Number:4W0104
Part Name:BOLT - .190 DIA X .562
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
4W0344BOLT , BIHEX HD - .190 DIA X .5620AM53
Part Number:4W0109
Part Name:BOLT, MACHINE DOUBLE HEX - .190 DIA X .875
Manufacturer Code:0AM53
Part Number:4W0110
Part Name:BOLT, MACHINE DOUBLE HEX - .190 DIA X .938
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS48015BOLT - 0.190 DIA X 0.438U1653
Part Number:4W0112
Part Name:BOLT, MACHINE DOUBLE HEX - .190 DIA X 1.062
Manufacturer Code:0AM53
Part Number:4W0113
Part Name:BOLT, MACHINE DOUBLE HEX - .190 DIA X 1.125
Manufacturer Code:0AM53
Part Number:4W0114
Part Name:BOLT - MACHINE DOUBLE HEX, 190 DIA X 1.188
Manufacturer Code:0AM53
Part Number:4W0115
Part Name:BOLT, MACHINE DOUBLE HEX - .190 DIA X 1.250
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
4W0355BOLT, MACHINE DOUBLE HEX - .190 DIA X 1.2500AM53
Part Number:4W0342
Part Name:BOLT - .190 DIA X .438
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
4W0102BOLT, MACHINE DOUBLE HEX - .190 DIA X .4380AM53
Part Number:4W0344
Part Name:BOLT , BIHEX HD - .190 DIA X .562
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
4W0104BOLT - .190 DIA X .5620AM53
Part Number:4W0355
Part Name:BOLT, MACHINE DOUBLE HEX - .190 DIA X 1.250
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
4W0115BOLT, MACHINE DOUBLE HEX - .190 DIA X 1.2500AM53
Part Number:5W1029
Part Name:SPACER, SLEEVE, (5MM)
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
UP10478SPACER, (5MM)0AM53
Part Number:5W1030
Part Name:SPACER, SLEEVE, (10MM)
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
UP10479SPACER - 10MM0AM53
Part Number:5W1031
Part Name:SPACER, SLEEVE - (15MM)
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
UP10480SPACER - 15MM0AM53
Part Number:5W1032
Part Name:SPACER - (20MM)
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
UP10481SPACER - 20MM0AM53
Part Number:5W1086
Part Name:WASHER
Manufacturer Code:0AM53
Part Number:6A4720
Part Name:HARNESS - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A5878
Part Name:HARNESS - CORE, ASSEMBLY OF
Manufacturer Code:0AM53
Link not Found
Part Number:AS20624
Part Name:NUT, SELF LOCKING DBL HEX - .190 DIA
Manufacturer Code:U1653
Part Number:AS21407
Part Name:BOLT - 0.19 DIA X 0.438
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
MS9556-05BOLT96906
Part Number:AS21408
Part Name:BOLT - 0.19 DIA X 0.500
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
MS9556-06BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.50096906
Part Number:AS21414
Part Name:BOLT - .190 DIA x.875
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
MS9556-12BOLT96906
Part Number:AS27830
Part Name:NUT, ASSEMBLED WASHER - .1120-40UNJC
Manufacturer Code:U1653
Part Number:AS36505
Part Name:SCREW - .112 DIA X .312
Manufacturer Code:U1653
Unit Of Issue:EA
Part Number:AS41104
Part Name:NUT - 0.19 DIA
Manufacturer Code:U1653
Part Number:AS48015
Part Name:BOLT - 0.190 DIA X 0.438
Manufacturer Code:U1653
Part Number:LK42781
Part Name:SPACER
Manufacturer Code:0AM53
Part Number:LK67295
Part Name:SPACER
Manufacturer Code:0AM53
Part Number:LK69353
Part Name:SPACER
Manufacturer Code:0AM53
Part Number:MS9556-05
Part Name:BOLT
Manufacturer Code:96906
Optional Parts
Part NumberPart NameManufacturer
AS21407BOLT - 0.19 DIA X 0.438U1653
Part Number:MS9556-06
Part Name:BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500
Manufacturer Code:96906
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
AS21408BOLT - 0.19 DIA X 0.500U1653
Part Number:MS9556-12
Part Name:BOLT
Manufacturer Code:96906
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
AS21414BOLT - .190 DIA x.875U1653
Link not Found
Part Number:ST1455-05
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:77445
Link not Found
Part Number:ST1455-07
Part Name:CLAMP - LOOP, CUSHION
Manufacturer Code:77445
Link not Found
Part Number:TA0210046FT05
Part Name:CLIP
Manufacturer Code:84971
Link not Found
Part Number:TA0210046FT07
Part Name:CLIP
Manufacturer Code:84971
Part Number:TA025022-05
Part Name:CLAMP - 7.92 MM (0.312)
Manufacturer Code:84971
Part Number:TA025022-07
Part Name:CLAMP - 11.13 MM (0.438)
Manufacturer Code:84971
Part Number:UP10478
Part Name:SPACER, (5MM)
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
5W1029SPACER, SLEEVE, (5MM)0AM53
Part Number:UP10479
Part Name:SPACER - 10MM
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
5W1030SPACER, SLEEVE, (10MM)0AM53
Part Number:UP10480
Part Name:SPACER - 15MM
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
5W1031SPACER, SLEEVE - (15MM)0AM53
Part Number:UP10481
Part Name:SPACER - 20MM
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
5W1032SPACER - (20MM)0AM53
