DMC:V2500-A1-71-52-50-05A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 05 | ||||
| B71525005 | BRACKETS & RACEWAYS-HARNESS SUPPORT-CORE, PRE SBE70-0022 | aa | ||
| SBE0022-01 | BRACKETS & RACEWAYS-HARNESS SUPPORT-CORE, PRE SBE70-0034 | ab | ||
| SBE0034-01 | BRACKETS & RACEWAYS-HARNESS SUPPORT-CORE, PRE SBE70-0108 | ac | ||
| SBE0108-01 | BRACKETS & RACEWAYS-HARNESS SUPPORT-CORE, PRE SBE79-0087 | ad | ||
| SBE0087-01 | BRACKETS & RACEWAYS-HARNESS SUPPORT-CORE | ae | ||
| 100 | 6A2134 | • RACEWAY - A/O PRE SBE79-0087 | aa-ad | 1 |
| 100A | 6A6230 | • TUBE - A/O RACEWAY CORE POST SBE79-0087 | ae | 1 |
| 102 | 4W0104 | • BOLT - .190 DIA X .562 | aa-ae | 1 |
| 104 | K8831 | • WASHER - .190 DIA X 0,51 THK | aa-ae | 1 |
| 106 | 4W0043 | • NUT - .190 DIA | aa-ae | 1 |
| 125 | 4W0103 | • BOLT - .190 DIA X .500 PRE SBE70-0034 | aa-ab | 1 |
| 126 | AN960XC10L | • WASHER 81352 PRE SBE70-0022 | aa-ab | 1 |
| 126A | 5W1086 | • WASHER POST SBE70-0022 PRE SBE70-0034 | aa-ab | 1 |
| 128 | 400WSS8 | • CLIP 83930 PRE SBE70-0034 | aa-ab | 1 |
| 132 | 4W0043 | • NUT - .190 DIA PRE SBE70-0034 | aa-ab | 1 |
| 133 | 4W0102 | • BOLT - .190 DIA X .438 Optional Part 4W0102 POST SBE79-0087 | ae | 1 |
| 136 | 4W0043 | • NUT - .190 DIA Optional Part 4W0043 POST SBE79-0087 | ae | 1 |
| 214 | LK39606 | • • CLIP PRE SBE79-0087 | aa-ad | 13 |
| 214A | UP11155 | • • BRACKET - INTER TUBE SUPPORT POST SBE79-0087 | ae | 4 |
| 500 | 5W2552 | • RACEWAY - HARNESS CLIPPING, POS 165 DEG PRE SBE70-0108 | aa-ae | 1 |
| 500A | 5W2177 | • RACEWAY - ASSY OF POST SBE70-0108 | aa-ae | 1 |
| 502 | 4W0102 | • BOLT - .190 DIA X .438 | aa-ae | 1 |
| 504 | AN960XC10L | • WASHER 81352 PRE SBE70-0022 | aa-ae | 1 |
| 504A | 5W1086 | • WASHER POST SBE70-0022 | aa-ae | 1 |
| 506 | 4W0043 | • NUT - .190 DIA | aa-ae | 1 |
| 512 | 400WSS8 | • CLIP 83930 PRE SBE79-0087 | aa-ad | 1 |
| 512A | AS62408 | • CLIP - 12.70 MM (0.500) U1653 POST SBE79-0087 | ae | 1 |
| 525 | 4W0103 | • BOLT - .190 DIA X .500 POST SBE70-0034 | ac-ae | 1 |
| 526 | 5W1086 | • WASHER POST SBE70-0034 | ac-ae | 1 |
| 528 | 400WSS8 | • CLIP 83930 POST SBE70-0034 | ac-ae | 1 |
| 532 | 4W0043 | • NUT - .190 DIA POST SBE70-0034 | ac-ae | 1 |
| 614 | 5W1063 | • • LUG - BRAZED | aa-ae | 3 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

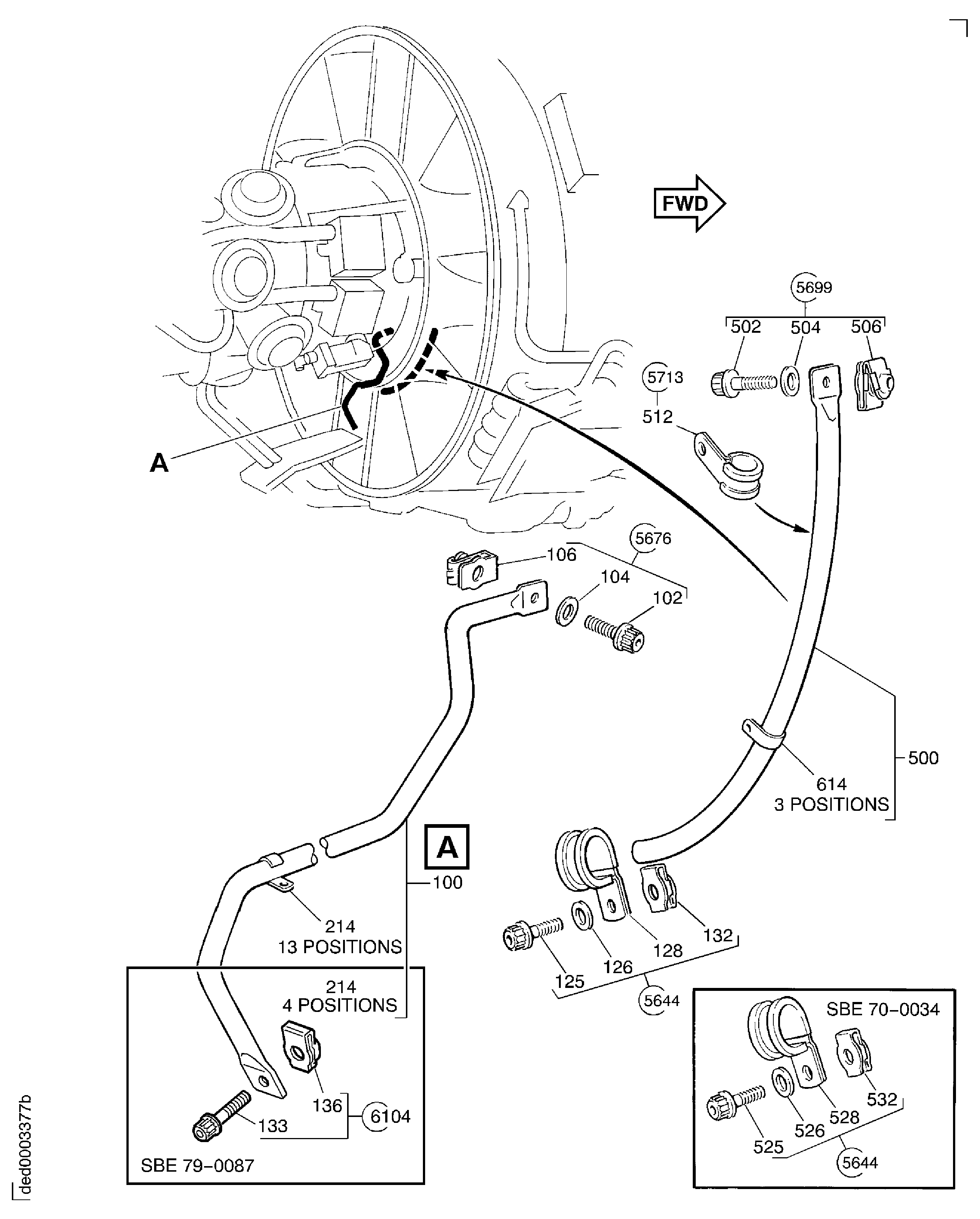

Figure: BRACKETS & RACEWAYS-HARNESS SUPPORT-CORE
CORE HARNESS SUPPORT RACEWAYS
