POWER PLANT-FUEL DRAIN TUBES-ENGINE

DMC:V2500-A1-71-71-49-01A-941A-D|Issue No:002|Issue Date:2018-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig. Item	Part No.	Description	Effect/Model Applic.	UPA
01
000	B71714901	POWER PLANT - FUEL DRAIN TUBES-ENGINE, PRE SBE71-0004	aa
000	SBE0004-01	POWER PLANT - FUEL DRAIN TUBES-ENGINE, PRE SBE79-0087	ab
000	SBE0087-01	POWER PLANT - FUEL DRAIN TUBES-ENGINE	ac
100100	740-5276-503	• TUBE - DRAIN, ASSEMBLY OF 51563	aa-ac	1

160160	400WSS4	• CLIP 83930	aa-ac	1

500500	740-5277-503	• TUBE - DRAIN, ASSEMBLY OF 51563	aa-ab	1
500500A	740-5277-505	• TUBE - DRAIN, ASSEMBLY OF 51563 PRE SBE79-0087	aa-ab	1
500500B	740-5277-509	• TUBE - DRAIN, ASSEMBLY OF 51563 POST SBE79-0087	ac	1

533533	4W0103	• BOLT - .190 DIA X .500 PRE SBE79-0087	aa-ab	1
534534	400WSS5	• SEAL, RING 83930	aa-ac	1
534534A	SP154D	• WASHER - 0.190 DIA K7766 PRE SBE79-0087	aa-ab	1
536536	SP154D	• WASHER - 0.190 DIA K7766	aa-ac	1
536536A	400WSS8	• CLIP 83930	aa-ac	1
536536B	400WSS8	• CLIP 83930 POST SBE71-0004 PRE SBE79-0087	aa-ab	1
540540	4W0001	• NUT, OPTION - .190 DIA PRE SBE79-0087	aa-ab	1

550550	AS21408	• BOLT - .190 DIA X .500 U1653 POST SBE79-0087	ac	1
551551	SP154D	• WASHER - 0.190 DIA K7766 POST SBE79-0087	ac	1
553553	400WSS4	• CLIP 83930 POST SBE79-0087	ac	1
557557	4W0001	• NUT, OPTION - .190 DIA Optional Part 4W0001 POST SBE79-0087	ac	1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

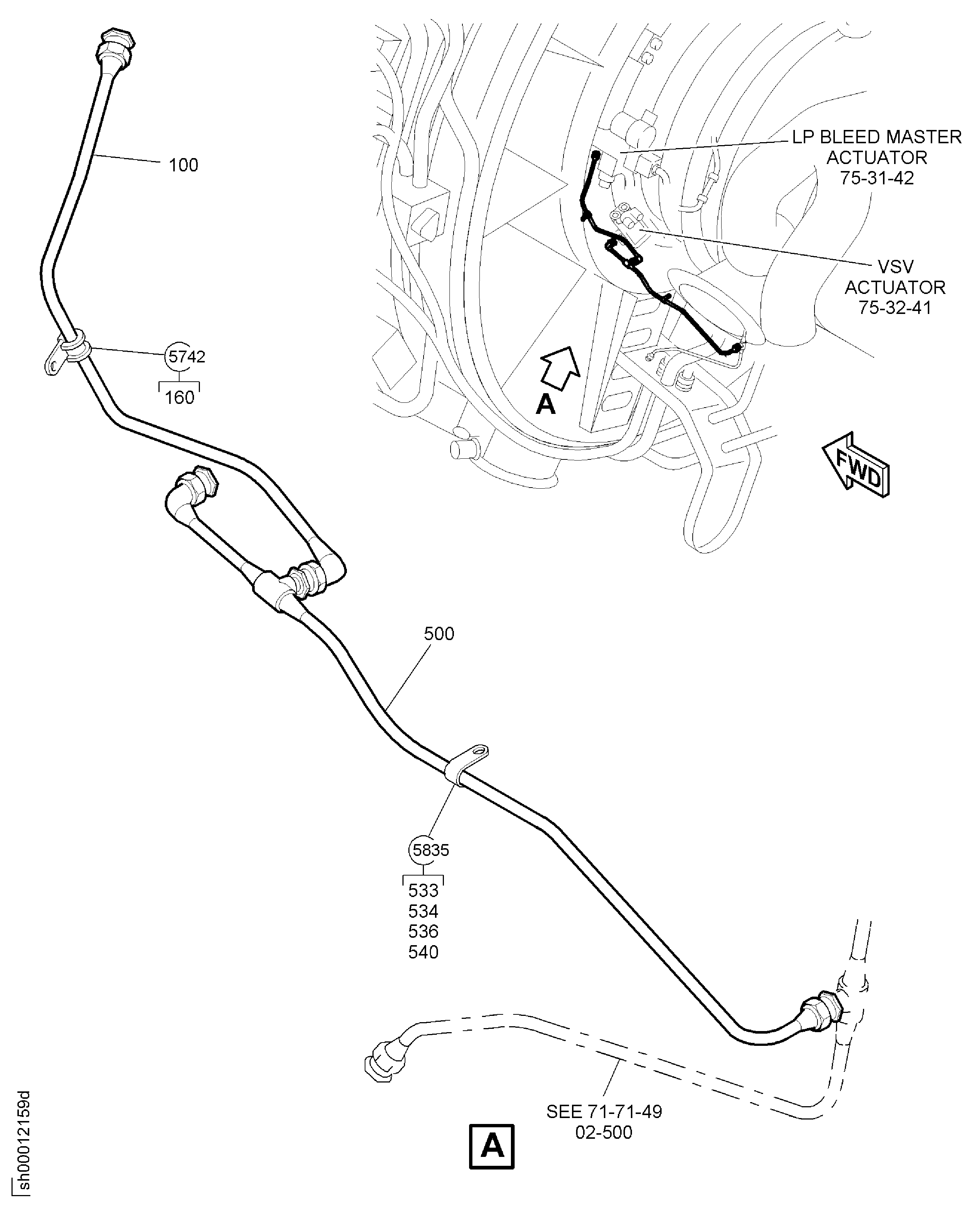

TUBES FUEL DRAIN

Change Type:

Removed Incorrect SB Reference And Corrected Applicability.

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	51563
Enterprise Name:	ROHR INC, A COLLINS AEROSPACE COMPANY
BU Name:	ROHR INC, A COLLINS AEROSPACE COMPANY
Street:	850 LAGOON DRIVE
City:	CHULA VISTA
State:	CA
Zip Code:	91910-2098
Country:	USA
Phone Number:	1-619-691-2089
Fax Number:	1-619-691-6195

Manufacturer Code:	83930
Enterprise Name:	TRANSDIGM INC
BU Name:	TRANSDIGM INC
Department:	ADEL FASTENERS
Building:	SANDWELL INDUSTRIAL ESTATE
Street:	5000 TRIGGS STREET
City:	LOS ANGELES
State:	WEST MIDLANDS
Zip Code:	B66 1QJ
Country:	USA

Manufacturer Code:	96906
Enterprise Name:	MILITARY STANDARDS MANUAL 4120 3-M
BU Name:	MILITARY STANDARDS MANUAL 4120 3-M
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

Manufacturer Code:	K7766
Enterprise Name:	K7766
BU Name:	British Standards Institution
Street:	2 Park Street
City:	London
Zip Code:	AW1A 2BS
Country:	England

Manufacturer Code:	U1653
Enterprise Name:	Society Of British Aerospace Companies, LTD.

Part Number:

400WSS4

Part Name:

CLIP

Manufacturer Code:

83930

Optional Parts

Part Number	Part Name	Manufacturer
AS62404	CLIP - 6.35 MM (0.250)	U1653

Part Number:	400WSS5
Part Name:	SEAL, RING
Manufacturer Code:	83930

Part Number:	400WSS8
Part Name:	CLIP, LOOP TYPE
Manufacturer Code:	83930

Part Number:

4W0001

Part Name:

NUT, OPTION - .190 DIA

Manufacturer Code:

0AM53

Optional Parts

Part Number	Part Name	Manufacturer
AS20624	NUT, SELF LOCKING DBL HEX - .190 DIA	U1653

Part Number:

4W0103

Part Name:

BOLT - .190 DIA X .500

Manufacturer Code:

0AM53

Optional Parts

Part Number	Part Name	Manufacturer
AS21408	BOLT - 0.19 DIA X 0.500	U1653

Part Number:	740-5276-503
Part Name:	TUBE - DRAIN, ASSEMBLY OF
Manufacturer Code:	51563

Part Number:	740-5277-503
Part Name:	TUBE - DRAIN, ASSEMBLY OF
Manufacturer Code:	51563

Part Number:	740-5277-505
Part Name:	TUBE - DRAIN, ASSEMBLY OF
Manufacturer Code:	51563

Part Number:	740-5277-509
Part Name:	TUBE - DRAIN, ASSEMBLY OF
Manufacturer Code:	51563

Part Number:	AS20624
Part Name:	NUT, SELF LOCKING DBL HEX - .190 DIA
Manufacturer Code:	U1653

Part Number:

AS21408

Part Name:

BOLT - 0.19 DIA X 0.500

Manufacturer Code:

U1653

Unit Of Issue:

Optional Parts

Part Number	Part Name	Manufacturer
MS9556-06	BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500	96906

Part Number:

AS62404

Part Name:

CLIP - 6.35 MM (0.250)

Manufacturer Code:

U1653

Optional Parts

Part Number	Part Name	Manufacturer
400WSS4	CLIP	83930

Part Number:

MS9556-06

Part Name:

BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500

Manufacturer Code:

96906

Unit Of Issue:

Optional Parts

Part Number	Part Name	Manufacturer
AS21408	BOLT - 0.19 DIA X 0.500	U1653

Part Number:	SP154D
Part Name:	WASHER - 0.190 DIA
Manufacturer Code:	K7766

POWER PLANT-FUEL DRAIN TUBES-ENGINE

Export Control

Copyright

Applicability

Figure: POWER PLANT-FUEL DRAIN TUBES-ENGINE

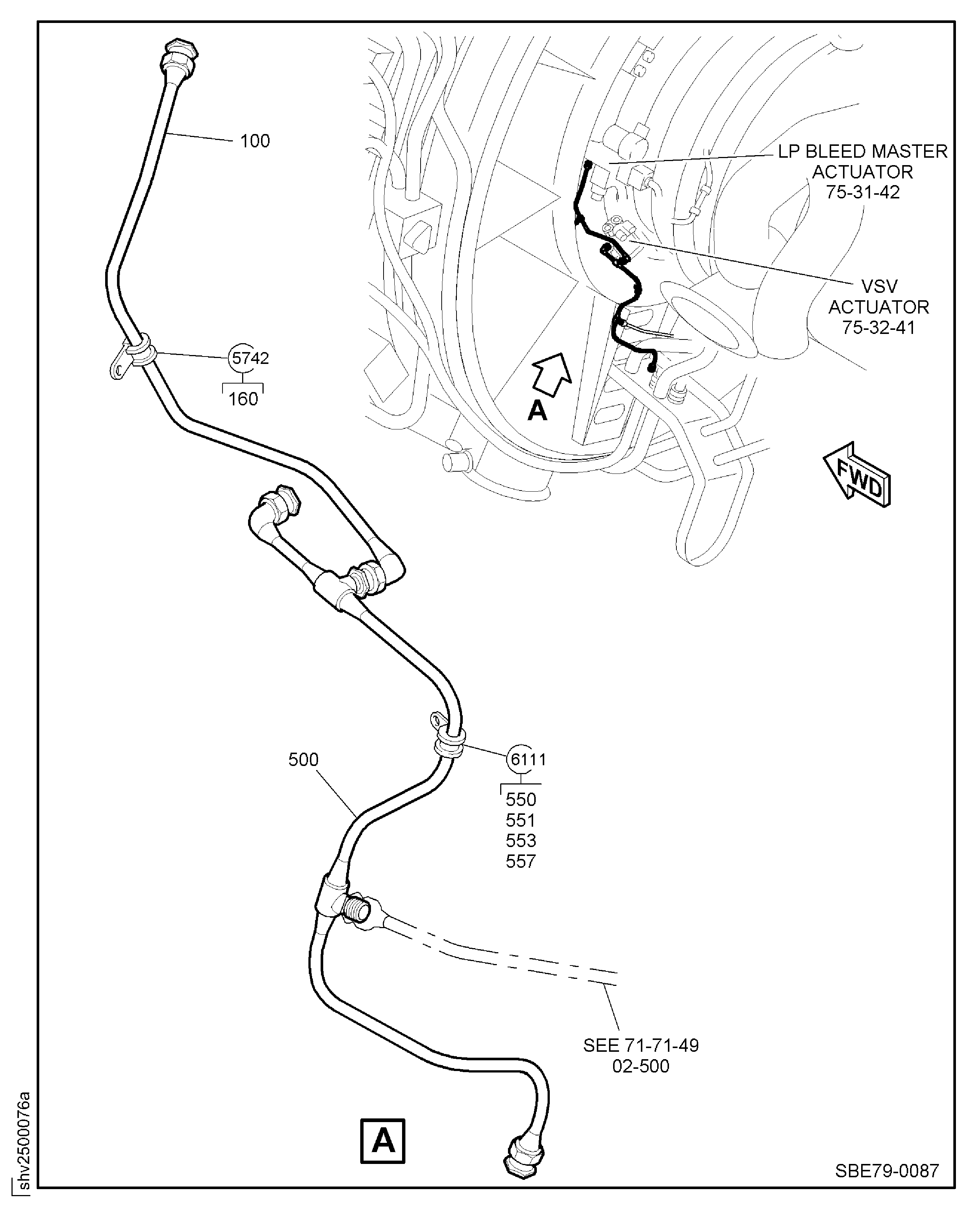

TUBES FUEL DRAIN
