DMC:V2500-A1-71-73-49-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B71734901 | OIL,HYDRAULIC AND WATER DRAIN TUBES-ENGINE, PRE SBE70-0047 | aa | ||
| SBE0047-01 | OIL,HYDRAULIC AND WATER DRAIN TUBES-ENGINE, PRE SBE72-0053 | ab | ||
| SBE0053-01 | OIL,HYDRAULIC AND WATER DRAIN TUBES-ENGINE, PRE SBE72-0063 | ac | ||
| SBE0063-01 | OIL,HYDRAULIC AND WATER DRAIN TUBES-ENGINE, PRE SBE71-0122 | ad | ||
| SBE0122-01 | OIL,HYDRAULIC AND WATER DRAIN TUBES-ENGINE, PRE SBE71-0178 | ae | ||
| SBE0178-01 | OIL,HYDRAULIC AND WATER DRAIN TUBES-ENGINE | af | ||
| 100 | 5R8226 | • TUBE - A/O NO.4 OIL WEEP | aa-af | 1 |
| 128 | 5W1109 | • CLIP | aa-af | 1 |
| 133 | 4W0102 | • BOLT - .190 DIA X .438 | aa-af | 1 |
| 134 | 5W1086 | • WASHER | aa-af | 1 |
| 136 | 5W1109 | • CLIP | aa-af | 1 |
| 140 | 4W0043 | • NUT - .190 DIA | aa-af | 1 |
| 202 | 5T8154 | • • FITTING - ELBOW | aa-af | 1 |
| 212 | 5W1097 | • • SLEEVE - HALF | aa-af | 4 |
| 214 | 5W1059 | • • LUG - BRAZED | aa-af | 2 |
| 240 | AS15777 | • • WIRE - THRUST U1653 | aa-af | 1 |
| 241 | AS15701 | • • NUT - TUBE COUPLING U1653 | aa-af | 1 |
| 242 | AS15768 | • • FERRULE - ASSY U1653 | aa-af | 1 |
| 500 | 5R8083 | • TUBE - A/O OIL-WEEP LINE PRE SBE72-0053 | aa-ab | 1 |
| 500A | 5R8143 | • TUBE POST SBE72-0053 PRE SBE72-0063 | ac | 1 |
| 500B | 6A5023 | • TUBE - NO 4 BEARING WEEP LINE POST SBE72-0063 PRE SBE71-0178 | ad-ae | 1 |
| 500C | 6A6169 | • TUBE - A/O POST SBE71-0178 | af | 1 |
| 525 | 4W0103 | • BOLT - .190 DIA X .500 POST SBE72-0053 | ac-af | 1 |
| 526 | 5W1086 | • WASHER POST SBE72-0053 | ac-af | 1 |
| 528 | 5W1109 | • CLIP PRE SBE72-0053 | aa-ab | 1 |
| 528A | 5W1109 | • CLIP POST SBE72-0053 | ac-af | 1 |
| 532 | 4W0001 | • NUT - .190 DIA POST SBE72-0053 | ac-af | 1 |
| 533 | 4W0109 | • BOLT - .190 DIA X .875 PRE SBE72-0053 | aa-ad | 1 |
| 533A | 4W0116 | • BOLT - .190 DIA X 1.312 POST SBE72-0053 PRE SBE71-0122 | aa-ad | 1 |
| 533B | 4W0117 | • BOLT - .190 DIA X 1.375 POST SBE71-0122 | ae-af | 1 |
| 534 | 5W1086 | • WASHER | aa-af | 1 |
| 536 | 5W1109 | • CLIP | aa-af | 1 |
| 538 | 5W1030 | • SPACER - (10MM) POST SBE72-0053 | ac-af | 1 |
| 540 | 4W0043 | • NUT - .190 DIA | aa-af | 1 |
| 541 | 4W0104 | • BOLT - .190 DIA X .562 PRE SBE72-0053 | aa-ab | 1 |
| 541A | 4W0104 | • BOLT - .190 DIA X .562 POST SBE72-0053 | ac-af | 1 |
| 542 | 5W1086 | • WASHER PRE SBE72-0053 | aa-ab | 1 |
| 542A | 5W1086 | • WASHER POST SBE72-0053 | ac-af | 1 |
| 544 | 5W1109 | • CLIP | aa-af | 1 |
| 548 | AS41104 | • NUT - .190 DIA U1653 PRE SBE70-0047 | aa-ab | 1 |
| 548A | 4W0043 | • NUT - .190 DIA POST SBE70-0047 PRE SBE72-0053 | aa-ab | 1 |
| 548B | 4W0043 | • NUT - .190 DIA POST SBE72-0053 | ac-af | 1 |
| 550 | 5W1109 | • CLIP Optional Part 5W1109 POST SBE72-0063 | ad-af | 1 |
| 551 | 4W0104 | • BOLT - .190 DIA X .562 Optional Part 4W0104 POST SBE72-0063 | ad-af | 1 |
| 552 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE72-0063 | ad-af | 1 |
| 555 | AS20624 | • NUT - SELF LOCKING,BIHEX, .190 DIA U1653 POST SBE72-0063 | ad-af | 1 |
| 602 | AS15802 | • • ADAPTOR U1653 | aa-af | 1 |
| 612 | 5W1097 | • • SLEEVE - HALF PRE SBE72-0053 | aa-ab | 6 |
| 612A | 5W1097 | • • SLEEVE - HALF POST SBE72-0053 | ac-af | 8 |
| 614 | 5W1059 | • • LUG - BRAZED PRE SBE71-0178 | aa-ae | 2 |
| 614A | UP11152 | • • BRACKET - INTER TUBE SUPPORT POST SBE71-0178 | af | 2 |
| 640 | AS15777 | • • WIRE - THRUST U1653 | aa-af | 1 |
| 641 | AS15701 | • • NUT - TUBE COUPLING U1653 | aa-af | 1 |
| 642 | AS15768 | • • FERRULE - ASSY U1653 | aa-af | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

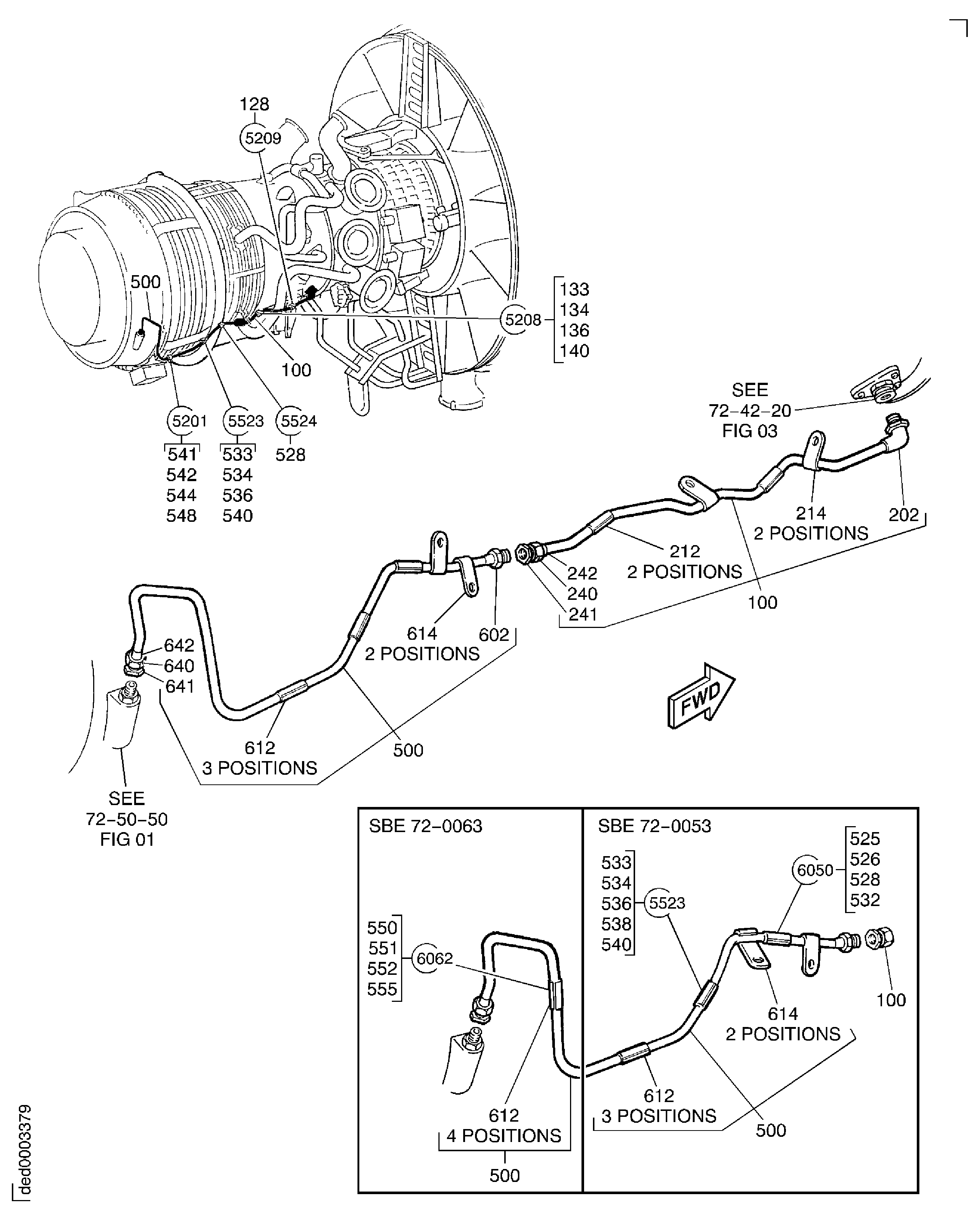

Figure: "OIL,HYDRAULIC AND WATER DRAIN TUBES-ENGINE
OIL HYDRAULIC AND WATER DRAIN TUBES
