V2500-A1
Common Information
TASK 72-00-00-200-001-A00 Engine General - Examine (Borescope) The LP Compressor (LPC), Inspection-001
General
This TASK gives the procedure for the borescope inspection of the LP compressor rotor blades.
NOTE
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| IAE 2J12030 Guide tube | 0AM53 | IAE 2J12030 | 1 | |
| IAE 6F10056 Borescope equipment, 4 mm or 6 mm, video borescope | 0AM53 | IAE 6F10056 | 1 |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 06-069 MARKER | IE207 | CoMat 06-069 |
Spares
NONESafety Requirements
NONEProcedure
Put the IAE IAE 2J12030 Guide tube 1 off, in position through the fan frame strut, LP compressor outlet guide vanes and the LP compressor inlet guide vane at approximately the 3 O'clock position.
Put the IAE IAE 6F10056 Borescope equipment, 4 mm or 6 mm, video borescope 1 off in to the guide tube until the stage 1.5 compressor blade can be examined.

CAUTION
BE CAREFUL DURING INSTALLATION AND REMOVAL OF THE GUIDE TUBE AS NOT TO CAUSE DAMAGE TO THE OUTER OR INNER OUTLET GUIDE VANES.Put the guide tube and borescope probe in position to examine the stage 1.5 blades.
SUBTASK 72-00-00-490-051 Install the Support Equipment to Examine the Stage 1.5 Blades
Refer to Figure.
Make a mark on a fan blade and the adjacent fan case using the CoMat 06-069 MARKER to identify the start position of the inspection.
SUBTASK 72-00-00-220-097 Examine the Stage 1.5 LP Compressor Blades
NOTE
Do this operation with two persons: One person in the fan case to adjust the position of the guide tube and to turn the stage 1 fan blades.The other person at the right side of the engine to examine the compressor blades.Refer to Figure.
SUBTASK 72-00-00-220-098 Examine the Front Surface of each Stage 1.5 LP Compressor Blade
Refer to Figure.
SUBTASK 72-00-00-090-051 Remove the Borescope Probe and Guide Tube
Refer to Figure.
Make a mark on a fan blade and adjacent fan case using the CoMat 06-069 MARKER to identify the start position of the inspection.
SUBTASK 72-00-00-220-099 Examine the Stage 2.5 LP Compressor Blades
NOTE
Do this operation with two persons: One person to turn the stage 1 fan blades. The other person at the right side of the engine to examine the LP compressor blades.Refer to Figure.
SUBTASK 72-00-00-220-100 Examine the Rear Surface of each Stage 2.5 LP Compressor Blade
Refer to Figure.
SUBTASK 72-00-00-090-052 Remove the Support Equipment

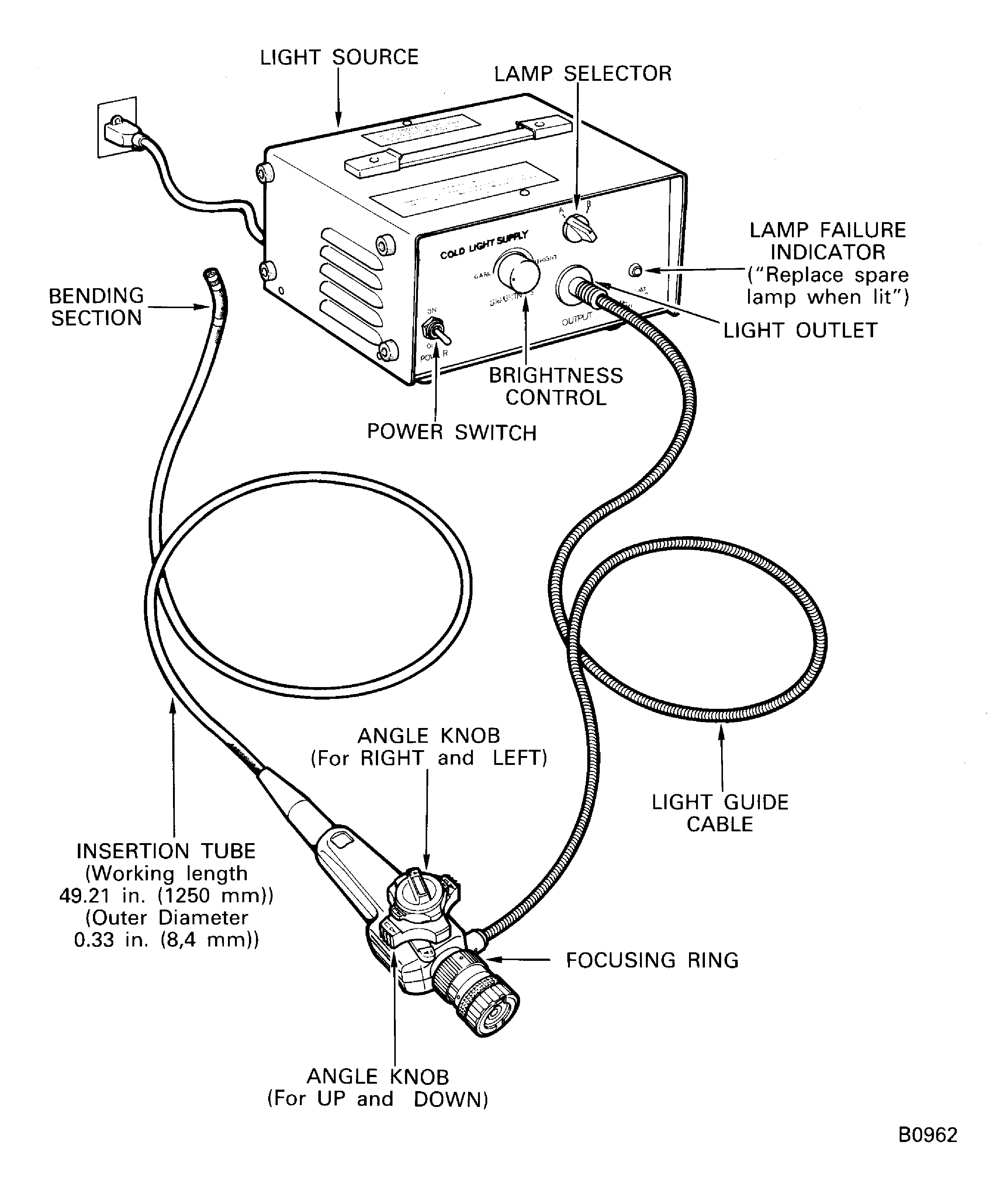

Figure: Borescope inspection equipment
Borescope inspection equipment

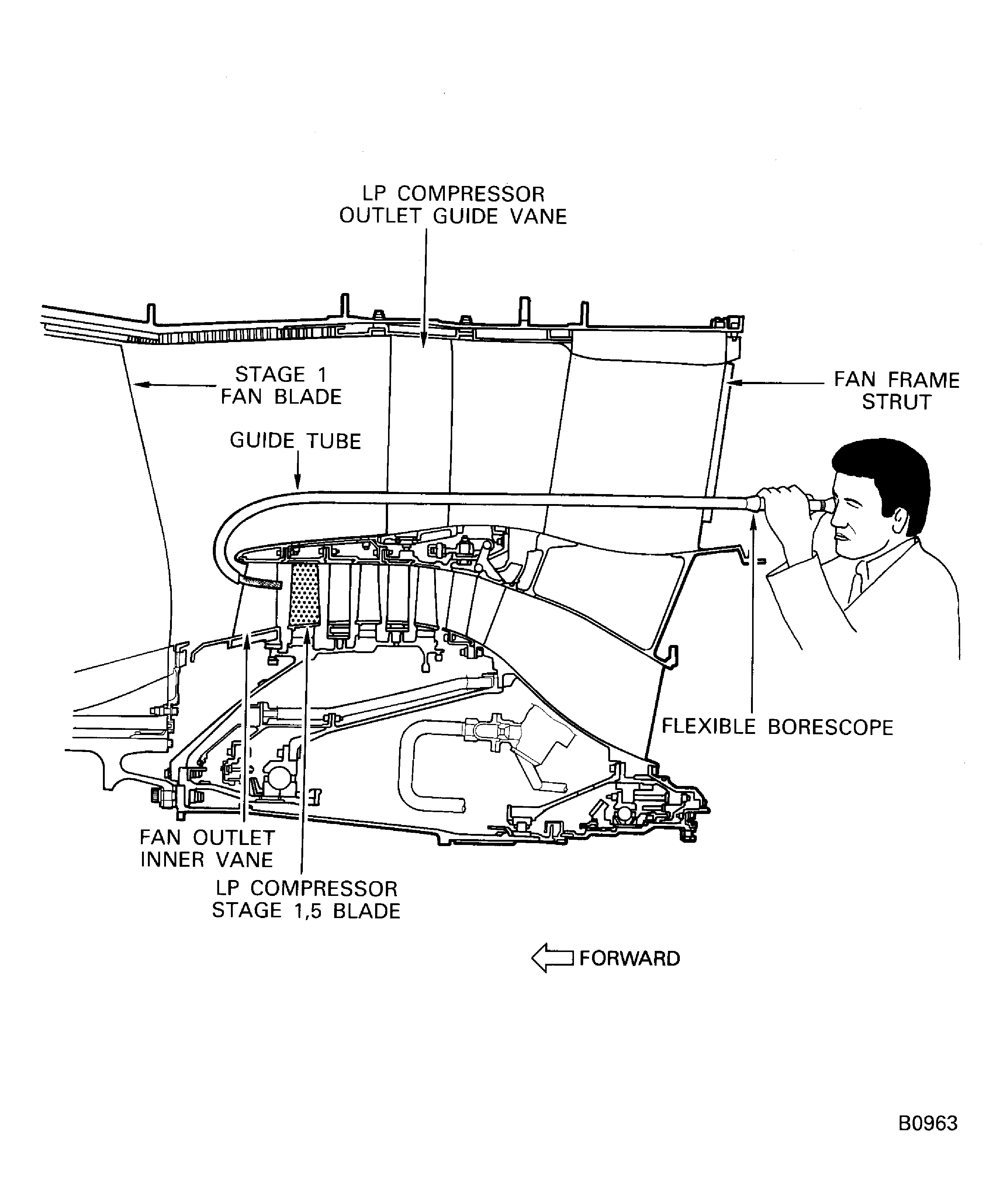

Figure: Borescope inspection for LP compressor stage 1.5 blade
Borescope inspection for LP compressor stage 1.5 blade

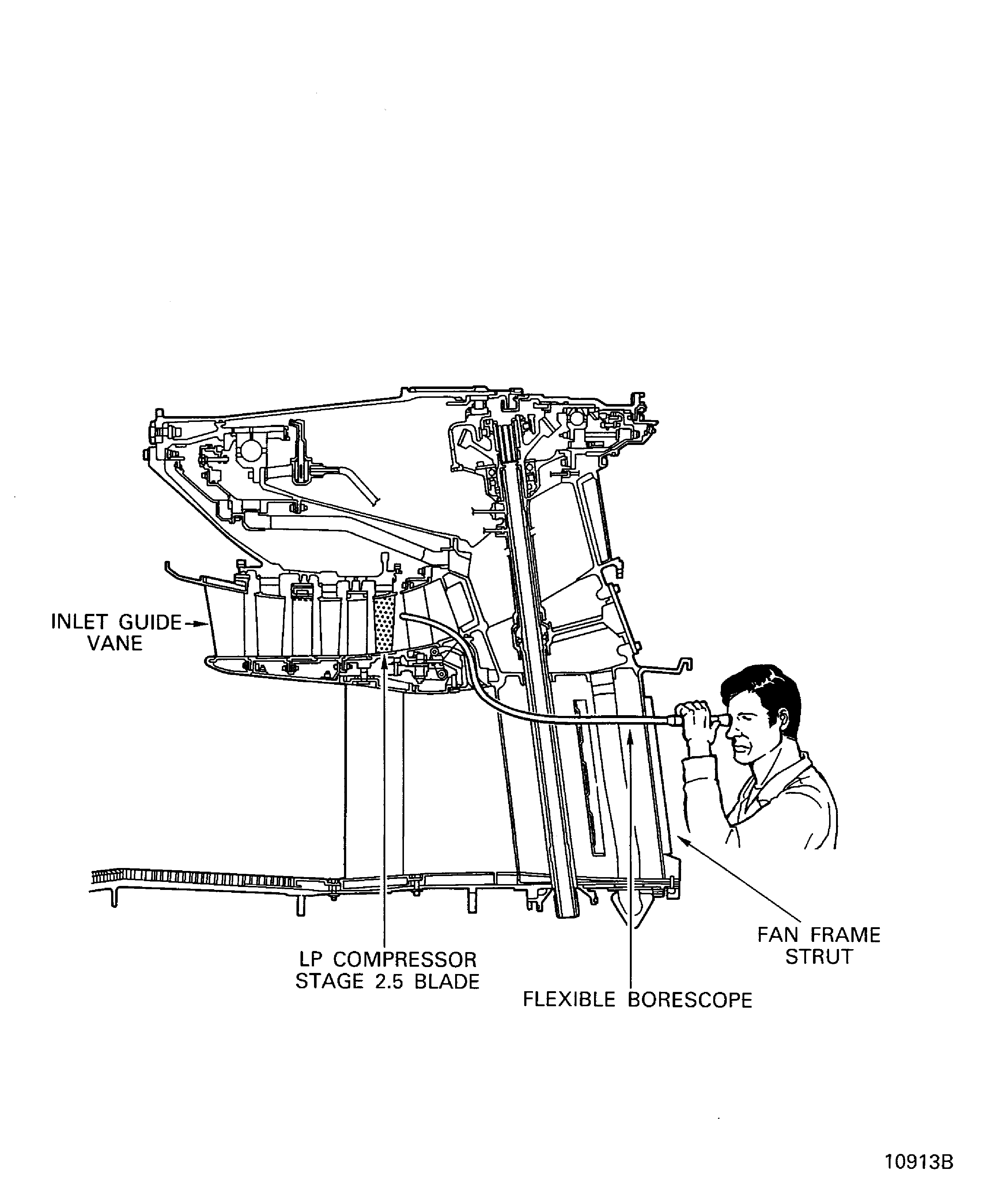

Figure: Borescope inspection for LP compressor stage 2.5 blade
Borescope inspection for LP compressor stage 2.5 blade

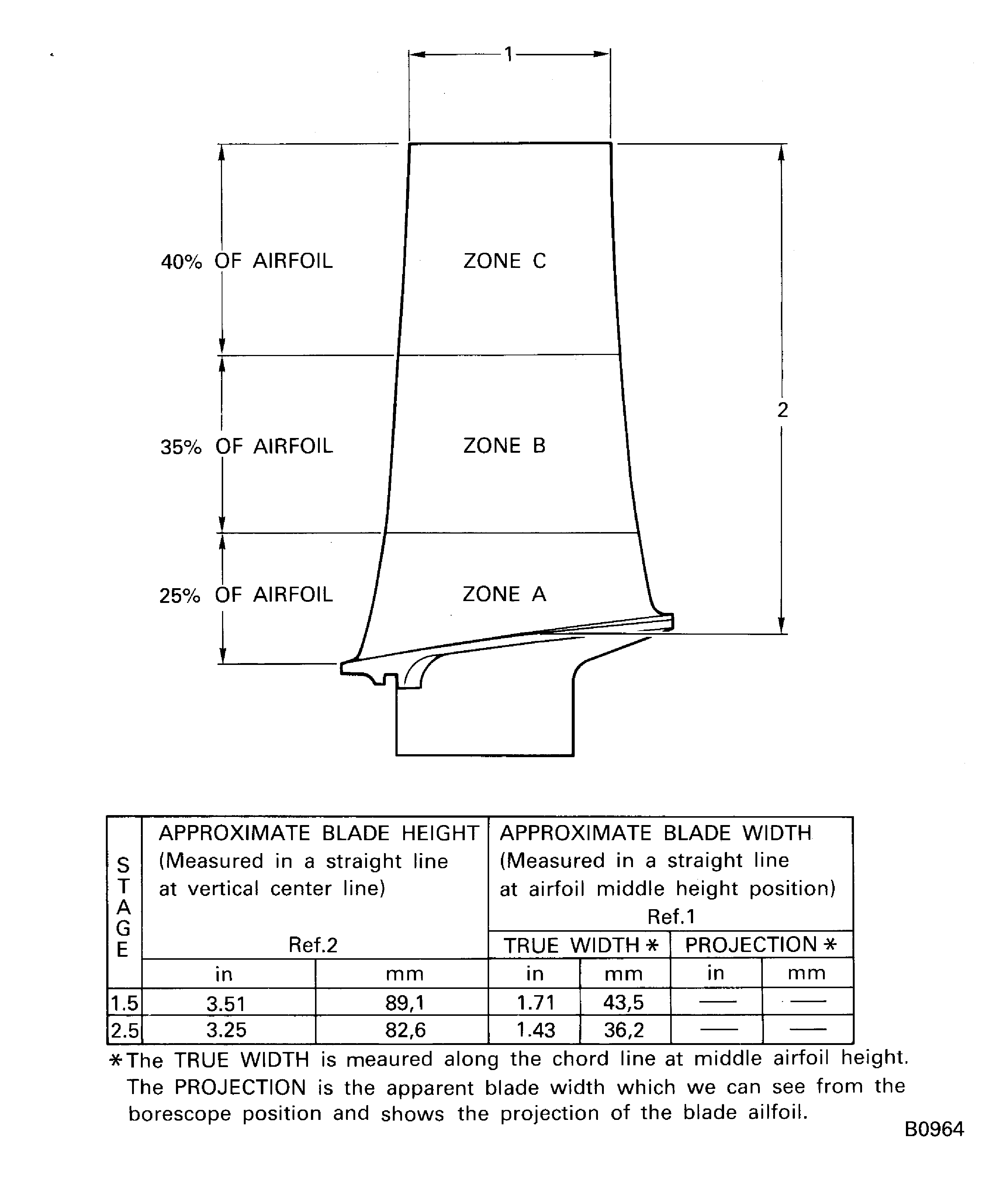

Figure: LP compressor stage 1.5 and 2.5 blade - Maximum serviceable limit
LP compressor stage 1.5 and 2.5 blade - Maximum serviceable limit
