Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
Common Information
TASK 72-00-32-300-005 Front Face of LPC Stage 1.5 - 2.5 Disc Assembly in LPC/Intermediate Case Module - Blend Repair, Repair-005 (VRS1994)
General
Price and availability.
Refer to IAE for any of the following:
Tools.
Engine parts.
Repair of spares.
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Portablegrinding equipment | LOCAL | Portable grinding equipment | ||
| Chemical cleaning equipment | LOCAL | Chemical Cleaning Equipment |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 | ||
| CoMat 06-022 FLUORESCENT PENETRANT (POST-EMULSIFIED ULTRA HIGH SENSITIVITY) | LOCAL | CoMat 06-022 | ||
| CoMat 06-030B NON AQUEOUS DEVELOPER | 37676 | CoMat 06-030B |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Dress until all damage is removed.
CAUTION
TITANIUM COMPONENTS.SILICON CARBIDE TYPE WHEELS, STONES AND ABRASIVE PAPERS ARE TO BE USED FOR THIS REPAIR.ALUMINIUM OXIDE TYPES MUST NOT BE USED.THE MATERIAL WILL OXIDIZE AND CRACK IF MECHANICAL CUTTERS ARE USED HEAVILY. THIS HAS OCCURRED IF THE COMPONENT SHOWS DARK STRAW TO BLUE DISCOLORATION. IF AT ANY TIME THIS COLORATION OCCURS THE COMPONENT MUST BE REJECTED.Dress to remove damage in the front of disc surface.
Refer to the SPM TASK 70-35-03-300-501.
The maximum blend limits is 0.004 in. (0.10 mm) in depth.
Blend the dressed area and polish out scores.
SUBTASK 72-00-32-350-059 Dress to Remove Damage
Refer to the SPM TASK 70-11-08-300-503, SUBTASK 70-11-08-300-001.
Chemically clean.
Refer to the SPM TASK 70-11-08-300-503, SUBTASK 70-11-08-300-002.
Swab etch the repair area(s).
SUBTASK 72-00-32-110-055 Do a Swab Etch
The contact time must be 30 - 60 minutes.
Make sure there are no cracks in the repaired area.
Refer to the SPM TASK 70-23-05-230-501. Use CoMat 06-022 FLUORESCENT PENETRANT (POST-EMULSIFIED ULTRA HIGH SENSITIVITY) and CoMat 06-030B NON AQUEOUS DEVELOPER.
Penetrant crack test the dressed area.
SUBTASK 72-00-32-230-054 Examine the Disc for Cracks
Use 10X magnifying glass.
Refer to the Engine Manual TASK 72-32-81-200-001-B00.
Visually examine the repaired area for nicks, dents, scores and/or other damage.
Do a visual inspection.
SUBTASK 72-00-32-220-010 Examine the Disc
Refer to Figure.
Make a permanent mark by the procedure given in SPM TASK 70-09-02-400-501.
Use the shallow etch method.
No burning, pitting or selective attack is permitted from the electrical contact.
Make a mark VRS1994 adjacent to the original part number.
SUBTASK 72-00-32-350-060 Mark Repair Number

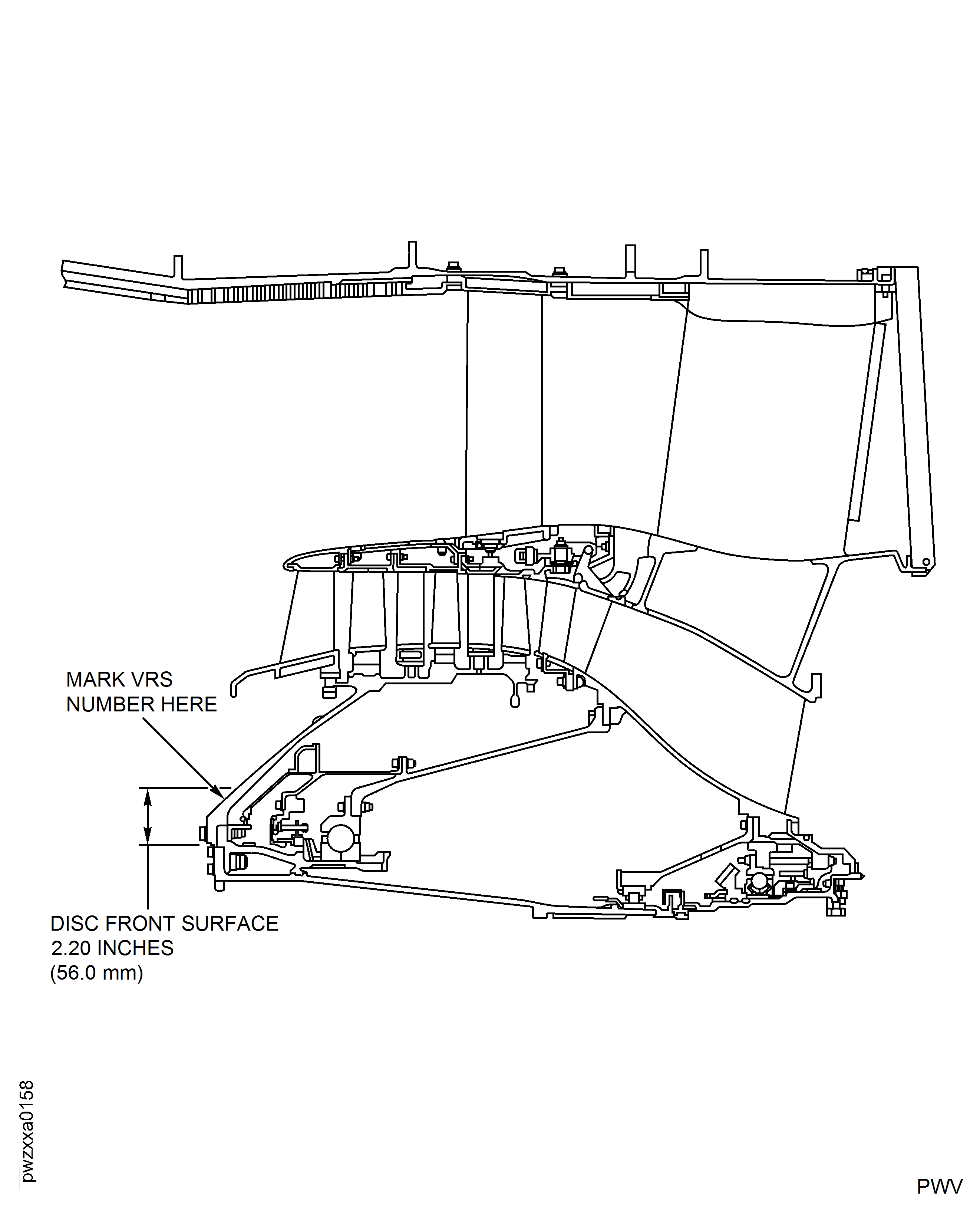

Figure: LPC/Intermediate Case Module
LPC/Intermediate Case Module
