DMC:V2500-A1-72-00-40-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72004001 | ENGINE-ATTACH PARTS & FITTINGS-HP SYSTEM MODULE, PRE SBE72-0290 | aa | ||
| SBE0290-01 | ENGINE-ATTACH PARTS & FITTINGS-HP SYSTEM MODULE | ab | ||
| 010 | BLT5348 | • BOLT - .250 DIA | aa-ab | 20 |
| 030 | 4W0003 | • NUT - .3125 DIA PRE SBE72-0290 | aa-ab | 41 |
| 030A | 4W0003 | • NUT - .3125 DIA POST SBE72-0290 | aa-ab | 41 |
| 050 | AS21116 | • BOLT - .3125 DIA X 1.000 U1653 PRE SBE72-0290 | aa | 41 |
| 050A | BLT5654 | • BOLT - .312 DIA X 1.125 POST SBE72-0290 | ab | 41 |
| 080 | 5A1233 | • PLATE | aa-ab | 4 |
| 082 | 5A1232 | • PIN | aa-ab | 4 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

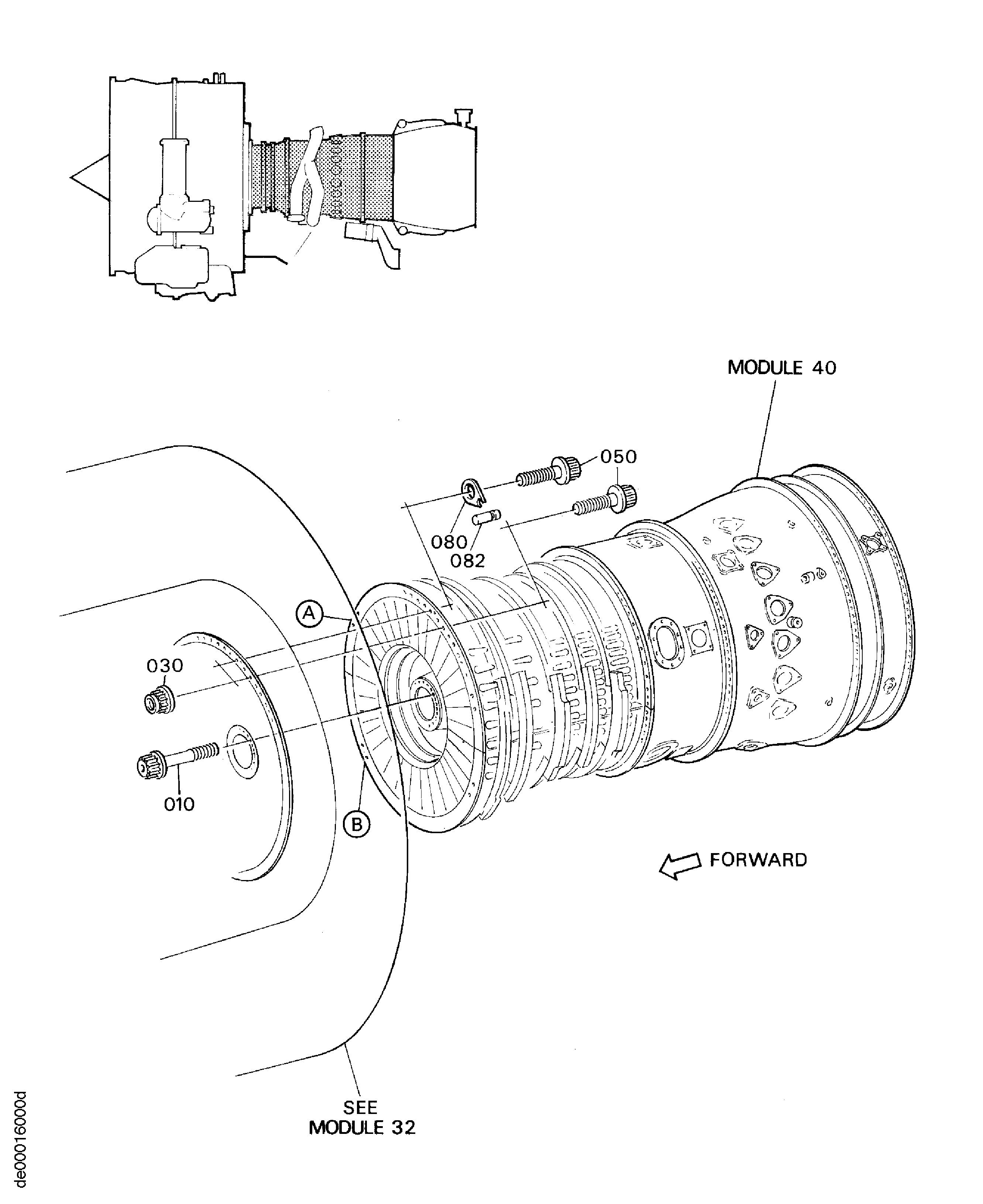

Figure: ENGINE-ATTACH PARTS & FITTINGS-HP SYSTEM MODULE
HP SYSTEM MODULE INSTALLATION FITTINGS
