DMC:V2500-A1-72-31-00-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72310001 | ENGINE-LP COMPRESSOR (FAN) MODULE, PRE SBE72-0362 | aa | ||
| SBE0362-01 | ENGINE-LP COMPRESSOR (FAN) MODULE | ab | ||
| 001 | 5W0015 | COMP - ASSY LP FAN ROTOR | aa-ab | 1 |
| -100 | RETAIN | • RETAINER - RING,LP COMP.BLADE(72-31-13) 81349 | aa-ab | REF |
| 120 | AS24125 | • BOLT - .3125 DIA X 1.562 U1653 | aa-ab | 36 |
| 140 | AS21014 | • BOLT - .250 DIA X .875 U1653 PRE SBE72-0362 | aa-ab | 22 |
| 140A | 5A1845 | • BOLT POST SBE72-0362 | aa-ab | 22 |
| 164 | 5A0136 | • WEIGHT - BALANCE TRIM, .106 OZ | aa-ab | 5 |
| 165 | 5A0137 | • WEIGHT - BALANCE TRIM, .317 OZ | aa-ab | 5 |
| 166 | 5A0138 | • WEIGHT - BALANCE TRIM, .529 OZ | aa-ab | 5 |
| 167 | 5A0139 | • WEIGHT - BALANCE TRIM, .882 OZ | aa-ab | 5 |
| 200 | 5A0110 | • WEIGHT - BALANCE REAR FAN, 1.5G (.055 OZ) | aa-ab | 1 |
| 201 | 5A0132 | • WEIGHT - BALANCE REAR FAN, .245 OZ | aa-ab | 1 |
| 202 | 5A0133 | • WEIGHT - BALANCE REAR FAN, .460 OZ | aa-ab | 1 |
| 203 | 5A0134 | • WEIGHT - BALANCE REAR FAN, .705 OZ | aa-ab | 1 |
| 250 | 5A0106 | • WEIGHT - BALANCE TRIM, .035 OZ | aa-ab | 1 |
| 251 | 5A0107 | • WEIGHT - BALANCE TRIM, .280 OZ | aa-ab | 1 |
| 252 | 5A0127 | • WEIGHT - BALANCE TRIM, .705 OZ | aa-ab | 1 |
| 253 | 5A0105 | • WEIGHT - BALANCE TRIM, 2.645 OZ | aa-ab | 1 |
| 254 | 5A0104 | • WEIGHT - BALANCE TRIM, 5.290 OZ | aa-ab | 1 |
| 255 | 5A0103 | • WEIGHT - BALANCE TRIM, 7.935 OZ | aa-ab | 1 |
| 270 | 4W0002 | • NUT - .250 DIA | aa-ab | 1 |
| 275 | AS21014 | • BOLT - .250 DIA X .875 U1653 | aa-ab | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

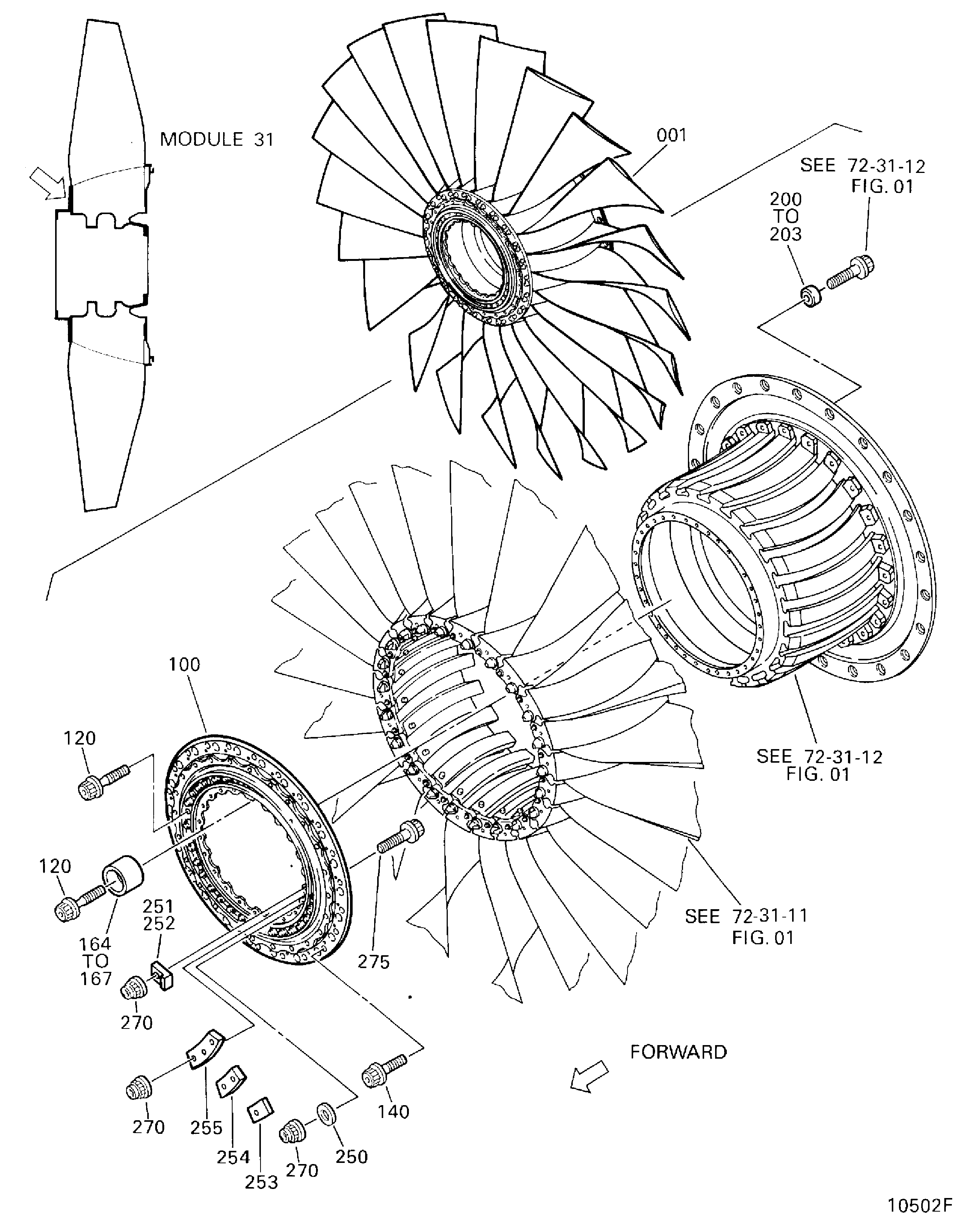

Figure: ENGINE-LP COMPRESSOR (FAN) MODULE
LP COMPRESSOR (FAN) MODULE
