ENGINE-LP COMP/INTERMEDIATE CASE MODULE

DMC:V2500-A1-72-32-00-01A-941A-D|Issue No:004|Issue Date:2019-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig. Item	Part No.	Description	Effect/Model Applic.	UPA
01
000	B72320001	ENGINE - LP COMP/INTERMEDIATE CASE MODULE, PRE SBN78-0001	aa
000	SBN0001-01	ENGINE - LP COMP/INTERMEDIATE CASE MODULE, PRE SBE70-0002	ab
000	SBE0002-01	ENGINE - LP COMP/INTERMEDIATE CASE MODULE, PRE SBE72-0094	ac
000	SBE0094-01	ENGINE - LP COMP/INTERMEDIATE CASE MODULE, PRE SBE72-0077	ad
000	SBE0077-01	ENGINE - LP COMP/INTERMEDIATE CASE MODULE, PRE SBE72-0009	ae
000	SBE0009-01	ENGINE - LP COMP/INTERMEDIATE CASE MODULE, PRE SBE72-0044	af
000	SBE0044-01	ENGINE - LP COMP/INTERMEDIATE CASE MODULE, PRE SBE72-0103	ag
000	SBE0103-01	ENGINE - LP COMP/INTERMEDIATE CASE MODULE, PRE SBE72-0149	ah
000	SBE0149-01	ENGINE - LP COMP/INTERMEDIATE CASE MODULE, PRE SBE72-0171	ai
000	SBE0171-01	ENGINE - LP COMP/INTERMEDIATE CASE MODULE, PRE SBE72-0133	aj
000	SBE0133-01	ENGINE - LP COMP/INTERMEDIATE CASE MODULE, PRE SBE72-0136	ak
000	SBE0136-01	ENGINE - LP COMP/INTERMEDIATE CASE MODULE, PRE SBE70-0202	al
000	SBE0202-01	ENGINE - LP COMP/INTERMEDIATE CASE MODULE, PRE SBE72-0140	am
000	SBE0140-01	ENGINE - LP COMP/INTERMEDIATE CASE MODULE, PRE SBE70-0266	an
000	SBE0266-01	ENGINE - LP COMP/INTERMEDIATE CASE MODULE, PRE SBE72-0212	ao
000	SBE0212-01	ENGINE - LP COMP/INTERMEDIATE CASE MODULE, PRE SBE72-0230	ap
000	SBE0230-01	ENGINE - LP COMP/INTERMEDIATE CASE MODULE, PRE SBE72-0333	aq
000	SBE0333-01	ENGINE - LP COMP/INTERMEDIATE CASE MODULE, PRE SBE72-0435	ar
000	SBE0435-01	ENGINE - LP COMP/INTERMEDIATE CASE MODULE, PRE SBE71-0303	as
000	SBE0303-01	ENGINE - LP COMP/INTERMEDIATE CASE MODULE, PRE SBE72-0553	at
000	SBE0553-01	ENGINE - LP COMP/INTERMEDIATE CASE MODULE, PRE SBE72-0662	au
000	SBE0662-01	ENGINE-LP COMP/INTERMEDIATE CASE MODULE, PRE SBE72-0701	av
000	SBE0701-01	ENGINE-LP COMP/INTERMEDIATE CASE MODULE	aw
-001001	5W0016	LPC - INTERMEDIATE CASE, ASSEMBLY OF PRE SBE72-0044	aa-af	1
-001001A	5W0102	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0044 PRE SBE72-0103	ag	1
-001001B	5W0127	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0103 PRE SBE72-0149	ah	1
-001001C	5W0142	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0149 PRE SBE72-0171	ai	1
-001001D	5W0153	CASE - LPC INTERMEDIATE, ASSEMBLY OF POST SBE72-0171 PRE SBE70-0266	aj-an	1
-001001E	5W0156	MODULE - LPC, INTERMEDIATE CASE POST SBE70-0266 PRE SBE72-0230	aj-ap	1
-001001F	5W0160	MODULE - LPC, INTERMEDIATE CASE POST SBE72-0230 PRE SBE72-0435	aq-ar	1
-001001G	5W0161	CASE POST SBE72-0230 PRE SBE72-0435	aq-ar	1
-001001H	5W0162	MODULE - LPC, INTERMEDIATE CASE POST SBE72-0230 PRE SBE72-0435	aq-ar	1
-001001J	5W0163	MODULE - LPC, INTERMEDIATE CASE POST SBE72-0230 PRE SBE72-0435	aq-ar	1
-001001K	5W0164	MODULE - LPC, INTERMEDIATE CASE POST SBE72-0230 PRE SBE72-0435	aq-ar	1
-001001L	5W0165	MODULE - LPC, INTERMEDIATE CASE POST SBE72-0230 PRE SBE72-0435	aq-ar	1
-001001M	5W0175	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0435 PRE SBE71-0303	as	1
-001001N	5W0176	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0435 PRE SBE71-0303	as	1
-001001P	5W0177	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0435 PRE SBE71-0303	as	1
-001001Q	5W0178	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0435 PRE SBE71-0303	as	1
-001001R	5W0179	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0435 PRE SBE71-0303	as	1
-001001S	5W0180	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0435 PRE SBE71-0303	as	1
-001001T	5W0227	LPC - INTERMEDIATE CASE, MODULE POST SBE71-0303 PRE SBE72-0553	at	1
-001001U	5W0230	LPC - INTERMEDIATE CASE, MODULE POST SBE71-0303 PRE SBE72-0553	at	1
-001001V	5W0231	LPC - INTERMEDIATE CASE, MODULE POST SBE71-0303 PRE SBE72-0553	at	1
-001001W	5W0232	LPC - INTERMEDIATE CASE, MODULE POST SBE71-0303 PRE SBE72-0553	at	1
-001001X	5W0233	LPC - INTERMEDIATE CASE, MODULE POST SBE71-0303 PRE SBE72-0553	at	1
-001001Y	5W0234	LPC - INTERMEDIATE CASE, MODULE POST SBE71-0303 PRE SBE72-0553	at	1
-001001Z	5W0235	LPC - INTERMEDIATE CASE, MODULE POST SBE71-0303 PRE SBE72-0553	at	1
-001001AA	5W0236	LPC - INTERMEDIATE CASE, MODULE POST SBE71-0303 PRE SBE72-0553	at	1
-001001AB	5W0237	LPC - INTERMEDIATE CASE, MODULE POST SBE71-0303 PRE SBE72-0553	at	1
-001001AC	5W0238	LPC - INTERMEDIATE CASE, MODULE POST SBE71-0303 PRE SBE72-0553	at	1
-001001AD	5W0239	LPC - INTERMEDIATE CASE, MODULE POST SBE71-0303 PRE SBE72-0553	at	1
-001001AE	5W0240	LPC - INTERMEDIATE CASE, MODULE POST SBE71-0303 PRE SBE72-0553	at	1
-001001AF	5W0241	LPC - INTERMEDIATE CASE, MODULE POST SBE71-0303 PRE SBE72-0553	at	1
-001001AG	5W0242	LPC - INTERMEDIATE CASE, MODULE POST SBE71-0303 PRE SBE72-0553	at	1
-001001AH	5W0243	LPC - INTERMEDIATE CASE, MODULE POST SBE71-0303 PRE SBE72-0553	at	1
-001001AJ	5W0229	LPC - INTERMEDIATE CASE, MODULE POST SBE71-0303 PRE SBE72-0553	at	1
-001001AK	5W0255	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0553	au	1
-001001AL	5W0273	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0553	au	1
-001001AM	5W0274	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0553	au	1
-001001AN	5W0275	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0553	au	1
-001001AP	5W0276	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0553	au	1
-001001AQ	5W0277	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0553	au	1
-001001AR	5W0278	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0553	au	1
-001001AS	5W0279	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0553	au	1
-001001AT	5W0280	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0553	au	1
-001001AU	5W0281	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0553	au	1
-001001AV	5W0282	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0553	au	1
-001001AW	5W0283	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0553	au	1
-001001AX	5W0284	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0553	au	1
-001001AY	5W0285	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0553	au	1
-001001AZ	5W0286	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0553	au	1
-001001BA	5W0288	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0553	au	1
-001001BB	5W0289	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0553	au	1
-001001BC	5W0287	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0553	au	1
-001001BD	5W0290	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0553	au	1
-001001BE	5W0291	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0553	au	1
-001001BF	5W0292	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0553	au	1
-001001BG	5W0293	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0553	au	1
-001001BH	5W0294	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0553	au	1
-001001BJ	5W0295	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0553	au	1
-001001BK	5W0296	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0553	au	1
-001001BL	5W0297	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0553	au	1
-001001BM	5W0298	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0553	au	1
-001001BN	5W0299	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0553	au	1
-001001BP	5W0300	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0553	au	1
-001001BQ	5W0301	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0553	au	1
-001001BR	5W0302	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0553	au	1
-001001BS	5W0303	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0553	au	1
-001001BT	5W0304	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0553	au	1
-001001BU	5W0305	LPC - INTERMEDIATE CASE, MODULE POST SBE72-0553	au	1

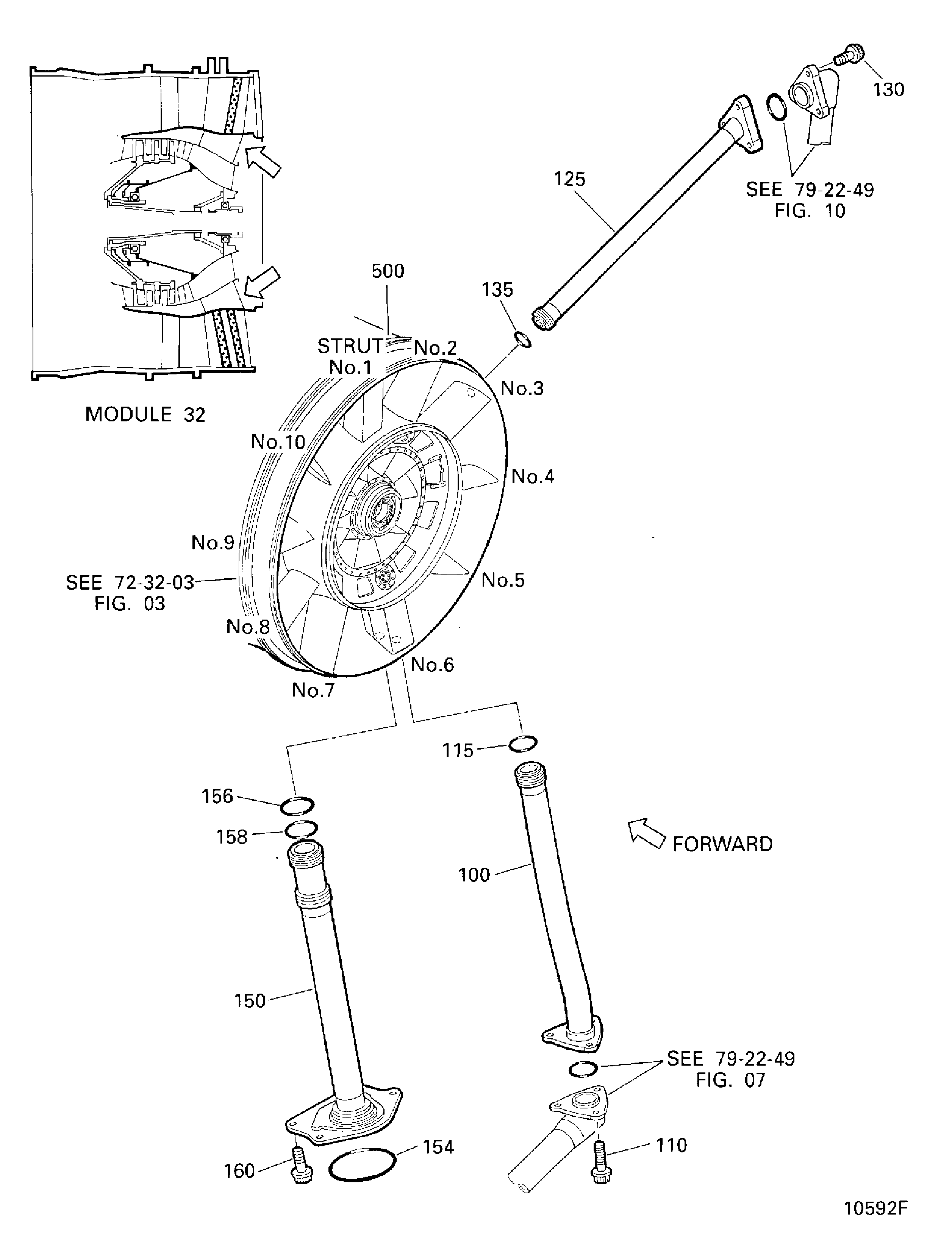

-100100	72-32-96	TUBES - OIL & AIR TRANSFER 0JAEC	aa-au	REF

110110	4W0168	• BOLT, MACHINE DOUBLE HEX - .250 DIA X .875	aa-au	3
115115	AS43013-124	• RING - SEALING, TOROIDAL U1653	aa-au	1

-125125	72-32-96	TUBES - OIL & AIR TRANSFER 0JAEC	aa-au	REF

130130	4W0174	• BOLT - 0.250 DIA X 10.250	aa-au	3
135135	AS43013-212	• RING U1653 PRE SBE72-0701	aa-av	1
135135A	M83485-1-212	• O-RING 96906 POST SBE72-0701	aw	1

-150150	72-32-94	TUBE- SEAL PTO SHAFT 0JAEC	aa-au	REF
154154	5A2138	• RING - SEAL TRAPEZOIDAL PRE SBE72-0212	aa-ao	1
154154A	5A1641	• RING - SEALING, TOROIDAL POST SBE72-0212 PRE SBE72-0662	ap-au	1
154154B	5A2209	• RING,SEALING TOROIDAL POST SBE72-0662	av	1
156156	AS43013-220	• RING - SEALING, TOROIDAL U1653 POST SBE70-0202	am-au	1
158158	AS43013-221	• RING - SEALING, TOROIDAL U1653 POST SBE70-0202	am-au	1

160160	4W0164	• BOLT OPTION - .250 DIA X .625	aa-au	4
165165	AS43013-220	• RING - SEALING, TOROIDAL U1653 PRE SBE70-0202	aa-al	1
170170	AS43013-221	• RING - SEALING, TOROIDAL U1653 PRE SBE70-0202	aa-al	1

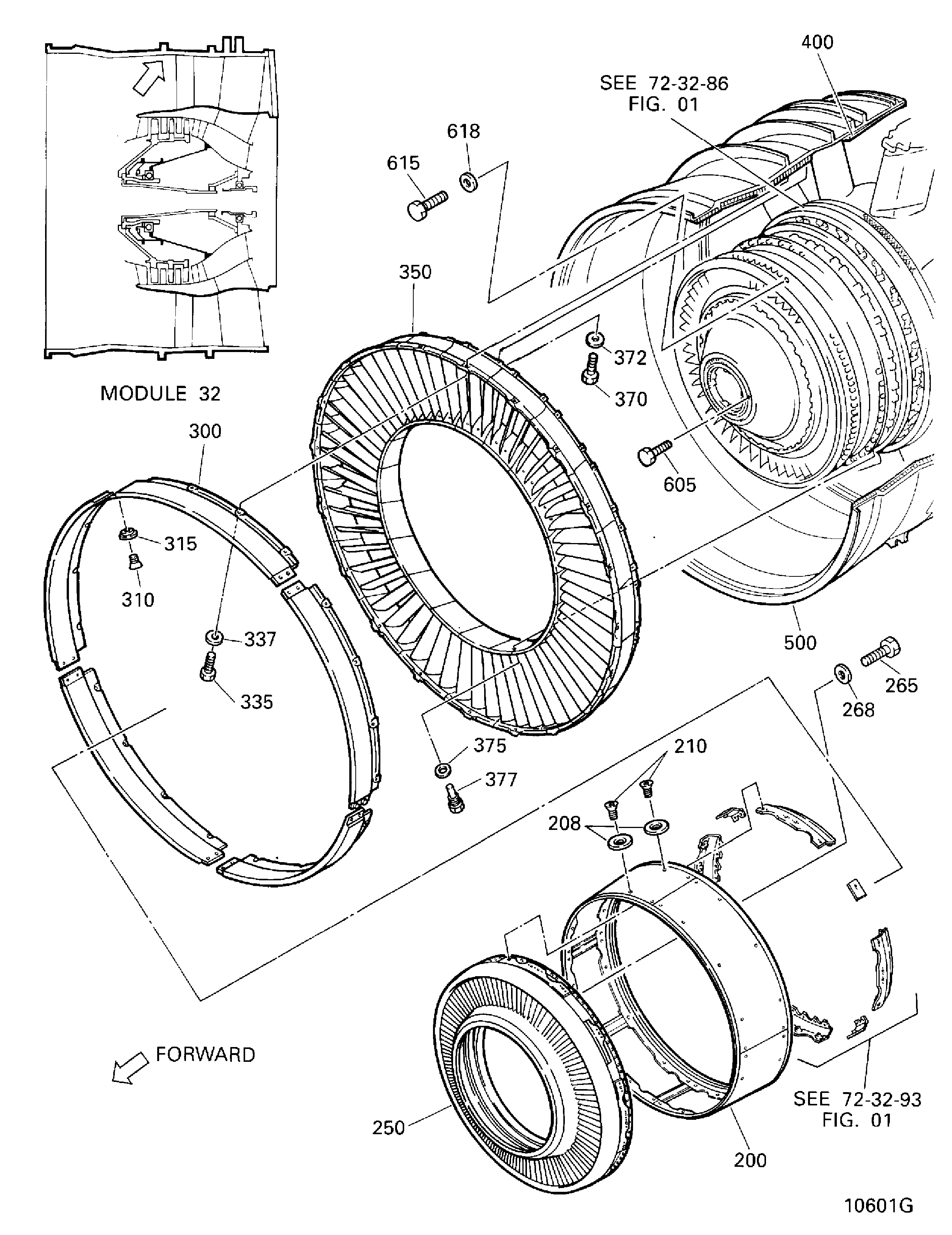

-200200	72-32-93	• FAIRING - FRONT INTERM STRUCT 0JAEC	aa-au	REF

208208	NAS1169C416L	• WASHER - DIMPLE 80205 PRE SBE72-0136	aa-au	40
208208A	NAS1169C416L	• WASHER - DIMPLE 80205 POST SBE72-0136	aa-au	40
210210	4W2386	• SCREW - 0.250 DIA X 0.625	aa-au	40

-250250	72-32-91	• VANE- ASSY INLET GUIDE 0JAEC	aa-au	REF
265265	4W0108	• BOLT, MACHINE DOUBLE HEX - .190 DIA X .812 Optional Part 4W0108 POST SBE70-0202	am-au	12
268268	4W2621	• WASHER Optional Part 4W2621 POST SBE70-0202	am-au	12

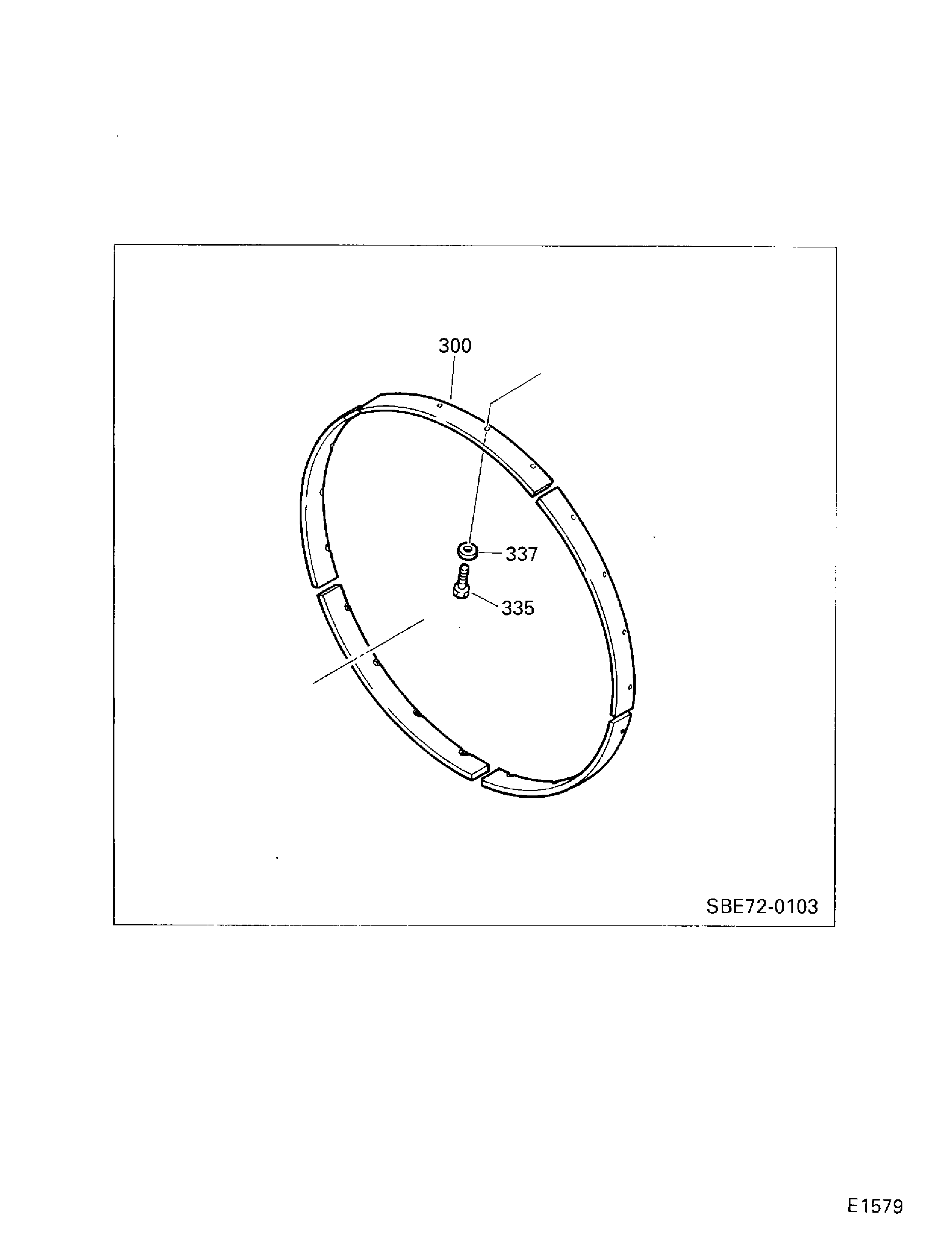

-300300	72-32-89	FAIRINGS PANEL FAN CASE 0JAEC	aa-au	REF

310310	5R0002	• SCREW PRE SBE72-0103	aa-ag	10
310310A	4W2386	• SCREW - 0.250 DIA X 0.625 POST SBE72-0103	ah-au	5
315315	5R0003	• WASHER PRE SBE72-0103	aa-ag	10
315315A	5R0003	• WASHER POST SBE72-0103	ah-au	5
335335	4W1252	• BOLT - 0.250 DIA X 1.125 PRE SBE72-0140	aa-am	20
335335A	4W1250	• BOLT - 0.250 DIA X 1.000 POST SBE72-0140	an-au	20
337337	4W2622	• WASHER OPTION	aa-au	20

-350350	72-32-88	• VANES LP COMP OUTLET GUIDE 0JAEC	aa-au	REF

370370	4W1252	• BOLT - 0.250 DIA X 1.125 PRE SBE72-0140	aa-am	40
370370A	4W1250	• BOLT - 0.250 DIA X 1.000 POST SBE72-0140	an-au	40
372372	4W2622	• WASHER OPTION	aa-au	40
375375	MS9549-12	• WASHER - FLAT 96906	aa-au	40
377377	5A4122	• BOLT PRE SBE72-0094	aa-au	40
377377A	5A0849	• BOLT POST SBE72-0094	aa-au	40

-400400	72-32-87	PANELS - FAN CASE REAR 0JAEC	aa-au	REF

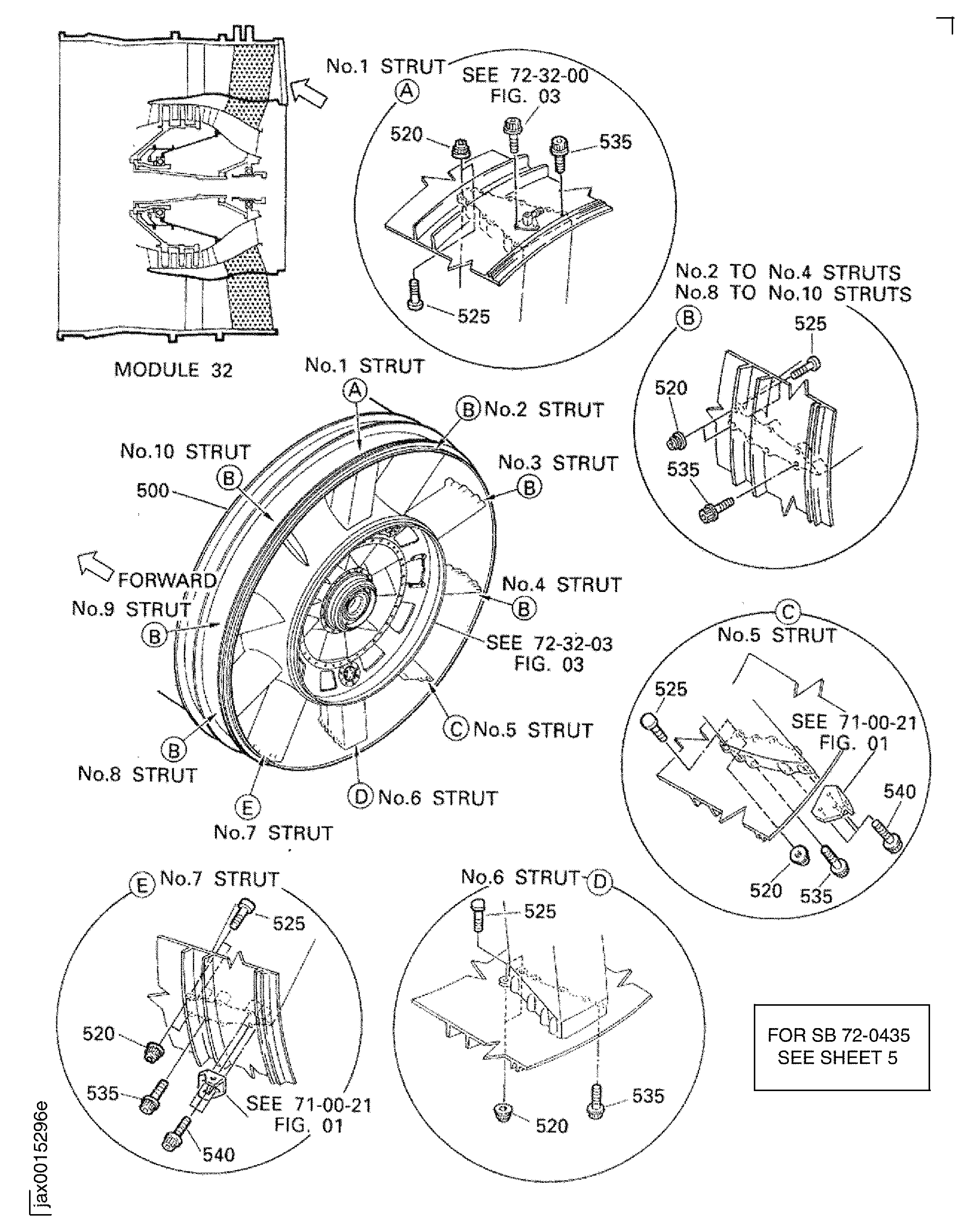

-500500	72-32-85	CASE - FAN 0JAEC	aa-au	REF

520520	AS27824	• NUT - .3125 DIA U1653	aa-au	20
525525	AS32319	• BOLT - CLOSE TOL DEE HEAD U1653	aa-au	20
535535	AS21113	• BOLT - 0.3125 DIA X 0.812 U1653 PRE SBE72-0435	aa-ar	70
535535A	AS21113	• BOLT - 0.3125 DIA X 0.812 U1653 POST SBE72-0435	as-au	68
540540	AS21117	• BOLT - 0.3125 DIA X 1.062 U1653 PRE SBN78-0001	aa	6
540540A	AS21118	• BOLT - 0.3125 DIA X 1.125 U1653 POST SBN78-0001	ab-au	6

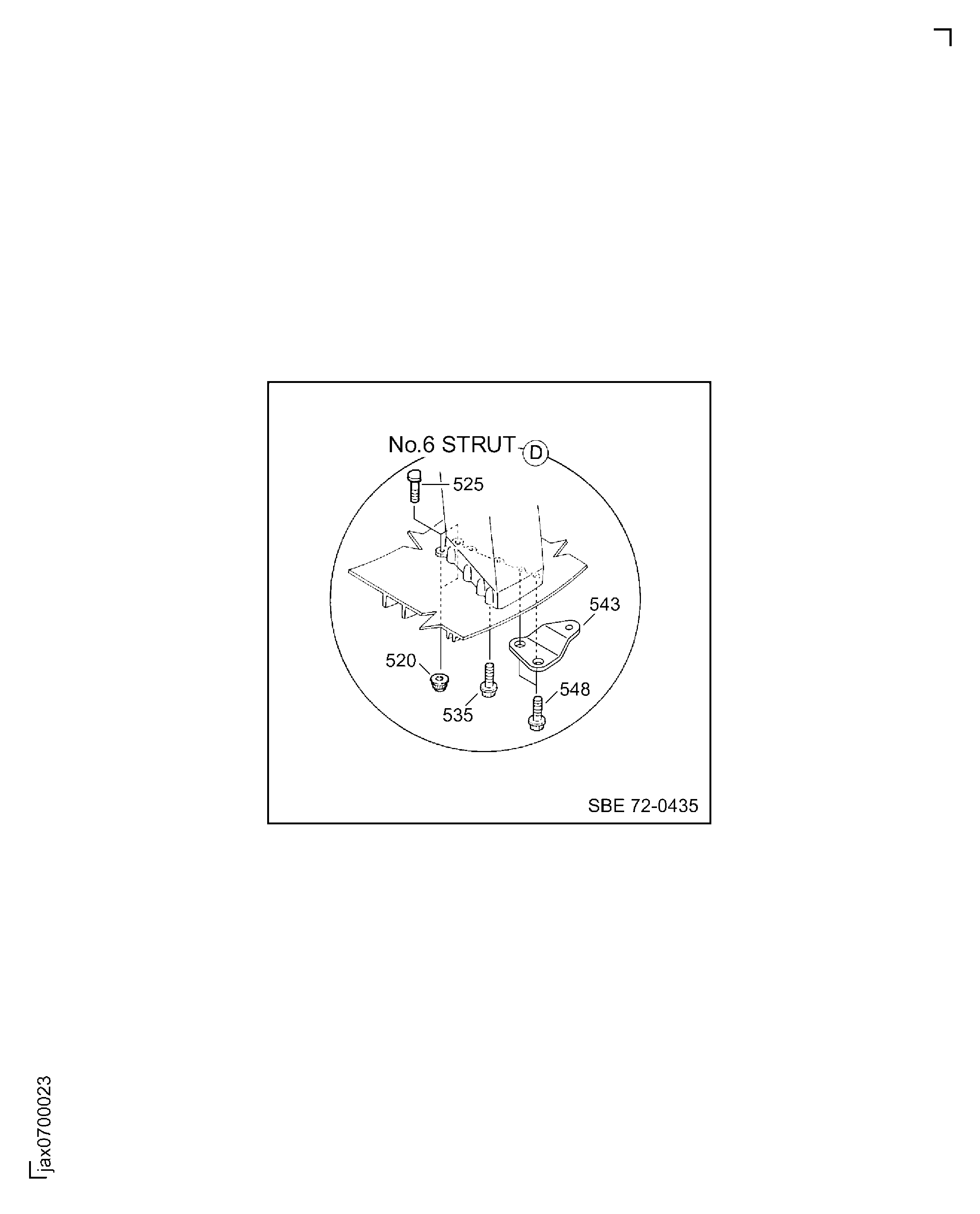

543543	5A1884	• BRACKET - ASSEMBLY OF POST SBE72-0435	as-au	1
548548	AS21118	• BOLT - 0.3125 DIA X 1.125 U1653 POST SBE72-0435	as-au	2
-600600	72-32-80	• LP COMP STG.1.5,2 & 2.5 0JAEC	aa-au	REF
605605	AS21128	• BOLT - MACHINE, DOUBLE HEXAGON U1653 POST SBE70-0202	am-au	24
615615	4W0108	• BOLT, MACHINE DOUBLE HEX - .190 DIA X .812 Optional Part 4W0108 POST SBE70-0202	am-au	26
618618	4W2621	• WASHER Optional Part 4W2621 POST SBE70-0202	am-au	26

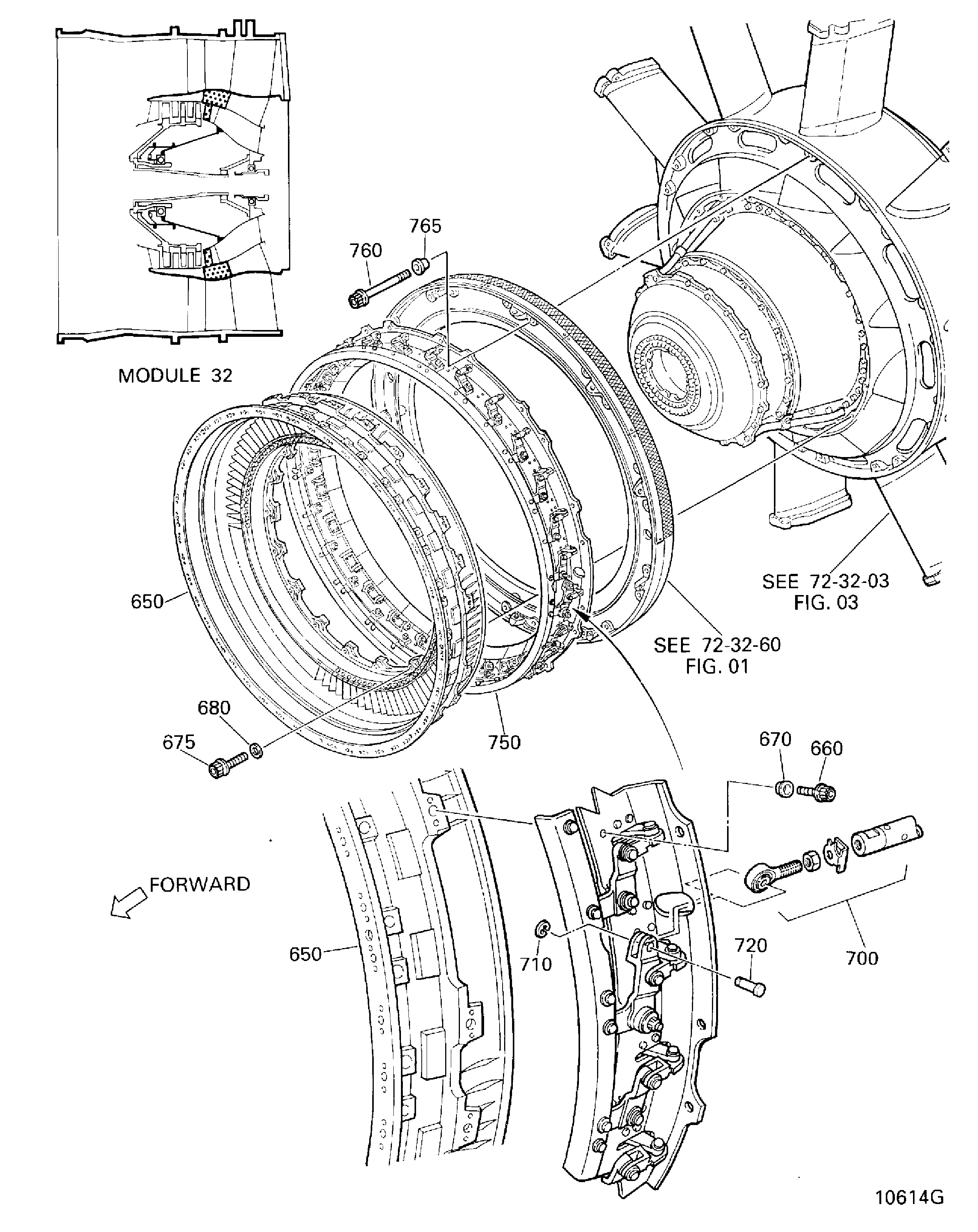

-650650	72-32-76	• LP COMP STG.2.5 VANES 0JAEC	aa-au	REF

660660	4W0167	• BOLT, MACHINE DOUBLE HEX - .250 DIA X .812	aa-au	25
670670	5A3706	• BUSHING	aa-au	25
675675	AS21518	• BOLT - 0.25 DIA X 1.125 U1653 PRE SBE72-0009	aa-ae	18
675675A	4W0171	• BOLT - 0.250 DIA X 1.062 ALT AS21517 POST SBE70-0002 PRE SBE72-0077	ac-ad	18
-675675B	AS21517	• BOLT - 0.25 DIA X 1.062 U1653 ALT 4W0171 POST SBE70-0002 PRE SBE72-0077	ac-ad	REF
675675C	4W0169	• BOLT, MACHINE DOUBLE HEX - .250 DIA X .938 POST SBE72-0077	ae-au	18
675675D	4W0169	• BOLT, MACHINE DOUBLE HEX - .250 DIA X .938 POST SBE72-0009 PRE SBE70-0002	*****	18
680680	4W2622	• WASHER OPTION	aa-au	18

-700700	72-32-75	• ROD - ASSY BLEED VALVE ACTG 0JAEC	aa-au	REF

710710	MS3215-2025	• RING - RETAINING 96906	aa-au	2
720720	5A3716	• PIN PRE SBE72-0133	aa-aj	2
720720A	5A0793	• PIN POST SBE72-0133	ak-au	2

-750750	72-32-70	• VALVE- BLEED & ACTUTR MECHNM 0JAEC	aa-au	REF

760760	4W0191	• BOLT - 0.250 DIA X 2.625 PRE SBE72-0333	aa-au	20
760760A	4W0431	• BOLT - 0.250 DIA X 2.625 POST SBE72-0333	aa-au	20
765765	5A3723	• BUSHING	aa-au	20

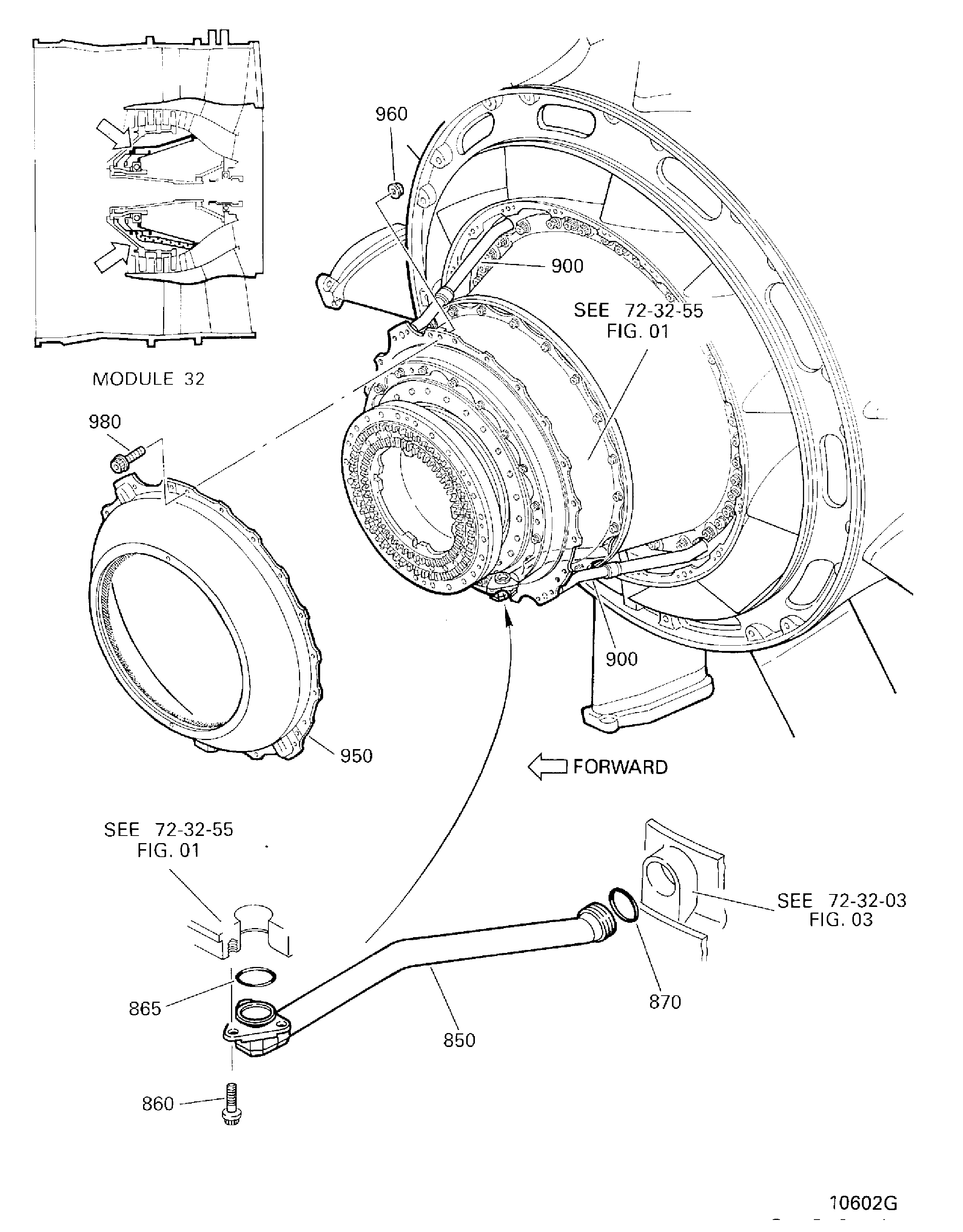

-850850	72-32-58	TUBE - OIL NO1 BRG SCAVENGE 0JAEC	aa-au	REF

860860	4W0164	• BOLT OPTION - .250 DIA X .625	aa-au	3
865865	AS43013-119	• RING - SEALING, TOROIDAL U1653 PRE SBE72-0701	aa-av	1
865865A	M83485-1-119	• O-RING 96906 POST SBE72-0701	aw	1
870870	AS43013-212	• RING U1653 PRE SBE72-0701	aa-av	1
870870A	M83485-1-212	• O-RING 96906 POST SBE72-0701	aw	1

-900900	72-32-57	TUBES - AIR NO1 BEARING 0JAEC	aa-au	REF
-950950	72-32-56	SEAL- AIR FRONT NO.1 BEARING 0JAEC	aa-au	REF

960960	4W0002	• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA PRE SBE72-0132	*****	18
980980	4W0165	• BOLT, MACHINE DOUBLE HEX - .250 DIA X .688 PRE SBE72-0132	*****	18

- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

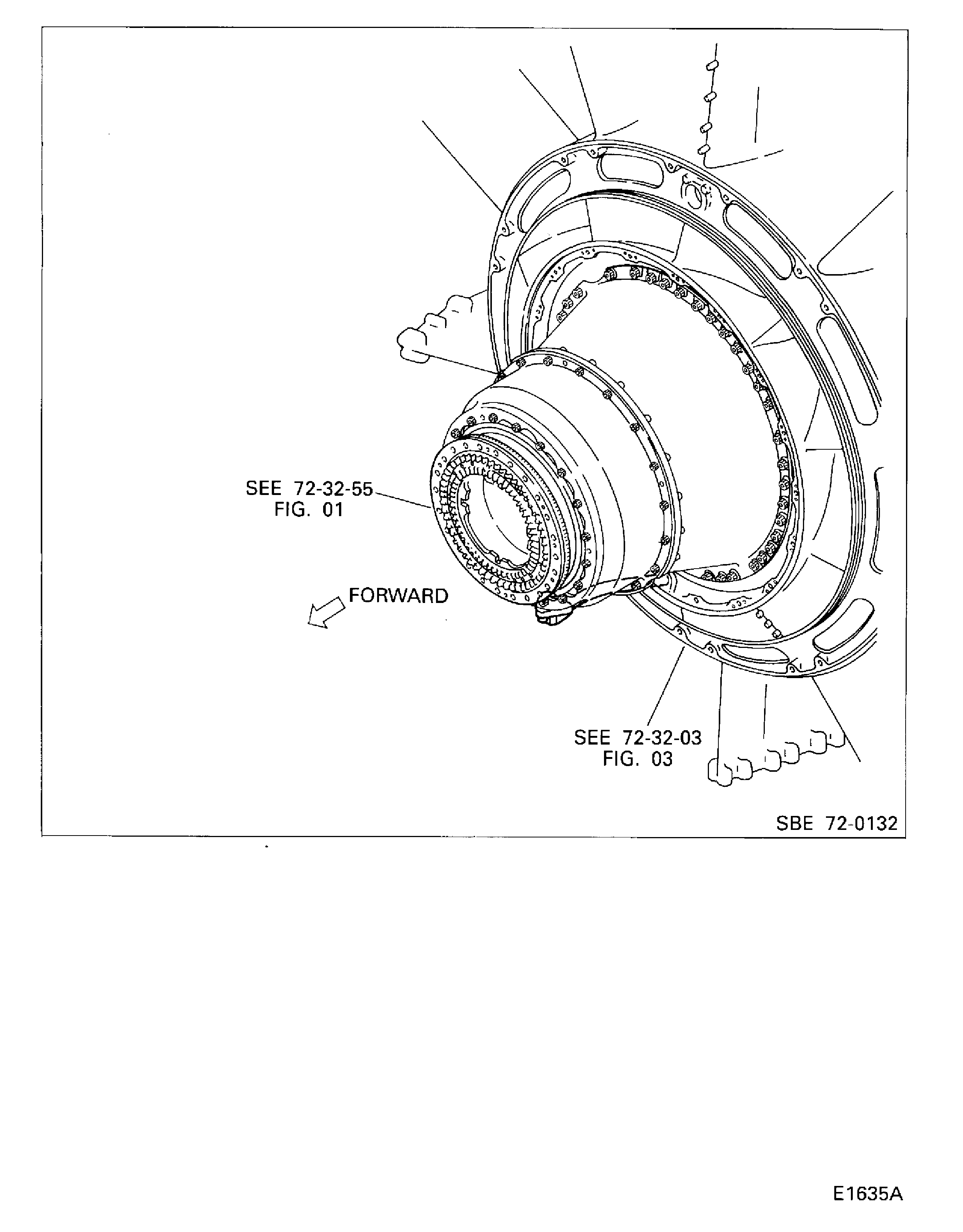

LP COMPRESSOR/INTERMEDIATE CASE MODULE

Change Type:

Incorporated SB 72-0701.

Change Type:

Added SB Reference.

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	0JAEC
Enterprise Name:	Japanese Aero Engine Corporation
BU Name:	Japanese Aero Engine Corporation
Building:	No. 30 Mori Building
Street:	2-2, 3-Chome
City:	Toranomon
State:	Minato-Ku
Zip Code:	Tokyo 105
Country:	Japan

Manufacturer Code:	80205
Enterprise Name:	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES ASSO OF AMERICAN, INC
BU Name:	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES ASSO OF AMERICAN, INC
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

Manufacturer Code:	96906
Enterprise Name:	MILITARY STANDARDS MANUAL 4120 3-M
BU Name:	MILITARY STANDARDS MANUAL 4120 3-M
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

Manufacturer Code:	U1653
Enterprise Name:	Society Of British Aerospace Companies, LTD.

Part Number:

4W0002

Part Name:

NUT, SELF LOCKING DBL HEX - .250 DIA

Manufacturer Code:

0AM53

Optional Parts

Part Number	Part Name	Manufacturer
AS20625	NUT, SELF LOCKING, BIHEX, .250 DIA	U1653

Part Number:

4W0108

Part Name:

BOLT - .190 DIA X .812

Manufacturer Code:

0AM53

Optional Parts

Part Number	Part Name	Manufacturer
AS21413	BOLT - 0.190 DIA X 0.812	U1653

Part Number:

4W0164

Part Name:

BOLT - .250 DIA X .625

Manufacturer Code:

0AM53

Optional Parts

Part Number	Part Name	Manufacturer
AS21510	BOLT - .250 DIA X .625	U1653

Part Number:

4W0165

Part Name:

BOLT, MACHINE DOUBLE HEX - .250 DIA X .688

Manufacturer Code:

0AM53

Optional Parts

Part Number	Part Name	Manufacturer
AS21511	BOLT- MACHINE DOUBLE HEX, .250 DIA X .688	U1653

Part Number:	4W0167
Part Name:	BOLT, MACHINE DOUBLE HEX - .250 DIA X .812
Manufacturer Code:	0AM53

Part Number:	4W0168
Part Name:	BOLT, MACHINE DOUBLE HEX - .250 DIA X .875
Manufacturer Code:	0AM53

Part Number:	4W0169
Part Name:	BOLT, MACHINE DOUBLE HEX - .250 DIA X .938
Manufacturer Code:	0AM53

Part Number:	4W0171
Part Name:	BOLT, MACHINE DOUBLE HEX - .250 DIA X 1.062
Manufacturer Code:	0AM53

Part Number:	4W0174
Part Name:	BOLT - 0.250 DIA X 10.250
Manufacturer Code:	0AM53

Part Number:	4W0191
Part Name:	BOLT - 0.250 DIA X 2.625
Manufacturer Code:	0AM53

Part Number:	4W0431
Part Name:	BOLT - 0.250 DIA X 2.625
Manufacturer Code:	0AM53

Part Number:	4W1250
Part Name:	BOLT - 0.250 DIA X 1.000
Manufacturer Code:	0AM53

Part Number:	4W1252
Part Name:	BOLT - 0.250 DIA X 1.125
Manufacturer Code:	0AM53

Part Number:	4W2386
Part Name:	SCREW - 0.250 DIA X 0.625
Manufacturer Code:	0AM53

Part Number:

4W2621

Part Name:

WASHER

Manufacturer Code:

0AM53

Optional Parts

Part Number	Part Name	Manufacturer
AS12943	WASHER - FLAT	U1653

Part Number:

4W2622

Part Name:

WASHER OPTION

Manufacturer Code:

0AM53

Optional Parts

Part Number	Part Name	Manufacturer
5T0012	WASHER	0AM53

Part Number:	5A0793
Part Name:	PIN
Manufacturer Code:	0AM53

Part Number:	5A0849
Part Name:	BOLT
Manufacturer Code:	0AM53

Part Number:	5A1641
Part Name:	RING - SEALING, TOROIDAL
Manufacturer Code:	0AM53

Part Number:	5A1884
Part Name:	BRACKET - ASSEMBLY OF
Manufacturer Code:	0AM53

Part Number:	5A2138
Part Name:	RING - SEAL TRAPEZOIDAL
Manufacturer Code:	0AM53

Part Number:	5A2209
Part Name:	RING,SEALING TOROIDAL
Manufacturer Code:	0AM53
Unit Of Issue:	EA

Part Number:	5A3706
Part Name:	BUSHING
Manufacturer Code:	0AM53

Part Number:	5A3716
Part Name:	PIN
Manufacturer Code:	0AM53

Part Number:	5A3723
Part Name:	BUSHING
Manufacturer Code:	0AM53

Part Number:	5A4122
Part Name:	BOLT
Manufacturer Code:	0AM53

Part Number:	5R0002
Part Name:	SCREW
Manufacturer Code:	0AM53

Part Number:	5R0003
Part Name:	WASHER
Manufacturer Code:	0AM53

Part Number:

5T0012

Part Name:

WASHER

Manufacturer Code:

0AM53

Optional Parts

Part Number	Part Name	Manufacturer
4W2622	WASHER OPTION	0AM53

Part Number:	5W0016
Part Name:	LPC - INTERMEDIATE CASE, ASSEMBLY OF
Manufacturer Code:	0AM53

Part Number:	5W0102
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0127
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0142
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0153
Part Name:	CASE - LPC INTERMEDIATE, ASSEMBLY OF
Manufacturer Code:	0AM53

Part Number:	5W0156
Part Name:	MODULE - LPC, INTERMEDIATE CASE
Manufacturer Code:	0AM53

Part Number:	5W0160
Part Name:	MODULE - LPC, INTERMEDIATE CASE
Manufacturer Code:	0AM53

Part Number:	5W0161
Part Name:	CASE
Manufacturer Code:	0AM53

Part Number:	5W0162
Part Name:	MODULE - LPC, INTERMEDIATE CASE
Manufacturer Code:	0AM53

Part Number:	5W0163
Part Name:	MODULE - LPC, INTERMEDIATE CASE
Manufacturer Code:	0AM53

Part Number:	5W0164
Part Name:	MODULE - LPC, INTERMEDIATE CASE
Manufacturer Code:	0AM53

Part Number:	5W0165
Part Name:	MODULE - LPC, INTERMEDIATE CASE
Manufacturer Code:	0AM53

Part Number:	5W0175
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0176
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0177
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0178
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0179
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0180
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0227
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0229
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0230
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0231
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0232
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0233
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0234
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0235
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0236
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0237
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0238
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0239
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0240
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0241
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0242
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0243
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0255
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0273
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0274
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0275
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0276
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0277
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0278
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0279
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0280
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0281
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0282
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0283
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0284
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0285
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0286
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0287
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0288
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0289
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0290
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0291
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0292
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0293
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0294
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0295
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0296
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0297
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0298
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0299
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0300
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0301
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0302
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0303
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0304
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	5W0305
Part Name:	LPC - INTERMEDIATE CASE, MODULE
Manufacturer Code:	0AM53

Part Number:	72-32-56
Part Name:	SEAL- AIR FRONT NO.1 BEARING
Manufacturer Code:	0JAEC

Part Number:	72-32-57
Part Name:	TUBES - AIR NO1 BEARING
Manufacturer Code:	0JAEC

Part Number:	72-32-58
Part Name:	TUBE - OIL NO1 BRG SCAVENGE
Manufacturer Code:	0JAEC

Part Number:	72-32-70
Part Name:	VALVE- BLEED & ACTUTR MECHNM
Manufacturer Code:	0JAEC

Part Number:	72-32-80
Part Name:	LP COMP STG.1.5,2 & 2.5
Manufacturer Code:	0JAEC

Part Number:	72-32-85
Part Name:	CASE - FAN
Manufacturer Code:	0JAEC

Part Number:	72-32-87
Part Name:	PANELS - FAN CASE REAR
Manufacturer Code:	0JAEC

Part Number:	72-32-88
Part Name:	VANES LP COMP OUTLET GUIDE
Manufacturer Code:	0JAEC

Part Number:	72-32-91
Part Name:	VANE- ASSY INLET GUIDE
Manufacturer Code:	0JAEC

Part Number:	72-32-93
Part Name:	FAIRING - FRONT INTERM STRUCT
Manufacturer Code:	0JAEC

Part Number:	72-32-94
Part Name:	TUBE- SEAL PTO SHAFT
Manufacturer Code:	0JAEC

Part Number:	72-32-96
Part Name:	TUBES - OIL & AIR TRANSFER
Manufacturer Code:	0JAEC

Part Number:	AS12943
Part Name:	WASHER - FLAT
Manufacturer Code:	U1653

Part Number:	AS20625
Part Name:	NUT, SELF LOCKING, BIHEX, .250 DIA
Manufacturer Code:	U1653
Unit Of Issue:	EA

Part Number:	AS21113
Part Name:	BOLT - 0.3125 DIA X 0.812
Manufacturer Code:	U1653

Part Number:	AS21117
Part Name:	BOLT,MACHINE DOUBLE HEX
Manufacturer Code:	U1653

Part Number:	AS21118
Part Name:	BOLT - 0.3125 DIA X 1.125
Manufacturer Code:	U1653

Part Number:	AS21128
Part Name:	BOLT - MACHINE, DOUBLE HEXAGON
Manufacturer Code:	U1653

Part Number:	AS21413
Part Name:	BOLT - 0.190 DIA X 0.812
Manufacturer Code:	U1653

Part Number:

AS21510

Part Name:

BOLT - .250 DIA X .625

Manufacturer Code:

U1653

Optional Parts

Part Number	Part Name	Manufacturer
MS9557-08	BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.2500 - 28 X 0.625	96906

Part Number:

AS21511

Part Name:

BOLT- MACHINE DOUBLE HEX, .250 DIA X .688

Manufacturer Code:

U1653

Optional Parts

Part Number	Part Name	Manufacturer
MS9557-09	BOLT, MACHINE DOUBLE HEX	96906

Part Number:	AS21517
Part Name:	BOLT - 0.25 DIA X 1.062
Manufacturer Code:	U1653

Part Number:	AS21518
Part Name:	BOLT - 0.25 DIA X 1.125
Manufacturer Code:	U1653

Part Number:	AS27824
Part Name:	NUT - .3125 DIA
Manufacturer Code:	U1653

Part Number:	AS32319
Part Name:	BOLT - CLOSE TOL DEE HEAD
Manufacturer Code:	U1653

Part Number:	AS43013-119
Part Name:	RING - SEALING, TOROIDAL
Manufacturer Code:	U1653

Part Number:	AS43013-124
Part Name:	RING, SEALING TOROIDAL
Manufacturer Code:	U1653
Unit Of Issue:	EA

Part Number:	AS43013-212
Part Name:	RING
Manufacturer Code:	U1653

Part Number:	AS43013-220
Part Name:	RING - SEALING, TOROIDAL
Manufacturer Code:	U1653

Part Number:	AS43013-221
Part Name:	RING - SEALING, TOROIDAL
Manufacturer Code:	U1653

Part Number:	M83485-1-119
Part Name:	O-RING
Manufacturer Code:	96906

Part Number:	M83485-1-212
Part Name:	O-RING
Manufacturer Code:	96906

Part Number:	MS3215-2025
Part Name:	RING - RETAINING
Manufacturer Code:	96906

Part Number:	MS9549-12
Part Name:	WASHER - FLAT
Manufacturer Code:	96906

Part Number:

MS9557-08

Part Name:

BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.2500 - 28 X 0.625

Manufacturer Code:

96906

Unit Of Issue:

Optional Parts

Part Number	Part Name	Manufacturer
AS21010	BOLT - .250 DIA X .625	U1653
AS21510	BOLT - .250 DIA X .625	U1653

Part Number:

MS9557-09

Part Name:

BOLT, MACHINE DOUBLE HEX

Manufacturer Code:

96906

Optional Parts

Part Number	Part Name	Manufacturer
AS21511	BOLT- MACHINE DOUBLE HEX, .250 DIA X .688	U1653

Part Number:	NAS1169C416L
Part Name:	WASHER - DIMPLE
Manufacturer Code:	80205

ENGINE-LP COMP/INTERMEDIATE CASE MODULE

Export Control

Copyright

Applicability

Figure: ENGINE-LP COMP/INTERMEDIATE CASE MODULE

LP COMPRESSOR/INTERMEDIATE CASE MODULE

LP COMPRESSOR/INTERMEDIATE CASE MODULE

LP COMPRESSOR/INTERMEDIATE CASE MODULE

LP COMPRESSOR/INTERMEDIATE CASE MODULE

LP COMPRESSOR/INTERMEDIATE CASE MODULE

LP COMPRESSOR/INTERMEDIATE CASE MODULE

LP COMPRESSOR/INTERMEDIATE CASE MODULE

LP COMPRESSOR/INTERMEDIATE CASE MODULE
