| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72321001 | NO.3 BEARING INT GEARBOX & SUPPORT ASSY, PRE SBE72-0066 | aa | ||
| SBE0066-01 | NO.3 BEARING INT GEARBOX & SUPPORT ASSY, PRE SBE70-0202 | ab | ||
| SBE0202-01 | NO.3 BEARING INT GEARBOX & SUPPORT ASSY, PRE SBE70-0229 | ac | ||
| SBE0229-01 | NO.3 BEARING INT GEARBOX & SUPPORT ASSY, PRE SBE72-0553 | ad | ||
| SBE0553-01 | NO.3 BEARING INT GEARBOX & SUPPORT ASSY | ae | ||
| 001 | 5W0099 | PTO - GRBX & RTR CNTR FRNT-ASSY POST SBE72-0066 PRE SBE72-0553 | ab-ad | 1 |
| 001A | 5W0252 | GEARBOX - & RTR CNTR PTO POST SBE72-0553 | ae | 1 |
| -100 | GEAR | GEAR - ASSY DRIVEN INTL GRBOX(72-32-16) | aa-ae | REF |
| 110 | AS21011 | • BOLT - .250 DIA X .6875 U1653 | aa-ae | 8 |
| 127 | 5A5379 | • SHIM - 0.008INS (0.20 MM) | aa-ae | 1 |
| 127A | 5A5379 | • SHIM - 0.008INS (0.20 MM) POST SBE70-0229 | ad-ae | 6 |
| 128 | 5A5380 | • SHIM - 0.016INS (0.40 MM) | aa-ae | 1 |
| 128A | 5A5380 | • SHIM - 0.016INS (0.40 MM) POST SBE70-0229 | ad-ae | 6 |
| 129 | 5A5381 | • SHIM - THK .031 IN | aa-ae | 1 |
| 129A | 5A5381 | • SHIM - THK .031 IN POST SBE70-0229 | ad-ae | 6 |
| 130 | 5A5382 | • SHIM - 0.063INS (1.60 MM) | aa-ae | 1 |
| 130A | 5A5382 | • SHIM - 0.063INS (1.60 MM) POST SBE70-0229 | ad-ae | 6 |
| 132 | 5A5379 | • SHIM - 0.008INS (0.20 MM) | aa-ae | 1 |
| 132A | 5A5379 | • SHIM - 0.008INS (0.20 MM) POST SBE70-0229 | ad-ae | 6 |
| 133 | 5A5380 | • SHIM - 0.016INS (0.40 MM) | aa-ae | 1 |
| 133A | 5A5380 | • SHIM - 0.016INS (0.40 MM) POST SBE70-0229 | ad-ae | 6 |
| 134 | 5A5381 | • SHIM - THK .031 IN | aa-ae | 1 |
| 134A | 5A5381 | • SHIM - THK .031 IN POST SBE70-0229 | ad-ae | 6 |
| 135 | 5A5382 | • SHIM - 0.063INS (1.60 MM) | aa-ae | 1 |
| 135A | 5A5382 | • SHIM - 0.063INS (1.60 MM) POST SBE70-0229 | ad-ae | 6 |
| 136 | 5A1917 | • SHIM POST SBE72-0553 | ae | 6 |
| 137 | 5A5379 | • SHIM - 0.008INS (0.20 MM) | aa-ae | 1 |
| 137A | 5A5379 | • SHIM - 0.008INS (0.20 MM) POST SBE70-0229 PRE SBE72-0553 | ad | 6 |
| 137B | 5A1918 | • SHIM POST SBE72-0553 | ae | 6 |
| 138 | 5A5380 | • SHIM - 0.016INS (0.40 MM) | aa-ae | 1 |
| 138A | 5A5380 | • SHIM - 0.016INS (0.40 MM) POST SBE70-0229 PRE SBE72-0553 | ad | 6 |
| 138B | 5A1919 | • SHIM POST SBE72-0553 | ae | 6 |
| 139 | 5A5381 | • SHIM - THK .031 IN | aa-ae | 1 |
| 139A | 5A5381 | • SHIM - THK .031 IN POST SBE70-0229 PRE SBE72-0553 | ad | 6 |
| 139B | 5A1920 | • SHIM POST SBE72-0553 | ae | 6 |
| 140 | 5A5382 | • SHIM - 0.063INS (1.60 MM) | aa-ae | 1 |
| 140A | 5A5382 | • SHIM - 0.063INS (1.60 MM) POST SBE70-0229 PRE SBE72-0553 | ad | 6 |
| 140B | 5A1921 | • SHIM POST SBE72-0553 | ae | 6 |
| 141 | 5A1922 | • SHIM POST SBE72-0553 | ae | 6 |
| 142 | 5A5379 | • SHIM - 0.008INS (0.20 MM) | aa-ae | 1 |
| 142A | 5A5379 | • SHIM - 0.008INS (0.20 MM) POST SBE70-0229 | ad-ae | 6 |
| 143 | 5A5380 | • SHIM - 0.016INS (0.40 MM) | aa-ae | 1 |
| 143A | 5A5380 | • SHIM - 0.016INS (0.40 MM) POST SBE70-0229 | ad-ae | 6 |
| 144 | 5A5381 | • SHIM - THK .031 IN | aa-ae | 1 |
| 144A | 5A5381 | • SHIM - THK .031 IN POST SBE70-0229 | ad-ae | 6 |
| 145 | 5A5382 | • SHIM - 0.063INS (1.60 MM) | aa-ae | 1 |
| 145A | 5A5382 | • SHIM - 0.063INS (1.60 MM) POST SBE70-0229 | ad-ae | 6 |
| -150 | 72-32-18 | • PROBE - FAN SPEED/TRIM BAL | aa-ae | REF |
| 160 | 4W0001 | • NUT - .190 DIA | aa-ae | 4 |
| 170 | 4W0001 | • NUT - .190 DIA | aa-ae | 4 |
| 200 | AS43013-016 | • RING - SEALING TOROIDAL U1653 POST SBE70-0202 | ac-ae | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

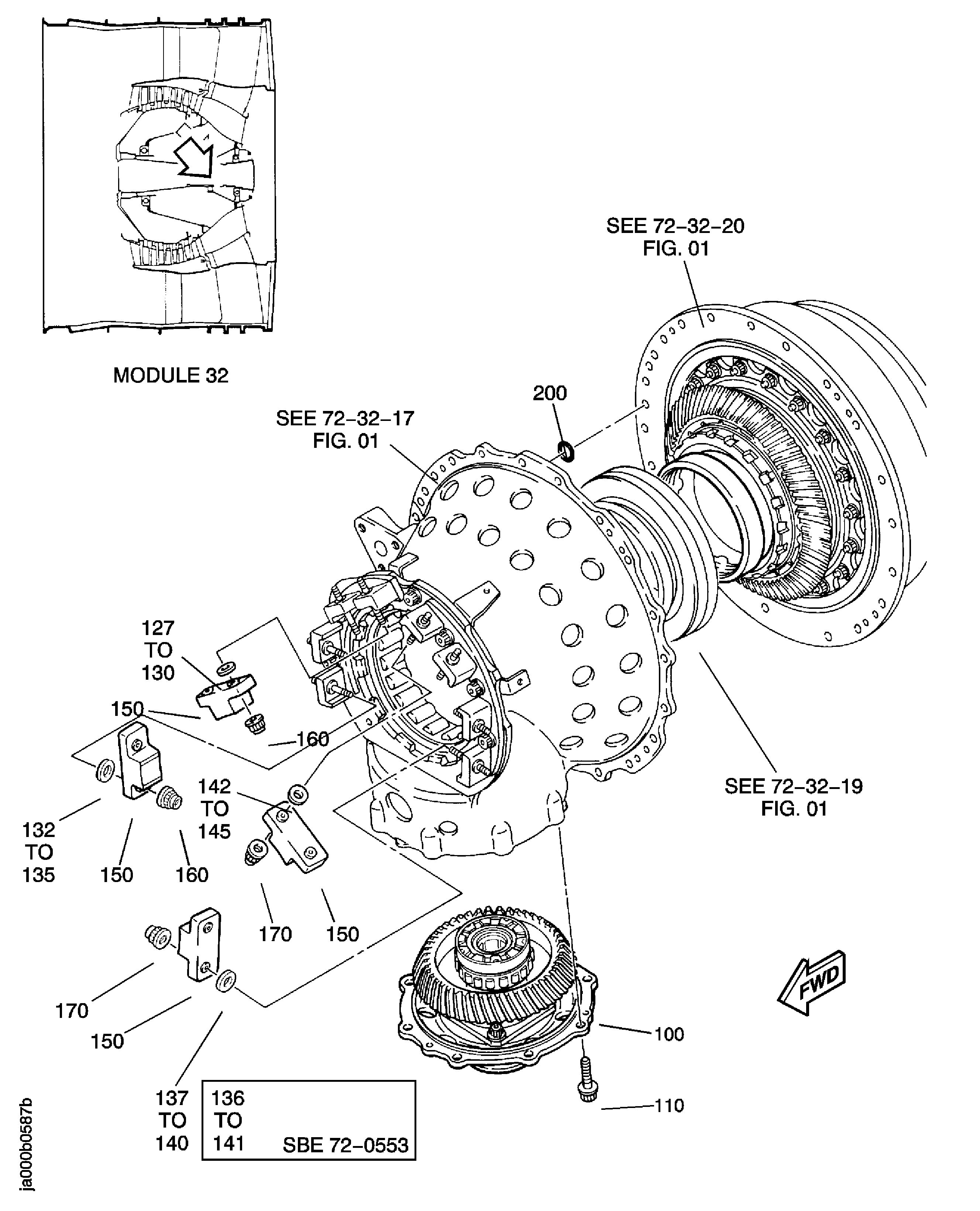

Figure: NO.3 BEARING INT GEARBOX & SUPPORT ASSY
NO.3 BEARING INTERNAL GEARBOX AND SUPPORT ASSEMBLY
