DMC:V2500-A1-72-32-16-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72321601 | ENGINE-INTERNAL GEARBOX DRIVEN GEAR ASSEMBLY, PRE SBE70-0120 | aa | ||
| SBE0120-01 | ENGINE-INTERNAL GEARBOX DRIVEN GEAR ASSEMBLY, PRE SBE70-0180 | ab | ||
| SBE0180-01 | ENGINE-INTERNAL GEARBOX DRIVEN GEAR ASSEMBLY, PRE SBE70-0282 | ac | ||
| SBE0282-01 | ENGINE-INTERNAL GEARBOX DRIVEN GEAR ASSEMBLY | ad | ||
| 100 | 5A0776 | • RING - SEAL | aa-ad | 1 |
| 150 | 5A6234 | • HOUSING - A/O GEARSHAFT BRG PRE SBE70-0180 | aa-ad | 1 |
| 150A | 5A0982 | • HOUSING - A/O GEARSHAFT BRG POST SBE70-0180 | aa-ad | 1 |
| 170 | 5A0778 | • PLATE PRE SBE70-0282 | aa-ad | 1 |
| 170A | 5A1600 | • PLATE POST SBE70-0282 | aa-ad | 1 |
| 180 | AS21010 | • BOLT - .250 DIA X .625 U1653 | aa-ad | 4 |
| 220 | AGS3732 | • • INSERT - SCREW THREAD, .250 DIA X 1.5D U1653 | aa-ad | 4 |
| 240 | 5A6231 | • BEARING - ROLLER OUTER PRE SBE70-0120 | aa-ad | 1 |
| 240A | 5A6231 | • BEARING - ROLLER OUTER ALT 5A0288 POST SBE70-0120 | aa-ad | 1 |
| -240B | 5A0288 | • BEARING - ROLLER OUTER ALT 5A6231 POST SBE70-0120 | aa-ad | REF |
| 300 | 5A6228 | • BEARING - ROLLER INNER PRE SBE70-0120 | aa-ad | 1 |
| 300A | 5A6228 | • BEARING - ROLLER INNER ALT 5A0284 POST SBE70-0120 | aa-ad | 1 |
| -300B | 5A0284 | • BEARING - ROLLER INNER ALT 5A6228 POST SBE70-0120 | aa-ad | REF |
| 320 | 5A0740 | • NUT - 1.9375-20UNJ | aa-ad | 1 |
| 330 | 5A0742 | • WASHER | aa-ad | 1 |
| 390 | RR318 | • RING - RETAINING INT 80756 | aa-ad | 1 |
| 400 | 5A6229 | • BEARING - ROLLER OUTER PRE SBE70-0120 | aa-ad | 1 |
| 400A | 5A6229 | • BEARING - ROLLER OUTER ALT 5A0285 POST SBE70-0120 | aa-ad | 1 |
| -400B | 5A0285 | • BEARING - ROLLER OUTER ALT 5A6229 POST SBE70-0120 | aa-ad | REF |
| 450 | 5A0775 | • DISTRBTR | aa-ad | 1 |
| 460 | RR137 | • RING - RETAINING INT 80756 | aa-ad | 1 |
| 500 | 5A6230 | • BEARING - ROLLER INNER PRE SBE70-0120 | aa-ad | 1 |
| 500A | 5A6230 | • BEARING - ROLLER INNER ALT 5A0287 POST SBE70-0120 | aa-ad | 1 |
| -500B | 5A0287 | • BEARING - ROLLER INNER ALT 5A6230 POST SBE70-0120 | aa-ad | REF |
| 520 | 5A0741 | • NUT - 1.7500-20UNJ | aa-ad | 1 |
| 530 | 5A0743 | • WASHER | aa-ad | 1 |
| 600 | 5A6221 | • BEARING - BALL PRE SBE70-0120 | aa-ad | 1 |
| 600A | 5A6221 | • BEARING - BALL ALT 5A0286 POST SBE70-0120 | aa-ad | 1 |
| -600B | 5A0286 | • BEARING - BALL ALT 5A6221 POST SBE70-0120 | aa-ad | REF |
| 660 | 5A0744 | • WASHER - FLAT ADJUSTING, 0.169INS (4.30 MM) PRE SBE70-0282 | aa-ad | 1 |
| 660A | 5A1569 | • WASHER - FLAT ADJUSTING, 0.169INS (4.30 MM) POST SBE70-0282 | aa-ad | 1 |
| 661 | 5A0745 | • WASHER - FLAT ADJUSTING, 0.171INS (4.35 MM) PRE SBE70-0282 | aa-ad | 1 |
| 661A | 5A1570 | • WASHER - FLAT ADJUSTING, 0.171INS (4.35 MM) POST SBE70-0282 | aa-ad | 1 |
| 662 | 5A0746 | • WASHER - FLAT ADJUSTING, 0.173INS (4.40 MM) PRE SBE70-0282 | aa-ad | 1 |
| 662A | 5A1571 | • WASHER - FLAT ADJUSTING, 0.173INS (4.40 MM) POST SBE70-0282 | aa-ad | 1 |
| 663 | 5A0747 | • WASHER - FLAT ADJUSTING, 0.175INS (4.45 MM) PRE SBE70-0282 | aa-ad | 1 |
| 663A | 5A1572 | • WASHER - FLAT ADJUSTING, 0.175INS (4.45 MM) POST SBE70-0282 | aa-ad | 1 |
| 664 | 5A0748 | • WASHER - FLAT ADJUSTING, 0.177INS (4.50 MM) PRE SBE70-0282 | aa-ad | 1 |
| 664A | 5A1573 | • WASHER - FLAT ADJUSTING, 0.177INS (4.50 MM) POST SBE70-0282 | aa-ad | 1 |
| 665 | 5A0749 | • WASHER - FLAT ADJUSTING, 0.179INS (4.55 MM) PRE SBE70-0282 | aa-ad | 1 |
| 665A | 5A1574 | • WASHER - FLAT ADJUSTING, 0.179INS (4.55 MM) POST SBE70-0282 | aa-ad | 1 |
| 666 | 5A0750 | • WASHER - FLAT ADJUSTING, 0.181INS (4.60 MM) PRE SBE70-0282 | aa-ad | 1 |
| 666A | 5A1575 | • WASHER - FLAT ADJUSTING, 0.181INS (4.60 MM) POST SBE70-0282 | aa-ad | 1 |
| 667 | 5A0751 | • WASHER - FLAT ADJUSTING, 0.183INS (4.65 MM) PRE SBE70-0282 | aa-ad | 1 |
| 667A | 5A1576 | • WASHER - FLAT ADJUSTING, 0.183INS (4.65 MM) POST SBE70-0282 | aa-ad | 1 |
| 668 | 5A0752 | • WASHER - FLAT ADJUSTING, 0.185INS (4.70 MM) PRE SBE70-0282 | aa-ad | 1 |
| 668A | 5A1577 | • WASHER - FLAT ADJUSTING, 0.185INS (4.70 MM) POST SBE70-0282 | aa-ad | 1 |
| 669 | 5A0753 | • WASHER - FLAT ADJUSTING, 0.187INS (4.75 MM) PRE SBE70-0282 | aa-ad | 1 |
| 669A | 5A1578 | • WASHER - FLAT ADJUSTING, 0.187INS (4.75 MM) POST SBE70-0282 | aa-ad | 1 |
| 670 | 5A0754 | • WASHER - FLAT ADJUSTING, 0.189INS (4.80 MM) PRE SBE70-0282 | aa-ad | 1 |
| 670A | 5A1579 | • WASHER - FLAT ADJUSTING, 0.189INS (4.80 MM) POST SBE70-0282 | aa-ad | 1 |
| 671 | 5A0755 | • WASHER - FLAT ADJUSTING, 0.191INS (4.85 MM) PRE SBE70-0282 | aa-ad | 1 |
| 671A | 5A1580 | • WASHER - FLAT ADJUSTING, 0.191INS (4.85 MM) POST SBE70-0282 | aa-ad | 1 |
| 672 | 5A0756 | • WASHER - FLAT ADJUSTING, 0.193INS (4.90 MM) PRE SBE70-0282 | aa-ad | 1 |
| 672A | 5A1581 | • WASHER - FLAT ADJUSTING, 0.193INS (4.90 MM) POST SBE70-0282 | aa-ad | 1 |
| 673 | 5A0757 | • WASHER - FLAT ADJUSTING, 0.195INS (4.95 MM) PRE SBE70-0282 | aa-ad | 1 |
| 673A | 5A1582 | • WASHER - FLAT ADJUSTING, 0.195INS (4.95 MM) POST SBE70-0282 | aa-ad | 1 |
| 674 | 5A0758 | • WASHER - FLAT ADJUSTING, 0.197INS (5.00 MM) PRE SBE70-0282 | aa-ad | 1 |
| 674A | 5A1583 | • WASHER - FLAT ADJUSTING, 0.197INS (5.00 MM) POST SBE70-0282 | aa-ad | 1 |
| 675 | 5A0759 | • WASHER - FLAT ADJUSTING, 0.199INS (5.05 MM) PRE SBE70-0282 | aa-ad | 1 |
| 675A | 5A1584 | • WASHER - FLAT ADJUSTING, 0.199INS (5.05 MM) POST SBE70-0282 | aa-ad | 1 |
| 676 | 5A0760 | • WASHER - FLAT ADJUSTING, THK .201 IN PRE SBE70-0282 | aa-ad | 1 |
| 676A | 5A1585 | • WASHER - FLAT ADJUSTING, THK .201 IN POST SBE70-0282 | aa-ad | 1 |
| 677 | 5A0761 | • WASHER - FLAT ADJUSTING, 0.203INS (5.15 MM) PRE SBE70-0282 | aa-ad | 1 |
| 677A | 5A1586 | • WASHER - FLAT ADJUSTING, 0.203INS (5.15 MM) POST SBE70-0282 | aa-ad | 1 |
| 678 | 5A0762 | • WASHER - FLAT ADJUSTING, 0.205INS (5.20 MM) PRE SBE70-0282 | aa-ad | 1 |
| 678A | 5A1587 | • WASHER - FLAT ADJUSTING, 0.205INS (5.20 MM) POST SBE70-0282 | aa-ad | 1 |
| 679 | 5A0763 | • WASHER - FLAT ADJUSTING, 0.207INS (5.25 MM) PRE SBE70-0282 | aa-ad | 1 |
| 679A | 5A1588 | • WASHER - FLAT ADJUSTING, 0.207INS (5.25 MM) POST SBE70-0282 | aa-ad | 1 |
| 680 | 5A0764 | • WASHER - FLAT ADJUSTING, 0.209INS (5.30 MM) PRE SBE70-0282 | aa-ad | 1 |
| 680A | 5A1589 | • WASHER - FLAT ADJUSTING, 0.209INS (5.30 MM) POST SBE70-0282 | aa-ad | 1 |
| 681 | 5A0765 | • WASHER - FLAT ADJUSTING, 0.211INS (5.35 MM) PRE SBE70-0282 | aa-ad | 1 |
| 681A | 5A1590 | • WASHER - FLAT ADJUSTING, 0.211INS (5.35 MM) POST SBE70-0282 | aa-ad | 1 |
| 682 | 5A0766 | • WASHER - FLAT ADJUSTING, 0.213INS (5.40 MM) PRE SBE70-0282 | aa-ad | 1 |
| 682A | 5A1591 | • WASHER - FLAT ADJUSTING, 0.213INS (5.40 MM) POST SBE70-0282 | aa-ad | 1 |
| 683 | 5A0767 | • WASHER - FLAT ADJUSTING, 0.215INS (5.45 MM) PRE SBE70-0282 | aa-ad | 1 |
| 683A | 5A1592 | • WASHER - FLAT ADJUSTING, 0.215INS (5.45 MM) POST SBE70-0282 | aa-ad | 1 |
| 684 | 5A0768 | • WASHER - FLAT ADJUSTING, 0.217INS (5.50 MM) PRE SBE70-0282 | aa-ad | 1 |
| 684A | 5A1593 | • WASHER - FLAT ADJUSTING, 0.217INS (5.50 MM) POST SBE70-0282 | aa-ad | 1 |
| 685 | 5A0769 | • WASHER - FLAT ADJUSTING, 0.219INS (5.55 MM) PRE SBE70-0282 | aa-ad | 1 |
| 685A | 5A1594 | • WASHER - FLAT ADJUSTING, 0.219INS (5.55 MM) POST SBE70-0282 | aa-ad | 1 |
| 686 | 5A0770 | • WASHER - FLAT ADJUSTING, 0.221INS (5.60 MM) PRE SBE70-0282 | aa-ad | 1 |
| 686A | 5A1595 | • WASHER - FLAT ADJUSTING, 0.221INS (5.60 MM) POST SBE70-0282 | aa-ad | 1 |
| 687 | 5A0771 | • WASHER - FLAT ADJUSTING, 0.222INS (5.65 MM) PRE SBE70-0282 | aa-ad | 1 |
| 687A | 5A1596 | • WASHER - FLAT ADJUSTING, 0.222INS (5.65 MM) POST SBE70-0282 | aa-ad | 1 |
| 688 | 5A0772 | • WASHER - FLAT ADJUSTING, 0.224INS (5.70 MM) PRE SBE70-0282 | aa-ad | 1 |
| 688A | 5A1597 | • WASHER - FLAT ADJUSTING, 0.224INS (5.70 MM) POST SBE70-0282 | aa-ad | 1 |
| 689 | 5A0773 | • WASHER - FLAT ADJUSTING, 0.226INS (5.75 MM) PRE SBE70-0282 | aa-ad | 1 |
| 689A | 5A1598 | • WASHER - FLAT ADJUSTING, 0.226INS (5.75 MM) POST SBE70-0282 | aa-ad | 1 |
| 690 | 5A0774 | • WASHER - FLAT ADJUSTING, 0.228INS (5.80 MM) PRE SBE70-0282 | aa-ad | 1 |
| 690A | 5A1599 | • WASHER - FLAT ADJUSTING, 0.228INS (5.80 MM) POST SBE70-0282 | aa-ad | 1 |
| 750 | 5A6232 | • GEAR - SHAFT BEVEL PINION 56T | aa-ad | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

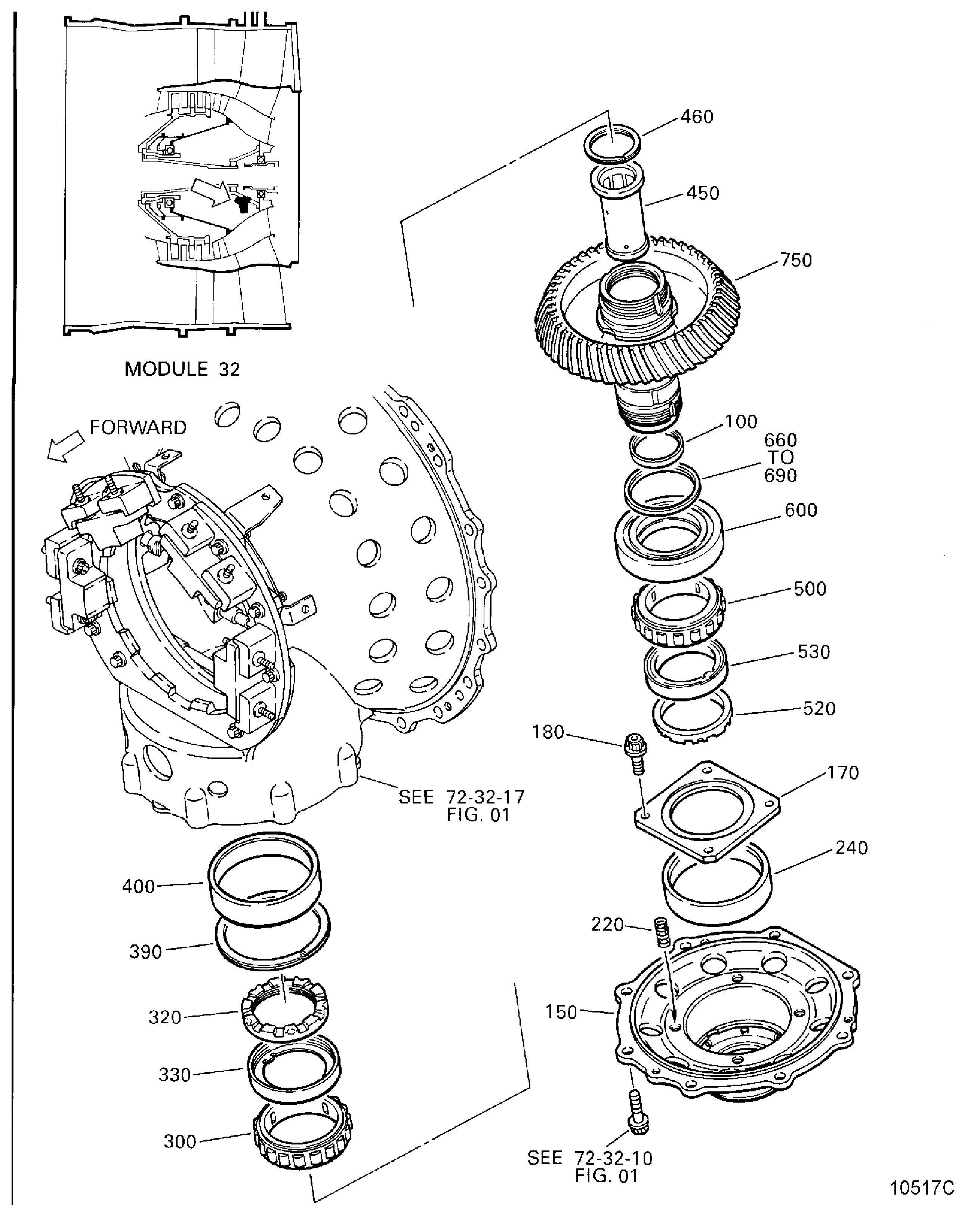

Figure: ENGINE-INTERNAL GEARBOX DRIVEN GEAR ASSEMBLY
INTERNAL GEARBOX DRIVEN GEAR ASSEMBLY
